SLIDE 1

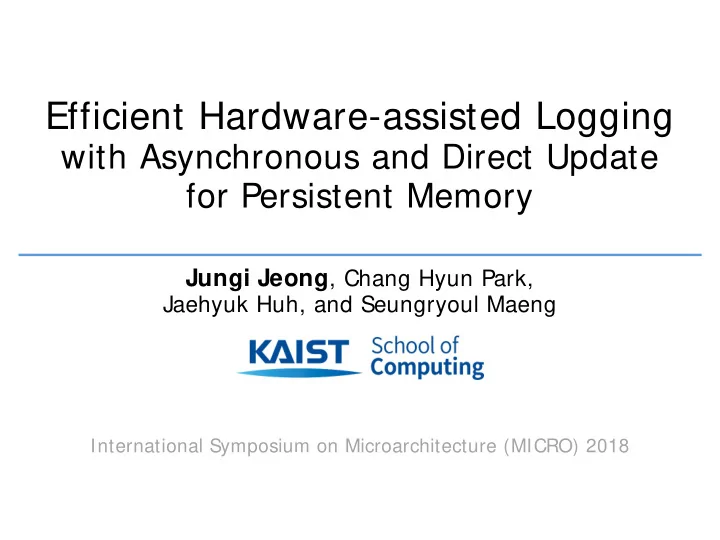

Efficient Hardware-assisted Logging

with Asynchronous and Direct Update for Persistent Memory

Jungi Jeong, Chang Hyun Park,

Jaehyuk Huh, and Seungryoul Maeng

International Symposium on Microarchitecture (MICRO) 2018

SLIDE 2

Memory- mapped

Storage-Class Memory

NVDIMMs Application

Load/Store User Space ce Kernel Space ce Devices 22

2018-10-23

NVM-aware File System

SLIDE 3

Directly attached to the app’s virtual address space
Accessible through load/store instructions
In-memory data persistency
Ex) Doubly linked-list insertion

Memory- mapped

Storage-Class Memory

NVDIMMs Application

Load/Store User Space ce Kernel Space ce Devices 23

2018-10-23

NVM-aware File System

SLIDE 4

Directly attached to the app’s virtual address space
Accessible through load/store instructions
In-memory data persistency
Ex) Doubly linked-list insertion

Memory- mapped

Storage-Class Memory

NVDIMMs Application

Load/Store User Space ce Kernel Space ce Devices 24

2018-10-23

NVM-aware File System

SLIDE 5

Directly attached to the app’s virtual address space
Accessible through load/store instructions
In-memory data persistency
Ex) Doubly linked-list insertion

Memory- mapped

Storage-Class Memory

NVDIMMs Application

Load/Store User Space ce Kernel Space ce Devices 25

2018-10-23

NVM-aware File System

A

SLIDE 6

Directly attached to the app’s virtual address space
Accessible through load/store instructions
In-memory data persistency
Ex) Doubly linked-list insertion

Memory- mapped

Storage-Class Memory

NVDIMMs Application

Load/Store User Space ce Kernel Space ce Devices 26

2018-10-23

NVM-aware File System

A C

SLIDE 7

Directly attached to the app’s virtual address space
Accessible through load/store instructions
In-memory data persistency
Ex) Doubly linked-list insertion

Memory- mapped

Storage-Class Memory

NVDIMMs Application

Load/Store User Space ce Kernel Space ce Devices 27

2018-10-23

NVM-aware File System

A C B

SLIDE 8

Directly attached to the app’s virtual address space
Accessible through load/store instructions
In-memory data persistency
Ex) Doubly linked-list insertion

Memory- mapped

Storage-Class Memory

NVDIMMs Application

Load/Store User Space ce Kernel Space ce Devices 28

2018-10-23

NVM-aware File System

A C B

SLIDE 9

Directly attached to the app’s virtual address space
Accessible through load/store instructions
In-memory data persistency
Ex) Doubly linked-list insertion

Memory- mapped

Storage-Class Memory

NVDIMMs Application

Load/Store User Space ce Kernel Space ce Devices 29

2018-10-23

NVM-aware File System

A C B

SLIDE 10

Directly attached to the app’s virtual address space
Accessible through load/store instructions
In-memory data persistency
Ex) Doubly linked-list insertion

Memory- mapped

Storage-Class Memory

NVDIMMs Application

Load/Store User Space ce Kernel Space ce Devices 30

2018-10-23

NVM-aware File System

A C B

store B-> next= C store B-> prev= A store A-> next= B store C-> prev= B

SLIDE 11

Directly attached to the app’s virtual address space
Accessible through load/store instructions
In-memory data persistency
Ex) Doubly linked-list insertion

Memory- mapped

Storage-Class Memory

NVDIMMs Application

Load/Store User Space ce Kernel Space ce Devices 31

2018-10-23

NVM-aware File System

A C B

store B-> next= C store B-> prev= A store A-> next= B store C-> prev= B

SLIDE 12

Directly attached to the app’s virtual address space
Accessible through load/store instructions
In-memory data persistency
Ex) Doubly linked-list insertion

Memory- mapped

Storage-Class Memory

NVDIMMs Application

Load/Store User Space ce Kernel Space ce Devices 32

2018-10-23

NVM-aware File System

A C B

store B-> next= C store B-> prev= A store A-> next= B store C-> prev= B

SLIDE 13

Directly attached to the app’s virtual address space
Accessible through load/store instructions
In-memory data persistency
Ex) Doubly linked-list insertion

Memory- mapped

Storage-Class Memory

NVDIMMs Application

Load/Store User Space ce Kernel Space ce Devices 33

2018-10-23

NVM-aware File System

A C B

store B-> next= C store B-> prev= A store A-> next= B store C-> prev= B

SLIDE 14

Directly attached to the app’s virtual address space
Accessible through load/store instructions
In-memory data persistency
Ex) Doubly linked-list insertion

Memory- mapped

Storage-Class Memory

NVDIMMs Application

Load/Store User Space ce Kernel Space ce Devices 34

2018-10-23

NVM-aware File System

A C B

store B-> next= C store B-> prev= A store A-> next= B store C-> prev= B

SLIDE 15

Directly attached to the app’s virtual address space
Accessible through load/store instructions
In-memory data persistency
Ex) Doubly linked-list insertion

Memory- mapped

Storage-Class Memory

NVDIMMs Application

Load/Store User Space ce Kernel Space ce Devices 35

2018-10-23

NVM-aware File System

A C B

store B-> next= C store B-> prev= A store A-> next= B store C-> prev= B

SLIDE 16

Directly attached to the app’s virtual address space
Accessible through load/store instructions
In-memory data persistency
Ex) Doubly linked-list insertion

Memory- mapped

Storage-Class Memory

NVDIMMs Application

Load/Store User Space ce Kernel Space ce Devices 36

2018-10-23

NVM-aware File System

A C B

store B-> next= C store B-> prev= A store A-> next= B store C-> prev= B

SLIDE 17

Directly attached to the app’s virtual address space
Accessible through load/store instructions
In-memory data persistency
Ex) Doubly linked-list insertion

Memory- mapped

Storage-Class Memory

NVDIMMs Application

Load/Store User Space ce Kernel Space ce Devices 37

2018-10-23

NVM-aware File System

A C B

store B-> next= C store B-> prev= A store A-> next= B store C-> prev= B

SLIDE 18

Directly attached to the app’s virtual address space
Accessible through load/store instructions
In-memory data persistency
Ex) Doubly linked-list insertion

Memory- mapped

Storage-Class Memory

NVDIMMs Application

Load/Store User Space ce Kernel Space ce Devices 38

2018-10-23

NVM-aware File System

A C B

store B-> next= C store B-> prev= A store A-> next= B store C-> prev= B

SLIDE 19

Directly attached to the app’s virtual address space
Accessible through load/store instructions
In-memory data persistency
Ex) Doubly linked-list insertion

Memory- mapped

Storage-Class Memory

NVDIMMs Application

Load/Store User Space ce Kernel Space ce Devices 39

2018-10-23

NVM-aware File System

A C B

store B-> next= C store B-> prev= A store A-> next= B store C-> prev= B

SLIDE 20

Directly attached to the app’s virtual address space
Accessible through load/store instructions
In-memory data persistency
Ex) Doubly linked-list insertion

Memory- mapped

Storage-Class Memory

NVDIMMs Application

Load/Store User Space ce Kernel Space ce Devices 40

2018-10-23

NVM-aware File System

A C B

store B-> next= C store B-> prev= A store A-> next= B store C-> prev= B

SLIDE 21

Directly attached to the app’s virtual address space
Accessible through load/store instructions
In-memory data persistency
Ex) Doubly linked-list insertion

Memory- mapped

Storage-Class Memory

NVDIMMs Application

Load/Store User Space ce Kernel Space ce Devices 41

2018-10-23

NVM-aware File System

A C B

store B-> next= C store B-> prev= A store A-> next= B store C-> prev= B

SLIDE 22

Directly attached to the app’s virtual address space
Accessible through load/store instructions
In-memory data persistency
Ex) Doubly linked-list insertion

Memory- mapped

Storage-Class Memory

NVDIMMs Application

Load/Store User Space ce Kernel Space ce Devices 42

2018-10-23

NVM-aware File System

A C B

store B-> next= C store B-> prev= A store A-> next= B store C-> prev= B

New requirement: Supporting Crash-Consistency of NVM stores

SLIDE 23

Atomic Durability through Logging

43

2018-10-23

SLIDE 24

Transaction
All stores in a transaction become durable all together or nothing
Ex) Atomic durability in software

Atomic Durability through Logging

44

2018-10-23

SLIDE 25

Transaction
All stores in a transaction become durable all together or nothing
Ex) Atomic durability in software

Atomic Durability through Logging

45

2018-10-23

Durability with

cache-flush

store B-> next= C store B-> prev= A store A-> next= B store C-> prev= B

SLIDE 26

Transaction
All stores in a transaction become durable all together or nothing
Ex) Atomic durability in software

Atomic Durability through Logging

46

2018-10-23

Durability with

cache-flush

Atomicity and ordering with

write-ahead logging

store B-> next= C store B-> prev= A store A-> next= B store C-> prev= B

SLIDE 27

Transaction
All stores in a transaction become durable all together or nothing
Ex) Atomic durability in software

Atomic Durability through Logging

47

2018-10-23

Durability with

cache-flush

Atomicity and ordering with

write-ahead logging

store B-> next= C store B-> prev= A store A-> next= B store C-> prev= B

SLIDE 28

Transaction
All stores in a transaction become durable all together or nothing
Ex) Atomic durability in software

Atomic Durability through Logging

48

2018-10-23

Durability with

cache-flush

Atomicity and ordering with

write-ahead logging

store B-> next= C store B-> prev= A store A-> next= B store C-> prev= B store B-> next= C store B-> prev= A store A-> next= B store C-> prev= B

cache-flush

SLIDE 29

Transaction
All stores in a transaction become durable all together or nothing
Ex) Atomic durability in software

Atomic Durability through Logging

49

2018-10-23

Durability with

cache-flush

Atomicity and ordering with

write-ahead logging

Log Write

store B-> next= C store B-> prev= A store A-> next= B store C-> prev= B store B-> next= C store B-> prev= A store A-> next= B store C-> prev= B

cache-flush

SLIDE 30

Transaction
All stores in a transaction become durable all together or nothing
Ex) Atomic durability in software

Atomic Durability through Logging

50

2018-10-23

Durability with

cache-flush

Atomicity and ordering with

write-ahead logging

Log Write Data Update

store B-> next= C store B-> prev= A store A-> next= B store C-> prev= B store B-> next= C store B-> prev= A store A-> next= B store C-> prev= B

cache-flush

SLIDE 31

Transaction
All stores in a transaction become durable all together or nothing
Ex) Atomic durability in software

Atomic Durability through Logging

51

2018-10-23

Durability with

cache-flush

Atomicity and ordering with

write-ahead logging

Log Write Data Update

store B-> next= C store B-> prev= A store A-> next= B store C-> prev= B store B-> next= C store B-> prev= A store A-> next= B store C-> prev= B

cache-flush store log[0]= A-> next store log[1]= C-> prev cache-flush sfence

store B-> next= C store B-> prev= A store A-> next= B store C-> prev= B cache-flush

sfence

SLIDE 32

Transaction
All stores in a transaction become durable all together or nothing
Ex) Atomic durability in software

Atomic Durability through Logging

52

2018-10-23

Durability with

cache-flush

Atomicity and ordering with

write-ahead logging

Log Write Data Update

store B-> next= C store B-> prev= A store A-> next= B store C-> prev= B store B-> next= C store B-> prev= A store A-> next= B store C-> prev= B

cache-flush store log[0]= A-> next store log[1]= C-> prev cache-flush sfence

store B-> next= C store B-> prev= A store A-> next= B store C-> prev= B cache-flush

sfence

SLIDE 33

Transaction
All stores in a transaction become durable all together or nothing
Ex) Atomic durability in software

Atomic Durability through Logging

53

2018-10-23

Durability with

cache-flush

Atomicity and ordering with

write-ahead logging

Log Write Data Update

Persist-ordering with

store-fence

store B-> next= C store B-> prev= A store A-> next= B store C-> prev= B store B-> next= C store B-> prev= A store A-> next= B store C-> prev= B

cache-flush store log[0]= A-> next store log[1]= C-> prev cache-flush sfence

store B-> next= C store B-> prev= A store A-> next= B store C-> prev= B cache-flush

sfence

SLIDE 34

Transaction
All stores in a transaction become durable all together or nothing
Ex) Atomic durability in software

Atomic Durability through Logging

54

2018-10-23

Durability with

cache-flush

Atomicity and ordering with

write-ahead logging

Log Write Data Update

Persist-ordering with

store-fence

store B-> next= C store B-> prev= A store A-> next= B store C-> prev= B store B-> next= C store B-> prev= A store A-> next= B store C-> prev= B

cache-flush store log[0]= A-> next store log[1]= C-> prev cache-flush sfence

store B-> next= C store B-> prev= A store A-> next= B store C-> prev= B cache-flush

sfence

SLIDE 35

Transaction
All stores in a transaction become durable all together or nothing
Ex) Atomic durability in software

Atomic Durability through Logging

55

2018-10-23

Durability with

cache-flush

Atomicity and ordering with

write-ahead logging

Log Write Data Update

Persist-ordering with

store-fence

store B-> next= C store B-> prev= A store A-> next= B store C-> prev= B store B-> next= C store B-> prev= A store A-> next= B store C-> prev= B

cache-flush store log[0]= A-> next store log[1]= C-> prev cache-flush sfence

store B-> next= C store B-> prev= A store A-> next= B store C-> prev= B cache-flush

sfence

SLIDE 36

Transaction
All stores in a transaction become durable all together or nothing
Ex) Atomic durability in software

Atomic Durability through Logging

56

2018-10-23

Durability with

cache-flush

Atomicity and ordering with

write-ahead logging

Log Write Data Update

Persist-ordering with

store-fence

store B-> next= C store B-> prev= A store A-> next= B store C-> prev= B store B-> next= C store B-> prev= A store A-> next= B store C-> prev= B

cache-flush store log[0]= A-> next store log[1]= C-> prev cache-flush sfence

store B-> next= C store B-> prev= A store A-> next= B store C-> prev= B cache-flush

sfence

SLIDE 37

HW-assisted Logging

2018-10-23

57

SLIDE 38

HW-assisted Logging

Simple programming model
HW is responsible for 1) log-write and 2) data update
Advantages over software-logging
Fine-grained ordering & less CPU cycles

2018-10-23

58

SLIDE 39

HW-assisted Logging

Simple programming model
HW is responsible for 1) log-write and 2) data update
Advantages over software-logging
Fine-grained ordering & less CPU cycles

2018-10-23

59

Transa sact ct ion_begin( ) ( ) store B-> next= C … store C-> prev= B Transact ion_end( ) ( )

SLIDE 40

HW-assisted Logging

Simple programming model
HW is responsible for 1) log-write and 2) data update
Advantages over software-logging
Fine-grained ordering & less CPU cycles

2018-10-23

60

Transa sact ct ion_begin( ) ( ) store B-> next= C … store C-> prev= B Transact ion_end( ) ( ) store B-> next= C … store C-> prev= B

SLIDE 41

HW-assisted Logging

Simple programming model
HW is responsible for 1) log-write and 2) data update
Advantages over software-logging
Fine-grained ordering & less CPU cycles

2018-10-23

61

Transa sact ct ion_begin( ) ( ) store B-> next= C … store C-> prev= B Transact ion_end( ) ( ) store B-> next= C … store C-> prev= B

SLIDE 42

HW-assisted Logging

Simple programming model
HW is responsible for 1) log-write and 2) data update
Advantages over software-logging
Fine-grained ordering & less CPU cycles

2018-10-23

62

Transa sact ct ion_begin( ) ( ) store B-> next= C … store C-> prev= B Transact ion_end( ) ( ) store B-> next= C … store C-> prev= B

Caches

NVM Log 1) Log-Write Log Ctrl. 2) Data-Update NVM Data

Processor NVM

SLIDE 43

HW-assisted Logging

Simple programming model
HW is responsible for 1) log-write and 2) data update
Advantages over software-logging
Fine-grained ordering & less CPU cycles

2018-10-23

63

Transa sact ct ion_begin( ) ( ) store B-> next= C … store C-> prev= B Transact ion_end( ) ( ) store B-> next= C … store C-> prev= B

Caches

NVM Log 1) Log-Write Log Ctrl. 2) Data-Update NVM Data

Processor NVM

Log A Log B

Fence

Store A Store B Log A Log B Store A Store B

(a) Ordering with SW (b) Ordering with HW

SLIDE 44

Past Proposal: Undo-based HW-Logging

2018-10-23

64

A. Joshi et al. HPCA 2017.
S. Shin et al. ISCA 2017.

Caches

NVM Log Log Ctrl. NVM Data

Processor NVM

SLIDE 45

Past Proposal: Undo-based HW-Logging

Store old value in logs
Update data in NVM before commit

 Synchronous data-update

2018-10-23

65

A. Joshi et al. HPCA 2017.
S. Shin et al. ISCA 2017.

Caches

NVM Log Log Ctrl. NVM Data

Processor NVM

SLIDE 46

Past Proposal: Undo-based HW-Logging

Store old value in logs
Update data in NVM before commit

 Synchronous data-update

2018-10-23

66

A. Joshi et al. HPCA 2017.
S. Shin et al. ISCA 2017.

Caches

NVM Log 1) Store old value in NVM logs Log Ctrl. NVM Data

Processor NVM

SLIDE 47

Past Proposal: Undo-based HW-Logging

Store old value in logs
Update data in NVM before commit

 Synchronous data-update

2018-10-23

67

A. Joshi et al. HPCA 2017.
S. Shin et al. ISCA 2017.

Caches

NVM Log 1) Store old value in NVM logs Log Ctrl. NVM Data

Processor NVM

SLIDE 48

Past Proposal: Undo-based HW-Logging

Store old value in logs
Update data in NVM before commit

 Synchronous data-update

2018-10-23

68

A. Joshi et al. HPCA 2017.
S. Shin et al. ISCA 2017.

Caches

NVM Log 1) Store old value in NVM logs Log Ctrl. NVM Data

Processor NVM

Addr

SLIDE 49

Past Proposal: Undo-based HW-Logging

Store old value in logs
Update data in NVM before commit

 Synchronous data-update

2018-10-23

69

A. Joshi et al. HPCA 2017.
S. Shin et al. ISCA 2017.

Caches

NVM Log 1) Store old value in NVM logs Log Ctrl. 2) Update data in NVM NVM Data

Processor NVM

Addr

Old Value

SLIDE 50

Past Proposal: Undo-based HW-Logging

Store old value in logs
Update data in NVM before commit

 Synchronous data-update

2018-10-23

70

A. Joshi et al. HPCA 2017.
S. Shin et al. ISCA 2017.

Caches

NVM Log 1) Store old value in NVM logs Log Ctrl. 2) Update data in NVM NVM Data

Processor NVM

Long critical path due to synchronous data-update

Addr

Old Value

SLIDE 51

Past Proposal: Undo-based HW-Logging

Store old value in logs
Update data in NVM before commit

 Synchronous data-update

2018-10-23

71

A. Joshi et al. HPCA 2017.
S. Shin et al. ISCA 2017.

Caches

NVM Log 1) Store old value in NVM logs Log Ctrl. 2) Update data in NVM NVM Data

Processor NVM

Long critical path due to synchronous data-update

Addr

Old Value

SLIDE 52

Past Proposal: Undo-based HW-Logging

Store old value in logs
Update data in NVM before commit

 Synchronous data-update

2018-10-23

72

A. Joshi et al. HPCA 2017.
S. Shin et al. ISCA 2017.

Caches

NVM Log 1) Store old value in NVM logs Log Ctrl. 2) Update data in NVM NVM Data

Processor NVM

Long critical path due to synchronous data-update

Addr

Old Value

SLIDE 53

Past Proposal: Redo-based HW-Logging

2018-10-23

73

K. Doshi et al. HPCA 2016.

Caches

NVM Log Log Ctrl. NVM Data

Processor NVM

Addr

New Value

SLIDE 54

Past Proposal: Redo-based HW-Logging

Store new value in logs
Update data in NVM after commit

 Asynchronous data-update

However, update by reading log entries from NVM

 I ndirect data-update

2018-10-23

74

K. Doshi et al. HPCA 2016.

Caches

NVM Log Log Ctrl. NVM Data

Processor NVM

Addr

New Value

SLIDE 55

Past Proposal: Redo-based HW-Logging

Store new value in logs
Update data in NVM after commit

 Asynchronous data-update

However, update by reading log entries from NVM

 I ndirect data-update

2018-10-23

75

K. Doshi et al. HPCA 2016.

Caches

NVM Log 1) Store new value in NVM logs Log Ctrl. NVM Data

Processor NVM

Addr

New Value

SLIDE 56

Past Proposal: Redo-based HW-Logging

Store new value in logs
Update data in NVM after commit

 Asynchronous data-update

However, update by reading log entries from NVM

 I ndirect data-update

2018-10-23

76

K. Doshi et al. HPCA 2016.

Caches

NVM Log 1) Store new value in NVM logs Log Ctrl. NVM Data

Processor NVM

Addr

New Value

SLIDE 57

Past Proposal: Redo-based HW-Logging

Store new value in logs
Update data in NVM after commit

 Asynchronous data-update

However, update by reading log entries from NVM

 I ndirect data-update

2018-10-23

77

K. Doshi et al. HPCA 2016.

Caches

NVM Log 1) Store new value in NVM logs Log Ctrl. 2) Update data in NVM NVM Data

Processor NVM

Addr

New Value

SLIDE 58

Past Proposal: Redo-based HW-Logging

Store new value in logs
Update data in NVM after commit

 Asynchronous data-update

However, update by reading log entries from NVM

 I ndirect data-update

2018-10-23

78

K. Doshi et al. HPCA 2016.

Caches

NVM Log 1) Store new value in NVM logs Log Ctrl. 2) Update data in NVM NVM Data

Processor NVM

Addr

New Value

SLIDE 59

Past Proposal: Redo-based HW-Logging

Store new value in logs
Update data in NVM after commit

 Asynchronous data-update

However, update by reading log entries from NVM

 I ndirect data-update

2018-10-23

79

K. Doshi et al. HPCA 2016.

Caches

NVM Log 1) Store new value in NVM logs Log Ctrl. 2) Update data in NVM NVM Data

Processor NVM

Wastes extra NVM bandwidth for reading logs from NVM

Addr

New Value

SLIDE 60

Past Proposal: Undo-Redo HW-Logging

2018-10-23

80

Caches

NVM Log NVM Data

Processor NVM

M. Ogleari et al. HPCA 2018.

Log Buffer

Addr

Old Value New Value

SLIDE 61

Past Proposal: Undo-Redo HW-Logging

Store both old and new value in logs

 Larger log sizes

Update data in NVM after commit

2018-10-23

81

Caches

NVM Log NVM Data

Processor NVM

M. Ogleari et al. HPCA 2018.

Log Buffer

Addr

Old Value New Value

SLIDE 62

Past Proposal: Undo-Redo HW-Logging

Store both old and new value in logs

 Larger log sizes

Update data in NVM after commit

2018-10-23

82

Requires more NVM writes for storing logs in NVM

Caches

NVM Log 1) Store both old and new value in NVM logs NVM Data

Processor NVM

M. Ogleari et al. HPCA 2018.

Log Buffer

Addr

Old Value New Value

SLIDE 63

Past Proposal: Undo-Redo HW-Logging

Store both old and new value in logs

 Larger log sizes

Update data in NVM after commit

2018-10-23

83

Requires more NVM writes for storing logs in NVM

Caches

NVM Log 1) Store both old and new value in NVM logs 2) Update data in NVM NVM Data

Processor NVM

M. Ogleari et al. HPCA 2018.

Log Buffer

Addr

Old Value New Value

SLIDE 64

Past Proposal: Undo-Redo HW-Logging

Store both old and new value in logs

 Larger log sizes

Update data in NVM after commit

2018-10-23

84

Requires more NVM writes for storing logs in NVM

Caches

NVM Log 1) Store both old and new value in NVM logs 2) Update data in NVM NVM Data

Processor NVM

M. Ogleari et al. HPCA 2018.

Log Buffer

Addr

Old Value New Value

SLIDE 65

Past Proposal: Undo-Redo HW-Logging

Store both old and new value in logs

 Larger log sizes

Update data in NVM after commit

2018-10-23

85

Requires more NVM writes for storing logs in NVM

Caches

NVM Log 1) Store both old and new value in NVM logs 2) Update data in NVM NVM Data

Processor NVM

M. Ogleari et al. HPCA 2018.

Log Buffer

Addr

Old Value New Value

SLIDE 66

Past Proposal: Undo-Redo HW-Logging

Store both old and new value in logs

 Larger log sizes

Update data in NVM after commit

2018-10-23

86

Requires more NVM writes for storing logs in NVM

Caches

NVM Log 1) Store both old and new value in NVM logs 2) Update data in NVM NVM Data

Processor NVM

M. Ogleari et al. HPCA 2018.

Log Buffer

Addr

Old Value New Value

SLIDE 67

Past Proposals: Summary

2018-10-23

87

Log-Write Data-Update Drawback

ATOM [HPCA 2017] Undo Direct

Synchronous Long Critical Path

Proteus [ISCA 2017] Undo Direct

Synchronous

Wrap [HPCA 2016] Redo

I ndirect

Asynchronous

Waste NVM Bandwidth

FWB [HPCA 2018]

UndoRedo

Direct Asynchronous

More Log Write

SLIDE 68

0.4 0.6 0.8 1 1.2

1 2 3

0.4 0.6 0.8 1 1.2 1.4

1 2 3

Past Proposals: Summary

2018-10-23

88

Log-Write Data-Update Drawback

ATOM [HPCA 2017] Undo Direct

Synchronous Long Critical Path

Proteus [ISCA 2017] Undo Direct

Synchronous

Wrap [HPCA 2016] Redo

I ndirect

Asynchronous

Waste NVM Bandwidth

FWB [HPCA 2018]

UndoRedo

Direct Asynchronous

More Log Write

Large & Sequential Workloads

SLIDE 69

0.4 0.6 0.8 1 1.2

1 2 3

0.4 0.6 0.8 1 1.2 1.4

1 2 3

Past Proposals: Summary

2018-10-23

89

Log-Write Data-Update Drawback

ATOM [HPCA 2017] Undo Direct

Synchronous Long Critical Path

Proteus [ISCA 2017] Undo Direct

Synchronous

Wrap [HPCA 2016] Redo

I ndirect

Asynchronous

Waste NVM Bandwidth

FWB [HPCA 2018]

UndoRedo

Direct Asynchronous

More Log Write

Large & Sequential Workloads

Cycles per Transaction (CPT) Lower is Better

SLIDE 70

0.4 0.6 0.8 1 1.2

1 2 3

0.4 0.6 0.8 1 1.2 1.4

1 2 3

Past Proposals: Summary

2018-10-23

90

Log-Write Data-Update Drawback

ATOM [HPCA 2017] Undo Direct

Synchronous Long Critical Path

Proteus [ISCA 2017] Undo Direct

Synchronous

Wrap [HPCA 2016] Redo

I ndirect

Asynchronous

Waste NVM Bandwidth

FWB [HPCA 2018]

UndoRedo

Direct Asynchronous

More Log Write

Large & Sequential Workloads Small & Random Workloads

Cycles per Transaction (CPT) Lower is Better

SLIDE 71

0.4 0.6 0.8 1 1.2

1 2 3

0.4 0.6 0.8 1 1.2 1.4

1 2 3

Past Proposals: Summary

2018-10-23

91

Log-Write Data-Update Drawback

ATOM [HPCA 2017] Undo Direct

Synchronous Long Critical Path

Proteus [ISCA 2017] Undo Direct

Synchronous

Wrap [HPCA 2016] Redo

I ndirect

Asynchronous

Waste NVM Bandwidth

FWB [HPCA 2018]

UndoRedo

Direct Asynchronous

More Log Write

Large & Sequential Workloads Small & Random Workloads

Cycles per Transaction (CPT) Lower is Better

Undo-Friendly

SLIDE 72

0.4 0.6 0.8 1 1.2

1 2 3

0.4 0.6 0.8 1 1.2 1.4

1 2 3

Past Proposals: Summary

2018-10-23

92

Log-Write Data-Update Drawback

ATOM [HPCA 2017] Undo Direct

Synchronous Long Critical Path

Proteus [ISCA 2017] Undo Direct

Synchronous

Wrap [HPCA 2016] Redo

I ndirect

Asynchronous

Waste NVM Bandwidth

FWB [HPCA 2018]

UndoRedo

Direct Asynchronous

More Log Write

Large & Sequential Workloads Small & Random Workloads

Cycles per Transaction (CPT) Lower is Better

Undo-Friendly

SLIDE 73

0.4 0.6 0.8 1 1.2

1 2 3

0.4 0.6 0.8 1 1.2 1.4

1 2 3

Past Proposals: Summary

2018-10-23

93

Log-Write Data-Update Drawback

ATOM [HPCA 2017] Undo Direct

Synchronous Long Critical Path

Proteus [ISCA 2017] Undo Direct

Synchronous

Wrap [HPCA 2016] Redo

I ndirect

Asynchronous

Waste NVM Bandwidth

FWB [HPCA 2018]

UndoRedo

Direct Asynchronous

More Log Write

Large & Sequential Workloads Small & Random Workloads

Cycles per Transaction (CPT) Lower is Better

Undo-Friendly

SLIDE 74

0.4 0.6 0.8 1 1.2

1 2 3

0.4 0.6 0.8 1 1.2 1.4

1 2 3

Past Proposals: Summary

2018-10-23

94

Log-Write Data-Update Drawback

ATOM [HPCA 2017] Undo Direct

Synchronous Long Critical Path

Proteus [ISCA 2017] Undo Direct

Synchronous

Wrap [HPCA 2016] Redo

I ndirect

Asynchronous

Waste NVM Bandwidth

FWB [HPCA 2018]

UndoRedo

Direct Asynchronous

More Log Write

Large & Sequential Workloads Small & Random Workloads

Cycles per Transaction (CPT) Lower is Better

Undo-Friendly

SLIDE 75

0.4 0.6 0.8 1 1.2

1 2 3

0.4 0.6 0.8 1 1.2 1.4

1 2 3

Past Proposals: Summary

2018-10-23

95

Log-Write Data-Update Drawback

ATOM [HPCA 2017] Undo Direct

Synchronous Long Critical Path

Proteus [ISCA 2017] Undo Direct

Synchronous

Wrap [HPCA 2016] Redo

I ndirect

Asynchronous

Waste NVM Bandwidth

FWB [HPCA 2018]

UndoRedo

Direct Asynchronous

More Log Write

Large & Sequential Workloads Small & Random Workloads

Cycles per Transaction (CPT) Lower is Better

Undo-Friendly Redo-Friendly

SLIDE 76

0.4 0.6 0.8 1 1.2

1 2 3

0.4 0.6 0.8 1 1.2 1.4

1 2 3

Past Proposals: Summary

2018-10-23

96

Log-Write Data-Update Drawback

ATOM [HPCA 2017] Undo Direct

Synchronous Long Critical Path

Proteus [ISCA 2017] Undo Direct

Synchronous

Wrap [HPCA 2016] Redo

I ndirect

Asynchronous

Waste NVM Bandwidth

FWB [HPCA 2018]

UndoRedo

Direct Asynchronous

More Log Write

Large & Sequential Workloads Small & Random Workloads

Cycles per Transaction (CPT) Lower is Better

Undo-Friendly Redo-Friendly

SLIDE 77

0.4 0.6 0.8 1 1.2

1 2 3

0.4 0.6 0.8 1 1.2 1.4

1 2 3

Past Proposals: Summary

2018-10-23

97

Log-Write Data-Update Drawback

ATOM [HPCA 2017] Undo Direct

Synchronous Long Critical Path

Proteus [ISCA 2017] Undo Direct

Synchronous

Wrap [HPCA 2016] Redo

I ndirect

Asynchronous

Waste NVM Bandwidth

FWB [HPCA 2018]

UndoRedo

Direct Asynchronous

More Log Write

Large & Sequential Workloads Small & Random Workloads

Cycles per Transaction (CPT) Lower is Better

Undo-Friendly Redo-Friendly

Cycles per Transaction (CPT) Lower is Better

SLIDE 78

0.4 0.6 0.8 1 1.2

1 2 3

0.4 0.6 0.8 1 1.2 1.4

1 2 3

Past Proposals: Summary

2018-10-23

98

Log-Write Data-Update Drawback

ATOM [HPCA 2017] Undo Direct

Synchronous Long Critical Path

Proteus [ISCA 2017] Undo Direct

Synchronous

Wrap [HPCA 2016] Redo

I ndirect

Asynchronous

Waste NVM Bandwidth

FWB [HPCA 2018]

UndoRedo

Direct Asynchronous

More Log Write

Large & Sequential Workloads Small & Random Workloads

Cycles per Transaction (CPT) Lower is Better

Undo-Friendly Redo-Friendly

Cycles per Transaction (CPT) Lower is Better

SLIDE 79

0.4 0.6 0.8 1 1.2

1 2 3

0.4 0.6 0.8 1 1.2 1.4

1 2 3

Past Proposals: Summary

2018-10-23

99

Log-Write Data-Update Drawback

ATOM [HPCA 2017] Undo Direct

Synchronous Long Critical Path

Proteus [ISCA 2017] Undo Direct

Synchronous

Wrap [HPCA 2016] Redo

I ndirect

Asynchronous

Waste NVM Bandwidth

FWB [HPCA 2018]

UndoRedo

Direct Asynchronous

More Log Write

Large & Sequential Workloads Small & Random Workloads

Cycles per Transaction (CPT) Lower is Better

Undo-Friendly Redo-Friendly

Cycles per Transaction (CPT) Lower is Better

SLIDE 80

0.4 0.6 0.8 1 1.2

1 2 3

0.4 0.6 0.8 1 1.2 1.4

1 2 3

Past Proposals: Summary

2018-10-23

100

Log-Write Data-Update Drawback

ATOM [HPCA 2017] Undo Direct

Synchronous Long Critical Path

Proteus [ISCA 2017] Undo Direct

Synchronous

Wrap [HPCA 2016] Redo

I ndirect

Asynchronous

Waste NVM Bandwidth

FWB [HPCA 2018]

UndoRedo

Direct Asynchronous

More Log Write

Large & Sequential Workloads Small & Random Workloads

Cycles per Transaction (CPT) Lower is Better

Undo-Friendly Redo-Friendly

Cycles per Transaction (CPT) Lower is Better

SLIDE 81

0.4 0.6 0.8 1 1.2

1 2 3

0.4 0.6 0.8 1 1.2 1.4

1 2 3

Past Proposals: Summary

2018-10-23

101

Log-Write Data-Update Drawback

ATOM [HPCA 2017] Undo Direct

Synchronous Long Critical Path

Proteus [ISCA 2017] Undo Direct

Synchronous

Wrap [HPCA 2016] Redo

I ndirect

Asynchronous

Waste NVM Bandwidth

FWB [HPCA 2018]

UndoRedo

Direct Asynchronous

More Log Write

Large & Sequential Workloads Small & Random Workloads

Cycles per Transaction (CPT) Lower is Better

Undo-Friendly Redo-Friendly

Cycles per Transaction (CPT) Lower is Better

SLIDE 82

0.4 0.6 0.8 1 1.2

1 2 3

0.4 0.6 0.8 1 1.2 1.4

1 2 3

Past Proposals: Summary

2018-10-23

102

Log-Write Data-Update Drawback

ATOM [HPCA 2017] Undo Direct

Synchronous Long Critical Path

Proteus [ISCA 2017] Undo Direct

Synchronous

Wrap [HPCA 2016] Redo

I ndirect

Asynchronous

Waste NVM Bandwidth

FWB [HPCA 2018]

UndoRedo

Direct Asynchronous

More Log Write

Large & Sequential Workloads Small & Random Workloads

Cycles per Transaction (CPT) Lower is Better

Undo-Friendly Redo-Friendly

Cycles per Transaction (CPT) Lower is Better

Trade-offs exist!

SLIDE 83

Design Goal & Challenges

2018-10-23

103

SLIDE 84

Design Goal & Challenges

Redo log with asynchronous & direct update to NVM
Challenge # 1: tracking write-sets of previous transactions
Without data update, logs keep growing
Challenge # 2: handling an early-eviction
Eviction of uncommitted changes from volatile CPU caches

2018-10-23

104

SLIDE 85

Design Goal & Challenges

Redo log with asynchronous & direct update to NVM
Challenge # 1: tracking write-sets of previous transactions
Without data update, logs keep growing
Challenge # 2: handling an early-eviction
Eviction of uncommitted changes from volatile CPU caches

2018-10-23

105

Caches

SLIDE 86

Design Goal & Challenges

Redo log with asynchronous & direct update to NVM
Challenge # 1: tracking write-sets of previous transactions
Without data update, logs keep growing
Challenge # 2: handling an early-eviction
Eviction of uncommitted changes from volatile CPU caches

2018-10-23

106

Caches

NVM Log Processor

SLIDE 87

Design Goal & Challenges

Redo log with asynchronous & direct update to NVM
Challenge # 1: tracking write-sets of previous transactions
Without data update, logs keep growing
Challenge # 2: handling an early-eviction
Eviction of uncommitted changes from volatile CPU caches

2018-10-23

107

Caches

NVM Log Processor

SLIDE 88

Design Goal & Challenges

Redo log with asynchronous & direct update to NVM
Challenge # 1: tracking write-sets of previous transactions
Without data update, logs keep growing
Challenge # 2: handling an early-eviction
Eviction of uncommitted changes from volatile CPU caches

2018-10-23

108

Caches

NVM Log Processor

SLIDE 89

Design Goal & Challenges

Redo log with asynchronous & direct update to NVM
Challenge # 1: tracking write-sets of previous transactions
Without data update, logs keep growing
Challenge # 2: handling an early-eviction
Eviction of uncommitted changes from volatile CPU caches

2018-10-23

109

Caches

NVM Log NVM Data Processor

SLIDE 90

Design Goal & Challenges

Redo log with asynchronous & direct update to NVM
Challenge # 1: tracking write-sets of previous transactions
Without data update, logs keep growing
Challenge # 2: handling an early-eviction
Eviction of uncommitted changes from volatile CPU caches

2018-10-23

110

Caches

NVM Log NVM Data NVM Processor

SLIDE 91

Design Goal & Challenges

Redo log with asynchronous & direct update to NVM
Challenge # 1: tracking write-sets of previous transactions
Without data update, logs keep growing
Challenge # 2: handling an early-eviction
Eviction of uncommitted changes from volatile CPU caches

2018-10-23

111

Caches

NVM Log NVM Data NVM Processor

SLIDE 92

Design Goal & Challenges

Redo log with asynchronous & direct update to NVM
Challenge # 1: tracking write-sets of previous transactions
Without data update, logs keep growing
Challenge # 2: handling an early-eviction
Eviction of uncommitted changes from volatile CPU caches

2018-10-23

112

Caches

NVM Log NVM Data NVM

Tx1

Processor

SLIDE 93

Design Goal & Challenges

Redo log with asynchronous & direct update to NVM
Challenge # 1: tracking write-sets of previous transactions
Without data update, logs keep growing
Challenge # 2: handling an early-eviction
Eviction of uncommitted changes from volatile CPU caches

2018-10-23

113

Caches

NVM Log NVM Data NVM

Tx1 Tx2

Processor

SLIDE 94

Design Goal & Challenges

Redo log with asynchronous & direct update to NVM
Challenge # 1: tracking write-sets of previous transactions
Without data update, logs keep growing
Challenge # 2: handling an early-eviction
Eviction of uncommitted changes from volatile CPU caches

2018-10-23

114

Caches

NVM Log NVM Data NVM

Tx1 Tx2 Tx3

Processor

SLIDE 95

Design Goal & Challenges

Redo log with asynchronous & direct update to NVM
Challenge # 1: tracking write-sets of previous transactions
Without data update, logs keep growing
Challenge # 2: handling an early-eviction
Eviction of uncommitted changes from volatile CPU caches

2018-10-23

115

Caches

NVM Log NVM Data NVM

Tx1 Tx2 Tx3 Tx1

Processor

SLIDE 96

Design Goal & Challenges

Redo log with asynchronous & direct update to NVM
Challenge # 1: tracking write-sets of previous transactions
Without data update, logs keep growing
Challenge # 2: handling an early-eviction
Eviction of uncommitted changes from volatile CPU caches

2018-10-23

116

Caches

NVM Log NVM Data NVM

Tx1 Tx2 Tx3 Tx1 Tx2

Processor

SLIDE 97

Design Goal & Challenges

Redo log with asynchronous & direct update to NVM
Challenge # 1: tracking write-sets of previous transactions
Without data update, logs keep growing
Challenge # 2: handling an early-eviction
Eviction of uncommitted changes from volatile CPU caches

2018-10-23

117

Caches

NVM Log NVM Data NVM

Tx1 Tx2 Tx3 Tx1 Tx2

Processor

SLIDE 98

Design Goal & Challenges

Redo log with asynchronous & direct update to NVM
Challenge # 1: tracking write-sets of previous transactions
Without data update, logs keep growing
Challenge # 2: handling an early-eviction
Eviction of uncommitted changes from volatile CPU caches

2018-10-23

118

Caches

NVM Log NVM Data NVM

Tx1 Tx2 Tx3 Tx1 Tx2

Processor

SLIDE 99

Design Goal & Challenges

Redo log with asynchronous & direct update to NVM
Challenge # 1: tracking write-sets of previous transactions
Without data update, logs keep growing
Challenge # 2: handling an early-eviction
Eviction of uncommitted changes from volatile CPU caches

2018-10-23

119

Caches

NVM Log NVM Data NVM

Tx1 Tx2 Tx3 Tx1 Tx2

Processor Transaction # 1

SLIDE 100

Design Goal & Challenges

Redo log with asynchronous & direct update to NVM
Challenge # 1: tracking write-sets of previous transactions
Without data update, logs keep growing
Challenge # 2: handling an early-eviction
Eviction of uncommitted changes from volatile CPU caches

2018-10-23

120

Caches

NVM Log NVM Data NVM

Tx1 Tx2 Tx3 Tx1 Tx2

Processor Transaction # 1 (committed)

SLIDE 101

Design Goal & Challenges

Redo log with asynchronous & direct update to NVM
Challenge # 1: tracking write-sets of previous transactions
Without data update, logs keep growing
Challenge # 2: handling an early-eviction
Eviction of uncommitted changes from volatile CPU caches

2018-10-23

121

Caches

NVM Log NVM Data NVM

Tx1 Tx2 Tx3 Tx1 Tx2

Processor Transaction # 1 (committed)

SLIDE 102

Design Goal & Challenges

Redo log with asynchronous & direct update to NVM
Challenge # 1: tracking write-sets of previous transactions
Without data update, logs keep growing
Challenge # 2: handling an early-eviction
Eviction of uncommitted changes from volatile CPU caches

2018-10-23

122

Caches

NVM Log NVM Data NVM

Tx1 Tx2 Tx3 Tx1 Tx2

Processor Transaction # 1 (committed)

SLIDE 103

Design Goal & Challenges

Redo log with asynchronous & direct update to NVM
Challenge # 1: tracking write-sets of previous transactions
Without data update, logs keep growing
Challenge # 2: handling an early-eviction
Eviction of uncommitted changes from volatile CPU caches

2018-10-23

123

Caches

NVM Log NVM Data NVM

Tx1 Tx2 Tx3 Tx1 Tx2

Processor Transaction # 1 (committed) Transaction # 2

SLIDE 104

Design Goal & Challenges

Redo log with asynchronous & direct update to NVM
Challenge # 1: tracking write-sets of previous transactions
Without data update, logs keep growing
Challenge # 2: handling an early-eviction
Eviction of uncommitted changes from volatile CPU caches

2018-10-23

124

Caches

NVM Log NVM Data NVM

Tx1 Tx2 Tx3 Tx1 Tx2

Processor Transaction # 1 (committed) Transaction # 2 (committed)

SLIDE 105

Design Goal & Challenges

Redo log with asynchronous & direct update to NVM
Challenge # 1: tracking write-sets of previous transactions
Without data update, logs keep growing
Challenge # 2: handling an early-eviction
Eviction of uncommitted changes from volatile CPU caches

2018-10-23

125

Caches

NVM Log NVM Data NVM

Tx1 Tx2 Tx3 Tx1 Tx2

Processor Transaction # 1 (committed) Transaction # 2 (committed) Transaction # 3

SLIDE 106

Design Goal & Challenges

Redo log with asynchronous & direct update to NVM
Challenge # 1: tracking write-sets of previous transactions
Without data update, logs keep growing
Challenge # 2: handling an early-eviction
Eviction of uncommitted changes from volatile CPU caches

2018-10-23

126

Caches

NVM Log NVM Data NVM

Tx1 Tx2 Tx3 Tx1 Tx2

Processor Transaction # 1 (committed) Transaction # 2 (committed) Transaction # 3 (not committed)

SLIDE 107

Design Goal & Challenges

Redo log with asynchronous & direct update to NVM
Challenge # 1: tracking write-sets of previous transactions
Without data update, logs keep growing
Challenge # 2: handling an early-eviction
Eviction of uncommitted changes from volatile CPU caches

2018-10-23

127

Caches

NVM Log NVM Data NVM

Tx1 Tx2 Tx3 Tx1 Tx2

Processor Transaction # 1 (committed) Transaction # 2 (committed) Transaction # 3 (not committed) (deleted)

Logs removed since data-update completed

SLIDE 108

Design Goal & Challenges

Redo log with asynchronous & direct update to NVM
Challenge # 1: tracking write-sets of previous transactions
Without data update, logs keep growing
Challenge # 2: handling an early-eviction
Eviction of uncommitted changes from volatile CPU caches

2018-10-23

128

Caches

NVM Log NVM Data NVM

Tx1 Tx2 Tx3 Tx1 Tx2

Processor Transaction # 1 (committed) Transaction # 2 (committed) Transaction # 3 (not committed) (deleted)

Logs removed since data-update completed

SLIDE 109

Design Goal & Challenges

Redo log with asynchronous & direct update to NVM
Challenge # 1: tracking write-sets of previous transactions
Without data update, logs keep growing
Challenge # 2: handling an early-eviction
Eviction of uncommitted changes from volatile CPU caches

2018-10-23

129

Caches

NVM Log NVM Data NVM

Tx1 Tx2 Tx3 Tx1 Tx2

Processor Transaction # 1 (committed) Transaction # 2 (committed) Transaction # 3 (not committed) (deleted)

Logs removed since data-update completed

SLIDE 110

Design Goal & Challenges

Redo log with asynchronous & direct update to NVM
Challenge # 1: tracking write-sets of previous transactions
Without data update, logs keep growing
Challenge # 2: handling an early-eviction
Eviction of uncommitted changes from volatile CPU caches

2018-10-23

130

Caches

NVM Log NVM Data NVM

Tx1 Tx2 Tx3 Tx1 Tx2

Processor Transaction # 1 (committed) Transaction # 2 (committed) Transaction # 3 (not committed) (deleted)

Logs removed since data-update completed

SLIDE 111

Design Goal & Challenges

Redo log with asynchronous & direct update to NVM
Challenge # 1: tracking write-sets of previous transactions
Without data update, logs keep growing
Challenge # 2: handling an early-eviction
Eviction of uncommitted changes from volatile CPU caches

2018-10-23

131

Caches

NVM Log NVM Data NVM

Tx1 Tx2 Tx3 Tx1 Tx2

Processor Transaction # 1 (committed) Transaction # 2 (committed) Transaction # 3 (not committed) (deleted)

Logs removed since data-update completed Uncommitted data must not be written to NVM

Our approach: use DRAM for handling direct-update
Synchronous update to the FAST DRAM
Asynchronous update to the SLOW NVM

2018-10-23

139

Caches

NVM Log Log Buffer

ASYNCHRONOUS update to NVM

NVM Data DRAM Processor NVM

SYNCHRONOUS update to fast DRAM

Redo-logs

SLIDE 120

Redo log with Direct Update (ReDU)

Our approach: use DRAM for handling direct-update
Synchronous update to the FAST DRAM
Asynchronous update to the SLOW NVM

2018-10-23

140

Caches

NVM Log Log Buffer

ASYNCHRONOUS update to NVM

NVM Data DRAM Processor NVM

SYNCHRONOUS update to fast DRAM ASYNCHRONOUS update to slow NVM

Redo-logs

SLIDE 121

2018-10-23

157

Last-level Cache

DRAM Cache L1 Cache L1 Cache

Data Early-eviction On-commit-flushed

Processor NVM DRAM

SLIDE 138

ReDU – Direct-Update

Update to NVM done asynchronously
Only flush cachelines that belong to the committed

transaction

DRAM cache maintains the committed transaction IDs
Various write-back policies are possible
E.g., Eager or LRU

2018-10-23

158

Last-level Cache

DRAM Cache L1 Cache L1 Cache

Data Early-eviction On-commit-flushed

Processor NVM DRAM

SLIDE 139

ReDU – Direct-Update

Update to NVM done asynchronously
Only flush cachelines that belong to the committed

transaction

DRAM cache maintains the committed transaction IDs
Various write-back policies are possible
E.g., Eager or LRU

2018-10-23

159

Last-level Cache

DRAM Cache L1 Cache L1 Cache

Data Early-eviction On-commit-flushed

Processor NVM DRAM

SLIDE 140

ReDU – Direct-Update

Update to NVM done asynchronously
Only flush cachelines that belong to the committed

transaction

DRAM cache maintains the committed transaction IDs
Various write-back policies are possible
E.g., Eager or LRU

2018-10-23

160

Last-level Cache

DRAM Cache L1 Cache L1 Cache

Data Early-eviction On-commit-flushed

Processor NVM DRAM

SLIDE 141

More in the paper…

Full design space exploration of HW logging
Log optimization # 1: coalescing
Log optimization # 2: packing
Details of DRAM cache organization
Transaction Table and Offset Table
Bloom filter-based HW-filter to reduce DRAM accesses
Evaluation of LRU write-back policy of the DRAM cache
Log management
…

2018-10-23

161

SLIDE 142

Methodology

Gem5 simulator
Comparing schemes
All equally include log optimizations (e.g., coalescing and packing)
UndoSync: undo log with synchronous commit
RedoIndirect: redo log with asynchronous but indirect update
Undo+ Redo: undo+ redo log with asynchronous & direct update
ReDU: our approach

Processor OoO, 2GHz, x86 L1 I/D cache Private, 32KB, 8-way L2 cache Private, 256KB, 8-way L3 cache Shared, 8MB, 16-way DRAM cache 40MB (8MB meta + 32MB data) NVM Read: 50ns, write: 150ns

2018-10-23

162 Micro-bench Vector, Swap NVML HashMap, B-Tree, RB-Tree Macro-bench YCSB, TPCC, ECHO

Benchmarks

SLIDE 143

Evaluation – Transaction Throughput

2018-10-23

163

0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1 2 3 Cycles per Transaction normalized to undo (Lower is better) 계열1 계열2 계열3 계열4

SLIDE 144

Evaluation – Transaction Throughput

Large & sequential workloads
Undo and ReDU perform similarly

(same data path and NVM bandwidth saturated)

Redo suffers from indirect update
UndoRedo requires double NVM writes

for logs

Small & Random workloads
On average

2018-10-23

164

0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1 2 3 Cycles per Transaction normalized to undo (Lower is better) 계열1 계열2 계열3 계열4

SLIDE 145

Evaluation – Transaction Throughput

Large & sequential workloads
Undo and ReDU perform similarly

(same data path and NVM bandwidth saturated)

Redo suffers from indirect update
UndoRedo requires double NVM writes

for logs

Small & Random workloads
On average

2018-10-23

165

0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1 2 3 Cycles per Transaction normalized to undo (Lower is better) 계열1 계열2 계열3 계열4

SLIDE 146

Evaluation – Transaction Throughput

Large & sequential workloads
Undo and ReDU perform similarly

(same data path and NVM bandwidth saturated)

Redo suffers from indirect update
UndoRedo requires double NVM writes

for logs

Small & Random workloads
On average

2018-10-23

166

0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1 2 3 Cycles per Transaction normalized to undo (Lower is better) 계열1 계열2 계열3 계열4

SLIDE 147

Evaluation – Transaction Throughput

Large & sequential workloads
Undo and ReDU perform similarly

(same data path and NVM bandwidth saturated)

Redo suffers from indirect update
UndoRedo requires double NVM writes

for logs

Small & Random workloads
On average

2018-10-23

167

0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1 2 3 Cycles per Transaction normalized to undo (Lower is better) 계열1 계열2 계열3 계열4

SLIDE 148

Evaluation – Transaction Throughput

2018-10-23

168

0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1 2 3 Cycles per Transaction normalized to undo (Lower is better) 계열1 계열2 계열3 계열4

SLIDE 149

Evaluation – Transaction Throughput

Large & Sequential workloads
Small & Random workloads
Undo waits synchronous commit
Redo suffers from indirect update
UndoRedo requires double NVM writes

for logs

On average

2018-10-23

169

0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1 2 3 Cycles per Transaction normalized to undo (Lower is better) 계열1 계열2 계열3 계열4

SLIDE 150

Evaluation – Transaction Throughput

Large & Sequential workloads
Small & Random workloads
Undo waits synchronous commit
Redo suffers from indirect update
UndoRedo requires double NVM writes

for logs

On average

2018-10-23

170

0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1 2 3 Cycles per Transaction normalized to undo (Lower is better) 계열1 계열2 계열3 계열4

SLIDE 151

Evaluation – Transaction Throughput

Large & Sequential workloads
Small & Random workloads
Undo waits synchronous commit
Redo suffers from indirect update
UndoRedo requires double NVM writes

for logs

On average

2018-10-23

171

0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1 2 3 Cycles per Transaction normalized to undo (Lower is better) 계열1 계열2 계열3 계열4

SLIDE 152

Evaluation – Transaction Throughput

Large & Sequential workloads
Small & Random workloads
Undo waits synchronous commit
Redo suffers from indirect update
UndoRedo requires double NVM writes

for logs

On average

2018-10-23

172

0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1 2 3 Cycles per Transaction normalized to undo (Lower is better) 계열1 계열2 계열3 계열4

SLIDE 153

Evaluation – Transaction Throughput

Large & Sequential workloads
Small & Random workloads
On average
Asynchronous update  9%
Direct update  16%
Small log size  30%

2018-10-23

173

0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1 2 3 Cycles per Transaction normalized to undo (Lower is better) 계열1 계열2 계열3 계열4

SLIDE 154

Summary

Problem: crash-consistency in storage-class memory
Atomicity and durability support for NVM writes
Existing hardware solutions exhibit trade-offs
Solution: Redo log with Direct Updates (ReDU)
Redo-based log with optimizations
Synchronous update to the fast DRAM
Asynchronous update to the slow NVM
Results: ReDU outperforms existing solutions in various

workloads

Bringing DRAM into the atomicity and durability

2018-10-23

174
