7/21/2017 1

1 Department of Electrical Engineering , IIT Bombay

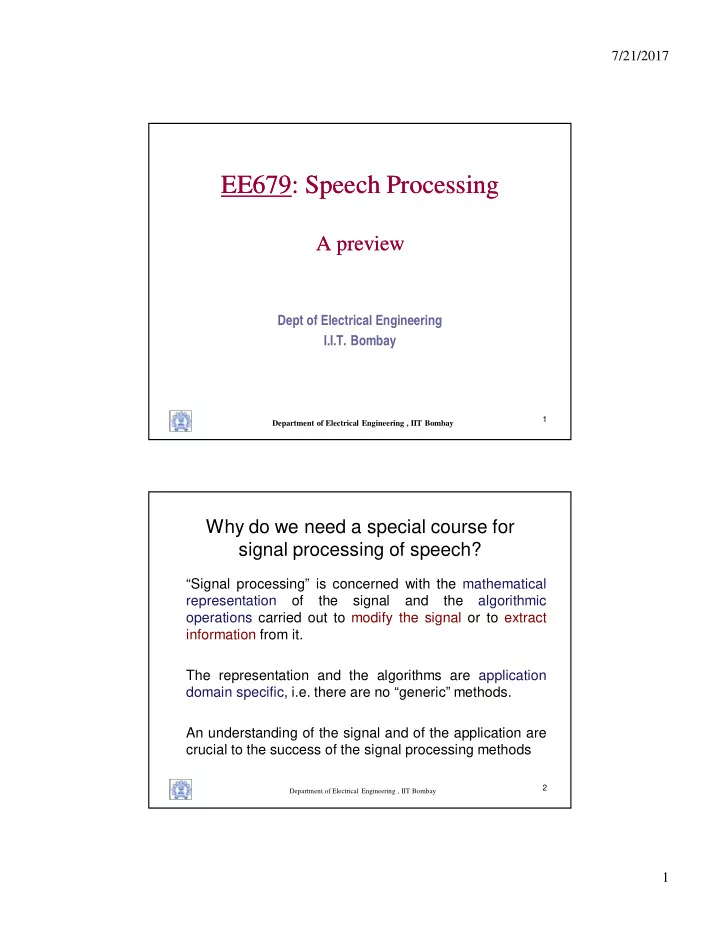

EE679: Speech Processing

A preview

EE679: Speech Processing

A preview

Dept of Electrical Engineering I.I.T. Bombay

2

Department of Electrical Engineering , IIT Bombay

Why do we need a special course for signal processing of speech?

“Signal processing” is concerned with the mathematical representation

• f

the signal and the algorithmic

• perations carried out to modify the signal or to extract

information from it. The representation and the algorithms are application domain specific, i.e. there are no “generic” methods. An understanding of the signal and of the application are crucial to the success of the signal processing methods

7/21/2017 2

3

Human communication

• Vocal, visual, gestural
• Language is used for communication and is

independent of the modality (writing, signing, speaking)

• Speech Communication is the transfer of information

from one person to another via speech

Department of Electrical Engineering , IIT Bombay

4 Department of Electrical Engineering , IIT Bombay

Understanding speech communication

7/21/2017 3

5 Department of Electrical Engineering , IIT Bombay

Acoustic waves

Speed = wavelength x frequency

6 Department of Electrical Engineering , IIT Bombay

T0 =

3.3 msec

T0 = 10 msec low pitch tone high pitch tone

Frequency (Fo) = 1/To = 100 Hz Frequency = 300 Hz

Air pressure variation

1 Hertz = 1 vibration/sec

7/21/2017 4

7

Speech “waveform”

Department of Electrical Engineering , IIT Bombay

8

Department of Electrical Engineering , IIT Bombay

“Information” in speech?

• Linguistic (message -> sentences -> words -> phonemes)

The speech signal is characterised by an enormous range

• f elementary perceptually contrasting sounds!
• Paralinguistic:
• -expressive (emotions, mood)
• -speaker-based (age, gender, accent and style)

7/21/2017 5

9

Department of Electrical Engineering , IIT Bombay

“Everyday” speech technology

• Mobile telephony (speech compression)
• Human-computer interfaces (speech recognition/synthesis)
• Security (speaker identification in biometrics, forensics)
• Speech enhancement (improving intelligibility or quality)
• Behavioural analytics

10 Department of Electrical Engineering , IIT Bombay

Generating speech*

Respiration->phonation

• >articulation

Vibrating vocal cords create puffs of air giving rise to air pressure variations which reach

• ur ears.

*HyperPhysics, Sound and Hearing, Georgia State University

7/21/2017 6

11 Department of Electrical Engineering , IIT Bombay

....... ; 4 5 ; 4 3 ; 4

3 2 1

L c f L c f L c f   

Vocal tract: Acoustic resonances*

*HyperPhysics, Sound and Hearing, Georgia State University (http://hyperphysics.phy- astr.gsu.edu/hbase/sound/) 12 Department of Electrical Engineering , IIT Bombay Vocal cords Tongue Jaw Lips Teeth Velum

Moving muscles which alter the resonant cavities Static cavity Dynamic cavity

Vocal cavity

Pharyngeal cavity Velum Nasal cavity Oral Cavity Articulators

Trachea connection to lungs

Oral sound output Nasal sound output

Articulation: producing the various sounds of speech*

*Securivox tutorial

7/21/2017 7

13 Department of Electrical Engineering , IIT Bombay

• The sound spectrum is modified by the

shape of the vocal tract.

• The resonant frequencies of the vocal

tract cause peaks in the spectrum called formants.

Vocal tract “filter”*

*Childers, Speech Overview

14

Von Kempelen's talking machine

1791

"Briefly, the device was operated in the following manner. The right arm rested on the main bellows and

7/21/2017 8

15

1875

• Alexander Bell invents the method of, and apparatus for,

“transmitting vocal or other sounds telegraphically ... by causing electrical undulations, similar in form to the vibrations of the air accompanying the said vocal or other sound”. => Major impetus to modern speech processing.

• 1930s: Electrical synthesis of speech by Dudley’s vocoder

Department of Electrical Engineering , IIT Bombay

16

Department of Electrical Engineering , IIT Bombay

Sound -> electrical form*

*The Physics Classroom:http://www.glenbrook.k12.il.us/gbssci/phys/Class/sound/u11l2a.html

7/21/2017 9

17 Department of Electrical Engineering , IIT Bombay

Speech Waveforms from “my speech” (b) “ee” vowel (c) “s” consonant (a) start of “y” vowel

18

Department of Electrical Engineering , IIT Bombay

Components of sound

A sound is usually comprised of several frequency components. Depending on the relationships of the frequency components, the sound can elicit a sensation of pitch.

7/21/2017 10

19 Department of Electrical Engineering , IIT Bombay 300 Hz 600 Hz 900 Hz 300 Hz + 600Hz 300 Hz + 600Hz + 900Hz 20

Department of Electrical Engineering , IIT Bombay

Classification of speech sounds

Vowels and Consonants

• Vowels: steady sounds specified by position
• f the articulators (typically, tongue)
• Consonants: are (dynamic) sounds classified

by place and manner of articulation

7/21/2017 11

21

Department of Electrical Engineering , IIT Bombay

Place of articulation (constriction of vocal tract)

22

Department of Electrical Engineering , IIT Bombay

Basic sounds of speech: Phones

• The speech signal can be divided into sound segments

with fixed articulation and acoustics over short intervals. i.e. articulatory configuration <=> acoustic properties Smallest meaningful sound unit: “phone” (i.e. set of distinctive sounds of a language) In Indian written scripts, one symbol represents one phone.

7/21/2017 12

23 Department of Electrical Engineering , IIT Bombay 24

PRAAT examples

Department of Electrical Engineering , IIT Bombay

7/21/2017 13

25

Physiology (articulator motion) Sound with specific acoustic characteristics (seen in waveform and spectrum) Perception of certain sound qualities

Department of Electrical Engineering , IIT Bombay

26

Department of Electrical Engineering , IIT Bombay

Speech production basics

• Vocal cords (larynx) modulate the airflow from the

lungs by rapid opening-closing; the rate of vibration is determined by their mass and tension. Pitch frequency ranges: male: 80-160 Hz; female:160-320 Hz; singers: over 2 octaves.

• Vocal tract shapes the vocal cord vibrations into the

intricate sounds of speech via changes in shape to produce various acoustic resonances.

7/21/2017 14

27 Department of Electrical Engineering , IIT Bombay 28

• Glottal folds in action…

Department of Electrical Engineering , IIT Bombay

7/21/2017 15

29

The interdisciplinary nature… *

Department of Electrical Engineering , IIT Bombay * Fant, G. (1990). Speech research in perspective. Speech Communication.

30

Department of Electrical Engineering , IIT Bombay

Outline

• Speech production (physiology)
• Classification of sounds: articulatory, acoustic
• Speech analysis (signal processing methods for

information extraction)

• Hearing, and speech perception
• Speech technology (compression, ASR,TTS,…)
• Audio/music technology

7/21/2017 16

31

Department of Electrical Engineering , IIT Bombay

Text / References

• Douglas O'Shaughnessy, Speech Communications:

Human and Machine, Universities Press (India) Ltd., 2001

• Rabiner and Schafer, Digital Processing of Speech

Signals

• IITB Moodle for all course-related hand-outs

32

Department of Electrical Engineering , IIT Bombay

Evaluation

• Computing assignments (Python or Scilab) (30%)
• Exams: mid semester + end semester (70%)
• Attendance is compulsory (<80% => XX, even before

midsem)

Speech Production Utterance: "Should we chase" Acoustic waveform Production of speech:

Glottal source

Wednesday, July 27, 2011 6:18 AM Class-SP-1.4-print1 Page 1

Respiration <= Lungs

• Phonation <= Vocal cords
• Articulation <= Vocal tract
• Simple but important part of speech production. Respiration provides the

air-flow and pressure source required for speech production. The lungs primarily serve breathing: inspiration, expiration.

• Most languages sounds are formed during expiration (“egressive” sounds).
• Total lung capacity is 4-5 litre. The volume velocity of air leaving the lungs

is about 0.2 lt/sec during sustained sounds.

• Increased air-flow rate => increase in sound amplitude
• Respiration

Respiration: the air flow for speech production (lungs).

• Phonation: generation of basic sound by vibration of vocal cords (glottis). The
• therwise smooth airflow is disturbed, causing sound.
• Articulation: changing the spectrum of sound (vocal tract). It gives rise to different

types of sound. The variation is generated by adjusting nature & shape of mouth cavity.

• Class-SP-1.4-print1 Page 2

Vocal folds: anatomy and physiology

Pair of elastic structures of tendon, muscles and mucous membrane situated in the larynx. The variable opening between the folds is the “glottis”. In normal breathing, cords are parted to allow free passage of air.

Observing vocal fold motion:

electro-glottography

○

video photography (see track9)

• The vocal cords functions chiefly in two modes:

With phonation: opening-closing periodic motion => periodic waveform 1. Without phonation: vocal folds are kept slightly parted => aperiodic (noisy) waveform 2. Phonation (vocal cords vibration) is an involuntary muscle action. It occurs when (a) the vocal cords are elastic and close together, and (b) there is sufficient difference between sub-glottal and supra-glottal pressure

Anatomical views of Larynx and vocal folds <www.mayoclinic.com>

Phonation

Glottis

Class-SP-1.4-print1 Page 3

(b) there is sufficient difference between sub-glottal and supra-glottal pressure

The aerodynamics…..

Electro-glottograph (EGG) Impedance is monitored via high-frequency current between electrodes across throat. EGG is based on the principle that tissue is a moderate conductor whereas air is poor. A high frequency current is passed between electrodes positioned on either side of thyroid cartilage and electrical impedance is monitored => area of opening vs time. Show EGG waveform (correlate of glottal opening). But more typically, we show glottal vol. Velocity (cc/sec vs time). Not directly obtained from the glottal opening due to source-tract interaction (loading) effects. Rothenberg flow mask is used to measure flow at mouth opening and then formants are removed by inverse filtering.

Class-SP-1.4-print1 Page 4

Glottal pulses are not truly periodic but exhibit jitter and shimmer due to neurologic, biomechanical and aerodynamic disturbances. Jitter: period to period variations in duration; normally < 1% Shimmer: period to period variations in amplitude; normally < 6% Not normally directly perceptible but add to naturalness of the voice. High jitter-shimmer => roughness

"Glottal flow signal can be approximated by 2-poles near dc.

• K. N. Stevens, ‘‘On the quantal nature of speech,’’ J.

Phonet., 17, 3–46 (1989).

Voice quality is altered by modifying glottal vibration pattern. Voice quality changes can be non-phonemic or phonemic. Rate of Vibration of the vocal cords The average rate is inversely proportional to the length of the vocal folds. This length is correlated with neck circumference Voluntary control: By means of muscle contractions, the vocal folds can be varied in length (tension), thickness and position configuration. Folds are relaxed (short) and thick -> low pitch Folds are tense (long) and thin -> high pitch

Male: 80 - 160 Hz Female: 160 - 320 Hz

Class-SP-1.4-print1 Page 5

Types of Phonation : non-phonemic; speaker-dependent or controlled Normal : or modal quality; can change with changing speed of glottal closure

• Breathy / Whisper :incomplete closure with posterior portion of the glottis always open; the

airflow has periodic + noisy component; extent of breathiness depends on proportion of time vocal folds are open.

• Creaky/Hoarse: folds are closed with a small part vibrating with irregular period.
• Falsetto: folds are thin and don't close completely; only central part vibrates with high rate.
• Pathological voices are rough, hoarse and quantified by measures of aperiodicity including

breath noise

Class-SP-1.4-print1 Page 6

"Phonemic" voice quality We can divide all speech sounds based on whether produced with vocal folds vibration or without (held open with narrow constriction) into the categories Voiced sounds

• Unvoiced sounds
• Vowels

Fricatives Plosives Voiced normal z, j, v b, d, g Unvoiced whispered s, sh, f p, t, k Other source of sound in glottis: Aspiration noise

Electronic Larynx

Class-SP-1.4-print1 Page 7

Class-SP-1.4-print1 Page 8

Class-SP-1.4-print1 Page 9

Articulation The sound produced at the larynx passes through the vocal tract which alters the sound quality based on the selected positions of the articulators (tongue, jaw, lips, velum) changing the shape of the vocal tract "resonator".

From unsw acoustics site.

We can use the known expressions for resonances of a tube of given length and end (open/closed) conditions.

(These known expressions come from solving the Newton's 2nd law for sound propagation in the body to arrive at the constant o f proportionality in the Simple Harmonic Motion differential eqn).

From: Ladefoged, Acoustic Phonetics

Tube model for vocal tract:

Good approximation for the sound /uh/ as in "burn"

Vocal tract acoustics To appreciate the role of the vocal tract, change your mouth shape while phonating at constant pitch and amplitude. We can now see how we can independently control the larynx (source) and vocal tract articulators (filter) for different sounds.

Vocal tract

Monday, August 20, 2012 1:25 PM Class-SP-1.4-print1 Page 10

For L=17.5 cm, C= 340 m/s => f = 500, 1500, 2500….. Hz Tube approximation for /a/ as in "cart" For L1 = L2 = 8.75 cm => f = 1000, 3000, 5000… Hz

Other vowels; Role of tongue, lips. Tongue position and height creates the vocal tract cavities. Rounding of lips changes length. Nasal sounds: Branched resonator In reality, there are perturbations in above values due to the coupling between the tubes. E.g. /a/ tubes' resonances at 1000 are really at 900, 1100 Hz.

Class-SP-1.4-print1 Page 11

Damped resonator: spectrum, waveform

Nasal cavity

Closure of oral cavity + radiation of sound through nasal cavity. Oral cavity acts as a side-branch resonator, introducing zeros (anti- resonances) based on its length. Nasalised vowels: Both oral and nasal cavities are open and coupled but oral is more open. Thus nasal cavity acts like a anti-resonator. Laterals, fricatives

Screen clipping taken: 7/28/2013, 8:38 PM

Laterals (l,r) have a side-cavity that introduces anti-resonances.

<- pocket of air above tongue <- main cavity curves around tongue

Unvoiced consonants: There is a turbulent flow of air through a constriction within the vocal tract. This constriction creates a frication noise source that excites primarily the portion of the vocal tract in front of it. Depending on the place of the constriction we have different sounds: sh, s, f.

Effect of losses in the vocal tract: Resonances and anti-resonances have zero bandwidth. But in practice, there are losses in the speech production system such as: yielding (not rigid) walls that vibrate at low frequencies, viscous friction between the air and walls and heat conduction through walls, large yielding surface area of nasal cavity, sound radiation at the lips.

Nasal consonants:

Class-SP-1.4-print1 Page 12

Also applies to musical instruments...

Lip radiation: The lips form a small opening so that diffraction (bending) of large wavelengths (low frequencies) takes place while high frequencies are directed in front => lip radiation is modeled by high-pass filter.

Screen clipping taken: 7/28/2013, 8:58 PM

B = -σ/ᴨ ω = 2ᴨF = 2ᴨ(1/T)

Source-filter model of speech production

For given formant frequency Fi Hz and bandwidth Bi Hz , we have for sampling period T:

θi = 2π.Fi.T ri = e-πBiT

Digital resonator

For consonant phones:

Class-SP-1.4-print1 Page 13

Acoustic phonetics: the differentiation of sounds on an acoustic basis. The acoustics are more evident spectrally rather than in the time domain.

<---- Voicing and manner

Class-SP-1.4-print1 Page 14
