Dro nes in agric ulture : Pheno typing use -c ase Dries Raymaekers , Pieter-Jan Baeck, Bram Janssens, Wouter Dierckx, S tephen Kempenaers, Jens Verreyt, Dieter Meeus, Dominique De Munck, S tephanie Delalieux & Ilse Decoster Agr ic ultur

SLIDE 1

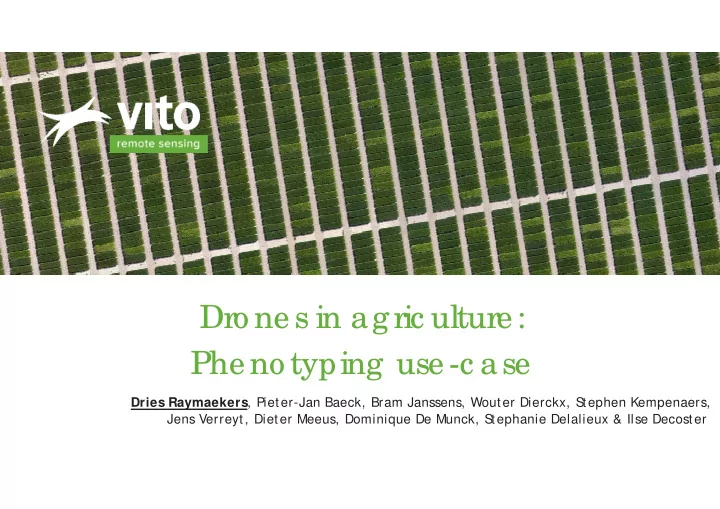

Dro nes in agric ulture : Pheno typing use -c ase

Dries Raymaekers, Pieter-Jan Baeck, Bram Janssens, Wouter Dierckx, S tephen Kempenaers, Jens Verreyt, Dieter Meeus, Dominique De Munck, S tephanie Delalieux & Ilse Decoster

SLIDE 2

remo tesensing.vito .be

Agr ic ultur al r e se ar c h fr

m the sky

Global/ Regional trends Precision agriculture Phenotyping Global/ Regional trends Precision agriculture Phenotyping

SLIDE 3

remo tesensing.vito .be

Phe notyping : fr

m lab/ gr

e e nhouse to the fie ld

Lab Greenhouse Field # Breeding lines Cost / Trait Agricultural relevance

SLIDE 4

remo tesensing.vito .be

Phe notyping on fie ld le ve l: available te c hnique s

Expert Fixed stations Drone

THE reference
Time consuming
Expert knowledge
S

ubj ective measurements

High detail
Large investments
Limited area
Legislation?
Data handling?
Image analytics?

www.fieldphenomics.org Lemnatec

Do It Y

urself
High detail
Prototyping
Limited area

SLIDE 5

re mo te se nsing.vito .be

EXAMPLES OF DRONE BAS ED PHENOTYPING

Flowering - Rapeseed Germination – S ugar beet Height – Wheat

SLIDE 6

re mo te se nsing.vito .be

EXAMPLES OF DRONE BAS ED PHENOTYPING – HEIGHT MEAS UREMENTS

SLIDE 7

re mo te se nsing.vito .be

EXAMPLES OF DRONE BAS ED PHENOTYPING – HEIGHT MEAS UREMENTS

#samples R2 Bias [cm] S EP2 [cm] Rapeseed 619 0,55 38 11 Wheat 6429 0,52 14 4 Barley 3038 0,60 18 4 Maize 1844 0,52 3 22

SLIDE 8

remo tesensing.vito .be

What is ne e de d to go one ste p fur the r ?

1. Consistent data over growing season, years and locations
2. Automation to reduce cost
3. Ease of use because we are all busy

Demo setup Operational setup Build Infrastructure

SLIDE 9

remo tesensing.vito .be

MAPE O: dr

ne base d phe notyping infr

astr uc tur e

S tandardization of image acquisition Centralization/ automation of data processing Platform for data visualization and data sharing

SLIDE 10

remo tesensing.vito .be

Standar disation of image ac quisition

Network of drone operators

SLIDE 11

remo tesensing.vito .be

Standar disation of image ac quisition

Check data quality in the field

SLIDE 12

remo tesensing.vito .be

Ce ntr alization/ automation of data pr

c e ssing

Image processing workflows S ystem architecture Operator tools

SLIDE 13

remo tesensing.vito .be

Image pr

duc ts

Orthomosaic Digital Surface Model Crop Cover Crop Height Crop Count NDRE NDVI PSRI* OSAVI Thermal Index

SLIDE 14

remo tesensing.vito .be

Platfor m for data visualization and shar ing

MAPEO webt ool: Visualise over t he growing season Creat e or upload field layout

SLIDE 15

remo tesensing.vito .be

Platfor m for data visualization and shar ing

MAPEO webt ool: Visualise over t he growing season Creat e or upload field layout Analyse per plot Ext ract st at ist ics

SLIDE 16

remo tesensing.vito .be

Platfor m for data visualization and shar ing

MAPEO webt ool: Visualise over t he growing season Creat e or upload field layout Analyse per plot Ext ract st at ist ics Annot at e and share

SLIDE 17

remo tesensing.vito .be

DE MONST R AT ION – PC Zwaagdijk

Order and manage droneflights Visualize, analyse and Export plant trait information

SLIDE 18

remo tesensing.vito .be

Conc lusion: towar ds ope r ational dr

ne base d phe notyping

Algorithms Easy to use platform Automated processes S tandardization

EXPERIMENTAL DES IGN

SLIDE 19

re mo te se nsing.vito .be

THANK YOU

Contact: dries.raymaekers@

vito.be

More information: https:/ / remotesensing.vito.be/ case/ mapeo
