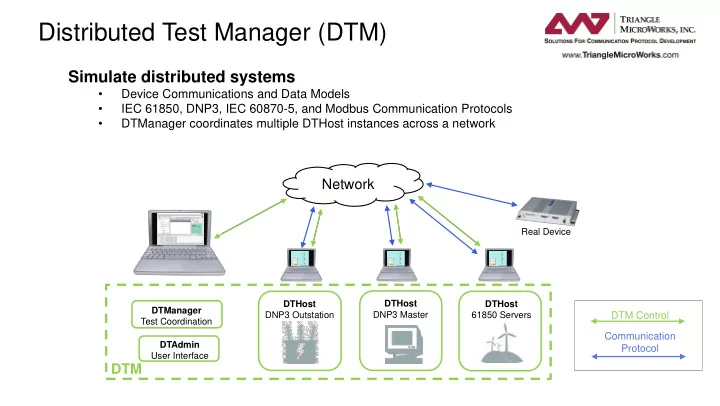

Distributed Test Manager (DTM)

Simulate distributed systems

• Device Communications and Data Models
• IEC 61850, DNP3, IEC 60870-5, and Modbus Communication Protocols
• DTManager coordinates multiple DTHost instances across a network

DTManager Test Coordination DTHost DNP3 Outstation

Network

DTHost 61850 Servers DTHost DNP3 Master Real Device

Communication Protocol DTM Control

DTAdmin User Interface

Use Cases for DTM

HMI or Gateway Under Test

Server 2 Server 3 Server 1 Server N

Load Testing Verify Substation Communications

Server PQ1 Server BCQ1 Server PQ2 Server BCQ2 Server PQ3 Server BCQ3

GOOSE GOOSE

IEC 61850 Client

• Create hundreds of simulated devices
• Devices can be distributed across the real network topology
• Generate messaging traffic to place device or system under load
• Test device communications within the substation
• Create substation devices based on .SCD or .ICD files
• Configure GOOSE, Report Control Blocks, and Sampled Values

Use Cases for DTM

Outstation

Security Validation Training

• Validate security policy
• Verify user authentication, roles, and commands
• Simulate multiple Master/Outstations or Client/Servers
• Simulate and visualize entire substation or other system
• Connect to real HMI or create emulated user interface
• Playback real scenarios with CSV files or scripts

Outstation Outstation DNP3 Master

DNP3 SAv5 Commands Secure Authentication

DNP3 Master

1000A 13.8 kV 1000A 13.8 kV 1000A 13.8 kV

Distributed Test Manager (DTM)

Learn more and Download a free evaluation:

TriangleMicroworks.com/DTM
