Operating Systems DSM

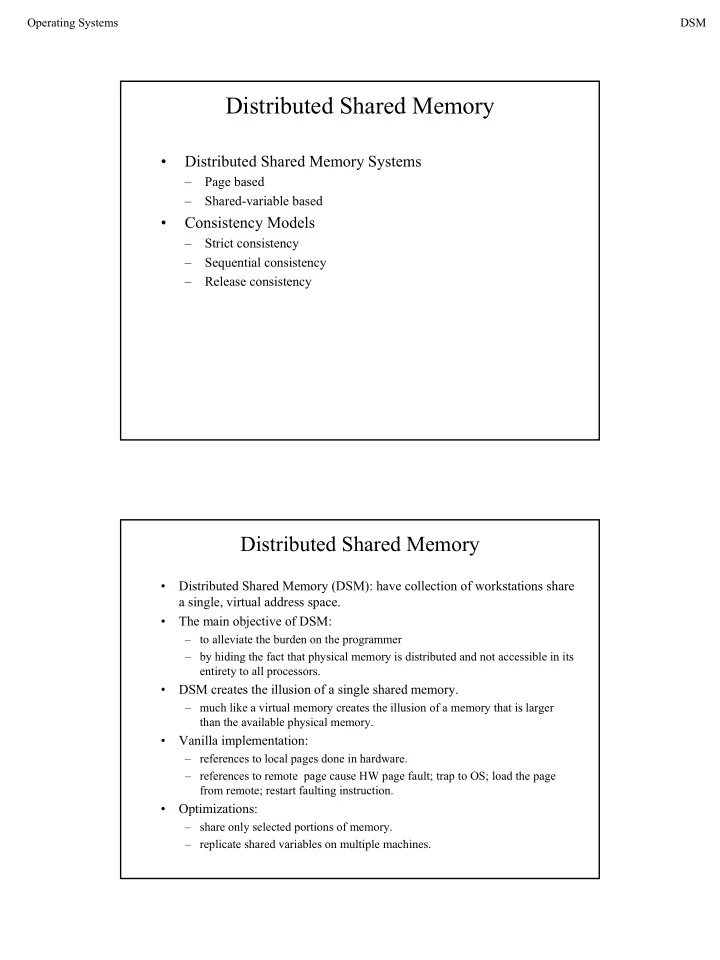

Distributed Shared Memory

• Distributed Shared Memory Systems

– Page based – Shared-variable based

• Consistency Models

– Strict consistency – Sequential consistency – Release consistency

Distributed Shared Memory

• Distributed Shared Memory (DSM): have collection of workstations share

a single, virtual address space.

• The main objective of DSM:

– to alleviate the burden on the programmer – by hiding the fact that physical memory is distributed and not accessible in its entirety to all processors.

• DSM creates the illusion of a single shared memory.

– much like a virtual memory creates the illusion of a memory that is larger than the available physical memory.

• Vanilla implementation:

– references to local pages done in hardware. – references to remote page cause HW page fault; trap to OS; load the page from remote; restart faulting instruction.

• Optimizations:

– share only selected portions of memory. – replicate shared variables on multiple machines.

Operating Systems DSM

Page-Based DSM

• NUMA (Non-Uniform Memory Access)

– processor can directly reference local and remote memory locations – no software intervention

• Workstations on network

– can only reference local memory

• Goal of DSM

– add software to allow NOWs (Network of Workstations) to run multiprocessor code – simplicity of programming NUMA Machine

NUMA Node NUMA Node

Operating Systems DSM

Shared-Variable DSM

• Is it necessary to share entire address space?
• Share individual variables.
• more variety in possible update algorithms for replicated

variables

• opportunity to eliminate false sharing

Design Issues

• Replication

– replicate read-only portions – replicate read and write portions

• Granularity

– restriction: memory portions multiples of pages – pros of large portions:

• amortize protocol overhead
• locality of reference

– cons of large portions

• false sharing!

A B Processor 1 code using A A B Processor 2 code using B

Operating Systems DSM

Basic Design

• Emulate cache of multiprocessor using the MMU and system

software

1 2 3 4 5 6 7 8 9 10 11 12 13 14 2 5 9 CPU 1 3 6 8 CPU 4 7 11 12 CPU 15 10 14 13 15 CPU

Design Issues (cont)

• Update Options: Write-Update vs. Write-Invalidate
• Write-Update:

– Writes made locally are multicast to all copies of the data item. – Multiple writers can share same data item. – Consistency depends on multicast protocol.

• E.g. Sequential consistency achieved with totally ordered multicast.

– Reads are cheap

• Write-Invalidate

– Distinguish between read-only (multiple copies possible) and writable (only one copy possible). – When process attempts to write to remote or replicated item, it first sends a multicast message to invalidate copies; If necessary, get copy

• f item.

– Ensures sequential consistency.

Operating Systems DSM

Protocol for Handling DSM Pages (only one writable copy)

Transfer remote writable copy to local memory Writable Remote Write Downgrade page to read-only; Make local read-only copy Writable Remote Read Writable Local Write Writable Local Read Invalidate remote objects; Make local writable copy Read-only Remote Write Make local read-only copy Read-only Remote Read Invalidate remote copies; Upgrade local copy to writable Read-only Local Write Read-only Local Read

Actions Taken Before Local Read/Write Page Status Page Location Operation

Design Issues (cont)

• Finding the Owner

– broadcast request for owner

• combine request with requested operation
• problem: broadcast effects all participants (interrupts all processors), uses

network bandwidth

– page manager

• possible hot spot
• multiple page manager, hash on page address

– probable owner

• each process keeps track of probable owner
• Update probable owner whenever

– Process transfers ownership of a page – Process handles invalidation request for a page – Process receives read access for a page from another process – Process receives request for page it does not own (forwards request to probable owner and resets probable owner to requester)

• periodically refresh information about current owners

Operating Systems DSM

Probable Owner Chains

B B A A C C D D E E

• wner

B B A A C C D D E E

• wner

A issues write B B A A C C D D E E

• wner

A issues read B B A A C C D D E E

• wner

alternatively …

Design Issues (cont)

• Finding the copies

– How to find the copies when they must be invalidated – broadcast requests

• what when broadcasts are not reliable?

– copysets

• maintained by page manager or by owner

3 4 CPU 2 3 4 CPU 1 2 3 CPU 2 3 CPU

• 1

CPU 4

Operating Systems DSM

Consistency Models

• Single copy of writable page:

–simple, but expensive for heavily shared pages

• Multiple copies of writable page

–how to keep pages consistent?

• Perfect consistency is expensive.
• How to relax consistency requirements?
• Consistency model

Contract between application and memory. If application agrees to obey certain rules, memory promises to work correctly.

Consistency Models

• Strict consistency:

– A DSM is said to obey strict consistency if reading a variable x always returns the value written to x by the most recently executed write operation.

• Sequential consistency:

– A DSM is said to obey sequential consistency if the sequence of values read by the different processes corresponds to some sequential interleaved execution of the same processes.

• Release consistency

Operating Systems DSM

Strict Consistency

• Most stringent consistency model:

Any read to a memory location x returns the value stored by the most recent write operation to x.

• strict consistency observed in uni-processor systems.
• has come to be expected by uni-processor programmers

– very unlikely to be supported by any multiprocessor

• All writes are immediately visible by all processes
• Requires that absolute global time order is maintained
• Example of strict consistency:

P1: x = 1; a1 = x; x = 2; b1 = x; P2: a2 = x; b2 = x; Initial: x = 0 Real time: t1 t2 t3 t4

Sequential Consistency

• Strict consistency impossible to implement.
• Programmers can manage with weaker models.
• Sequential consistency [Lamport 79]

The result of any execution is the same as if the operations of all processors were executed in some sequential order, and the

• perations of each individual processor appear in this sequence in the
• rder specified by its program.
• Any valid interleaving is acceptable, but all processes must

see the same sequence of memory references.

• Sequential consistency does not guarantee that read returns

value written by another process anytime earlier.

• Results are not deterministic.

Operating Systems DSM

Strict Versus Sequential Consistency

P1: x = 1; a1 = x; x = 2; b1 = x; P2: a2 = x; b2 = x; Initial: x = 0 Real time: t1 t2 t3 t4

• Under strict consistency, both processes, P1 and P2, must see

1. x = 1 with their first read operation 2. x = 2 with the second

• Under sequential consistency, result is considered correct as

long as: 1. The two read operations of P1 always return the values 1 and 2, respectively. 2. The two read operations of P2 return any of the following combinations of values: 0 0, 0 1, 1 1, 1 2, 2 2.

Release Consistency

• Operations:

– acquire critical region: C.S. is about to be entered.

• make sure that local copies of variables are made consistent with remote
• nes.

– release critical region: C.S. has just been exited.

• propagate shared variables to other machines.

– Operations may apply to a subset of shared variables

x P1 lock; x = 1; unlock; x P2 lock; a = x; unlock;

• cause

propagation delayed until P1 unlocks

Operating Systems DSM

Release Consistency (cont)

• Possible implementation

– Acquire:

• 1. Send request for lock to synchronization processor; wait until granted.
• 2. Issue arbitrary read/writes to/from local copies.

– Release:

• 1. Send modified data to other machines.
• 2. Wait for acknowledgements.
• 3. Inform synchronization processor about release.

– Operations on different locks happen independently.

• Release consistency:
• 1. Before an ordinary access to a shared variable is performed, all

previous acquires done by the process must have completed successfully.

• 2. Before a release is allowed to be performed, all previous reads and

writes done by the process must have completed.

Entry Consistency

• Operations:

– acquire critical region: C.S. is about to be entered.

• imports only those shared variables pertaining to the current lock
• unnecessary overhead can be eliminated
• whereas lazy release consistency imports all shared variables

– release critical region: C.S. has just been exited. x P1 lock; x = 1; unlock; x P2 lock; a = x; unlock;

• cause

propagation delayed until P1 unlocks

Operating Systems DSM

Consistency Models: Summary

Consistency Description Strict Absolute time ordering of all shared accesses matters Sequential All processes see all shared accesses in the same order Release Shared data are made consistent when a critical region is exited
