Dictionary Learning Applications in Control Theory Paul Irofti, Florin Stoican Politehnica University of Bucharest Faculty of Automatic Control and Computers Department of Automatic Control and Systems Engineering Email: paul@irofti.net,


slide-1
SLIDE 1

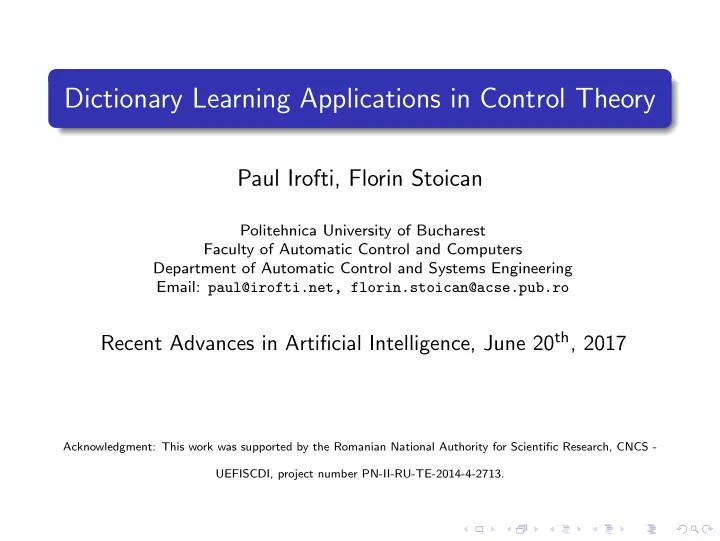

Dictionary Learning Applications in Control Theory

Paul Irofti, Florin Stoican

Politehnica University of Bucharest Faculty of Automatic Control and Computers Department of Automatic Control and Systems Engineering Email: paul@irofti.net, florin.stoican@acse.pub.ro

Recent Advances in Artificial Intelligence, June 20th, 2017

Acknowledgment: This work was supported by the Romanian National Authority for Scientific Research, CNCS - UEFISCDI, project number PN-II-RU-TE-2014-4-2713.

slide-2
SLIDE 2

Sparse Representation (SR)

= y D x ·

slide-3
SLIDE 3

Orthogonal Matching Pursuit (OMP)

Algorithm 1: OMPa

1 Arguments: D, y, s 2 Initialize: r = y, I = ∅ 3 for k = 1 : s do 4

Compute correlations with residual: z = DTr

5

Select new column: i = arg maxj |zj|

6

Increase support: I ← I ∪ {i}

7

Compute new solution: x = LS(D, y, I)

8

Update residual: r = y − DIxI

aPati, Rezaiifar, and Krishnaprasad 1993.

slide-4
SLIDE 4

Dictionary Learning (DL)

≈ Y D X ·

slide-5
SLIDE 5

The Dictionary Learning (DL) Problem

Given a data set Y ∈ Rp×m and a sparsity level s, minimize the bivariate function minimize

D,X

Y − DX2

F

subject to dj2 = 1, 1 ≤ j ≤ n xi0 ≤ s, 1 ≤ i ≤ m, (1) where D ∈ Rp×n is the dictionary (whose columns are called atoms) and X ∈ Rn×m the sparse representations matrix.

slide-6
SLIDE 6

Approach

Algorithm 2: Dictionary learning – general structure

1 Arguments: signal matrix Y , target sparsity s 2 Initialize: dictionary D (with normalized atoms) 3 for k = 1, 2, . . . do 4

With fixed D, compute sparse representations X

5

With fixed X, update atoms dj, j = 1 : n

slide-7
SLIDE 7

DL Algorithms

K-SVD1 solves the optimization problem in sequence min

dj,Xj,Ij

YIj −

  • ℓ=j

dℓXℓ,Iℓ   − djXj,Ij

  • 2

F

(2) where all atoms excepting dj are fixed. This is seen as a rank-1 approximation and the solution is given by the singular vectors corresponding to the largest singular value. dj = u1, Xj,Ij = σ1v1. (3)

1Aharon, Elad, and Bruckstein 2006.

slide-8
SLIDE 8

LC-KSVD

minimize

D,X,A,W

Y − DX2

F + αQ − AX2 F + βH − WX2 F

subject to dj2 = 1, 1 ≤ j ≤ n xi0 ≤ s, 1 ≤ i ≤ m, (4) dictionary atoms evenly split among classes qi has non-zero entries where yi and di share the same label. linear transformation A encourages discrimination in X hi = ej where j is the class label of yi W represents the learned classifier parameters

slide-9
SLIDE 9

Fault Detection and Isolation in Water Networks

slide-10
SLIDE 10

FDI via DL

Water networks pose some interesting issues: large scale, distributed network with few sensors user demand unknown or imprecise pressure dynamics nonlinear (analytic solutions impractical) The DL approach for FDI: a residual signal compares expected and measured pressures ri(t) = pi(fi(t), fj(t), t) − ¯ pi, ∀i, j (5) to each fault is assigned a class and DL provides the atoms which discriminate between them each residual is sparsely described by atoms and thus, FDI is achieved iff the classification is unambiguous

slide-11
SLIDE 11

Hanoi

100 1350 9 1 1 5 1450 4 5 850 8 5 800 9 5 1200 3500 800 5 550 2 7 3 1 7 5 800 400 2 2 1500 500 2650 1230 1 3 850 300 7 5 1500 2 1600 150 860 950

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 junction node tank node node with sensor junction partition pipe connection fault event

legend

slide-12
SLIDE 12

Sensor Placement

Let R ∈ Rn×mn be measured pressure residuals in all n network

  • nodes. For each node we simulate m different faults.

Given s < n available sensors, apply OMP on each column r minimize

x

r − Inx2

2

subject to x0 ≤ s, (6) resulting in matrix X with s-sparse columns approximating R.

slide-13
SLIDE 13

Placement Strategies

(a) select the s most common used atoms (b) from each m-block select most frequent s atoms; of the n · s atoms, select again the first s.

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 2 3 4 5 6 7 8 9 10

selected nodes number of sensors case (a) case (b)

slide-14
SLIDE 14

Learning

Algorithm 3: Placement and FDI learninga

1 Inputs: training residuals R ∈ Rn×nm 2

parameters s, α, β

3 Result: dictionary D, classifier W , sensor nodes Is 4 Select s sensor nodes Is based on matrix R using (a) or (b) 5 Let RIs be the restriction of R to the rows in Is 6 Use RIs, α and β to learn D and W from (4)

aIrofti and Stoican 2017.

slide-15
SLIDE 15

Fault Detection

Algorithm 4: Fault detection and isolation

1 Inputs: testing residuals R ∈ Rs×mn 2

dictionary D, classifier W

3 Result: prediction P ∈ Nmn 4 for k = 1 to mn do 5

Use OMP to obtain xk using rk and D

6

Label: Lk = Wxk

7

Classify: pk = arg maxc Lk Position c of the largest entry from Lk is the predicted class.

slide-16
SLIDE 16

Today

Improved sensor placement. Iteratively choose s rows from R solving at each step i = arg min

k

projRIrk2

2 + λ

1 δk,I1 , rk ∈ RIc, (7) where I is the set of currently selected rows and δk,I vector elements are the distances from node k to the nodes in I. Graph aware DL. Adding graph regularization2 Y − DX2

F + α Q − AX2 F + β H − WX2 F +

+ γTr(DTLD) + λTr(XLcX T) + µ L2

F ,

(8) where L is the graph Laplacian.

2Yankelevsky and Elad 2016.

slide-17
SLIDE 17

Zonotopic Area Coverage

slide-18
SLIDE 18

Zonotopic sets

Area packing, mRPI (over)approximation and other related notions may be described via unions of zonotopic sets: min

Zk

vol(S) − vol

  • k

Zk

  • ,

subject to Zk ⊆ S. (9) Zonotopes, given in generator representation3 Zk = Z(ck, Gk) = {ck + Gkξ : ξ∞ ≤ 1} (10) are easy to handle for: Minkowski sum: Z(G1, c1) ⊕ Z(G2, c2) = Z(

  • G1

G2

  • , c1 + c2)

linear mappings: RZ(G1, c1) = Z(RG1, Rc1)

3Fukuda 2004.

slide-19
SLIDE 19

Formulation

Each zonotope is parameterized after its center and a scaling vector (ck, λk). These variables help formulate the: inclusion constraint Z (ck, G · diag(λk)) ⊆ U: s⊤

i ck +

  • j

|s⊤

i Gj|λjk ≤ ri,

∀i, (11) where U = {u : s⊤

i u ≤ ri}.

explicitly describe the volume4 vol (Z(ck, Gλk)): vol(Z(ck, GΛk)) =

  • 1≤j1<...jn≤N
  • det(G j1...jn)
  • ·
  • j∈{j1...jn}

λjk. (12) The formulation becomes simpler if the scaling is homogeneous (λ∗

k = λjk, ∀j).

4Gover and Krikorian 2010.

slide-20
SLIDE 20

Implementation

We track the OMP formalism, without its theoretical convergence guarantees: Algorithm 5: Area Coverage with zonotopic sets

1 Inputs: area to be covered U, sparsity constraint s 2 Result: pairs of centers and scaling factors (ck, λk) 3 for k = 1 to s do 4

Enlarge the zonotopes until they saturate the constraints

5

Select Zk where k = arg min

k vol(Sk \ Zk) 6

Update the uncovered area vol(Sk+1) = vol(Sk ∪ Zk)

slide-21
SLIDE 21

Result

−0.4 −0.3 −0.2 −0.1 0.1 0.2 0.3 0.4 0.5 −0.4 −0.2 0.2 0.4

slide-22
SLIDE 22

Thank You!

Questions?
