DEVS Standards Group meeting Winter Simulation Conference 2001 Washington, DC December 11, 2001 DEVS standardization: some thoughts Hans Vangheluwe Juan de Lara, Jean-S ebastien Bolduc, Ernesto Posse Modelling, Simulation and Design Lab

slide-1
SLIDE 1

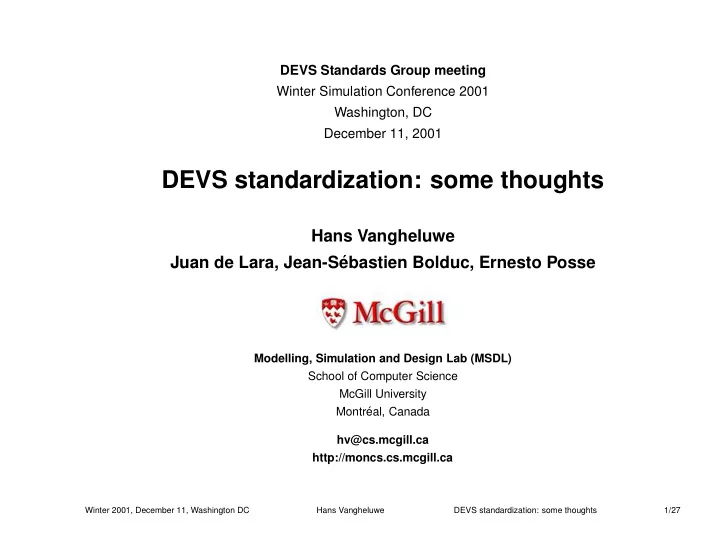

DEVS Standards Group meeting Winter Simulation Conference 2001 Washington, DC December 11, 2001

DEVS standardization: some thoughts

Hans Vangheluwe Juan de Lara, Jean-S´ ebastien Bolduc, Ernesto Posse

Modelling, Simulation and Design Lab (MSDL) School of Computer Science McGill University Montr´ eal, Canada hv@cs.mcgill.ca http://moncs.cs.mcgill.ca

Winter 2001, December 11, Washington DC Hans Vangheluwe DEVS standardization: some thoughts 1/27

slide-2
SLIDE 2

Presentation Overview

  • 1. Previous experiences with Modelling/Simulation/Standardization
  • 2. Standardizing . . . what ?

(a) The DEVS formalisms (b) The DEVS model representation (c) The DEVS model-solver interface (d) The DEVS model libraries

  • 3. Meta-modelling
  • Architecture: modelling formalism syntax and semantics
  • Examples of Meta-modelling in AToM3
  • 4. Meta-modelling syntax and semantics of xyz-DEVS

Winter 2001, December 11, Washington DC Hans Vangheluwe DEVS standardization: some thoughts 2/27

slide-3
SLIDE 3

Previous experiences with Modelling/Simulation/Standardization

  • Formalism – Modelling Language – Simulation Model – Libraries
  • DAE++ – Modelica – DSblock – Modelica Standard Library
  • PDE + DAE – MSL-USER – MSL-EXEC – WEST++ model library
  • PDE + ODE + ALG – OOCSMP – Java – OOCSMP library
  • Python-(classic)DEVS (with ports)
  • Meta-modelling syntax and semantics of Causal Block Diagrams

Winter 2001, December 11, Washington DC Hans Vangheluwe DEVS standardization: some thoughts 3/27

slide-4
SLIDE 4

Standardizing . . . what ?

  • 1. The DEVS formalisms
  • 2. The DEVS model representation
  • 3. The DEVS model-solver interface
  • 4. The DEVS model libraries

Winter 2001, December 11, Washington DC Hans Vangheluwe DEVS standardization: some thoughts 4/27

slide-5
SLIDE 5

Standardizing the DEVS formalisms

Relationships between different variants of DEVS

  • 1. Inheritance (specialization) – caveat: inheritance is also a

transformation

  • 2. Transformation (e.g., onto Classic DEVS)

Reasons for transformation:

  • conceptual: insight, proof of “equivalence” (morphism)
  • avoid building a new simulator. Automatically transform to

formalism for which a (efficient) simulator exists.

Winter 2001, December 11, Washington DC Hans Vangheluwe DEVS standardization: some thoughts 5/27

slide-6
SLIDE 6

Standardizing the DEVS model representation

For exchange and re-use

  • 1. Between programs, agents, machines, . . .

Needs to be platform neutral, efficiently machine readable and writable. Suggestion: XML.

  • 2. Between humans

Needs to be readable, expressive, compact. Suggestions: graphical (composition), textual (expressions, loops, scoping, inheritance).

  • 3. Storage of large amounts of data models (trajectory formalism)

Needs to be compact. Suggestions: binary (XDR, dbase). Least important issue.

Winter 2001, December 11, Washington DC Hans Vangheluwe DEVS standardization: some thoughts 6/27

slide-7
SLIDE 7

OO Modelling in Modelica

  • everything is a class
  • inheritance hierarchy: from generic to specific

Winter 2001, December 11, Washington DC Hans Vangheluwe DEVS standardization: some thoughts 7/27

slide-8
SLIDE 8

Electrical example: Modelica vs. Matlab/Simulink

Winter 2001, December 11, Washington DC Hans Vangheluwe DEVS standardization: some thoughts 8/27

slide-9
SLIDE 9

Electrical Types

type Time = Real (final quantity="Time", final unit="s"); type ElectricPotential = Real (final quantity="ElectricPotential", final unit="V"); type Voltage = ElectricPotential; type ElectricCurrent = Real (final quantity="ElectricCurrent", final unit="A"); type Current = ElectricCurrent;

Winter 2001, December 11, Washington DC Hans Vangheluwe DEVS standardization: some thoughts 9/27

slide-10
SLIDE 10

Electrical Pin Interface

connector PositivePin "Positive pin of an electric component" Voltage v "Potential at the pin"; flow Current i "Current flowing into the pin"; end PositivePin;

Winter 2001, December 11, Washington DC Hans Vangheluwe DEVS standardization: some thoughts 10/27

slide-11
SLIDE 11

Electrical Port

partial model OnePort "Component with two electrical pins p and n and current i from p to n" Voltage v "Voltage drop between the two pins (= p.v - n.v)"; Current i "Current flowing from pin p to pin n"; PositivePin p; NegativePin n; equation v = p.v - n.v; 0 = p.i + n.i; i = p.i; end OnePort;

Winter 2001, December 11, Washington DC Hans Vangheluwe DEVS standardization: some thoughts 11/27

slide-12
SLIDE 12

Electrical Resistor

model Resistor "Ideal linear electrical resistor" extends OnePort; parameter Resistance R=1 "Resistance"; equation R*i = v; end Resistor;

Winter 2001, December 11, Washington DC Hans Vangheluwe DEVS standardization: some thoughts 12/27

slide-13
SLIDE 13

The circuit

model circuit Resistor R1(R=10); Capacitor C(C=0.01); Resistor R2(R=100); Inductor L(L=0.1); VsourceAC AC; Ground G; equation connect(AC.p, R1.p); connect(R1.n, C.p); connect(C.n, AC.n); connect(R1.p, R2.p); connect(R2.n, L.p); connect(L.n, C.n); connect(AC.n, G.p); end circuit;

Winter 2001, December 11, Washington DC Hans Vangheluwe DEVS standardization: some thoughts 13/27

slide-14
SLIDE 14

Standardizing the DEVS model representation

  • ability to reason about, manipulate model
✁

model is not code

  • language (C++, Java, . . . ) independent (x
✂

y

✄

z

✂

2)

Winter 2001, December 11, Washington DC Hans Vangheluwe DEVS standardization: some thoughts 14/27

slide-15
SLIDE 15

Standardizing the DEVS model-solver interface

SOLVER(s) SIMULATOR = solver + model MODEL dynamics MODEL symbolic information

experimentation environment (e.g., parameter input, visulisation)

  • r

simulator "bus" (e.g., HLA)

  • r

Winter 2001, December 11, Washington DC Hans Vangheluwe DEVS standardization: some thoughts 15/27

slide-16
SLIDE 16

Standardizing the DEVS model-solver interface

  • Only the interface (API) is defined
  • This allows for multiple language bindings
  • Does the simulator correctly implement the formalism’s semantics ?

How to verify ?

– formal proof (starting from an implementation): hard ! – compare with automatically generated (from formal specification)

reference implementation.

Winter 2001, December 11, Washington DC Hans Vangheluwe DEVS standardization: some thoughts 16/27

slide-17
SLIDE 17

Standardizing the DEVS model libraries

  • success of language/standard depends on availability of standard

libraries (in different application domains).

  • success increases if re-use mechanisms are good (inheritance)
  • Modelica, Extend, C++ vs. Java, . . .

Winter 2001, December 11, Washington DC Hans Vangheluwe DEVS standardization: some thoughts 17/27

slide-18
SLIDE 18

What is Meta-modelling ?

  • A meta-model is a model of a modelling formalism
  • A meta-model is itself a model. Its syntax and semantics are

governed by the formalism it is described in. That formalism can be modelled in a meta-meta-model.

  • As a meta-model is a model, we can reason about it, manipulate it,

. . . In particular, properties of (all models in) a formalism can be formally proven.

  • Formalism-specific modelling and simulation tools can automatically

be generated from a meta-model (AToM3).

Winter 2001, December 11, Washington DC Hans Vangheluwe DEVS standardization: some thoughts 18/27

slide-19
SLIDE 19
  • Formalisms can be tailored to specific needs by modifying the

meta-model (possibly through inheritance if specializing).

  • Semantics of new formalisms through extension or transformation

(multi-formalism).

Winter 2001, December 11, Washington DC Hans Vangheluwe DEVS standardization: some thoughts 19/27

slide-20
SLIDE 20

Meta-modelling architecture: syntax

meta-meta model meta-model processor meta-model user input a model of a class of models (the formalism MF) semantics within formalism MMF describes: structure and constraints a model in formalism MF

  • create
  • delete
  • verify (local, global)

meta-model processor model user input a model of a class of models (the formalism F) semantics within formalism MF describes: structure and constraints a model in formalism F

  • create
  • delete
  • verify (local, global)

MMF MF F (ER) (ER) (FSA) Winter 2001, December 11, Washington DC Hans Vangheluwe DEVS standardization: some thoughts 20/27

slide-21
SLIDE 21

Meta-modelling architecture: transformation

meta-model a model in formalism ER meta-model processor model user input a model of a class of models (the formalism NFA) semantics within formalism ER a model in formalism NFA

  • create
  • delete
  • verify (local, global)

MF F (ER) (NFA) meta-model a model in formalism MF meta-model processor model user input a model of a class of models (the formalism F) semantics within formalism MF describes: structure and constraints a model in formalism FSA

  • create
  • delete
  • verify (local, global)

MF F (ER) (FSA) (multi-formalism) model transformer = meta-model processor transformation meta-model MF (GGR)

Winter 2001, December 11, Washington DC Hans Vangheluwe DEVS standardization: some thoughts 21/27

slide-22
SLIDE 22

Examples of Meta-modelling in AToM3

  • 1. Petri Net Meta-model (syntax)
  • 2. Petri Net Graph Grammar (operational semantics)
  • 3. Petri Net Modelling and Simulation tool (reference implementation)
  • 4. GPSS modelling environment (syntax only, semantics through code

generation for existing, efficient GPSS simulator)

  • 5. Other examples: NFA to DFA, Causal Block Diagrams, Data Flow

Diagrams to Structure Diagrams, . . .

Winter 2001, December 11, Washington DC Hans Vangheluwe DEVS standardization: some thoughts 22/27

slide-23
SLIDE 23

Petri Net Meta-model and generated tool

Winter 2001, December 11, Washington DC Hans Vangheluwe DEVS standardization: some thoughts 23/27

slide-24
SLIDE 24

Generated Petri Net Simulator – reference impl

Winter 2001, December 11, Washington DC Hans Vangheluwe DEVS standardization: some thoughts 24/27

slide-25
SLIDE 25

GPSS modelling environment

Winter 2001, December 11, Washington DC Hans Vangheluwe DEVS standardization: some thoughts 25/27

slide-26
SLIDE 26

Generated Code

* Manufacturing Shop, Model 5 *

  • G. Gordon

SIMULATE L0 GENERATE 5,0 CREATE PARTS L1 ADVANCE 2,0 PLACE ON CONVEYOR L2 TRANSFER BOTH,L3,CONV1 MOVE TO FIRST INSPECTOR L3 SEIZE INS1 GET FIRST INSPECTOR L11 ADVANCE 12,9 INSPECT L14 RELEASE INS1 FREE INSPECTOR TAB TABULATE 1 MEASURE TRANSIT TIME L20 TERMINATE 1 CONV1 ADVANCE 2,0 PLACE ON CONVEYOR L5 TRANSFER BOTH,L6,CONV2 MOVE TO SECOND INSPECTOR L6 SEIZE INS2 GET SECOND INSPECTOR L12 ADVANCE 12,9 INSPECT L15 RELEASE INS2 FREE INSPECTOR L18 TRANSFER ,TAB CONV2 ADVANCE 2,0 PLACE ON CONVEYOR L8 TRANSFER BOTH,L9,CONV3 MOVE TO THIRD INSPECTOR L9 SEIZE INS3 GET THIRD INSPECTOR L13 ADVANCE 12,9 INSPECT L16 RELEASE INS3 FREE INSPECTOR L19 TRANSFER ,TAB CONV3 TERMINATE 1 TABLE M1,5,5,10 START 1000 END Winter 2001, December 11, Washington DC Hans Vangheluwe DEVS standardization: some thoughts 26/27

slide-27
SLIDE 27

Meta-modelling syntax and semantics of xyz-DEVS

  • Only connect . . .
  • Ernesto Posse: meta-modelling DEVS (variable structure, automatic

bisimulation proofs)

  • Jean-S´

ebastien Bolduc: mapping ODEs onto behaviourally equivalent DEVS

  • Thierry Cornelis: meta-models
☎

XML, MSL

  • Hans Vangheluwe & Indrani A.V.: meta-model non-causal (Modelica)

models

Winter 2001, December 11, Washington DC Hans Vangheluwe DEVS standardization: some thoughts 27/27
