Designing Scalable HPC, Deep Learning, Big Data, and Cloud Middleware for Exascale Systems Talk at SCEC 18 Workshop by Dhabaleswar K. (DK) Panda The Ohio State University E-mail: panda@cse.ohio-state.edu

slide-1
SLIDE 1

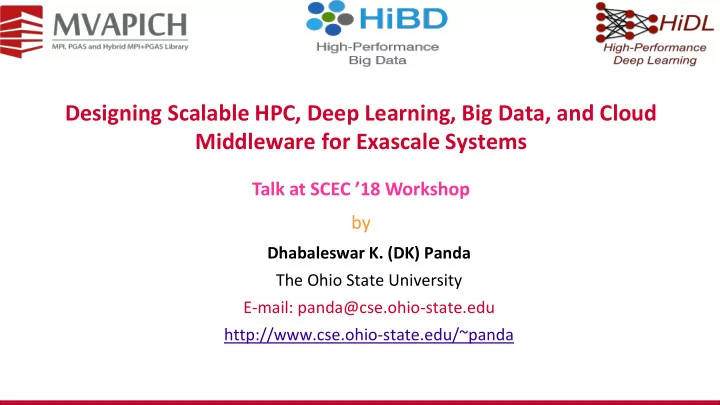

Designing Scalable HPC, Deep Learning, Big Data, and Cloud Middleware for Exascale Systems

Dhabaleswar K. (DK) Panda The Ohio State University E-mail: panda@cse.ohio-state.edu http://www.cse.ohio-state.edu/~panda

Talk at SCEC ’18 Workshop by

slide-2
SLIDE 2

SCEC (Dec ‘18) 2 Network Based Computing Laboratory

Big Data

(Hadoop, Spark, HBase, Memcached, etc.)

Deep Learning

(Caffe, TensorFlow, BigDL, etc.)

HPC

(MPI, RDMA, Lustre, etc.)

Increasing Usage of HPC, Big Data and Deep Learning

Convergence of HPC, Big Data, and Deep Learning! Increasing Need to Run these applications on the Cloud!!

slide-3
SLIDE 3

SCEC (Dec ‘18) 3 Network Based Computing Laboratory

Can We Run Big Data and Deep Learning Jobs on Existing HPC Infrastructure?

Physical Compute

slide-4
SLIDE 4

SCEC (Dec ‘18) 4 Network Based Computing Laboratory

Can We Run Big Data and Deep Learning Jobs on Existing HPC Infrastructure?

slide-5
SLIDE 5

SCEC (Dec ‘18) 5 Network Based Computing Laboratory

Can We Run Big Data and Deep Learning Jobs on Existing HPC Infrastructure?

slide-6
SLIDE 6

SCEC (Dec ‘18) 6 Network Based Computing Laboratory

Can We Run Big Data and Deep Learning Jobs on Existing HPC Infrastructure?

Spark Job Hadoop Job

Deep Learning Job

slide-7
SLIDE 7

SCEC (Dec ‘18) 7 Network Based Computing Laboratory

  • Traditional HPC

– Message Passing Interface (MPI), including MPI + OpenMP – Exploiting Accelerators

  • Deep Learning

– Caffe, CNTK, TensorFlow, and many more

  • Big Data/Enterprise/Commercial Computing

– Spark and Hadoop (HDFS, HBase, MapReduce) – Deep Learning over Big Data (DLoBD)

  • Cloud for HPC and BigData

– Virtualization with SR-IOV and Containers

HPC, Big Data, Deep Learning, and Cloud

slide-8
SLIDE 8

SCEC (Dec ‘18) 8 Network Based Computing Laboratory

Parallel Programming Models Overview

P1 P2 P3

Shared Memory

P1 P2 P3

Memory Memory Memory

P1 P2 P3

Memory Memory Memory Logical shared memory

Shared Memory Model SHMEM, DSM Distributed Memory Model MPI (Message Passing Interface) Partitioned Global Address Space (PGAS) Global Arrays, UPC, Chapel, X10, CAF, …

  • Programming models provide abstract machine models
  • Models can be mapped on different types of systems

– e.g. Distributed Shared Memory (DSM), MPI within a node, etc.

  • PGAS models and Hybrid MPI+PGAS models are gradually receiving

importance

slide-9
SLIDE 9

SCEC (Dec ‘18) 9 Network Based Computing Laboratory

Supporting Programming Models for Multi-Petaflop and Exaflop Systems: Challenges

Programming Models

MPI, PGAS (UPC, Global Arrays, OpenSHMEM), CUDA, OpenMP, OpenACC, Cilk, Hadoop (MapReduce), Spark (RDD, DAG), etc.

Application Kernels/Applications

Networking Technologies

(InfiniBand, 40/100GigE, Aries, and Omni-Path)

Multi-/Many-core Architectures Accelerators (GPU and FPGA)

Middleware

Co-Design Opportunities and Challenges across Various Layers

Performance Scalability Resilience Communication Library or Runtime for Programming Models

Point-to-point Communication Collective Communication Energy- Awareness Synchronization and Locks I/O and File Systems Fault Tolerance

slide-10
SLIDE 10

SCEC (Dec ‘18) 10 Network Based Computing Laboratory

  • Scalability for million to billion processors

– Support for highly-efficient inter-node and intra-node communication (both two-sided and one-sided) – Scalable job start-up – Low memory footprint

  • Scalable Collective communication

– Offload – Non-blocking – Topology-aware

  • Balancing intra-node and inter-node communication for next generation nodes (128-1024 cores)

– Multiple end-points per node

  • Support for efficient multi-threading
  • Integrated Support for Accelerators (GPGPUs and FPGAs)
  • Fault-tolerance/resiliency
  • QoS support for communication and I/O
  • Support for Hybrid MPI+PGAS programming (MPI + OpenMP, MPI + UPC, MPI + OpenSHMEM,

MPI+UPC++, CAF, …)

  • Virtualization
  • Energy-Awareness

Broad Challenges in Designing Runtimes for (MPI+X) at Exascale

slide-11
SLIDE 11

SCEC (Dec ‘18) 11 Network Based Computing Laboratory

Overview of the MVAPICH2 Project

  • High Performance open-source MPI Library for InfiniBand, Omni-Path, Ethernet/iWARP, and RDMA over Converged Ethernet (RoCE)

– MVAPICH (MPI-1), MVAPICH2 (MPI-2.2 and MPI-3.1), Started in 2001, First version available in 2002 – MVAPICH2-X (MPI + PGAS), Available since 2011 – Support for GPGPUs (MVAPICH2-GDR) and MIC (MVAPICH2-MIC), Available since 2014 – Support for Virtualization (MVAPICH2-Virt), Available since 2015 – Support for Energy-Awareness (MVAPICH2-EA), Available since 2015 – Support for InfiniBand Network Analysis and Monitoring (OSU INAM) since 2015

– Used by more than 2,950 organizations in 86 countries – More than 511,000 (> 0.5 million) downloads from the OSU site directly

– Empowering many TOP500 clusters (Nov ‘18 ranking)

  • 3rd ranked 10,649,640-core cluster (Sunway TaihuLight) at NSC, Wuxi, China
  • 14th, 556,104 cores (Oakforest-PACS) in Japan
  • 17th, 367,024 cores (Stampede2) at TACC
  • 27th, 241,108-core (Pleiades) at NASA and many others

– Available with software stacks of many vendors and Linux Distros (RedHat, SuSE, and OpenHPC)

– http://mvapich.cse.ohio-state.edu

  • Empowering Top500 systems for over a decade

Partner in the upcoming TACC Frontera System

slide-12
SLIDE 12

SCEC (Dec ‘18) 12 Network Based Computing Laboratory 100000 200000 300000 400000 500000 600000 Sep-04 Feb-05 Jul-05 Dec-05 May-06 Oct-06 Mar-07 Aug-07 Jan-08 Jun-08 Nov-08 Apr-09 Sep-09 Feb-10 Jul-10 Dec-10 May-11 Oct-11 Mar-12 Aug-12 Jan-13 Jun-13 Nov-13 Apr-14 Sep-14 Feb-15 Jul-15 Dec-15 May-16 Oct-16 Mar-17 Aug-17 Jan-18 Jun-18 Nov-18 Number of Downloads Timeline MV 0.9.4 MV2 0.9.0 MV2 0.9.8 MV2 1.0 MV 1.0 MV2 1.0.3 MV 1.1 MV2 1.4 MV2 1.5 MV2 1.6 MV2 1.7 MV2 1.8 MV2 1.9 MV2-GDR 2.0b MV2-MIC 2.0 MV2 2.3 MV2-X 2.3rc1 MV2 Virt 2.2 MV2-GDR 2.3 OSU INAM 0.9.4

MVAPICH2 Release Timeline and Downloads

slide-13
SLIDE 13

SCEC (Dec ‘18) 13 Network Based Computing Laboratory

Architecture of MVAPICH2 Software Family

High Performance Parallel Programming Models Message Passing Interface (MPI) PGAS (UPC, OpenSHMEM, CAF, UPC++) Hybrid --- MPI + X (MPI + PGAS + OpenMP/Cilk)

High Performance and Scalable Communication Runtime

Diverse APIs and Mechanisms

Point-to- point Primitives Collectives Algorithms Energy- Awareness Remote Memory Access I/O and File Systems Fault Tolerance Virtualization Active Messages Job Startup Introspection & Analysis

Support for Modern Networking Technology

(InfiniBand, iWARP, RoCE, Omni-Path)

Support for Modern Multi-/Many-core Architectures

(Intel-Xeon, OpenPower, Xeon-Phi, ARM, NVIDIA GPGPU) Transport Protocols Modern Features

RC XRC UD DC UMR ODP SR- IOV Multi Rail

Transport Mechanisms

Shared Memory CMA

IVSHMEM

Modern Features

MCDRAM* NVLink* CAPI*

* Upcoming

XPMEM

slide-14
SLIDE 14

SCEC (Dec ‘18) 14 Network Based Computing Laboratory

MVAPICH2 Software Family

Requirements Library MPI with IB, iWARP, Omni-Path, and RoCE MVAPICH2 Advanced MPI Features/Support, OSU INAM, PGAS and MPI+PGAS with IB, Omni-Path, and RoCE MVAPICH2-X MPI with IB, RoCE & GPU and Support for Deep Learning MVAPICH2-GDR HPC Cloud with MPI & IB MVAPICH2-Virt Energy-aware MPI with IB, iWARP and RoCE MVAPICH2-EA MPI Energy Monitoring Tool OEMT InfiniBand Network Analysis and Monitoring OSU INAM Microbenchmarks for Measuring MPI and PGAS Performance OMB

slide-15
SLIDE 15

SCEC (Dec ‘18) 15 Network Based Computing Laboratory

  • Scalability for million to billion processors

– Support for highly-efficient inter-node and intra-node communication – Scalable Start-up – Optimized Collectives using SHArP and Multi-Leaders – Optimized CMA-based and XPMEM-based Collectives – Asynchronous Progress

  • Exploiting Accelerators (NVIDIA GPGPUs)
  • Optimized MVAPICH2 for OpenPower (with/ NVLink) and ARM
  • Application Scalability and Best Practices

Overview of A Few Challenges being Addressed by the MVAPICH2 Project for Exascale

slide-16
SLIDE 16

SCEC (Dec ‘18) 16 Network Based Computing Laboratory

One-way Latency: MPI over IB with MVAPICH2

0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 2 Small Message Latency Message Size (bytes) Latency (us) 1.11 1.19 0.98 1.15 1.04

TrueScale-QDR - 3.1 GHz Deca-core (Haswell) Intel PCI Gen3 with IB switch ConnectX-3-FDR - 2.8 GHz Deca-core (IvyBridge) Intel PCI Gen3 with IB switch ConnectIB-Dual FDR - 3.1 GHz Deca-core (Haswell) Intel PCI Gen3 with IB switch ConnectX-5-EDR - 3.1 GHz Deca-core (Haswell) Intel PCI Gen3 with IB Switch Omni-Path - 3.1 GHz Deca-core (Haswell) Intel PCI Gen3 with Omni-Path switch

20 40 60 80 100 120 TrueScale-QDR ConnectX-3-FDR ConnectIB-DualFDR ConnectX-5-EDR Omni-Path Large Message Latency Message Size (bytes) Latency (us)

slide-17
SLIDE 17

SCEC (Dec ‘18) 17 Network Based Computing Laboratory TrueScale-QDR - 3.1 GHz Deca-core (Haswell) Intel PCI Gen3 with IB switch ConnectX-3-FDR - 2.8 GHz Deca-core (IvyBridge) Intel PCI Gen3 with IB switch ConnectIB-Dual FDR - 3.1 GHz Deca-core (Haswell) Intel PCI Gen3 with IB switch ConnectX-5-EDR - 3.1 GHz Deca-core (Haswell) Intel PCI Gen3 IB switch Omni-Path - 3.1 GHz Deca-core (Haswell) Intel PCI Gen3 with Omni-Path switch

Bandwidth: MPI over IB with MVAPICH2

5000 10000 15000 20000 25000 TrueScale-QDR ConnectX-3-FDR ConnectIB-DualFDR ConnectX-5-EDR Omni-Path Bidirectional Bandwidth Bandwidth (MBytes/sec) Message Size (bytes) 22,564 12,161 21,983 6,228 24,136 2000 4000 6000 8000 10000 12000 14000 Unidirectional Bandwidth Bandwidth (MBytes/sec) Message Size (bytes) 12,590 3,373 6,356 12,358 12,366

slide-18
SLIDE 18

SCEC (Dec ‘18) 18 Network Based Computing Laboratory

20 40 60 80 64 128 256 512 1K 2K 4K 8K 16K 32K 64K 128K 180K 230K Time (seconds) Number of Processes

TACC Stampede2

MPI_Init Hello World

Startup Performance on KNL + Omni-Path

5 10 15 20 25 64 128 256 512 1K 2K 4K 8K 16K 32K 64K Time (seconds) Number of Processes

Oakforest-PACS

MPI_Init Hello World

22s 5.8s 21s 57s

  • MPI_Init takes 22 seconds on 231,936 processes on 3,624 KNL nodes (Stampede2 – Full scale)
  • At 64K processes, MPI_Init and Hello World takes 5.8s and 21s respectively (Oakforest-PACS)
  • All numbers reported with 64 processes per node, MVAPICH2-2.3a
  • Designs integrated with mpirun_rsh, available for srun (SLURM launcher) as well
slide-19
SLIDE 19

SCEC (Dec ‘18) 19 Network Based Computing Laboratory

0.1 0.2 0.3 0.4 (4,28) (8,28) (16,28) Latency (seconds) (Number of Nodes, PPN) MVAPICH2

Benefits of SHARP Allreduce at Application Level

12%

Avg DDOT Allreduce time of HPCG

SHARP support available since MVAPICH2 2.3a

Parameter Description Default MV2_ENABLE_SHARP=1 Enables SHARP-based collectives Disabled

  • -enable-sharp

Configure flag to enable SHARP Disabled

  • Refer to Running Collectives with Hardware based SHARP support section of MVAPICH2 user guide for more information
  • http://mvapich.cse.ohio-state.edu/static/media/mvapich/mvapich2-2.3-userguide.html#x1-990006.26
slide-20
SLIDE 20

SCEC (Dec ‘18) 20 Network Based Computing Laboratory

MPI_Allreduce on KNL + Omni-Path (10,240 Processes)

50 100 150 200 250 300 4 8 16 32 64 128 256 512 1024 2048 4096

Latency (us)

Message Size MVAPICH2 MVAPICH2-OPT IMPI 200 400 600 800 1000 1200 1400 1600 1800 2000 8K 16K 32K 64K 128K 256K Message Size MVAPICH2 MVAPICH2-OPT IMPI OSU Micro Benchmark 64 PPN

2.4X

  • For MPI_Allreduce latency with 32K bytes, MVAPICH2-OPT can reduce the latency by 2.4X
  • M. Bayatpour, S. Chakraborty, H. Subramoni, X. Lu, and D. K. Panda, Scalable Reduction Collectives with Data Partitioning-based

Multi-Leader Design, SuperComputing '17.

Available since MVAPICH2-X 2.3b

slide-21
SLIDE 21

SCEC (Dec ‘18) 21 Network Based Computing Laboratory

Optimized CMA-based Collectives for Large Messages

1 10 100 1000 10000 100000 1000000 1K 2K 4K 8K 16K 32K 64K 128K 256K 512K 1M 2M 4M Message Size

KNL (2 Nodes, 128 Procs)

MVAPICH2-2.3a Intel MPI 2017 OpenMPI 2.1.0 Tuned CMA

Latency (us)

1 10 100 1000 10000 100000 1000000 1K 2K 4K 8K 16K 32K 64K 128K 256K 512K 1M 2M Message Size

KNL (4 Nodes, 256 Procs)

MVAPICH2-2.3a Intel MPI 2017 OpenMPI 2.1.0 Tuned CMA

1 10 100 1000 10000 100000 1000000 1K 2K 4K 8K 16K 32K 64K 128K 256K 512K 1M Message Size

KNL (8 Nodes, 512 Procs)

MVAPICH2-2.3a Intel MPI 2017 OpenMPI 2.1.0 Tuned CMA

  • Significant improvement over existing implementation for Scatter/Gather with

1MB messages (up to 4x on KNL, 2x on Broadwell, 14x on OpenPower)

  • New two-level algorithms for better scalability
  • Improved performance for other collectives (Bcast, Allgather, and Alltoall)

~ 2.5x Better ~ 3.2x Better ~ 4x Better ~ 17x Better

  • S. Chakraborty, H. Subramoni, and D. K. Panda, Contention Aware Kernel-Assisted MPI

Collectives for Multi/Many-core Systems, IEEE Cluster ’17, BEST Paper Finalist

Performance of MPI_Gather on KNL nodes (64PPN)

Available since MVAPICH2-X 2.3b

slide-22
SLIDE 22

SCEC (Dec ‘18) 22 Network Based Computing Laboratory

Shared Address Space (XPMEM)-based Collectives Design

1 10 100 1000 10000 100000

16K 32K 64K 128K 256K 512K 1M 2M 4M

Latency (us) Message Size MVAPICH2-2.3b IMPI-2017v1.132 MVAPICH2-X-2.3rc1 OSU_Allreduce (Broadwell 256 procs)

  • “Shared Address Space”-based true zero-copy Reduction collective designs in MVAPICH2
  • Offloaded computation/communication to peers ranks in reduction collective operation
  • Up to 4X improvement for 4MB Reduce and up to 1.8X improvement for 4M AllReduce

73.2 1.8X

1 10 100 1000 10000 100000

16K 32K 64K 128K 256K 512K 1M 2M 4M

Message Size MVAPICH2-2.3b IMPI-2017v1.132 MVAPICH2-2.3rc1 OSU_Reduce (Broadwell 256 procs) 4X 36.1 37.9 16.8

  • J. Hashmi, S. Chakraborty, M. Bayatpour, H. Subramoni, and D. Panda, Designing Efficient Shared Address Space Reduction

Collectives for Multi-/Many-cores, International Parallel & Distributed Processing Symposium (IPDPS '18), May 2018.

Available in MVAPICH2-X 2.3rc1

slide-23
SLIDE 23

SCEC (Dec ‘18) 23 Network Based Computing Laboratory

Application-Level Benefits of XPMEM-Based Collectives

MiniAMR (Broadwell, ppn=16)

  • Up to 20% benefits over IMPI for CNTK DNN training using AllReduce
  • Up to 27% benefits over IMPI and up to 15% improvement over MVAPICH2 for

MiniAMR application kernel

200 400 600 800 28 56 112 224 Execution Time (s)

  • No. of Processes

Intel MPI MVAPICH2 MVAPICH2-XPMEM

CNTK AlexNet Training (Broadwell, B.S=default, iteration=50, ppn=28) 20 40 60 80 16 32 64 128 256 Execution Time (s)

  • No. of Processes

Intel MPI MVAPICH2 MVAPICH2-XPMEM

20% 9% 27% 15%

slide-24
SLIDE 24

SCEC (Dec ‘18) 24 Network Based Computing Laboratory

Efficient Zero-copy MPI Datatypes for Emerging Architectures

  • New designs for efficient zero-copy based MPI derived datatype processing
  • Efficient schemes mitigate datatype translation, packing, and exchange overheads
  • Demonstrated benefits over prevalent MPI libraries for various application kernels
  • To be available in the upcoming MVAPICH2-X release!

0.1 1 10 100 2 4 8 16 28 Logscale Latency (milliseconds)

  • No. of Processes

MVAPICH2X-2.3 IMPI 2018 IMPI 2019 MVAPICH2X-Opt 5X 0.1 1 10 100 1000 Grid Dimensions (x, y, z, t) MVAPICH2X-2.3 IMPI 2018 MVAPICH2X-Opt 19X 0.01 0.1 1 10 Grid Dimensions (x, y, z, t) MVAPICH2X-2.3 IMPI 2018 MVAPICH2X-Opt 3X 3D-Stencil Datatype Kernel on Broadwell (2x14 core) MILC Datatype Kernel on KNL 7250 in Flat-Quadrant Mode (64-core) NAS-MG Datatype Kernel on OpenPOWER (20-core)

FALCON: Efficient Designs for Zero-copy MPI Datatype Processing on Emerging Architectures, J. Hashmi, S. Chakraborty, M. Bayatpour, H. Subramoni, D. K. (DK) Panda, 33rd IEEE International Parallel & Distributed Processing Symposium (IPDPS ’19), May 2019.

slide-25
SLIDE 25

SCEC (Dec ‘18) 25 Network Based Computing Laboratory

Benefits of the New Asynchronous Progress Design: Broadwell + InfiniBand

Up to 44% performance improvement in P3DFFT application with 448 processes Up to 19% and 9% performance improvement in HPL application with 448 and 896 processes

50 100 150 56 112 224 448

Time per loop in seconds Number of processes

MVAPICH2-X Async MVAPICH2-X Default Intel MPI 18.1.163

( 28 PPN ) 106 119 109 100 100 100 80 100 120 140 224 448 896

Normalized Performance in GFLOPS Number of Processes

MVAPICH2-X Async MVAPICH2-X Default

Memory Consumption = 69% PPN=28

P3DFFT High Performance Linpack (HPL)

44% 33%

Lower is better Higher is better

  • A. Ruhela, H. Subramoni, S. Chakraborty, M. Bayatpour, P. Kousha, and D.K. Panda, Efficient Asynchronous Communication

Progress for MPI without Dedicated Resources, EuroMPI 2018

Available in MVAPICH2-X 2.3rc1

slide-26
SLIDE 26

SCEC (Dec ‘18) 26 Network Based Computing Laboratory

  • Scalability for million to billion processors
  • Exploiting Accelerators (NVIDIA GPGPUs)
  • Optimized MVAPICH2 for OpenPower (with/ NVLink) and ARM
  • Application Scalability and Best Practices

Overview of A Few Challenges being Addressed by the MVAPICH2 Project for Exascale

slide-27
SLIDE 27

SCEC (Dec ‘18) 27 Network Based Computing Laboratory

At Sender: At Receiver:

MPI_Recv(r_devbuf, size, …); inside MVAPICH2

  • Standard MPI interfaces used for unified data movement
  • Takes advantage of Unified Virtual Addressing (>= CUDA 4.0)
  • Overlaps data movement from GPU with RDMA transfers

High Performance and High Productivity

MPI_Send(s_devbuf, size, …);

GPU-Aware (CUDA-Aware) MPI Library: MVAPICH2-GPU

slide-28
SLIDE 28

SCEC (Dec ‘18) 28 Network Based Computing Laboratory

CUDA-Aware MPI: MVAPICH2-GDR 1.8-2.3 Releases

  • Support for MPI communication from NVIDIA GPU device memory
  • High performance RDMA-based inter-node point-to-point communication

(GPU-GPU, GPU-Host and Host-GPU)

  • High performance intra-node point-to-point communication for multi-GPU

adapters/node (GPU-GPU, GPU-Host and Host-GPU)

  • Taking advantage of CUDA IPC (available since CUDA 4.1) in intra-node

communication for multiple GPU adapters/node

  • Optimized and tuned collectives for GPU device buffers
  • MPI datatype support for point-to-point and collective communication from

GPU device buffers

  • Unified memory
slide-29
SLIDE 29

SCEC (Dec ‘18) 29 Network Based Computing Laboratory

2000 4000 6000

1 2 4 8 16 32 64 128 256 512 1K 2K 4K Bandwidth (MB/s) Message Size (Bytes)

GPU-GPU Inter-node Bi-Bandwidth

MV2-(NO-GDR) MV2-GDR-2.3

1000 2000 3000 4000 1 2 4 8 16 32 64 128 256 512 1K 2K 4K

Bandwidth (MB/s) Message Size (Bytes)

GPU-GPU Inter-node Bandwidth

MV2-(NO-GDR) MV2-GDR-2.3

10 20 30 1 2 4 8 16 32 64 128 256 512 1K 2K 4K 8K

Latency (us) Message Size (Bytes)

GPU-GPU Inter-node Latency

MV2-(NO-GDR) MV2-GDR 2.3 MVAPICH2-GDR-2.3 Intel Haswell (E5-2687W @ 3.10 GHz) node - 20 cores NVIDIA Volta V100 GPU Mellanox Connect-X4 EDR HCA CUDA 9.0 Mellanox OFED 4.0 with GPU-Direct-RDMA

10x 9x

Optimized MVAPICH2-GDR Design

1.85us 11X

slide-30
SLIDE 30

SCEC (Dec ‘18) 30 Network Based Computing Laboratory

  • Platform: Wilkes (Intel Ivy Bridge + NVIDIA Tesla K20c + Mellanox Connect-IB)
  • HoomdBlue Version 1.0.5
  • GDRCOPY enabled: MV2_USE_CUDA=1 MV2_IBA_HCA=mlx5_0 MV2_IBA_EAGER_THRESHOLD=32768

MV2_VBUF_TOTAL_SIZE=32768 MV2_USE_GPUDIRECT_LOOPBACK_LIMIT=32768 MV2_USE_GPUDIRECT_GDRCOPY=1 MV2_USE_GPUDIRECT_GDRCOPY_LIMIT=16384

Application-Level Evaluation (HOOMD-blue)

500 1000 1500 2000 2500 4 8 16 32

Average Time Steps per second (TPS)

Number of Processes

MV2 MV2+GDR

500 1000 1500 2000 2500 3000 3500 4 8 16 32 Average Time Steps per second (TPS) Number of Processes 64K Particles 256K Particles 2X 2X

slide-31
SLIDE 31

SCEC (Dec ‘18) 31 Network Based Computing Laboratory

Application-Level Evaluation (Cosmo) and Weather Forecasting in Switzerland

0.2 0.4 0.6 0.8 1 1.2 16 32 64 96 Normalized Execution Time Number of GPUs

CSCS GPU cluster

Default Callback-based Event-based 0.2 0.4 0.6 0.8 1 1.2 4 8 16 32 Normalized Execution Time Number of GPUs

Wilkes GPU Cluster

Default Callback-based Event-based

  • 2X improvement on 32 GPUs nodes
  • 30% improvement on 96 GPU nodes (8 GPUs/node)
  • C. Chu, K. Hamidouche, A. Venkatesh, D. Banerjee , H. Subramoni, and D. K. Panda, Exploiting Maximal Overlap for Non-Contiguous Data

Movement Processing on Modern GPU-enabled Systems, IPDPS’16

On-going collaboration with CSCS and MeteoSwiss (Switzerland) in co-designing MV2-GDR and Cosmo Application

Cosmo model: http://www2.cosmo-model.org/content /tasks/operational/meteoSwiss/

slide-32
SLIDE 32

SCEC (Dec ‘18) 32 Network Based Computing Laboratory

  • Scalability for million to billion processors
  • Exploiting Accelerators (NVIDIA GPGPUs)
  • Optimized MVAPICH2 for OpenPower (with/ NVLink) and ARM
  • Application Scalability and Best Practices

Overview of A Few Challenges being Addressed by the MVAPICH2 Project for Exascale

slide-33
SLIDE 33

SCEC (Dec ‘18) 33 Network Based Computing Laboratory 0.5 1 1.5

1 2 4 8 16 32 64 128 256 512 1K 2K

Latency (us)

MVAPICH2-2.3 SpectrumMPI-10.1.0.2 OpenMPI-3.0.0

Intra-node Point-to-Point Performance on OpenPower

Platform: Two nodes of OpenPOWER (Power8-ppc64le) CPU using Mellanox EDR (MT4115) HCA Intra-Socket Small Message Latency Intra-Socket Large Message Latency Intra-Socket Bi-directional Bandwidth Intra-Socket Bandwidth 0.30us 20 40 60 80

4K 8K 16K 32K 64K 128K 256K 512K 1M 2M

Latency (us)

MVAPICH2-2.3 SpectrumMPI-10.1.0.2 OpenMPI-3.0.0 10000 20000 30000 40000

1 8 64 512 4K 32K 256K 2M

Bandwidth (MB/s)

MVAPICH2-2.3 SpectrumMPI-10.1.0.2 OpenMPI-3.0.0 20000 40000 60000 80000

1 8 64 512 4K 32K 256K 2M

Bandwidth (MB/s)

MVAPICH2-2.3 SpectrumMPI-10.1.0.2 OpenMPI-3.0.0

slide-34
SLIDE 34

SCEC (Dec ‘18) 34 Network Based Computing Laboratory

5 10 15 20 1 2 4 8 16 32 64 128 256 512 1K 2K 4K 8K Latency (us) Message Size (Bytes)

INTRA-NODE LATENCY (SMALL)

INTRA-SOCKET(NVLINK) INTER-SOCKET

MVAPICH2-GDR: Performance on OpenPOWER (NVLink + Pascal)

10 20 30 40 1 4 16 64 256 1K 4K 16K 64K 256K 1M 4M Bandwidth (GB/sec) Message Size (Bytes)

INTRA-NODE BANDWIDTH

INTRA-SOCKET(NVLINK) INTER-SOCKET 2 4 6 8 1 4 16 64 256 1K 4K 16K 64K 256K 1M 4M Bandwidth (GB/sec) Message Size (Bytes)

INTER-NODE BANDWIDTH Platform: OpenPOWER (ppc64le) nodes equipped with a dual-socket CPU, 4 Pascal P100-SXM GPUs, and 4X-FDR InfiniBand Inter-connect

200 400 16K 32K 64K 128K256K512K 1M 2M 4M Latency (us) Message Size (Bytes)

INTRA-NODE LATENCY (LARGE)

INTRA-SOCKET(NVLINK) INTER-SOCKET 10 20 30 1 2 4 8 16 32 64 128 256 512 1K 2K 4K 8K Latency (us) Message Size (Bytes)

INTER-NODE LATENCY (SMALL)

200 400 600 800 1000 Latency (us) Message Size (Bytes)

INTER-NODE LATENCY (LARGE)

Intra-node Bandwidth: 33.2 GB/sec (NVLINK) Intra-node Latency: 13.8 us (without GPUDirectRDMA) Inter-node Latency: 23 us (without GPUDirectRDMA) Inter-node Bandwidth: 6 GB/sec (FDR)

Available since MVAPICH2-GDR 2.3a

slide-35
SLIDE 35

SCEC (Dec ‘18) 35 Network Based Computing Laboratory 1000 2000 16K 32K 64K 128K 256K 512K 1M 2M

Latency (us)

MVAPICH2-GDR-Next SpectrumMPI-10.1.0 OpenMPI-3.0.0

3X

2000 4000 16K 32K 64K 128K 256K 512K 1M 2M

Latency (us) Message Size

MVAPICH2-GDR-Next SpectrumMPI-10.1.0 OpenMPI-3.0.0

34%

1000 2000 3000 4000 16K 32K 64K 128K 256K 512K 1M 2M

Latency (us) Message Size

MVAPICH2-GDR-Next SpectrumMPI-10.1.0 OpenMPI-3.0.0

1000 2000 16K 32K 64K 128K 256K 512K 1M 2M

Latency (us)

MVAPICH2-GDR-Next SpectrumMPI-10.1.0 OpenMPI-3.0.0

Optimized All-Reduce with XPMEM on OpenPOWER

(Nodes=1, PPN=20)

Optimized Runtime Parameters: MV2_CPU_BINDING_POLICY=hybrid MV2_HYBRID_BINDING_POLICY=bunch

  • Optimized MPI All-Reduce Design in MVAPICH2

– Up to 2X performance improvement over Spectrum MPI and 4X over OpenMPI for intra-node

2X

(Nodes=2, PPN=20)

4X 48% 3.3X 2X 2X

slide-36
SLIDE 36

SCEC (Dec ‘18) 36 Network Based Computing Laboratory 0.5 1 1.5 1 2 4 8 16 32 64 128256512 1K 2K 4K

Latency (us)

MVAPICH2-2.3

Intra-node Point-to-point Performance on ARM Cortex-A72

2000 4000 6000 8000 10000 Bandwidth (MB/s) MVAPICH2-2.3 5000 10000 15000 20000

Bidirectional Bandwidth

MVAPICH2-2.3 Platform: ARM Cortex A72 (aarch64) processor with 64 cores dual-socket CPU. Each socket contains 32 cores. Small Message Latency Large Message Latency Bi-directional Bandwidth Bandwidth

0.27 micro-second (1 bytes)

200 400 600 800 8K 16K 32K 64K 128K256K512K 1M 2M 4M

Latency (us)

MVAPICH2-2.3

slide-37
SLIDE 37

SCEC (Dec ‘18) 37 Network Based Computing Laboratory

  • Scalability for million to billion processors
  • Exploiting Accelerators (NVIDIA GPGPUs)
  • Optimized MVAPICH2 for OpenPower (with/ NVLink) and ARM
  • Application Scalability and Best Practices

Overview of A Few Challenges being Addressed by the MVAPICH2 Project for Exascale

slide-38
SLIDE 38

SCEC (Dec ‘18) 38 Network Based Computing Laboratory

20 40 60 80 100 120 140 160 MILC Leslie3D POP2 LAMMPS WRF2 LU Execution Time in (s)

Intel MPI 18.1.163 MVAPICH2-X-2.3rc1

31%

SPEC MPI 2007 Benchmarks: Broadwell + InfiniBand

MVAPICH2-X outperforms Intel MPI by up to 31%

Configuration: 448 processes on 16 Intel E5-2680v4 (Broadwell) nodes having 28 PPN and interconnected with 100Gbps Mellanox MT4115 EDR ConnectX-4 HCA

29% 5%

  • 12%

1% 11%

slide-39
SLIDE 39

SCEC (Dec ‘18) 39 Network Based Computing Laboratory

Application Scalability on Skylake and KNL (Stamepede2)

MiniFE (1300x1300x1300 ~ 910 GB)

Runtime parameters: MV2_SMPI_LENGTH_QUEUE=524288 PSM2_MQ_RNDV_SHM_THRESH=128K PSM2_MQ_RNDV_HFI_THRESH=128K 50 100 150 2048 4096 8192

Execution Time (s)

  • No. of Processes (KNL: 64ppn)

MVAPICH2 20 40 60 2048 4096 8192

Execution Time (s)

  • No. of Processes (Skylake: 48ppn)

MVAPICH2 500 1000 1500 48 96 192 384 768

  • No. of Processes (Skylake: 48ppn)

MVAPICH2

NEURON (YuEtAl2012)

Courtesy: Mahidhar Tatineni @SDSC, Dong Ju (DJ) Choi@SDSC, and Samuel Khuvis@OSC ---- Testbed: TACC Stampede2 using MVAPICH2-2.3b 1000 2000 3000 4000 64 128 256 512 1024 2048 4096

  • No. of Processes (KNL: 64ppn)

MVAPICH2 500 1000 1500 68 136 272 544 1088 2176 4352

  • No. of Processes (KNL: 68ppn)

MVAPICH2 500 1000 1500 2000 48 96 192 384 768 1536 3072

  • No. of Processes (Skylake: 48ppn)

MVAPICH2

Cloverleaf (bm64) MPI+OpenMP, NUM_OMP_THREADS = 2

slide-40
SLIDE 40

SCEC (Dec ‘18) 40 Network Based Computing Laboratory

  • MPI runtime has many parameters
  • Tuning a set of parameters can help you to extract higher performance
  • Compiled a list of such contributions through the MVAPICH Website

– http://mvapich.cse.ohio-state.edu/best_practices/

  • Initial list of applications

– Amber – HoomDBlue – HPCG – Lulesh – MILC – Neuron – SMG2000 – Cloverleaf – SPEC (LAMMPS, POP2, TERA_TF, WRF2)

  • Soliciting additional contributions, send your results to mvapich-help at cse.ohio-state.edu.
  • We will link these results with credits to you.

Applications-Level Tuning: Compilation of Best Practices

slide-41
SLIDE 41

SCEC (Dec ‘18) 41 Network Based Computing Laboratory

  • Traditional HPC

– Message Passing Interface (MPI), including MPI + OpenMP – Exploiting Accelerators

  • Deep Learning

– Caffe, CNTK, TensorFlow, and many more

  • Big Data/Enterprise/Commercial Computing

– Spark and Hadoop (HDFS, HBase, MapReduce) – Deep Learning over Big Data (DLoBD)

  • Cloud for HPC and BigData

– Virtualization with SR-IOV and Containers

HPC, Big Data, Deep Learning, and Cloud

slide-42
SLIDE 42

SCEC (Dec ‘18) 42 Network Based Computing Laboratory

  • Deep Learning frameworks are a different game

altogether

– Unusually large message sizes (order of megabytes) – Most communication based on GPU buffers

  • Existing State-of-the-art

– cuDNN, cuBLAS, NCCL --> scale-up performance – NCCL2, CUDA-Aware MPI --> scale-out performance

  • For small and medium message sizes only!
  • Proposed: Can we co-design the MPI runtime (MVAPICH2-

GDR) and the DL framework (Caffe) to achieve both? – Efficient Overlap of Computation and Communication – Efficient Large-Message Communication (Reductions) – What application co-designs are needed to exploit communication-runtime co-designs?

Deep Learning: New Challenges for MPI Runtimes

Scale-up Performance Scale-out Performance

  • A. A. Awan, K. Hamidouche, J. M. Hashmi, and D. K. Panda, S-Caffe: Co-designing MPI Runtimes and Caffe for Scalable Deep Learning on Modern GPU
  • Clusters. In Proceedings of the 22nd ACM SIGPLAN Symposium on Principles and Practice of Parallel Programming (PPoPP '17)

cuDNN gRPC Hadoop MPI MKL-DNN

Desired

NCCL1 NCCL2

slide-43
SLIDE 43

SCEC (Dec ‘18) 43 Network Based Computing Laboratory

  • MVAPICH2-GDR offers

excellent performance via advanced designs for MPI_Allreduce.

  • Up to 11% better

performance on the RI2 cluster (16 GPUs)

  • Near-ideal – 98% scaling

efficiency

Exploiting CUDA-Aware MPI for TensorFlow (Horovod)

100 200 300 400 500 600 700 800 900 1000

1 2 4 8 16 Images/second (Higher is better)

  • No. of GPUs

Horovod-MPI Horovod-NCCL2 Horovod-MPI-Opt (Proposed) Ideal

MVAPICH2-GDR 2.3 (MPI-Opt) is up to 11% faster than MVAPICH2 2.3 (Basic CUDA support)

  • A. A. Awan et al., “Scalable Distributed DNN Training using TensorFlow and CUDA-Aware MPI: Characterization, Designs, and Performance

Evaluation”, Under Review, https://arxiv.org/abs/1810.11112

slide-44
SLIDE 44

SCEC (Dec ‘18) 44 Network Based Computing Laboratory 10000 20000 30000 40000 50000 512K 1M 2M 4M Latency (us) Message Size (Bytes) MVAPICH2 BAIDU OPENMPI 1000000 2000000 3000000 4000000 5000000 6000000 8388608 16777216 33554432 67108864 134217728 268435456 536870912 Latency (us) Message Size (Bytes) MVAPICH2 BAIDU OPENMPI 1 10 100 1000 10000 100000 4 16 64 256 1024 4096 16384 65536 262144 Latency (us) Message Size (Bytes) MVAPICH2 BAIDU OPENMPI

  • 16 GPUs (4 nodes) MVAPICH2-GDR vs. Baidu-Allreduce and OpenMPI 3.0

MVAPICH2-GDR: Allreduce Comparison with Baidu and OpenMPI

*Available since MVAPICH2-GDR 2.3a ~30X better

MV2 is ~2X better than Baidu

~10X better

OpenMPI is ~5X slower than Baidu

~4X better

slide-45
SLIDE 45

SCEC (Dec ‘18) 45 Network Based Computing Laboratory

MVAPICH2-GDR vs. NCCL2 – Allreduce Operation

  • Optimized designs in MVAPICH2-GDR 2.3 offer better/comparable performance for most cases
  • MPI_Allreduce (MVAPICH2-GDR) vs. ncclAllreduce (NCCL2) on 16 GPUs

1 10 100 1000 10000 100000 Latency (us) Message Size (Bytes) MVAPICH2-GDR NCCL2

~1.2X better

Platform: Intel Xeon (Broadwell) nodes equipped with a dual-socket CPU, 1 K-80 GPUs, and EDR InfiniBand Inter-connect 1 10 100 1000 4 8 16 32 64 128 256 512 1K 2K 4K 8K 16K 32K 64K Latency (us) Message Size (Bytes) MVAPICH2-GDR NCCL2

~3X better

slide-46
SLIDE 46

SCEC (Dec ‘18) 46 Network Based Computing Laboratory

MVAPICH2-GDR vs. NCCL2 – Allreduce on DGX-2 (Preliminary Results)

  • Optimized designs in upcoming MVAPICH2-GDR offer better/comparable performance for most cases
  • MPI_Allreduce (MVAPICH2-GDR) vs. ncclAllreduce (NCCL2) on 1 DGX-2 node (16 Volta GPUs)

1 10 100 1000 10000 Latency (us) Message Size (Bytes) MVAPICH2-GDR-NEW NCCL-2.3

~1.7X better

Platform: Nvidia DGX-2 system (16 Nvidia Volta GPUs connected with NVSwitch), CUDA 9.2 10 20 30 40 50 60 8 16 32 64 128 256 512 1K 2K 4K 8K 16K 32K 64K 128K Latency (us) Message Size (Bytes) MVAPICH2-GDR-NEW NCCL-2.3

~2.5X better

slide-47
SLIDE 47

SCEC (Dec ‘18) 47 Network Based Computing Laboratory

  • Caffe : A flexible and layered Deep Learning framework.
  • Benefits and Weaknesses

– Multi-GPU Training within a single node – Performance degradation for GPUs across different sockets – Limited Scale-out

  • OSU-Caffe: MPI-based Parallel Training

– Enable Scale-up (within a node) and Scale-out (across multi-GPU nodes) – Scale-out on 64 GPUs for training CIFAR-10 network on CIFAR-10 dataset – Scale-out on 128 GPUs for training GoogLeNet network on ImageNet dataset

OSU-Caffe: Scalable Deep Learning

50 100 150 200 250 8 16 32 64 128 Training Time (seconds)

  • No. of GPUs

GoogLeNet (ImageNet) on 128 GPUs

Caffe OSU-Caffe (1024) OSU-Caffe (2048)

Invalid use case

OSU-Caffe publicly available from http://hidl.cse.ohio-state.edu/

slide-48
SLIDE 48

SCEC (Dec ‘18) 48 Network Based Computing Laboratory

  • High-Performance Design of TensorFlow over RDMA-enabled Interconnects

– High performance RDMA-enhanced design with native InfiniBand support at the verbs-level for gRPC and TensorFlow – RDMA-based data communication – Adaptive communication protocols – Dynamic message chunking and accumulation – Support for RDMA device selection – Easily configurable for different protocols (native InfiniBand and IPoIB)

  • Current release: 0.9.1

– Based on Google TensorFlow 1.3.0 – Tested with

  • Mellanox InfiniBand adapters (e.g., EDR)
  • NVIDIA GPGPU K80
  • Tested with CUDA 8.0 and CUDNN 5.0

– http://hidl.cse.ohio-state.edu

RDMA-TensorFlow Distribution

slide-49
SLIDE 49

SCEC (Dec ‘18) 49 Network Based Computing Laboratory

50 100 150 200 16 32 64 Images / Second Batch Size

gRPPC (IPoIB-100Gbps) Verbs (RDMA-100Gbps) MPI (RDMA-100Gbps) AR-gRPC (RDMA-100Gbps)

Performance Benefit for RDMA-TensorFlow (Inception3)

  • TensorFlow Inception3 performance evaluation on an IB EDR cluster

– Up to 20% performance speedup over Default gRPC (IPoIB) for 8 GPUs – Up to 34% performance speedup over Default gRPC (IPoIB) for 16 GPUs – Up to 37% performance speedup over Default gRPC (IPoIB) for 24 GPUs 4 Nodes (8 GPUS) 8 Nodes (16 GPUS) 12 Nodes (24 GPUS) 200 400 600 16 32 64 Images / Second Batch Size

gRPPC (IPoIB-100Gbps) Verbs (RDMA-100Gbps) MPI (RDMA-100Gbps) AR-gRPC (RDMA-100Gbps)

100 200 300 400 16 32 64 Images / Second Batch Size

gRPPC (IPoIB-100Gbps) Verbs (RDMA-100Gbps) MPI (RDMA-100Gbps) AR-gRPC (RDMA-100Gbps)

slide-50
SLIDE 50

SCEC (Dec ‘18) 50 Network Based Computing Laboratory

  • Traditional HPC

– Message Passing Interface (MPI), including MPI + OpenMP – Exploiting Accelerators

  • Deep Learning

– Caffe, CNTK, TensorFlow, and many more

  • Big Data/Enterprise/Commercial Computing

– Spark and Hadoop (HDFS, HBase, MapReduce) – Deep Learning over Big Data (DLoBD)

  • Cloud for HPC and BigData

– Virtualization with SR-IOV and Containers

HPC, Big Data, Deep Learning, and Cloud

slide-51
SLIDE 51

SCEC (Dec ‘18) 51 Network Based Computing Laboratory

Designing Communication and I/O Libraries for Big Data Systems: Challenges

Big Data Middleware (HDFS, MapReduce, HBase, Spark and Memcached)

Networking Technologies (InfiniBand, 1/10/40/100 GigE and Intelligent NICs) Storage Technologies (HDD, SSD, NVM, and NVMe- SSD)

Programming Models (Sockets)

Applications

Commodity Computing System Architectures (Multi- and Many-core architectures and accelerators)

RDMA? Communication and I/O Library

Point-to-Point Communication

QoS & Fault Tolerance

Threaded Models and Synchronization

Performance Tuning I/O and File Systems Virtualization (SR-IOV)

Benchmarks Upper level Changes?

slide-52
SLIDE 52

SCEC (Dec ‘18) 52 Network Based Computing Laboratory

  • RDMA for Apache Spark
  • RDMA for Apache Hadoop 2.x (RDMA-Hadoop-2.x)

– Plugins for Apache, Hortonworks (HDP) and Cloudera (CDH) Hadoop distributions

  • RDMA for Apache HBase
  • RDMA for Memcached (RDMA-Memcached)
  • RDMA for Apache Hadoop 1.x (RDMA-Hadoop)
  • OSU HiBD-Benchmarks (OHB)

– HDFS, Memcached, HBase, and Spark Micro-benchmarks

  • http://hibd.cse.ohio-state.edu
  • Users Base: 290 organizations from 34 countries
  • More than 28,500 downloads from the project site

The High-Performance Big Data (HiBD) Project

Available for InfiniBand and RoCE Also run on Ethernet Available for x86 and OpenPOWER Support for Singularity and Docker

slide-53
SLIDE 53

SCEC (Dec ‘18) 53 Network Based Computing Laboratory 50 100 150 200 250 300 350 400 80 120 160 Execution Time (s) Data Size (GB)

IPoIB (EDR) OSU-IB (EDR)

100 200 300 400 500 600 700 800 80 160 240 Execution Time (s) Data Size (GB)

IPoIB (EDR) OSU-IB (EDR)

Performance Numbers of RDMA for Apache Hadoop 2.x – RandomWriter & TeraGen in OSU-RI2 (EDR)

Cluster with 8 Nodes with a total of 64 maps

  • RandomWriter

– 3x improvement over IPoIB for 80-160 GB file size

  • TeraGen

– 4x improvement over IPoIB for 80-240 GB file size

RandomWriter TeraGen Reduced by 3x Reduced by 4x

slide-54
SLIDE 54

SCEC (Dec ‘18) 54 Network Based Computing Laboratory

  • InfiniBand FDR, SSD, 32/64 Worker Nodes, 768/1536 Cores, (768/1536M 768/1536R)
  • RDMA vs. IPoIB with 768/1536 concurrent tasks, single SSD per node.

– 32 nodes/768 cores: Total time reduced by 37% over IPoIB (56Gbps) – 64 nodes/1536 cores: Total time reduced by 43% over IPoIB (56Gbps)

Performance Evaluation of RDMA-Spark on SDSC Comet – HiBench PageRank

32 Worker Nodes, 768 cores, PageRank Total Time 64 Worker Nodes, 1536 cores, PageRank Total Time

50 100 150 200 250 300 350 400 450 Huge BigData Gigantic

Time (sec) Data Size (GB)

IPoIB RDMA

100 200 300 400 500 600 700 800 Huge BigData Gigantic

Time (sec) Data Size (GB)

IPoIB RDMA

43% 37%

slide-55
SLIDE 55

SCEC (Dec ‘18) 55 Network Based Computing Laboratory

Using HiBD Packages on Existing HPC Infrastructure

slide-56
SLIDE 56

SCEC (Dec ‘18) 56 Network Based Computing Laboratory

Using HiBD Packages on Existing HPC Infrastructure

slide-57
SLIDE 57

SCEC (Dec ‘18) 57 Network Based Computing Laboratory (1) Prepare Datasets @Scale (2) Deep Learning @Scale (3) Non-deep learning analytics @Scale (4) Apply ML model @Scale

  • Deep Learning over Big Data (DLoBD) is one of the most efficient analyzing paradigms
  • More and more deep learning tools or libraries (e.g., Caffe, TensorFlow) start running over big

data stacks, such as Apache Hadoop and Spark

  • Benefits of the DLoBD approach

– Easily build a powerful data analytics pipeline

  • E.g., Flickr DL/ML Pipeline, “How Deep Learning Powers Flickr”, http://bit.ly/1KIDfof

– Better data locality – Efficient resource sharing and cost effective

Deep Learning over Big Data (DLoBD)

slide-58
SLIDE 58

SCEC (Dec ‘18) 58 Network Based Computing Laboratory

  • X. Lu, H. Shi, M. H. Javed, R. Biswas, and D. K. Panda, Characterizing Deep Learning over Big Data (DLoBD) Stacks on RDMA-capable Networks, HotI 2017.

High-Performance Deep Learning over Big Data (DLoBD) Stacks

  • Benefits of Deep Learning over Big Data (DLoBD)

▪ Easily integrate deep learning components into Big Data processing workflow ▪ Easily access the stored data in Big Data systems ▪ No need to set up new dedicated deep learning clusters; Reuse existing big data analytics clusters

  • Challenges

▪ Can RDMA-based designs in DLoBD stacks improve performance, scalability, and resource utilization on high- performance interconnects, GPUs, and multi-core CPUs? ▪ What are the performance characteristics of representative DLoBD stacks on RDMA networks?

  • Characterization on DLoBD Stacks

▪ CaffeOnSpark, TensorFlowOnSpark, and BigDL ▪ IPoIB vs. RDMA; In-band communication vs. Out-of-band communication; CPU vs. GPU; etc. ▪ Performance, accuracy, scalability, and resource utilization ▪ RDMA-based DLoBD stacks (e.g., BigDL over RDMA-Spark) can achieve 2.6x speedup compared to the IPoIB based scheme, while maintain similar accuracy

20 40 60 10 1010 2010 3010 4010 5010 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18

Accuracy (%) Epochs Time (secs) Epoch Number IPoIB-Time RDMA-Time IPoIB-Accuracy RDMA-Accuracy

2.6X

slide-59
SLIDE 59

SCEC (Dec ‘18) 59 Network Based Computing Laboratory

  • Traditional HPC

– Message Passing Interface (MPI), including MPI + OpenMP – Exploiting Accelerators

  • Deep Learning

– Caffe, CNTK, TensorFlow, and many more

  • Big Data/Enterprise/Commercial Computing

– Spark and Hadoop (HDFS, HBase, MapReduce) – Deep Learning over Big Data (DLoBD)

  • Cloud for HPC and BigData

– Virtualization with SR-IOV and Containers

HPC, Big Data, Deep Learning, and Cloud

slide-60
SLIDE 60

SCEC (Dec ‘18) 60 Network Based Computing Laboratory

  • Virtualization has many benefits

– Fault-tolerance – Job migration – Compaction

  • Have not been very popular in HPC due to overhead associated with

Virtualization

  • New SR-IOV (Single Root – IO Virtualization) support available with Mellanox

InfiniBand adapters changes the field

  • Enhanced MVAPICH2 support for SR-IOV
  • MVAPICH2-Virt 2.2 supports:

– OpenStack, Docker, and singularity

Can HPC and Virtualization be Combined?

  • J. Zhang, X. Lu, J. Jose, R. Shi and D. K. Panda, Can Inter-VM Shmem Benefit MPI Applications on SR-IOV based

Virtualized InfiniBand Clusters? EuroPar'14

  • J. Zhang, X. Lu, J. Jose, M. Li, R. Shi and D.K. Panda, High Performance MPI Library over SR-IOV enabled InfiniBand

Clusters, HiPC’14

  • J. Zhang, X .Lu, M. Arnold and D. K. Panda, MVAPICH2 Over OpenStack with SR-IOV: an Efficient Approach to build

HPC Clouds, CCGrid’15

slide-61
SLIDE 61

SCEC (Dec ‘18) 61 Network Based Computing Laboratory

50 100 150 200 250 300 350 400 milc leslie3d pop2 GAPgeofem zeusmp2 lu Execution Time (s) MV2-SR-IOV-Def MV2-SR-IOV-Opt MV2-Native

1% 9.5%

1000 2000 3000 4000 5000 6000 22,20 24,10 24,16 24,20 26,10 26,16 Execution Time (ms) Problem Size (Scale, Edgefactor) MV2-SR-IOV-Def MV2-SR-IOV-Opt MV2-Native

2%

  • 32 VMs, 6 Core/VM
  • Compared to Native, 2-5% overhead for Graph500 with 128 Procs
  • Compared to Native, 1-9.5% overhead for SPEC MPI2007 with 128 Procs

Application-Level Performance on Chameleon

SPEC MPI2007 Graph500

5%

A Release for Azure Coming Soon

slide-62
SLIDE 62

SCEC (Dec ‘18) 62 Network Based Computing Laboratory

500 1000 1500 2000 2500 3000 22,16 22,20 24,16 24,20 26,16 26,20

BFS Execution Time (ms) Problem Size (Scale, Edgefactor)

Graph500

Singularity Native

50 100 150 200 250 300 CG EP FT IS LU MG

Execution Time (s)

NPB Class D

Singularity Native

  • 512 Processes across 32 nodes
  • Less than 7% and 6% overhead for NPB and Graph500, respectively

Application-Level Performance on Singularity with MVAPICH2

7% 6%

  • J. Zhang, X .Lu and D. K. Panda, Is Singularity-based Container Technology Ready for Running MPI Applications on HPC Clouds?,

UCC ’17, Best Student Paper Award

slide-63
SLIDE 63

SCEC (Dec ‘18) 63 Network Based Computing Laboratory 5000 10000 15000 20000 Bandwidth (MB/s) Message Size (Bytes)

GPU-GPU Inter-node Bi-Bandwidth

Docker Native 2000 4000 6000 8000 10000 12000 Bandwidth (MB/s) Message Size (Bytes)

GPU-GPU Inter-node Bandwidth

Docker Native 1 10 100 1000 1 4 16 64 256 1K 4K 16K 64K 256K 1M 4M Latency (us) Message Size (Bytes)

GPU-GPU Inter-node Latency

Docker Native MVAPICH2-GDR-2.3a Intel Haswell (E5-2687W @ 3.10 GHz) node - 20 cores NVIDIA Volta V100 GPU Mellanox Connect-X4 EDR HCA CUDA 9.0 Mellanox OFED 4.0 with GPU-Direct-RDMA

MVAPICH2-GDR on Container with Negligible Overhead

Works with NVIDIA HPC Container Maker https://github.com/NVIDIA/hpc-container-maker/blob/master/recipes/hpcbase-pgi-mvapich2.py

slide-64
SLIDE 64

SCEC (Dec ‘18) 64 Network Based Computing Laboratory

  • Supported through X-ScaleSolutions (http://x-scalesolutions.com)
  • Benefits:

– Help and guidance with installation of the library – Platform-specific optimizations and tuning – Timely support for operational issues encountered with the library – Web portal interface to submit issues and tracking their progress – Advanced debugging techniques – Application-specific optimizations and tuning – Obtaining guidelines on best practices – Periodic information on major fixes and updates – Information on major releases – Help with upgrading to the latest release – Flexible Service Level Agreements

  • Support provided to Lawrence Livermore National Laboratory (LLNL) this year

Commercial Support for MVAPICH2, HiBD, and HiDL Libraries

slide-65
SLIDE 65

SCEC (Dec ‘18) 65 Network Based Computing Laboratory

  • Looking for Bright and Enthusiastic Personnel to join as

– Post-Doctoral Researchers – PhD Students – MPI Programmer/Software Engineer – Deep Learning/Big Data Programmer/Software Engineer

  • If interested, please contact me at this conference and/or send an e-mail

to panda@cse.ohio-state.edu

Multiple Positions Available in My Group

slide-66
SLIDE 66

SCEC (Dec ‘18) 66 Network Based Computing Laboratory

Funding Acknowledgments

Funding Support by Equipment Support by

slide-67
SLIDE 67

SCEC (Dec ‘18) 67 Network Based Computing Laboratory

Personnel Acknowledgments

Current Students (Graduate)

–

  • A. Awan (Ph.D.)

–

  • M. Bayatpour (Ph.D.)

–

  • S. Chakraborthy (Ph.D.)

– C.-H. Chu (Ph.D.) –

  • S. Guganani (Ph.D.)

Past Students

–

  • A. Augustine (M.S.)

–

  • P. Balaji (Ph.D.)

–

  • R. Biswas (M.S.)

–

  • S. Bhagvat (M.S.)

–

  • A. Bhat (M.S.)

–

  • D. Buntinas (Ph.D.)

–

  • L. Chai (Ph.D.)

–

  • B. Chandrasekharan (M.S.)

–

  • N. Dandapanthula (M.S.)

–

  • V. Dhanraj (M.S.)

–

  • T. Gangadharappa (M.S.)

–

  • K. Gopalakrishnan (M.S.)

–

  • R. Rajachandrasekar (Ph.D.)

–

  • G. Santhanaraman (Ph.D.)

–

  • A. Singh (Ph.D.)

–

  • J. Sridhar (M.S.)

–

  • S. Sur (Ph.D.)

–

  • H. Subramoni (Ph.D.)

–

  • K. Vaidyanathan (Ph.D.)

–

  • A. Vishnu (Ph.D.)

–

  • J. Wu (Ph.D.)

–

  • W. Yu (Ph.D.)

–

  • J. Zhang (Ph.D.)

Past Research Scientist

–

  • K. Hamidouche

–

  • S. Sur

Past Post-Docs

–

  • D. Banerjee

–

  • X. Besseron

– H.-W. Jin –

  • W. Huang (Ph.D.)

–

  • W. Jiang (M.S.)

–

  • J. Jose (Ph.D.)

–

  • S. Kini (M.S.)

–

  • M. Koop (Ph.D.)

–

  • K. Kulkarni (M.S.)

–

  • R. Kumar (M.S.)

–

  • S. Krishnamoorthy (M.S.)

–

  • K. Kandalla (Ph.D.)

–

  • M. Li (Ph.D.)

–

  • P. Lai (M.S.)

–

  • J. Liu (Ph.D.)

–

  • M. Luo (Ph.D.)

–

  • A. Mamidala (Ph.D.)

–

  • G. Marsh (M.S.)

–

  • V. Meshram (M.S.)

–

  • A. Moody (M.S.)

–

  • S. Naravula (Ph.D.)

–

  • R. Noronha (Ph.D.)

–

  • X. Ouyang (Ph.D.)

–

  • S. Pai (M.S.)

–

  • S. Potluri (Ph.D.)

–

  • J. Hashmi (Ph.D.)

–

  • H. Javed (Ph.D.)

–

  • P. Kousha (Ph.D.)

–

  • D. Shankar (Ph.D.)

–

  • H. Shi (Ph.D.)

–

  • J. Lin

–

  • M. Luo

–

  • E. Mancini

Current Research Scientists

–

  • X. Lu

–

  • H. Subramoni

Past Programmers

–

  • D. Bureddy

–

  • J. Perkins

Current Research Specialist

–

  • J. Smith

–

  • S. Marcarelli

–

  • J. Vienne

–

  • H. Wang

Current Post-doc

–

  • A. Ruhela

–

  • K. Manian

Current Students (Undergraduate)

–

  • V. Gangal (B.S.)

–

  • M. Haupt (B.S.)

–

  • N. Sarkauskas (B.S.)

–

  • A. Yeretzian (B.S.)

Past Research Specialist

–

  • M. Arnold
slide-68
SLIDE 68

SCEC (Dec ‘18) 68 Network Based Computing Laboratory

Thank You!

Network-Based Computing Laboratory http://nowlab.cse.ohio-state.edu/

panda@cse.ohio-state.edu

The High-Performance MPI/PGAS Project http://mvapich.cse.ohio-state.edu/ The High-Performance Deep Learning Project http://hidl.cse.ohio-state.edu/ The High-Performance Big Data Project http://hibd.cse.ohio-state.edu/

Core Hubs:
All Converters PDF Hub Video Hub Audio Hub Image Hub File Compressor
