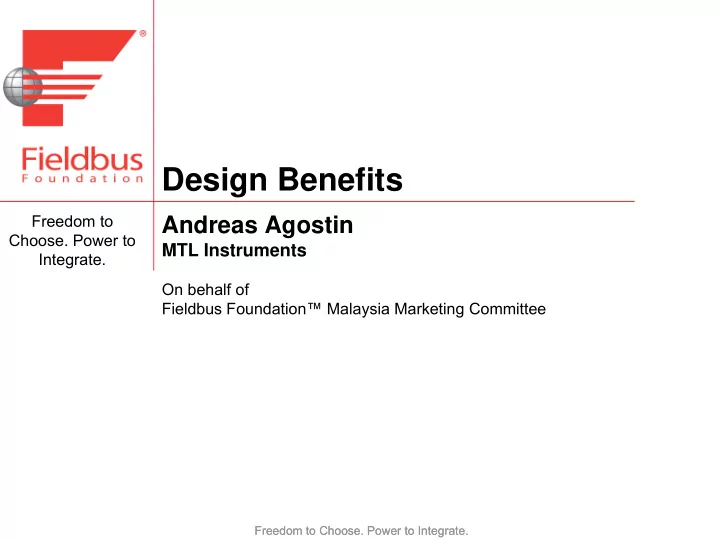

Design Benefits Freedom to Andreas Agostin Choose. Power to MTL Instruments Integrate. On behalf of Fieldbus Foundation Malaysia Marketing Committee Freedom to Choose. Power to Integrate. Freedom to Choose. Power to Integrate. Design

slide-1
SLIDE 1

Freedom to Choose. Power to Integrate. Freedom to Choose. Power to Integrate.

Freedom to

  • Choose. Power to

Integrate.

Design Benefits

Andreas Agostin

MTL Instruments

On behalf of Fieldbus Foundation™ Malaysia Marketing Committee

slide-2
SLIDE 2

2

Freedom to Choose. Power to Integrate.

2

Freedom to Choose. Power to Integrate.

Design Benefits

Applying Foundation Fieldbus in a project offers several benefits over using other technologies. This presentation will explore some of these benefits in design

due to the concept of the technology associated to the bus structure by being digital due to available verification tools due to already-proven intrinsic safety due to eliminated Marshalling

slide-3
SLIDE 3

3

Freedom to Choose. Power to Integrate.

3

Freedom to Choose. Power to Integrate.

Benefits by Concept

Foundation Fieldbus is a new concept

connecting many instruments on the same segment allowing various hazardous area methods on the same

segment (e.g. Ex d and Ex i using fieldbus barriers)

providing intelligent field instruments regardless their

function, whether temperature, ON/OFF valves, flow, pressure, etc.

using standardized device configuration methods DD and

EDDL (We heard about these in earlier presentations)

slide-4
SLIDE 4

4

Freedom to Choose. Power to Integrate.

4

Freedom to Choose. Power to Integrate.

Benefits in wiring and infrastructure

Foundation Fieldbus uses a common FF power supply (or FF IS power supply) compared to multiple isolators and individual wiring

slide-5
SLIDE 5

5

Freedom to Choose. Power to Integrate.

5

Freedom to Choose. Power to Integrate.

Conventional wiring

2nd level 1st level junction box

Multicore cables

slide-6
SLIDE 6

6

Freedom to Choose. Power to Integrate.

6

Freedom to Choose. Power to Integrate.

Fieldbus system wiring

2nd level 1st level junction box Fieldbus power supplies Control system

System cable

Multipair (multiple trunks)

slide-7
SLIDE 7

7

Freedom to Choose. Power to Integrate.

7

Freedom to Choose. Power to Integrate.

Lower Cost: Fewer Connections to be Made

Hardwired

– 160 connections – 8 barriers

Fieldbus

– 55 connections – 1 barrier

+

  • +
  • +
  • +
  • +
  • +
  • +
  • +
  • +
  • +
  • +
  • +
  • +
  • +
  • +
  • +
  • 1

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24

+

  • 1

+

  • +
  • 2

+

  • +
  • 3

+

  • +
  • 4

+

  • +
  • 5

+

  • +
  • 6

+

  • +
  • 7

+

  • +
  • 8

+

  • 1

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24

16 16 48 27 48 6 32 4 16 2 If devices have more signals, such as position feedback or auxiliary inputs, the reduction becomes even more dramatic.

Field Junction Box Devices Marshalling I.S. Barrier I/O Assembly Control Cabinet

+

  • +
  • +
  • +
  • +
  • +
  • +
  • +
  • +
  • 1

2 3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24

+

  • 1

+

  • + -
slide-8
SLIDE 8

8

Freedom to Choose. Power to Integrate.

8

Freedom to Choose. Power to Integrate.

Benefits by Concept

The benefits of this are:

reduced cabling (wiring) reduced infrastructure and components involved eliminate the variety of isolators and converters needed

for DI/DO/AI/AO/RTD/etc

no marshalling required for grouping

DI/DO/AI/AO/RTD/etc

provide high levels of diagnostics, not just LB/SC Get rid of manufacturer-dependent configuration tools

slide-9
SLIDE 9

9

Freedom to Choose. Power to Integrate.

9

Freedom to Choose. Power to Integrate.

Benefits by Higher Integrity

Foundation Fieldbus combines all components of the control loop (e.g. AI, PID, AO) on the same cable pair (segment) Conventional: A “loop” is often considered the arrangement

  • f equipment between DCS and field device (I/O card,

isolator, field instrument, cabling). It is usually not the “logical” loop (e.g. AI, PID, AO).

slide-10
SLIDE 10

10

Freedom to Choose. Power to Integrate.

10

Freedom to Choose. Power to Integrate.

Design – Perception of single loop integrity

DCS CPU: Performs PID function 4-20mA 4-20mA HMI

non Ex Ex non Ex Ex

IS barrier (Intrinsic safety) for wiring into hazardous area

slide-11
SLIDE 11

11

Freedom to Choose. Power to Integrate.

11

Freedom to Choose. Power to Integrate.

Design - Single loop integrity on FF

Redundant H1 card DCS HMI

non Ex Ex

Redundant FISCO

non Ex Ex

Device Coupler

slide-12
SLIDE 12

12

Freedom to Choose. Power to Integrate.

12

Freedom to Choose. Power to Integrate.

Benefits by Bus structure

Foundation Fieldbus enables single Loop Integrity

– AI, PID and AO on the same cable – Major components are redundant

  • FF H1 card (host)
  • Redundant FF power supply

– In conventional (particularly I.S.), more components are involved, so more prone to failure → Fieldbus is less prone to failure

slide-13
SLIDE 13

13

Freedom to Choose. Power to Integrate.

13

Freedom to Choose. Power to Integrate.

Benefits by Being Digital

Digital communication increases signal transmission

accuracy – Analogue loop: A/D (sensor to device) – D/A (device to cable) – A/A (signal isolator / I.S. barrier) – A/D (DCS) – D/A (DCS) – A/A (signal isolator / I.S. barrier) – A/D (cable to device) - D/A (device to actuator) – Fieldbus loop: A/D (sensor to device) - D/A (device to actuator) (Note that all transmission and DCS calculation is all- digital) → Higher accuracy by design

slide-14
SLIDE 14

14

Freedom to Choose. Power to Integrate.

14

Freedom to Choose. Power to Integrate.

Validation of Design

Easy verification of segment power distribution using

software tools

Individual loop calculations (with individual voltage and

current parameters) are not required

Spur calculations neglibible (spur voltage drop is < 0.1V) Exact lengths do not need to be known

slide-15
SLIDE 15

15

Freedom to Choose. Power to Integrate.

15

Freedom to Choose. Power to Integrate.

Validation of Design

Fieldbus signal:

Ex parameters standardized

– FISCO: 17.5V, 380mA, 5.32W (IEC 60079-27) – Entity: 24V, 250mA, 1.2W (FF-816)

Input voltage at field instrument: 9V (IEC 61158-2) Device currents: typical 17mA (AG-181 Rev 2.1), formerly

20mA assumed. A study suggests 15.29 mA calculated average, and 63%

  • f registered devices having 15mA current or less.

Source: http://forums.fieldbus.org/showpost.php?p=5181

slide-16
SLIDE 16

16

Freedom to Choose. Power to Integrate.

16

Freedom to Choose. Power to Integrate.

Validation of Design

Conventional signal:

  • I.S. barrier Ex parameters (U0, I0, P0, C0, L0) (all different)
  • Cable Ex parameter (CC, LC)
  • For each device:

– Device Ex parameters (UI, II, PI, CI, LI) (all different) – Actual device current requirement (4-20mA: maximum 22/24mA) – Minimum input voltage requirement (all different)

  • Actual output voltage of barrier (all different)
  • Actual cable resistance (specific resistance and distance)

Fieldbus signal:

  • FISCO or not (if not, then Ex parameters as above)
  • Assumed typical device current (as per AG-181 Rev. 2.1, 17mA)
  • Planned number of instruments per segment
  • Estimated maximum trunk cable length (maybe “5 worst cases” can

cover the whole plant)

  • Actual output voltage of FF power supply (same for all segments)
  • Actual cable resistance (specific resistance and distance)
slide-17
SLIDE 17

17

Freedom to Choose. Power to Integrate.

17

Freedom to Choose. Power to Integrate.

Validation of Intrinsically Safe Design

Verification of intrinsic safety

eliminated using FISCO

– I.S. demonstrated by following the design rules

easy for Entity using fieldbus barrier

– Point-to-point connection (spur) – Max. 120m spur length allows to calculate worst case cable parameters, reducing the verification to a simple comparison

slide-18
SLIDE 18

18

Freedom to Choose. Power to Integrate.

18

Freedom to Choose. Power to Integrate.

Benefits of Validation

Validation using readily available tools is simpler, and

hence less time consuming

Bus structure simplifies calculations:

– Only 1 trunk with 1 trunk current vs. many signals in a multicore with different voltages and currents

IS verification not necessary (FISCO) or simple (entity on

fieldbus barrier)

slide-19
SLIDE 19

19

Freedom to Choose. Power to Integrate.

19

Freedom to Choose. Power to Integrate.

Benefits by Eliminating Marshalling

Flexibility to handle changes and additions late in the project

  • Fieldbus is designed with “spares” provisions (spare spurs, spare

trunks)

  • Signals do not need to be grouped by type (AI/AO/DI/DO/RTD/…),

and can simply be connected to any segment

  • Change a on/off valve to electric actuator to control valve late in the

project without changing I/O cards, drawings, wiring, etc

  • Adding further non-control related signals (e.g. for monitoring) does

not require infrastructure

  • Adding signals does not require change of cabinet drawings
  • Fewer intermediate wire connections in the panel simplifies drawings
slide-20
SLIDE 20

20

Freedom to Choose. Power to Integrate.

20

Freedom to Choose. Power to Integrate.

Summary

Foundation Fieldbus is technology enabling a number of benefits. Some benefits are derived due to the concept of the technology, being digital, having a bus infrastructure, allowing mixtures of protection methods, and having many devices on the same cable allowing different topologies. Other benefits indirectly derived from the network structure, like eliminated marshalling, less components, reduced drawings, greater flexibility, etc.

slide-21
SLIDE 21

21

Freedom to Choose. Power to Integrate.

21

Freedom to Choose. Power to Integrate.

Summary

The main benefits in the design phase are:

Faster and easier to design Greater flexibility Reduced validation Higher accuracy (digital data throughout) Reduced components Less prone to failures Diagnostics are included, and do not need to be

designed-in

slide-22
SLIDE 22
