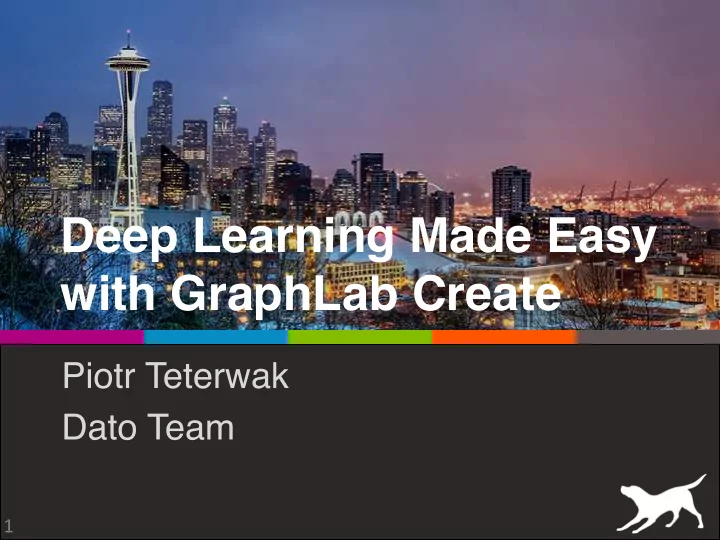

SLIDE 1
Deep Learning Made Easy with GraphLab Create
Piotr Teterwak Dato Team
1
Who I am
Piotr ¡Teterwak ¡ Software ¡Engineer
2
Deep Learning Made Easy with GraphLab Create Piotr Teterwak Dato - - PowerPoint PPT Presentation
Deep Learning Made Easy with GraphLab Create Piotr Teterwak Dato - - PowerPoint PPT Presentation
Deep Learning Made Easy with GraphLab Create Piotr Teterwak Dato Team 1 Who I am Piotr Teterwak Software Engineer 2 GraphLab Create A platform for building predictive applications, fast Data engineering on Big
SLIDE 2
SLIDE 3
GraphLab Create
- A platform for building predictive
applications, fast
- Data engineering on Big Data
- Interactive visualization
- Fast machine learning toolkits
- Easy deployment
- Python frontend, C++ backend
3
SLIDE 4
The Dato Team
4
SLIDE 5
Making Deep Learning Easy
5
SLIDE 6
Deep Learning
6
SLIDE 7
Deep Learning Made Easy
- Intuitive API
- Transfer Learning
- Integration with other tools in GraphLab
Create
7
SLIDE 8
What is Deep Learning?
8
SLIDE 9
Machine Learning
- Algorithms that can learn from data without
being explicitly programmed.
- One example would be image
classification, i.e binning an image as one
- f a fixed number of categories.
9
SLIDE 10
Machine Learning
“cat”
10
SLIDE 11
Deep Learning
“cat”
f1(x) f2(x) f3(x)
11
SLIDE 12
http://deeplearning.stanford.edu/wiki/images/4/40/Network3322.png
Deep Neural Networks
P(cat|x) P(dog|x)
12
SLIDE 13
Deep Neural Networks
- Can model any function with enough
hidden units.
- This is tremendously powerful: given
enough units, it is possible to train a neural network to solve arbitrarily difficult problems.
- But also very difficult to train, too many
parameters means too much memory +computation time.
13
SLIDE 14
Neural Nets and GPU’s
- Many operations in Neural Net training can
happen in parallel
- Reduces to matrix operations, many of
which can be easily parallelized on a GPU.
14
SLIDE 15
Convolutional Neural Nets
- Strategic removal of edges
15
Input ¡Layer Hidden ¡Layer
SLIDE 16
Convolutional Neural Nets
- Strategic removal of edges
16
Input ¡Layer Hidden ¡Layer
SLIDE 17
Convolutional Neural Nets
- Strategic removal of edges
17
Input ¡Layer Hidden ¡Layer
SLIDE 18
Convolutional Neural Nets
- Strategic removal of edges
18
Input ¡Layer Hidden ¡Layer
SLIDE 19
Convolutional Neural Nets
- Strategic removal of edges
19
Input ¡Layer Hidden ¡Layer
SLIDE 20
Convolutional Neural Nets
- Strategic removal of edges
20
Input ¡Layer Hidden ¡Layer
SLIDE 21
Convolutional Neural Nets
http://ufldl.stanford.edu/wiki/images/6/6c/Convolution_schematic.gif
21
SLIDE 22
Pooling layer
Ranzato, ¡LSVR ¡tutorial ¡@ ¡CVPR, ¡2014. ¡
www.cs.toronto.edu/~ranzato
22
SLIDE 23
Pooling layer
http://ufldl.stanford.edu/wiki/images/6/6c/Pooling_schematic.gif
23
SLIDE 24
Overall architecture
¡A. ¡Krizhevsky, ¡I. ¡Sutskever ¡and ¡G.E. ¡Hinton. ¡“ImageNet ¡ Classification ¡with ¡Deep ¡Convolutional ¡Neural ¡Networks”. ¡NIPS ¡ (2012)
24
SLIDE 25
Hierarchichal Representation
- Y. ¡Bengio ¡(2009)
25
Hands ¡-‑ ¡Face ¡-‑ ¡Ground
SLIDE 26
Input Learned ¡hierarchy
Lee ¡et ¡al. ¡‘Convolutional ¡Deep ¡Belief ¡Networks ¡for ¡Scalable ¡Unsupervised ¡Learning ¡of ¡Hierarchical ¡Representations’ ¡ICML ¡2009
Deep learning features
Output
26
SLIDE 27
Where can we use Deep Learning?
27
SLIDE 28
Image tagging
28
SLIDE 29
A quick demo!
29
SLIDE 30
- Notice the cycle…you can only break out of this with
intuition, time, and lots of frustration.
- But, when you do, magic happens!
Create Model
Labelled data Train Set Test Set 80% 20%
Validate?
Probably ¡not ¡good ¡enough
Adjust ¡hyper-‑parameters
Deep learning workflow
30
SLIDE 31
Simplifying Deep Learning with Deep Features and Transfer Learning
31
SLIDE 32
Transfer learning
- Train a model on one task, use it for
another task
- Examples
- Learn to walk, use that knowledge to run
- Train image tagger to recognize cars, use that
knowledge to recognize trucks.
32
SLIDE 33
Input Learned ¡hierarchy
Lee ¡et ¡al. ¡‘Convolutional ¡Deep ¡Belief ¡Networks ¡for ¡Scalable ¡Unsupervised ¡Learning ¡of ¡Hierarchical ¡Representations’ ¡ICML ¡2009
Deep learning features
Output
33
SLIDE 34
Lee ¡et ¡al. ¡‘Convolutional ¡Deep ¡Belief ¡Networks ¡for ¡Scalable ¡Unsupervised ¡Learning ¡of ¡Hierarchical ¡Representations’ ¡ICML ¡2009
Mid-‑level ¡features ¡probably ¡ useful ¡for ¡other ¡tasks ¡which ¡ ¡ require ¡detection ¡of ¡facial ¡ ¡ anatomy
Feature extraction
Input Learned ¡hierarchy
34
SLIDE 35
http://deeplearning.stanford.edu/wiki/images/4/40/Network3322.png Extract ¡activations ¡from ¡some ¡ deep ¡layer ¡of ¡neural ¡network
Feature extraction
35
SLIDE 36
Create Simpler Model
Labelled data
Extract Features using Neural Net trained on different task
Train Set Test Set 80% 20%
Validate?
Probably ¡works Deploy
$$$
Transfer learning using deep features
36
SLIDE 37
Using ImageNet-trained network as extractor for general features
- Using classic AlexNet architechture pioneered by
Alex Krizhevsky et. al in ImageNet Classification with Deep Convolutional Neural Networks
- It turns out that a neural network trained on ~1
million images of about 1000 classes makes a surprisingly general feature extractor
- First illustrated by Donahue et al in DeCAF: A
Deep Convolutional Activation Feature for Generic Visual Recognition
37
SLIDE 38
Demo
38
SLIDE 39
Caltech-101
39
SLIDE 40
Caltech-101
40
Extract ¡features ¡here
SLIDE 41
Deep Features and Logistic Regression
41
SLIDE 42
What else can we do with Deep Features?
42
SLIDE 43
Finding similar images
43
SLIDE 44
Clustering images
Goldberger et al.
Set of Images
44
SLIDE 45
How general are these Deep Features?
45
SLIDE 46
Deep Features are Generalizable
46
SLIDE 47
Thank you!
- To learn more: http://www.dato.com/learn
- Play with the demos:
- Pathways: https://pathways-demo.herokuapp.com/
- Phototag: http://phototag.herokuapp.com/
- Contact:
- piotr@dato.com
- We are hiring! jobs@dato.com
- Thank you to Nvidia for designing and providing the hardware to make this
possible
- Please complete the Presenter Evaluation. Your feedback is important!
47
