Deep Learning: Intro Juhan Nam Review of Traditional Machine - - PowerPoint PPT Presentation

Juhan Nam

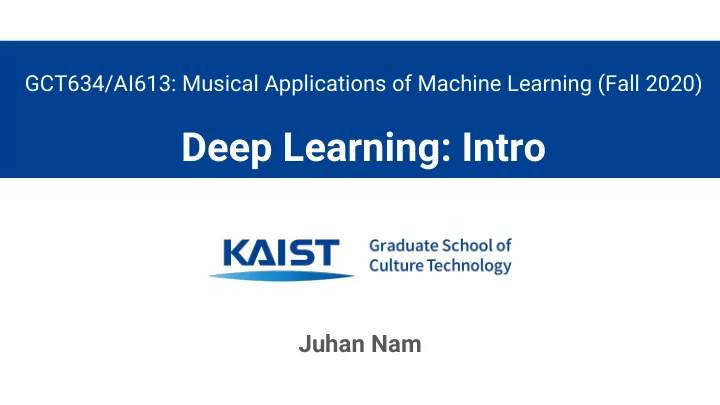

GCT634/AI613: Musical Applications of Machine Learning (Fall 2020)

Deep Learning: Intro

• The traditional machine learning pipeline

Review of Traditional Machine Learning

Classifier

Frame-level Features Temporal Summary Unsupervised Learning

• The traditional machine learning pipeline

Review of Traditional Machine Learning

Classifier

Frame-level Features Temporal Summary Unsupervised Learning

DFT Mel Filterbank DCT Abs (magnitude) Log compression

MFCC

Linear Classifier Non-linear Transform Temporal Pooling

K-means Logistic Regression

• Each module can be replaced with a chain of linear transform and non-

linear function

Review of Traditional Machine Learning

Linear Transform Linear Transform Linear Transform Non-linear function Non-linear function Non-linear function Linear Transform Temporal Pooling Linear Classifier

Classifier

Frame-level Features Temporal Summary Unsupervised Learning

DFT Mel Filterbank DCT Abs (magnitude) Log compression

MFCC

Linear Classifier Non-linear Transform Temporal Pooling

K-means Logistic Regression

• The entire modules can be replaced with a long chain of linear transform

and non-linear function (i.e. deep neural network)

○ Each module is locally optimized in the traditional machine learning

Review of Traditional Machine Learning

Linear Transform Linear Transform Linear Transform Non-linear function Non-linear function

Classifier

Frame-level Features Temporal Summary Unsupervised Learning

DFT Mel Filterbank DCT Abs (magnitude) Log compression

MFCC

Linear Classifier Non-linear Transform Temporal Pooling

K-means Logistic Regression

Non-linear function Linear Transform Temporal Pooling Linear Classifier

Deep Neural Network

• The entire blocks (or layers) are optimized in an end-to-end manner

○ The parameters (or weights) in all layers are learned to minimize the loss function of the classifier ○ The loss is back-propagated through all layers (from right to left) as a gradient with regard to each parameter (“error back-propagation”)

• Therefore, we “learn features” instead of designing or engineering them

Deep Learning

Linear Transform Linear Transform Linear Transform Non-linear function Non-linear function Non-linear function Linear Transform Temporal Pooling Linear Classifier

Deep Neural Network

• There are many choices of basic building blocks (or layers)
• Connectivity patterns (parametric)

○ Fully-connected (i.e. linear transform) ○ Convolutional (note that STFT is a convolutional operation) ○ Skip / Residual ○ Recurrent

• Nonlinearity functions (non-parametric)

○ Sigmoid ○ Tanh ○ Rectified Linear Units (ReLU) and variations

Deep Learning: Building Models

Deep Learning: Building Models

• We “design” a deep neural network architecture depending on the nature
• f data and the task

○ Modular synth as a “musical analogy”

(Images from the Arturia Modula V manual)

– –

Se he Range of oscillaor 3 o 16. I ill pla 1 ocae pper han he 3 ohers Increase he aack ime of he enelope o 2 oclock in order o make he No les make anoher modlaion appear gien b he ill be prooked b he aferoch. For his, connec he Tri op of his LFO

– –

in mode poide acce o man efl feae. Le look a hem

1 Die cia: a he aagee f he feec ad ie idh f he 3 ae cia. Thee 3 ae cia ca be ed ad An ocillaor bank: 1 drier and 3 lae ocillaor

• –

• scillator modules (“Low Frequency Oscillator”) are used to

• scillator modules (“Low Frequency Oscillator”) are used to

ih he oaing leel bon and amplide modlaion inp. impl click on he link bon ha epaae hem.

• The porameno (Glide)
• –

• r glide in English

• –

–

in mode poide acce o man efl feae. Le look a hem

1 Die cia: a he aagee f he feec ad ie idh f he 3 ae cia. Thee 3 ae cia ca be ed ad An ocillaor bank: 1 drier and 3 lae ocillaor

1 Die cia: a he aagee f he feec ad ie idh f he 3 ae cia. Thee 3 ae cia ca be ed ad An ocillaor bank: 1 drier and 3 lae ocillaor

Deep Learning: Training Models

• Loss Function

○ Cross entropy (logistic loss) ○ Hinge loss ○ Maximum likelihood ○ L2 (root mean square) and L1 ○ Adversarial ○ Variational

• Optimizers

○ SGD ○ Momentum ○ RMSProp ○ Adagrad ○ Adam

• Hyper parameter (initialization,

regularization, model search)

○ Weight initialization ○ L1 and L2 (Weight decay) ○ Dropout ○ Learning rate ○ Layer size ○ Batch size ○ Data augmentation

Multi-Layer Perceptron (MLP)

• Neural networks that consist of fully-connected layers and non-linear

functions

○ Also called Feedforward Neural Network or Deep Feedforward Network ○ A long history: perceptron (Rosenblatt, 1962), back-propagation (Rumelhart, 1986), deep belief networks (Hinton and Salakhutdinov, 2006)

Output layer Input layer Hidden layers

𝑨(") = 𝑋(")𝑦 + 𝑐(") ℎ(") = 𝑕(𝑨(")) 𝑨($) = 𝑋($)ℎ(") + 𝑐($) ℎ($) = 𝑕(𝑨($)) 𝑨(%) = 𝑋(%)ℎ($) + 𝑐(%) ℎ(%) = 𝑕(𝑨(%)) ℎ(") ℎ($) ℎ(%) 𝑧 𝑦 𝑧 = 𝑋(&)ℎ(%) + 𝑐(&)

Deep Feedforward Network

• It is argued that the first breakthrough of deep learning is from the deep

feedforward network (2011)

○ The state-of-the-art acoustic model (GMM-HMM) in the speech recognition ○ Replace the GMM module with a deep feedforward network (up to 5 layers) ○ Initialize the weights matrix using an unsupervised learning algorithm

■ Deep belief network: greedy layer-wise using restricted Boltzmann machine

Context-Dependent Pre-trained Deep Neural Networks for Large Vocabulary Speech Recognition, George Dahl, Dong Yu, Li Deng, Alex Acero, 2012

• There are several choices of non-linear functions (or activation functions)

○ ReLU is the default choice in modern deep learning: fast and effective ○ There are also other choices such as Elastic Linear Unit and Maxout ○ Note that this is an element-wise operation in the neural network

Non-linear Functions

Sigmoid ReLU Leaky ReLU Tanh

1 10

• 10

1 10

• 10

𝜏 𝑦 = 1 1 + 𝑓!" 𝑓" − 𝑓!" 𝑓" + 𝑓!"

10 10

• 10

max(0, 𝑦) max(0.1𝑦, 𝑦)

10 10

• 10

Why the Nonlinear Function in the Hidden Layer?

• They capture the interaction between input elements with high-order

○ This enables finding non-linear boundaries between different classes ○ Taylor series of a nonlinear function 𝑕 𝑨

■ Non-zero coefficients for high-order polynomials:

𝑕 𝑨 = 𝑏# + 𝑏$𝑨 + 𝑏%𝑨% + 𝑏&𝑨& + ⋯

interactions between all input elements

𝑨 = 𝑥$𝑦$ + 𝑥%𝑦% + 𝑐 𝑨% = 𝑥$

%𝑦$ % + 2𝑥$𝑥%𝑦$𝑦% + 𝑥% %𝑦% % + 2𝑥$𝑦$𝑐 + 2𝑥%𝑦%𝑐 + 𝑐%

𝑦" 𝑦$ 𝑦" 𝑦$

𝑨 = 0 𝑏! + 𝑏"𝑨 + 𝑏𝑨# = 0

Why the Nonlinear Function in the Hidden Layer?

• What if the nonlinear functions are absent?

○ Multiplications of linear transform = another linear transform ○ Geometrically, linear transformation does scaling, sheering and rotation

source: http://www.ams.org/publicoutreach/feature-column/fcarc-svd

Why the Nonlinear Function in the Hidden Layer?

• The non-linear function warps the input space such that the data with

different classes are more linearly separable

Linear Classifier NN- input space NN- hidden layer space

source: http://colah.github.io/posts/2014-03-NN-Manifolds-Topology/

Training Deep Neural Network

• Gradient descent learning

○ Need to compute the gradient for all parameters in all layers ○ Compute them via the error back-propagation from the top layer

𝑋(')()* = 𝑋(')+', − 𝜈 𝜖𝑚 𝑋(')+', 𝜖𝑋(')+', ℎ(") ℎ($) ℎ(%) 𝑧 𝑦

𝑋($) 𝑋(%) 𝑋(&) 𝑋())

𝑚(𝑧, 0 𝑧)

Training Deep Neural Network

• Step 1) initialize all weights to random numbers
• Step 2) Feedforward computation

○ Feed the input 𝑦 and compute ℎ$ and up to ) 𝑧 and keep all of the intermediate values

ℎ(") ℎ($) ℎ(%) 𝑧 𝑦

𝑋($) 𝑋(%) 𝑋(&) 𝑋())

𝑚(𝑧, 0 𝑧) 𝑨(") = 𝑋(")𝑦 + 𝑐(") ℎ(") = 𝑕(𝑨(")) 𝑨($) = 𝑋($)ℎ(") + 𝑐($) ℎ($) = 𝑕(𝑨($)) 𝑨(%) = 𝑋(%)ℎ($) + 𝑐(%) ℎ(%) = 𝑕(𝑨(%)) 𝑧 = 𝑋(&)ℎ(%) + 𝑐(&)

Training Deep Neural Network

• Step 3) compute the loss 𝑚(𝑧, %

𝑧) using % 𝑧 and the ground truth 𝑧

○ For simplicity, let’s assume root mean square (RMS) loss

■ 𝑚 𝑧, 0 𝑧 = (𝑧 − 0 𝑧)$= (𝑧 − 𝑋(&)ℎ(%) + 𝑐(&) )$ ■

• '
• .

*,, (-) = 2(𝑧 − 𝑋

/,1 (&)ℎ1 (%) + 𝑐/ (&))(−ℎ/ (%))

■

• '
• 2,

(.) = 2(𝑧 − 𝑋

/,1 (&)ℎ1 (%) + 𝑐/ (&))(−𝑋 /,1 (&)) We can compute this because ℎ! was computed from the forward pass and 𝑋

" and 𝑐" were already initialized

ℎ(") ℎ($) ℎ(%) 𝑧 𝑦

𝑋($) 𝑋(%) 𝑋(&) 𝑋())

𝑚(𝑧, 0 𝑧)

We need the gradient w.r.t the hidden layer units for the lower layer !!!

𝑨(") = 𝑋(")𝑦 + 𝑐(") ℎ(") = 𝑕(𝑨(")) 𝑨($) = 𝑋($)ℎ(") + 𝑐($) ℎ($) = 𝑕(𝑨($)) 𝑨(%) = 𝑋(%)ℎ($) + 𝑐(%) ℎ(%) = 𝑕(𝑨(%)) 𝑧 = 𝑋(&)ℎ(%) + 𝑐(&)

Training Deep Neural Network

• Step 4) Back-propagate the loss to the lower layers

○ Let’s assume the sigmoid function for non-linearity

■ ℎ1

(%) = 𝑕(𝑨1 (%))= " "6)

/0, (.)

■

• '
• 7,

(.) =

• '
• 2,

(.) 3

• 2,

(.)

• 7,

(.) =

• '
• 2,

(.) 3

" "6)

/0, (.)

8

=

• '
• 2,

(.) 3

" "6)

/0, (.) 3

)

/0, (.)

"6)

/0, (.)

ℎ(") ℎ($) ℎ(%) 𝑧 𝑦

𝑋($) 𝑋(%) 𝑋(&) 𝑋())

𝑚(𝑧, 0 𝑧)

We know this from the upper layer (the previous slide) We can compute this using 𝑨! from the forward pass

𝑨(") = 𝑋(")𝑦 + 𝑐(") ℎ(") = 𝑕(𝑨(")) 𝑨($) = 𝑋($)ℎ(") + 𝑐($) ℎ($) = 𝑕(𝑨($)) 𝑨(%) = 𝑋(%)ℎ($) + 𝑐(%) ℎ(%) = 𝑕(𝑨(%)) 𝑧 = 𝑋(&)ℎ(%) + 𝑐(&)

Training Deep Neural Network

• Step 5) Back-propagate the loss to the lower layers more

■

• '
• .

*,, (.) =

• '
• 7,

(.) 3

• 7,

.

• .

*,, . =

• '
• 7,

. 3 ℎ/

$

■

• '
• 2,

(1) =

• '
• 7*

(.) 3

• 7*

(.)

• 2,

(1) =

• '
• 7*

(.) 3 𝑋

/,1 (%)

ℎ(") ℎ($) ℎ(%) 𝑧 𝑦

𝑋($) 𝑋(%) 𝑋(&) 𝑋())

𝑚(𝑧, 0 𝑧) 𝑨(") = 𝑋(")𝑦 + 𝑐(") ℎ(") = 𝑕(𝑨(")) 𝑨($) = 𝑋($)ℎ(") + 𝑐($) ℎ($) = 𝑕(𝑨($)) 𝑨(%) = 𝑋(%)ℎ($) + 𝑐(%) ℎ(%) = 𝑕(𝑨(%)) 𝑧 = 𝑋(&)ℎ(%) + 𝑐(&)

c

We know this from the upper layer (the previous slide) These are from the local layer

Training Deep Neural Network

• Step 6) Repeat step 4 for the 2nd layer

■

• '
• 7,

(1) =

• '
• 2,

(1) 3

• 2,

(1)

• 7,

(1) =

• '
• 2,

(1) 3

" "6)

/0, (1)

8

=

• '
• 2,

(1) 3

" "6)

/0, (1) 3

)

/0, (1)

"6)

/0, (1)

ℎ(") ℎ($) ℎ(%) 𝑧 𝑦

𝑋($) 𝑋(%) 𝑋(&) 𝑋())

𝑚(𝑧, 0 𝑧) 𝑨(") = 𝑋(")𝑦 + 𝑐(") ℎ(") = 𝑕(𝑨(")) 𝑨($) = 𝑋($)ℎ(") + 𝑐($) ℎ($) = 𝑕(𝑨($)) 𝑨(%) = 𝑋(%)ℎ($) + 𝑐(%) ℎ(%) = 𝑕(𝑨(%)) 𝑧 = 𝑋(&)ℎ(%) + 𝑐(&)

We know this from the upper layer (the previous slide)

Training Deep Neural Network

• Step 7) Repeat step5 for the 2nd layer

■

• '
• .

*,, (1) =

• '
• 7,

(1) 3

• 7,

1

• .

*,, 1 =

• '
• 7,

1 3 ℎ/

"

■

• '
• 2,

(2) =

• '
• 7*

(1) 3

• 7*

(1)

• 2,

(2) =

• '
• 7*

(1) 3 𝑋

/,1 ($)

ℎ(") ℎ($) ℎ(%) 𝑧 𝑦

𝑋($) 𝑋(%) 𝑋(&) 𝑋())

𝑚(𝑧, 0 𝑧) 𝑨(") = 𝑋(")𝑦 + 𝑐(") ℎ(") = 𝑕(𝑨(")) 𝑨($) = 𝑋($)ℎ(") + 𝑐($) ℎ($) = 𝑕(𝑨($)) 𝑨(%) = 𝑋(%)ℎ($) + 𝑐(%) ℎ(%) = 𝑕(𝑨(%)) 𝑧 = 𝑋(&)ℎ(%) + 𝑐(&)

We know this from the upper layer (the previous slide) These are from the local layer

Training Deep Neural Network

• Step 8) repeat the two previous steps for the 1st layer

○ Done with computing one iteration of the gradient ○ Update the weights using the gradient!

ℎ(") ℎ($) ℎ(%) 𝑧 𝑦

𝑋($) 𝑋(%) 𝑋(&) 𝑋())

𝑚(𝑧, 0 𝑧) 𝑨(") = 𝑋(")𝑦 + 𝑐(") ℎ(") = 𝑕(𝑨(")) 𝑨($) = 𝑋($)ℎ(") + 𝑐($) ℎ($) = 𝑕(𝑨($)) 𝑨(%) = 𝑋(%)ℎ($) + 𝑐(%) ℎ(%) = 𝑕(𝑨(%)) 𝑧 = 𝑋(&)ℎ(%) + 𝑐(&) 𝑋(')()* = 𝑋(')+', − 𝜈 𝜖𝑚 𝑋(')+', 𝜖𝑋(')+',

Training Deep Neural Network

• Step 9) keep repeating the feedforward and backward passes

○ Updating the weights with the gradients

ℎ(") ℎ($) ℎ(%) 𝑧 𝑦

𝑋($) 𝑋(%) 𝑋(&) 𝑋())

𝑚(𝑧, 0 𝑧) 𝑨(") = 𝑋(")𝑦 + 𝑐(") ℎ(") = 𝑕(𝑨(")) 𝑨($) = 𝑋($)ℎ(") + 𝑐($) ℎ($) = 𝑕(𝑨($)) 𝑨(%) = 𝑋(%)ℎ($) + 𝑐(%) ℎ(%) = 𝑕(𝑨(%)) 𝑧 = 𝑋(&)ℎ(%) + 𝑐(&) 𝑋(')()* = 𝑋(')+', − 𝜈 𝜖𝑚 𝑋(')+', 𝜖𝑋(')+',

𝑥# 𝑥$ 𝑥∗

Training Deep Neural Network

• Step 10) Monitor both training loss and validation loss and stop the

iteration when the validation loss decreases any more (early stopping)

○ Note that the training set is used for both the feedforward and backward passes whereas the validation set is used for only the feedforward pass ○ Early stopping is a regularization method

This update is from the training set 𝑥$ 𝑥∗ 𝑥#

Epoch

Loss

Early stopping (overfitting starts) Validation Training

Wrap up: Training Deep Neural Networks

• Generalization

○ Any “differential” module can be used in the neural networks as a layer ○ Gradient-based learning will train the entire network

𝑦 𝑧 𝜖𝑚 𝜖𝑧 𝜖𝑚 𝜖𝑦 𝜖𝑚 𝜖𝑥

1/

𝑥

1/

𝑦 𝑧 𝜖𝑚 𝜖𝑧 𝜖𝑚 𝜖𝑦

Parametric module Non-parametric module

Connectivity patterns (Fully-connected, convolutional, …) Activation functions Pooling (max, average, …) Forward Backward Forward Backward

MLP Demo and Visualization

• https://playground.tensorflow.org/
