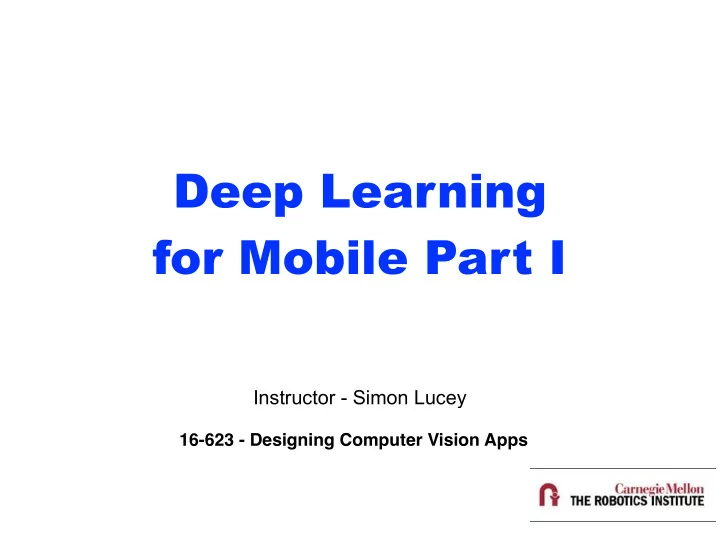

Deep Learning for Mobile Part I Instructor - Simon Lucey 16-623 - - - PowerPoint PPT Presentation

Deep Learning for Mobile Part I

Instructor - Simon Lucey

16-623 - Designing Computer Vision Apps

Today

• Single Layer Perceptron
• Multi-Layer Perceptron
• Convolutional Neural Network

Linear Binary Classification

4

[65,09,67,.......,78,66,76,215]

x ∈ RD

≥ < 0

x ∈ C1 x ∈ C2

wT x + w0

T

Linear Binary Classification

4

[65,09,67,.......,78,66,76,215]

x ∈ RD

≥ < 0

x ∈ C1 x ∈ C2

wT x + w0

“Perceptron”

T

Linear Binary Classification

4

[65,09,67,.......,78,66,76,215]

x ∈ RD

≥ < 0

x ∈ C1 x ∈ C2

wT x + w0

“Linear Discriminant”

T

Why Linear?

• Linear discriminant functions are useful in this regard as the

number of required samples is linear with respect to the dimensionality .

n

• No. of samples

Dimensionality(D)

D

Why Linear?

• Linear discriminant functions are useful in this regard as the

number of required samples is linear with respect to the dimensionality .

n

• No. of samples

Dimensionality(D)

D

Perceptron

• Rosenblatt simulated the perceptron on

a IBM 704 computer at Cornell in 1957.

• Input scene (i.e. printed character) was

illuminated by powerful lights and captured on a 20x20 cadmium sulphide photo cells.

• Weights of perceptron were applied

using variable rotary resistors.

• Often times referred to as the very first

neural network.

“Frank Rosenblatt”

Perceptron

Linear Discriminant Functions

a . pen- the . gen- en

x2 x1 w x

y(x) ∥w∥

x⊥

−w0 ∥w∥

y = 0 y < 0 y > 0 R2 R1

C1 C2

Linear Binary Classification

9

[65,09,67,.......,78,66,76,215]

x ∈ RD

≥ < 0

x ∈ C1 x ∈ C2

T

 w w0 T x 1

Linear Binary Classification

9

[65,09,67,.......,78,66,76,215]

x ∈ RD

≥ < 0

x ∈ C1 x ∈ C2

T

wT x

binary labels

Perceptron Linear Discriminant

ti = −1 ti = +1 xi = i-th training example w = weight vector arg min

w N

X

n=1

max(0, tn · xT

nw)

binary labels

Perceptron Linear Discriminant

ti = −1 ti = +1 xi = i-th training example w = weight vector arg min

w N

X

n=1

max(0, tn · xT

nw)

binary labels

Perceptron Linear Discriminant

ti = −1 ti = +1 xi = i-th training example w = weight vector arg min

w N

X

n=1

E(tn · xT

nw)

margin ∝ (wT w)−1

Perceptron Linear Discriminant

arg min

w N

X

n=1

E(tn · xT

nw) + λ

2 ||w||2

2

Other Objectives

• Other objectives are possible,

−2 −1 1 2 z E(z)

least-squares ← ||z − 1||2

2

sigmoid ← 1 1 + exp(−z) hinge ← max(0, 1 − z)

Optimizing Weights

• Expressing the final objective as,

f(w) =

N

X

n=1

E(tn · xT

nw) + λ

2 ||w||2

2

• Simplest strategy is to employ gradient-descent
• ptimization,

w → w − η ∂f(w) ∂w

Optimizing Weights

• Expressing the final objective as,

“Learning Rate”

f(w) =

N

X

n=1

E(tn · xT

nw) + λ

2 ||w||2

2

• Simplest strategy is to employ gradient-descent
• ptimization,

w → w − η ∂f(w) ∂w

Gradient-Descent Optimization

• Works for any function that can have a gradient estimated.
• Guaranteed to converge towards local-minima.
• Scales well to extremely large amounts of data.
• Notoriously slow (linear convergence).
• Often guess work associated tuning the learning rate.

Gradient-Descent Optimization

• Works for any function that can have a gradient estimated.
• Guaranteed to converge towards local-minima.
• Scales well to extremely large amounts of data.
• Notoriously slow (linear convergence).
• Often guess work associated tuning the learning rate.

Optimizing Weights

   w1 . . . wK    ←    w1 . . . wK    + η    

∂f(w) ∂w1

. . .

∂f(w) ∂wK

   

Optimizing Weights

   w1 . . . wK    ←    w1 . . . wK    + η    

∂f(w) ∂w1

. . .

∂f(w) ∂wK

   

Optimizing Weights - Per Sample

• Objective nearly always summation over N samples,

“Learning Rate”

• So one can update the weights per sample,

f(w) =

N

X

n=1

fn(w)

w → w − η N ∂fn(w) ∂w

Single Layer - Example

fn(w) = 1 2||1 − tn · xT

nw||2 2 + λ

2N ||w||2

2

Single Layer - Example

fn(w) = 1 2||1 − tn · xT

nw||2 2 + λ

2N ||w||2

2

∂fn(w) ∂w = (xT

nw − tn)xn + λ

N w

Today

• Single-Layer Perceptron
• Multi-Layer Perceptron
• Convolutional Neural Network

Shallow Networks

• Theorem:!Gaussian!kernel!machines!need!at!least!k!examples!

to!learn!a!func:on!that!has!2k!zeroZcrossings!along!some!line! ! ! ! ! !

• Theorem:!For!a!Gaussian!kernel!machine!to!learn!some!

maximally!varying!func:ons!!over!d!inputs!requires!O(2d)! examples! !

• Y. Bengio, O. Delalleau, and N. Le Roux, “The Curse of Highly Variable Functions for Local Kernel Machines”, NIPS 2006

View-tuned cells Complex Simple

Bob Crimi

Hierarchical Learning

View-tuned cells Complex Simple

Bob Crimi

V1

V2/V4

IT

Ventral Visual Stream

Hierarchical Learning

Hierarchical Learning

Successive!model!layers!learn!deeper!intermediate!representa:ons! !

Layer!1! Layer!2! Layer!3!

HighZlevel! linguis:c!representa:ons!

(Lee,!Grosse,!Ranganath!&!Ng,!ICML!2009)!

12!

Prior:$underlying$factors$&$concepts$compactly$expressed$w/$mul/ple$levels$of$abstrac/on$ ! Parts!combine! to!form!objects!

Why Deep?

• Deep network can be considered as an MLP with

several or more hidden layers.

• Deeper nets are exponentially more expressive than

shallow ones.

Montufar, Guido F., et al. "On the number of linear regions of deep neural networks." NIPS 2014. Shallow Network Deep Network

Shallow Computer Program

main subroutine1 includes subsub1 code and subsub2 code and subsubsub1 code subroutine2 includes subsub2 code and subsub3 code and subsubsub3 code and …

Deep Computer Program

main sub1 sub2 sub3 subsub1 subsub2 subsub3 subsubsub1 subsubsub2 subsubsub3

Multi-Layer Perceptron

Multi-Layer Perceptron

W(1) x (M × D)

Multi-Layer Perceptron

W(1) x h(W(1)x)

• 4
• 3
• 2
• 1

1 2 3 4

• 1
• 0.5

0.5 1

x h(x) (M × D)

Multi-Layer Perceptron

W(1) x h(W(1)x)

• 4
• 3
• 2
• 1

1 2 3 4

• 1
• 0.5

0.5 1

x h(x) (M × D)

Multi-Layer Perceptron

W(1) x z

≥

< 0

x ∈ C1 x ∈ C2

(M × D) (1 × M) [w(2)]T    

T

Multi-Layer Perceptron

• corre-

input, rep- pa- input direc-

x0 x1 xD z0 z1 zM y1 yK w(1)

MD

w(2)

KM

w(2)

10

hidden units inputs

• utputs

Layer 1 - MLP

h() = non-linear function

z =    z1 . . . zM    ←     h[xT w(1)

1 ]

. . . h[xT w(1)

M ]

   

[w(1)

1 , . . . , w(1) M ] = 1st layer’s D × M weights

x = D × 1 raw input

Layer 2 - MLP

zT w(2)

≥ < 0

z ∈ C1

z ∈ C2

[65,09,67,.......,78,66,76,215]

x ∈ RD

T

z ∈ RM

z = M × 1 output of layer 1

w(2) = 2nd layer’s M × 1 weight vector

Obvious Questions?

• How many layers?
• Is the solution globally optimal?
• What non-linearity should you use?
• What learning rate?
• How to should I estimate my gradients?

Obvious Questions?

• How many layers?
• Is the solution globally optimal?
• What non-linearity should you use?
• What learning rate?
• How to should I estimate my gradients?

How Deep?

• Recent work has suggested that network depth is crucial for

good performance (e.g. ImageNet).

• Counter intuitively, naively trained deeper networks tend to

have higher train error than shallow networks.

• Innovation of residual learning has greatly helped with this.

identity

weight layer weight layer

relu relu

F(x)+x x F(x) x

Figure 2. Residual learning: a building block.

He, Kaiming, et al. "Deep residual learning for image recognition." arXiv preprint arXiv:1512.03385 (2015).

How Deep?

1 2 3 4 5 6 5 10 20

• iter. (1e4)

error (%)

ResNet-20 ResNet-32 ResNet-44 ResNet-56 ResNet-110

110-layer 20-layer

training error, and bold lines denote testing error

He, Kaiming, et al. "Deep residual learning for image recognition." arXiv preprint arXiv:1512.03385 (2015).

Obvious Questions?

• How many layers?
• Is the solution globally optimal?
• What non-linearity should you use?
• What learning rate?
• How to should I estimate my gradients?

Obvious Questions?

• How many layers?
• Is the solution globally optimal?
• What non-linearity should you use?
• What learning rate?
• How to should I estimate my gradients?

Convexity Not Needed

• Increasing evidence is demonstrating that convexity is not

needed to guarantee the global optimality of deep networks. Co

Convexity is s not needed

• (Pascanu,!Dauphin,!Ganguli,!Bengio,!arXiv!May!2014):!On3the3

saddle3point3problem3for3non@convex3op/miza/on3

• (Dauphin,!Pascanu,!Gulcehre,!Cho,!Ganguli,!Bengio,!NIPS’!2014):!

Iden/fying3and3aGacking3the3saddle3point3problem3in3high@ dimensional3non@convex3op/miza/on33

• (Choromanska,!Henaff,!Mathieu,!Ben!Arous!&!LeCun!2014):!The3

Loss3Surface3of3Mul/layer3Nets3

Saddle Points

f(w)

Pascanu, Razvan, et al. "On the saddle point problem for non-convex optimization." arXiv preprint arXiv:1405.4604 (2014).

Saddle Point

r2f(w) = H

“Hessian matrix”

H = Vdiag(λ)VT

“Eigen-decomposition”

PD

d=1(λd < 0)

D

“Critical Point”

Pascanu, Razvan, et al. "On the saddle point problem for non-convex optimization." arXiv preprint arXiv:1405.4604 (2014).

Index of Critical Point

Pascanu, Razvan, et al. "On the saddle point problem for non-convex optimization." arXiv preprint arXiv:1405.4604 (2014).

Obvious Questions?

• How many layers?
• Is the solution globally optimal?
• What non-linearity should you use?
• What learning rate?
• How to should I estimate my gradients?

Obvious Questions?

• How many layers?
• Is the solution globally optimal?
• What non-linearity should you use?
• What learning rate?
• How to should I estimate my gradients?

ReLU

Krizhevsky et al. ”ImageNet Classification with Deep Convolutional Neural Networks" NIPS 2012. ReLU Sigmoid

ReLU(x) = max(0, x)

ReLU

• ReLU is not only important for improved convergence.
• A deep network with ReLU (referred to as a rectifier network)

produces substantially more linear regions than shallow

• nes.

Montufar, Guido F., et al. "On the number of linear regions of deep neural networks." NIPS 2014.

x ∈ R2 x1 x2

ReLU

• ReLU is not only important for improved convergence.
• A deep network with ReLU (referred to as a rectifier network)

produces substantially more linear regions than shallow

• nes.

Montufar, Guido F., et al. "On the number of linear regions of deep neural networks." NIPS 2014.

x ∈ R2 x1 x2 ReLu         1 1 −1 −1     x    

ReLU

• ReLU is not only important for improved convergence.
• A deep network with ReLU (referred to as a rectifier network)

produces substantially more linear regions than shallow

• nes.

Montufar, Guido F., et al. "On the number of linear regions of deep neural networks." NIPS 2014.

x ∈ R2 x1 x2 ReLu         1 1 −1 −1     x    

Obvious Questions?

• How many layers?
• Is the solution globally optimal?
• What non-linearity should you use?
• What learning rate?
• How to should I estimate my gradients?

Obvious Questions?

• How many layers?
• Is the solution globally optimal?
• What non-linearity should you use?
• What learning rate?
• How to should I estimate my gradients?

Back-Propagation

   w1 . . . wK    ←    w1 . . . wK    + η    

∂f(w) ∂w1

. . .

∂f(w) ∂wK

   

Back-Propagation

   w1 . . . wK    ←    w1 . . . wK    + η    

∂f(w) ∂w1

. . .

∂f(w) ∂wK

   

Back Propagation

• Back propagation refers to the property that components of

gradients found at higher layers, can be re-used at lower layers.

by which the propagation, propagation

zi zj δj δk δ1 wji wkj

Back Propagation

• Overfitting can occur when training large networks.
• Common strategies include,
• “Dropout” - randomly omits hidden layers in the network (kind of like

very efficient bagging).

• “Maxout” - like dropout but replaces softmax with max activation

functions.

• I. J. Goodfellow et al. Maxout networks. arXiv:1302.4389, 2013.
• G. E. Hinton et al. . Improving neural networks by preventing co-adaptation of feature detectors. arXiv:1207.0580, 2012.

Multiple Layers

“2Player!neural!net,”!or! “1PhiddenPlayer!neural!net”! “3Player!neural!net,”!or! “2PhiddenPlayer!neural!net”!

I(x, y) I(x + 1, y + 1) I

Simoncelli & Olshausen 2001

I(x, y) I I(x + 8, y + 8)

Simoncelli & Olshausen 2001

I(x, y) I I(x + 16, y + 16)

Simoncelli & Olshausen 2001

I(x, y) I I(x + 50, y + 50)

Simoncelli & Olshausen 2001

I(x, y) I I(x + 50, y + 50)

Simoncelli & Olshausen 2001

Today

• Single-Layer Perceptron
• Multi-Layer Perceptron
• Convolutional Neural Network

Convolutional Neural Network

Input image Convolutional layer Sub-sampling layer

LeCun 1980

Reminder: Convolution

8 4 6 2 7

∗

1 2

x

h

“signal” “filter” “convolution

• perator”

Reminder: Convolution

8 4 6 2 7

∗

1 2

x

h

“signal” “filter” “convolution

• perator”

>> conv(x,h,’valid’) ans = 20 14 14 11

Reminder: Convolution

8 4 6 2 7 20 14 14 11 2 1 2 1 2 1 2 1

“signal” “convolutional matrix”

H

x

Hx

Reminder: Convolution

1 2 20 14 14 11 4 8 6 4 2 6 7 2

“filter” “convolutional signal”

X

h

Xh

Question?

• Can you derive?

∂(h ∗ x) ∂hT

Multiple Filters

   x ∗ h1 . . . x ∗ hM   

(D · M × 1)

Multiple Filters

   x ∗ h1 . . . x ∗ hM       H1 . . . HM    x

(D · M × 1) (D · M × D) (D × 1)

Multiple Filters

   x ∗ h1 . . . x ∗ hM       H1 . . . HM    x

(D · M × 1) (D · M × D)

“convolution matrix”

(D × 1)

                       

T

Convolutional Neural Network

W(1) x z

≥ < 0

x ∈ C1 x ∈ C2

(1 × D · M) (D · M × D)

[w(2)]T

                       

T

Convolutional Neural Network

W(1) x z

≥ < 0

x ∈ C1 x ∈ C2

(1 × D · M) (D · M × D)

W(1)x =     W(1)

1

. . . W(1)

M

    x =     x ∗ w(1)

1

. . . x ∗ w(1)

M

    [w(2)]T

                       

T

Convolutional Neural Network

W(1) x z

≥ < 0

x ∈ C1 x ∈ C2

(1 × D · M) (D · M × D)

[w(2)]T

z = h[W(1)x]

Convolutional Neural Network

W(1) x z

(D · M × D)

(D · M × 1)

Convolutional Neural Network

W(1) x z

(D · M × D)

(D · M × 1)

≥

< 0

x ∈ C1

x ∈ C2

[w(2)]Tψ{z}    

T

(1 × K)

Convolutional Neural Network

W(1) x z

(D · M × D)

ψ{z} = Dz

(K × D · M) (D · M × 1)

≥

< 0

x ∈ C1

x ∈ C2

[w(2)]Tψ{z}    

T

(1 × K)

Convolutional Neural Network

W(1) x z

(D · M × D)

ψ{z} = Dz

(K × D · M) (D · M × 1)

≥

< 0

x ∈ C1

x ∈ C2

[w(2)]Tψ{z}    

T

(1 × K)

“pooling”

Current State of the Art

image patch 3@ (227x227)

conv1 96@ (55x55) conv2 256@ (27x27) conv3 384@ (13x13) conv4 384@ (13x13) conv5 256@ (13x13) fc-6 (4096) fc-7 (K)

• A. Krizhevsky, I. Sutskever, and G. E. Hinton. Imagenet classification with deep convolutional neural networks. In NIPS, 2012.

“car” “bird” “cat”

. . .

Current State of the Art

image patch 3@ (227x227)

conv1 96@ (55x55) conv2 256@ (27x27) conv3 384@ (13x13) conv4 384@ (13x13) conv5 256@ (13x13) fc-6 (4096) fc-7 (K)

• A. Krizhevsky, I. Sutskever, and G. E. Hinton. Imagenet classification with deep convolutional neural networks. In NIPS, 2012.

“car” “bird” “cat”

. . .

Current State of the Art

image patch 3@ (227x227)

conv1 96@ (55x55) conv2 256@ (27x27) conv3 384@ (13x13) conv4 384@ (13x13) conv5 256@ (13x13) fc-6 (4096) fc-7 (K)

• A. Krizhevsky, I. Sutskever, and G. E. Hinton. Imagenet classification with deep convolutional neural networks. In NIPS, 2012.

     1 . . .     

K × 1

Current State of the Art - Pose Selection

image patch 3@ (224x224)

fc-8 conv1 64@ (54x54) conv2 256@ (27x27) conv3 384@ (13x13) conv4 384@ (13x13) conv5 256@ (13x13) fc-6 (4096) fc-7 (4096)

“car” “bird” “cat”

. . .

• K. Chatfield, V. Lempitsky, A. Vedaldi and A. Zisserman. “Return of the Devil in the Details: Delving Deep into Convolutional Networks.”

In BMVC, 2014.

• A. Krizhevsky, I. Sutskever, and G. E. Hinton. Imagenet classification with deep convolutional neural networks. In NIPS, 2012.

Impact on Speech Recognition

Impact on Object Recognition

ImageNet Challenge Year

BC

(before ConvNets)

AD

(after deep learning)

6.8%

TIMIT*Phone*classificaUon* Accuracy*

Prior!art!(Clarkson!et!al.,1999)!

79.6%!

Feature!learning!

80.3%* TIMIT*Speaker*idenUficaUon* Accuracy*

Prior!art!(Reynolds,!1995)!

99.7%!

Feature!learning!

100.0%*

Audio! Images! MulFmodal!(audio/video)!

CIFAR*Object*classificaUon* Accuracy*

Prior!art!(Ciresan!et!al.,!2011)!!

80.5%!

Feature!learning!

82.0%* NORB*Object*classificaUon* Accuracy*

Prior!art!(Scherer!et!al.,!2010)!

94.4%!

Feature!learning!

95.0%* AVLe_ers*Lip*reading* Accuracy*

Prior!art!(Zhao!et!al.,!2009)!

58.9%!

Stanford!Feature!learning!

65.8%*

Galaxy!

Hollywood2*ClassificaUon* Accuracy*

Prior!art!(Laptev!et!al.,!2004)!

48%!

Feature!learning!

53%* KTH* Accuracy*

Prior!art!(Wang!et!al.,!2010)!

92.1%!

Feature!learning!

93.9%* UCF* Accuracy*

Prior!art!(Wang!et!al.,!2010)!

85.6%!

Feature!learning!

86.5%* YouTube* Accuracy*

Prior!art!(Liu!et!al.,!2009)!

71.2%!

Feature!learning!

75.8%*

Video! Text/NLP!

Paraphrase*detecUon* Accuracy*

Prior!art!(Das!&!Smith,!2009)!!

76.1%!

Feature!learning!

76.4%* SenUment*(MR/MPQA*data)* Accuracy*

Prior!art!(Nakagawa!et!al.,!2010)!!

77.3%!

Feature!learning!

77.7%*

Visualizing CNNs

More to read…

• Bishop “Pattern Recognition and Machine Learning”,
• 2006. Chapter 5.
• Goodfellow, Bengio & Courville “Deep Learning”.
