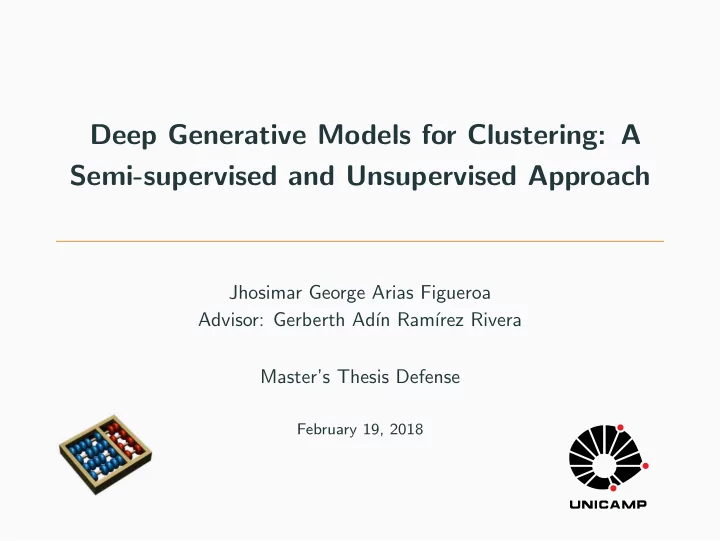

Deep Generative Models for Clustering: A Semi-supervised and Unsupervised Approach

Jhosimar George Arias Figueroa Advisor: Gerberth Ad´ ın Ram´ ırez Rivera Master’s Thesis Defense

February 19, 2018

Motivation

Huge amount of unlabeled data!

Image Credit: Ruslan Salakhutdinov

Labeling huge amount of data is hard and expensive.

1

Huge amount of unlabeled data!

Image Credit: Ruslan Salakhutdinov

Labeling huge amount of data is hard and expensive. Can we discover underlying hidden structure from data in a semi-supervised or unsupervised way?

1

What is Clustering?

Goal: Find distinct groups such that similar elements belong to the same group.

2

What if we have a small amount of labeled data?

Large amount of Unlabeled data (ImageNet) Small amount of Labeled data (CIFAR-10)

Can we learn good representations and cluster data in a semi-supervised way?

3

Two types of Semi-supervised Clustering:

Class labels (seeded points) Pairwise Constraints (must-link or cannot link)

Our work focuses on the first type of semi-supervised clustering: Use of labels as seeds

4

Semisupervised Clustering: Related Works

Intuition

5

Learning Representations: Neural Networks

How to learn feature representations? Train such that features can be used to perform classification (supervised learning).

6

Auxiliary Task: Semi-supervised Embedding

• Deep Learning via Semi-Supervised Embedding, Weston et al, ICML’08

7

Learning Representations: Autoencoder

How to learn feature representations? Train such that features can be used to reconstruct original data Autoencoding - encoding itself

8

Auxiliary Task: Clean Encoder and Denoising Decoder

• Semi-Supervised Learning with Ladder Networks, Rasmus et al. NIPS’15
• Deep Embedded Regularized Clustering (DEPICT), Dizaji et al. ICCV’17

9

Variational Autoencoder

Auto-Encoding Variational Bayes, Kingma et al, ICLR’14 10

Variational Autoencoder

Posterior distribution pθ(z|x) is intractable because of pθ(x): pθ(z|x) = pθ(x|z)pθ(z) pθ(x) pθ(x) =

• z

pθ(x, z)dz

Auto-Encoding Variational Bayes, Kingma et al, ICLR’14 10

Variational Autoencoder

Approximate pθ(z|x) with a tractable distribution qφ(z|x)

Auto-Encoding Variational Bayes, Kingma et al, ICLR’14 10

Variational Autoencoder - Lower Bound

Variational Lower Bound:

Auto-Encoding Variational Bayes, Kingma et al, ICLR’14 11

Generative Models for Semi-supervised learning

Inference Model Generative Model Probabilistic graphical models of M1+M2, Kingma et al, NIPS14 Inference Model Generative Model Auxiliary Deep Generative Models, Maaloe et al, ICML’16 12

Stochastic Continuous Nodes: Reparameterization Trick

We can ’externalize’ the randomness in z by re-parameterizing it as deterministic: z = µ + σ ǫ 13

Stochastic Discrete Nodes: Gumbel-Max Trick

We can sample from a categorical distribution with the Gumbel-Max trick. 14

Stochastic Discrete Nodes: Gumbel-Softmax distribution

We can approximate arg max with a softmax. 15

Avoiding marginalization over discrete variables

Marginalizing out c over all categories is an expensive process which requires multiple gradient estimations. Gumbel-Softmax allows us to backpropagate through a single sample gradient estimation.

16

Semi-supervised Clustering: Proposed Method

Intuition

17

Proposed Probabilistic Model

Inference Model Generative Model

Proposed probabilistic model

18

Proposed Probabilistic Model

Inference Model Generative Model

Variational Lower Bound:

19

Proposed Loss Function

Variational Lower Bound: Use of Auxiliary Tasks:

20

Proposed Architecture

Inference Model Generative Model

Proposed Architecture:

21

Reconstruction Loss

LR = 1 N

N

• i=1

1 |xi|(xi − ˜ xi)2

22

Clustering Loss

LC = KL (qik || U(0, 1)) = 1 N log K

N

• i=1

K

• k=1

qik log (Kqik)

23

Assignment Process

24

Assignment Process

24

Assignment Process

24

Assignment Loss

25

Assignment Loss

25

Assignment Loss

NLL = − log p(c|x) LA =

N

• i=1
• −log p(ci|xi)+
• d∈C

log p(d|xi)

• 25

Assignment Loss

LA =

N

• i=1
• −log p(ci|xi)+
• d∈C

log p(d|xi)

• Normalized Loss:

LA = 1 2N

N

• i=1
• tanh
• −log p(ci|xi)
• +
• d∈C

tanh

• log p(d|xi)
• +1
• 25

Feature Loss

26

Feature Loss

26

Feature Loss

D(f, r) = 1 √ 2|r|

|r|

• l

f − rl

27

Feature Loss

D(f, r) = 1 √ 2|r|

|r|

• l

f − rl

27

Feature Loss

D(f, r) = 1 √ 2|r|

|r|

• l

f − rl LF = α L

L

• i

D(fi, ri) +(1 − α) U

U

• j

D(fj, rj)

α weights the importance of labeled distances 27

Feature Loss

D(f, r) = 1 √ 2|r|

|r|

• l

f − rl LF = α L

L

• i

D(fi, ri)+ (1 − α) U

U

• j

D(fj, rj)

α weights the importance of labeled distances 27

Experiments and Results

Datasets

Synthetic Data MNIST (70000, 10, 28x28) SVHN (99289, 10, 32x32)

28

Analysis of Normalized Loss Functions

59.0 61.0 63.0 1 10 20 30 40 50 0.0 5.0 10.0 Ite ration numbe r Training loss (%)

LA LR LC LF

Training loss at different epochs

(a) wA = 0

(b) wA = 1

(c) wA = 5

Effect of the assignment loss (LA) over the categorical loss (LC) at different epochs 29

Hyperparameter Selection

1 10 20 30 40 50 92.0 94.0 96.0 98.0 100.0

Ite ration numbe r ACC (%)

1 10 20 30 40 50 85.0 90.0 95.0 100.0

Ite ration numbe r NMI (%)

Performance of weights (wA, wC) at different iterations

Selected hyperparameters of our model.

Hyperparameter fsz η τ α κ wA Value 150 0.001 1.0 0.6 1 10

30

Synthetic Data - Circles

few labeled samples iteration = 1 iteration = 5 iteration = 8 iteration = 10 iteration = 12

31

Synthetic Data - Moons

few labeled samples iteration = 1 iteration = 3 iteration = 5 iteration = 10 iteration = 20

32

Synthetic Data - Moons

few labeled samples iteration = 1 iteration = 3 iteration = 5 iteration = 10 iteration = 20

33

Clustering: Performance

Clustering Accuracy (ACC) and Normalized Mutual Information (NMI), on MNIST for different unsupervised algorithms.

Model NMI ACC GMVAE, Dilokthanakul et al, arXiv’16

• 0.778

VADE, Jiang et al, IJCAI’17

• 0.945

JULE-SF, Yang et al, CVPR’16 0.876 0.940 JULE-RC, Yang et al, CVPR’16 0.915 0.961 DEPICT, Dizaji et al, arXiv’17 0.916 0.965 Proposed 0.954 0.984

Note that our results are not directly comparable with unsupervised methods. However, we want to show our model’s clustering results. Larger values for ACC and NMI indicates better performance.

34

Classification: MNIST Performance

Semi-supervised test error (%) benchmarks on MNIST for 100 randomly and evenly distributed labeled data. Model 100 labeled examples SWWAE, Zhao et al, ICLR’16 8.71 (± 0.34) EmbedCNN, Weston et al, ICML’08 7.75 Small-CNN, Rasmus et al, NIPS’15 6.43 (± 0.84) M1+M2, Kingma et al, NIPS’14 3.33 (± 0.14) DEPICT, Dizaji et al, arXiv’17 2.65 (± 0.35) Conv-CatGAN, Springenberg, ICLR’16 1.39 (± 0.28) SDGM, Maale et al, ICML’16 1.32 (± 0.07) ADGM, Maale et al, ICML’16 0.96 (± 0.02) Improved GAN, Salimans et al, NIPS’16 0.93 (± 0, 65) Conv-Ladder, Rasmus et al, NIPS’15 0.89 (± 0.50) Proposed 1.65 (± 0.10)

Smaller values for test error indicate better performance. All the results of the related works are reported from the original papers.

35

Classification: MNIST Performance

Semi-supervised test error (%) benchmarks on MNIST for 100 randomly and evenly distributed labeled data. Model 100 labeled examples SWWAE, Zhao et al, ICLR’16 8.71 (± 0.34) EmbedCNN, Weston et al, ICML’08 7.75 Small-CNN, Rasmus et al, NIPS’15 6.43 (± 0.84) M1+M2, Kingma et al, NIPS’14 3.33 (± 0.14) DEPICT, Dizaji et al, arXiv’17 2.65 (± 0.35) Conv-CatGAN, Springenberg, ICLR’16 1.39 (± 0.28) SDGM, Maale et al, ICML’16 1.32 (± 0.07) ADGM, Maale et al, ICML’16 0.96 (± 0.02) Improved GAN, Salimans et al, NIPS’16 0.93 (± 0, 65) Conv-Ladder, Rasmus et al, NIPS’15 0.89 (± 0.50) Proposed 1.65 (± 0.10)

Smaller values for test error indicate better performance. Colored rows denote bayesian methods.

36

Classification: SVHN Performance

Semi-supervised test error (%) benchmarks on SVHN for 1000 randomly and evenly distributed labeled data.

Model With n labeled examples 1000 M1+TSVM, Kingma et al, NIPS’14 55.33 (± 0.11) M1+M2, Kingma et al, NIPS’14 36.02 (± 0.10) SWWAE, Zhao et al, ICLR’16 23.56 ADGM, Maale et al, ICML’16 22.86 SDGM, Maale et al, ICML’16 16.61 (± 0.24) Improved GAN, Salimans et al, NIPS’16 8.11 (± 1.3) Proposed 21.74 (± 0.41)

Smaller values for test error indicate better performance. All the results of the related works are reported from the original papers.

37

Clustering: Visualization MNIST

(a) Epoch 1 (b) Epoch 5 (c) Epoch 20 (d) Epoch 50 (e) Epoch 80 (f) Epoch 100

38

Image Generation

Use feature vector obtained from gφ(x) and vary the category c (one-hot).

39

Unsupervised Clustering

What if we have no labeled data?

Large amount of Unlabeled data (ImageNet) No Labeled data (CIFAR-10)

Can we learn good representations and cluster data in a unsupervised way?

40

Unsupervised Clustering: Related Works

Intuition

41

Use of pretrained features

42

Fine-tuning

• Deep Embedding Clustering (DEC), Xie et al. ICML’16
• Deep Clustering Network (DCN), Yang et al. ICML’17
• Improved Deep Embedding Clustering (IDEC), Guo et al. IJCAI’17

43

End-To-End

• Joint Unsupervised Learning (JULE), Yang et al. CVPR’16
• Deep Embedded Regularized Clustering (DEPICT), Dizaji et al. ICCV’17

44

Complex Structure: Generative Models

• Variational Deep Embedding, Jian et al. IJCAI’17
• Gaussian Mixture Variational Autoencoders, Dilokthanakul et al. arXiv’17.

45

Unsupervised Clustering: Proposed Method

Intuition

46

Our Probabilistic Model

Inference Model Generative Model 47

Stacked M1+M2 generative model

Inference Model Generative Model M1 model Semi-supervised Learning with Deep Generative Models, Kingma et al, NIPS’14 48

Stacked M1+M2 generative model

Inference Model Generative Model M1 model Inference Model Generative Model M2 model Semi-supervised Learning with Deep Generative Models, Kingma et al, NIPS’14 48

Stacked M1+M2 generative model

Inference Model Generative Model M1 model Inference Model Generative Model M2 model Inference Model Generative Model Probabilistic graphical models of M1+M2 Semi-supervised Learning with Deep Generative Models, Kingma et al, NIPS’14 48

Stacked M1+M2: Training

Train M1 model and use its feature representations to train M2 model separately.

49

Problem with hierarchical stochastic latent variables

Inactive Stochastic Units:

Ladder Variational Autoencoders , Sonderby et al, NIPS’16 50

Problem with hierarchical stochastic latent variables

Inactive Stochastic Units:

Ladder Variational Autoencoders , Sonderby et al, NIPS’16

Solutions require complex models:

Inference Model Generative Model Auxiliary Deep Generative Models, Maaloe et al, ICML’16 51

Avoiding the problem of hierarchical stochastic variables

Replace the stochastic layer that produces x with a deterministic one ˆ x = g(x).

52

Other Differences with M1+M2 model

• Use of Gumbel-Softmax instead of marginalization over stochastic

discrete variables.

53

Other Differences with M1+M2 model

• Use of Gumbel-Softmax instead of marginalization over stochastic

discrete variables.

• Training end-to-end instead of pre-training.

53

Other Differences with M1+M2 model

• Use of Gumbel-Softmax instead of marginalization over stochastic

discrete variables.

• Training end-to-end instead of pre-training.
• Unsupervised model: Labels are not required.

53

Variational Lower Bound

Inference Model Generative Model

Loss Function:

Ltotal = LR + LC + LG

54

Proposed Model

55

Reconstruction Loss

Ltotal = LR+LC + LG LBCE = −(x log(˜ x) + (1 − x) log(1 − ˜ x)) LMSE = ||x − ˜ x||2

56

Gaussian and Categorical Regularizers

Ltotal = LR + LC + LG LG = KL (N(µ(x), σ(x)) || N(0, 1)) = −1 2

K

• k=0

1 + log σ2

k − µ2 k − σ2 k

LC = KL (Cat(π) || U(0, 1)) =

K

• k=1

πk log (Kπk)

57

Experiments

Datasets

MNIST (70000, 10, 28x28) USPS (9298, 10, 16x16) REUTERS-10K (10000, 4)

58

Analysis of Clustering Performance

1 30 50 80 100 5.0 10.0 15.0 20.0 25.0 30.0

Ite ration numbe r Pe rformance (%)

Clustering performance at each epoch, considering all loss weights equal to 1

59

Analysis of loss functions weights

Ltotal = LR + LC + wGLG

1 3 5 7 9 0.0 20.0 40.0 60.0 80.0

Loss function we ight (w∗) ACC (%)

1 3 5 7 9 0.0 20.0 40.0 60.0 80.0

Loss function we ight (w∗) NMI (%)

60

Quantitative Results: Clustering Performance

Clustering performance, ACC (%) and NMI (%), on all datasets.

Method MNIST USPS REUTERS-10K ACC NMI ACC NMI ACC NMI k-means 53.24

• 66.82
• 51.62
• GMM

53.73

• 54.72
• AE+k-means

81.82 74.73 69.31 66.20 70.52 39.79 AE+GMM 82.18

• 70.13
• GMVAE

82.31 (± 4)

• DCN

83.00 81.00

• DEC

86.55 83.72 74.08 75.29 73.68 49.76 IDEC 88.06 86.72 76.05 78.46 75.64 49.81 VaDE 94.46

• 79.83
• Proposed

85.75 (± 8) 82.13 (± 5) 72.58 (± 3) 67.01 (± 2) 80.41 (± 5) 52.13 (± 5)

Larger values for ACC and NMI indicate better performance. Colored rows denote methods that require pre-training. All the results of the related works are reported from the original papers.

61

Quantitative Results: Classification - MNIST Performance

MNIST test error-rate (%) for kNN.

Method k 3 5 10 VAE 18.43 15.69 14.19 DLGMM 9.14 8.38 8.42 VaDE 2.20 2.14 2.22 Proposed 3.46 3.30 3.44

Smaller values for test error indicate better performance.

62

Qualitative Results: Image Generation

10 clusters

Fix the category c (one-hot) and vary the latent variable z.

63

Qualitative Results: Image Generation

7 clusters 14 clusters

64

Qualitative Results: Style Generation

Input a test image x (first column) through qφ(z|ˆ x).

65

Qualitative Results: Style Generation

Use vector obtained from qφ(z|ˆ x) and vary the category c (one-hot).

65

Qualitative Results: Clustering Visualization

(a) Epoch 1 (b) Epoch 5 (c) Epoch 20 (d) Epoch 50 (e) Epoch 150 (f) Epoch 300

Visualization of the feature representations on MNIST data set at different epochs.

66

Conclusions and Future Work

Contributions

For semi-supervised clustering our contributions were:

• a semi-supervised auxiliary task which aims to define clustering

assignments.

67

Contributions

For semi-supervised clustering our contributions were:

• a semi-supervised auxiliary task which aims to define clustering

assignments.

• a regularization on the feature representations of the data.

67

Contributions

For semi-supervised clustering our contributions were:

• a semi-supervised auxiliary task which aims to define clustering

assignments.

• a regularization on the feature representations of the data.
• a loss function that combines a variational loss with our auxiliary

task to guide the learning process.

67

Contributions

For unsupervised clustering our contributions were:

• a combination of deterministic and stochastic layers to solve the

problem of hierarchical stochastic variables, allowing an end-to-end learning.

68

Contributions

For unsupervised clustering our contributions were:

• a combination of deterministic and stochastic layers to solve the

problem of hierarchical stochastic variables, allowing an end-to-end learning.

• a simple deep generative model represented by the combination of a

simple Gaussian and categorical distribution.

68

Future Works

• Use of clustering algorithms (e.g., K-means, DBSCAN,

agglomerative clustering, etc.) over the feature representations to improve the learning process.

69

Future Works

• Use of clustering algorithms (e.g., K-means, DBSCAN,

agglomerative clustering, etc.) over the feature representations to improve the learning process.

• Improvements of our probabilistic generative model can be

performed by using generative adversarial models (GANs).

69

Publications

• J. Arias and A. Ram´

ırez. Learning to Cluster with Auxiliary Tasks: A Semi-Supervised Approach. In Conference on Graphics, Patterns and Images (SIBGRAPI), Niter´

• i, 2017.

Source code: https://gitlab.com/mipl/clustering-sibgrapi-2017

• J. Arias and A. Ram´

ırez. Is Simple Better?: Revisiting Simple Generative Models for Unsupervised Clustering. In Second workshop

• n Bayesian Deep Learning (NIPS), Long Beach, 2017.

Source code: https://gitlab.com/mipl/simple-vae-clustering

70

Thanks!

71

Appendix

Variational Autoencoder - Lower Bound

KL(q(z|x) p(z|x)) =

• z

q(z|x) log q(z|x) p(z|x) = Ez∼q(z|x)

• log q(z|x)

p(z|x)

• = Ez∼q(z|x) [log q(z|x) − log p(z|x)]

= Ez∼q(z|x) [log q(z|x) − log p(x, z) + log p(x)] = Ez∼q(z|x) [log q(z|x) − log p(x, z)] + log p(x) = −Ez∼q(z|x) [log p(x, z) − log q(z|x)] + log p(x) = −Ez∼q(z|x) [log p(x|z) + log p(z) − log q(z|x)] + log p(x) = −Ez∼q(z|x) [log p(x|z)] + Ez∼q(z|x) [log q(z|x) − log p(z)] + log p(x) Then, reordering the terms, log p(x) = Eqφ(z|x) [log pθ(x|z)] − KL(qφ(z|x) pθ(z))

• L(θ,φ)

+ KL(qφ(z|x) pθ(z|x))

• ≥0

log pθ(x) ≥ L(θ, φ)

θ∗, φ∗ = arg max

θ,φ

L(θ, φ)

Training: Maximize Lower Bound

72

Semi-supervised Clustering - Evidence Lower Bound

KL(q(c, f|x) p(c, f|x)) =

• c,f

q(c, f|x) log q(c, f|x) p(c, f|x) = Ec,f∼q(c,f|x)

• log q(c, f|x)

p(c, f|x)

• = Ec,f∼q(c,f|x) [log q(c, f|x) − log p(c, f|x)]

= Ec,f∼q(c,f|x) [log q(c, f|x) − log p(c, f, x) + log p(x)] = Ec,f∼q(c,f|x) [log q(c, f|x) − log p(c, f, x)] + log p(x) = −Ec,f∼q(c,f|x) [log p(c, f, x) − log q(c, f|x)] + log p(x) Then, reordering the terms, log p(x) = Ec,f∼q(c,f|x) [log p(c, f, x) − log q(c, f|x)]

• L(θ,ψ,φ)=L

+ KL(q(c, f|x) p(c, f|x))

• ≥0

73

Semi-supervised Clustering - Evidence Lower Bound

The variational lower bound, L, also called evidence lower bound (ELBO) can be expanded: L = Eq(c,f|x) [log p(c, f, x) − log q(c, f|x)] = Eq(c,f|x) [log p(x|c, f) + log p(c, f) − log q(c, f|x)] = Eq(c,f|x) [log p(x|c, f)] − Eq(c,f|x) [log q(c, f|x) − log p(c, f)] = Eq(c,f|x) [log p(x|c, f)] − Eq(f|x)

• Eq(c|f) [log q(c|f) + log q(f|x) − log p(c, f)]
• = Eq(c,f|x) [log p(x|c, f)] − Eq(f|x)
• Eq(c|f)
• log q(c|f)

p(c|f)

• + log q(f|x) − log p(f)
• = Eq(c,f|x) [log p(x|c, f)] − Eq(f|x) [KL(q(c|f) p(c|f)) + log q(f|x) − log p(f)]

= Eq(c,f|x) [log p(x|c, f)] − Eq(f|x) [KL(q(c|f) p(c|f))] − Eq(f|x)

• log q(f|x)

p(f)

• = Eq(c,f|x) [log p(x|c, f)] − Eq(f|x) [KL(q(c|f) p(c|f))] − KL(q(f|x) p(f))

74

Unsupervised Clustering - Evidence Lower Bound

KL(q(z, c|ˆ x) p(z, c|x)) =

• z,c

q(z, c|ˆ x) log q(z, c|ˆ x) p(z, c|x) = Ez,c∼q(z,c|ˆ

x)

• log q(z, c|ˆ

x) p(z, c|x)

• = Ez,c∼q(z,c|ˆ

x) [log q(z, c|ˆ

x) − log p(z, c|x)] = Ez,c∼q(z,c|ˆ

x) [log q(z, c|ˆ

x) − log p(z, c, x) + log p(x)] = Ez,c∼q(z,c|ˆ

x) [log q(z, c|ˆ

x) − log p(z, c, x)] + log p(x) = −Ez,c∼q(z,c|ˆ

x) [log p(z, c, x) − log q(z, c|ˆ

x)] + log p(x) Then, reordering the terms, log p(x) = Ez,c∼q(z,c|ˆ

x) [log p(z, c, x) − log q(z, c|ˆ

x)]

• L(θ,φ)=L

+ KL(q(z, c|ˆ x) p(z, c|x))

• ≥0

75

Unsupervised Clustering - Evidence Lower Bound

The variational lower bound, L, also called evidence lower bound (ELBO) can be expanded: L = Eq(z,c|ˆ

x) [log p(z, c, x) − log q(z, c|ˆ

x)] = Eq(z,c|ˆ

x) [log p(x|z, c) + log p(z, c) − log q(z, c|ˆ

x)] = Eq(z,c|ˆ

x) [log p(x|z, c)] − Eq(z,c|ˆ x) [log q(z, c|ˆ

x) − log p(z, c)] = Eq(z,c|ˆ

x) [log p(x|z, c)] − Eq(z|ˆ x)

• Eq(c|ˆ

x) [log q(c|ˆ

x) + log q(z|ˆ x) − log p(z, c)]

• = Eq(z,c|ˆ

x) [log p(x|z, c)] − Eq(z|ˆ x)

• Eq(c|ˆ

x)

• log q(c|ˆ

x) p(c)

• + log q(z|ˆ

x) − log p(z)

• = Eq(z,c|ˆ

x) [log p(x|z, c)] − Eq(z|ˆ x) [KL(q(c|ˆ

x) p(c)) + log q(z|ˆ x) − log p(z)] = Eq(z,c|ˆ

x) [log p(x|z, c)] − Eq(z|ˆ x) [KL(q(c|ˆ

x) p(c))] − Eq(z|ˆ

x)

• log q(z|ˆ

x) p(z)

• = Eq(z,c|ˆ

x) [log p(x|z, c)] − KL(q(c|ˆ

x) p(c)) − KL(q(z|ˆ x) p(z))

76

Problems with stochastic latent variables

Gradients are difficult to obtain: ∇φLθ,φ(x) = ∇φEqφ(z|x) [log pθ(x, z) − log qφ(z|x)] =

• ∇φqφ(z|x) [log pθ(x, z) − log qφ(z|x)] dz

Auto-Encoding Variational Bayes, Kingma et al, ICLR’14 77

Continuous stochastic variables: Reparameterization Trick

We can ’externalize’ the randomness in z by re-parameterizing the variable as a deterministic: z = µ + σ ǫ ∇φLθ,φ(x) = ∇φEqφ(z|x) [log pθ(x, z) − log qφ(z|x)] = ∇φEp(ǫ) [log pθ(x, z) − log qφ(z|x)]

Auto-Encoding Variational Bayes, Kingma et al, ICLR’14 78

Problems with stochastic latent variables

Gradients are difficult to obtain: ∇φLθ,φ(x) = ∇φEqφ(z|x) [log pθ(x, z) − log qφ(z|x)] =

• ∇φqφ(z|x) [log pθ(x, z) − log qφ(z|x)] dz

Auto-Encoding Variational Bayes, Kingma et al, ICLR’14 79

Discrete stochastic variables: Gumbel-Max Trick

Gradients are difficult to obtain:

Image Credit: UofG Machine Learning Research Group 80

Discrete stochastic variables: Gumbel-Softmax

We can approximate arg max with a softmax.

τ → 0 we obtain a one-hot τ → +∞ we obtain a uniform Categorical Reparameterization with Gumbel-Softmax, Jang et al, ICLR’17 A Continuous Relaxation of Discrete Random Variables, Maddison et al, ICLR’17 81

Clustering Metrics: Clustering Accuracy (ACC)

For a set of N input elements, this metric is defined as: ACC = N

i=1 1{li = map(ci)}

N , where:

• li is the ground truth label of i-th input,
• ci is the cluster assignment produced by the algorithm,
• map(ci) is the optimal mapping function.

82

Clustering Accuracy (ACC): Hungarian Algorithm

Predicted Ground Truth

• 1. Calculate the contingency table between the clusters defined by the

algorithm and the true categories. T1 T2 T3 C1 4 1 1 C2 2 5 C3 1 5 2

83

Clustering Accuracy (ACC): Hungarian Algorithm

Predicted Ground Truth

• 2. Create bipartite graph from the contingency table.

T1 T2 T3 C1 4 1 1 C2 2 5 C3 1 5 2

83

Clustering Accuracy (ACC): Hungarian Algorithm

Predicted Ground Truth

• 3. Apply Kuhn-Munkres algorithm.

T1 T2 T3 C1 4 1 1 C2 2 5 C3 1 5 2

83

Clustering Accuracy (ACC): Simple Approach

Probabilities q(c|x) after training.

C1 C2 C3 T 0.6 0.2 0.2 2 0.1 0.4 0.5 1 0.8 0.1 0.1 1 0.3 0.6 0.1 3 0.1 0.75 0.15 2 0.7 0.1 0.2 1 0.2 0.1 0.7 2 0.05 0.05 0.9 2 0.7 0.2 0.1 3 0.1 0.8 0.1 3 0.1 0.6 0.3 1

For each cluster k, we find the validation example xi that maximizes q(ck|xi) and assign the label of xi to all the elements that were assigned to cluster k.

84

Clustering Accuracy (ACC): Simple Approach

Cluster 1 Assignments

C1 C2 C3 T 0.6 0.2 0.2 2 0.1 0.4 0.5 1 0.8 0.1 0.1 1 0.3 0.6 0.1 3 0.1 0.75 0.15 2 0.7 0.1 0.2 1 0.2 0.1 0.7 2 0.05 0.05 0.9 2 0.7 0.2 0.1 3 0.1 0.8 0.1 3 0.1 0.6 0.3 1

85

Clustering Accuracy (ACC): Simple Approach

Cluster 1 is mapped to Ground Truth 1

C1 C2 C3 T 0.6 0.2 0.2 2 0.1 0.4 0.5 1 0.8 0.1 0.1 1 0.3 0.6 0.1 3 0.1 0.75 0.15 2 0.7 0.1 0.2 1 0.2 0.1 0.7 2 0.05 0.05 0.9 2 0.7 0.2 0.1 3 0.1 0.8 0.1 3 0.1 0.6 0.3 1

85

Clustering Accuracy (ACC): Simple Approach

Table 1: Assignment of labels to clusters based on maximum q(ck|xi)

C1 C2 C3 T 0.6 0.2 0.2 2 0.1 0.4 0.5 1 0.8 0.1 0.1 1 0.3 0.6 0.1 3 0.1 0.75 0.15 2 0.7 0.1 0.2 1 0.2 0.1 0.7 2 0.05 0.05 0.9 2 0.7 0.2 0.1 3 0.1 0.8 0.1 3 0.1 0.6 0.3 1

85

Clustering Metrics: Normalized Mutual Information (NMI)

For two arbitrary variables T and C, representing the ground truth labels and cluster labels respectively, NMI is defined as follows: NMI(T, C) = I(T, C)

• H(T)H(C)

, (1) where:

• I(T, C) denotes the mutual information between T and C,
• H(∗) denotes the entropy.

86

Mutual Information (MI)

Mutual Information quantifies the information shared by two clusters. MI tells us the reduction in the entropy of class labels that we get if we know the cluster labels. (Similar to Information gain in decision trees): I(T, C) = H(T) − H(T|C)

87

Mutual Information (MI)

Perfect Correlation (NMI=1) Independent (NMI = 0)

88

Semi-supervised Clustering: SVHN Image Generation

Use feature vector obtained from gφ(x) and vary the category c (one-hot).

89
