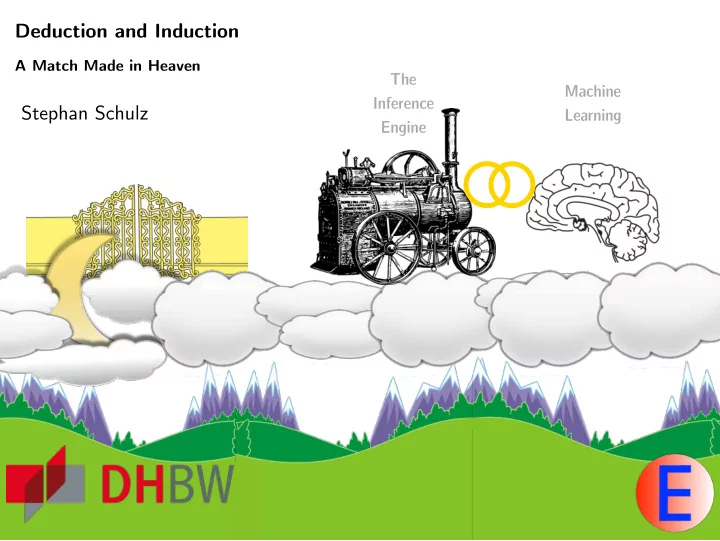

Deduction and Induction

A Match Made in Heaven

Stephan Schulz

The Inference Engine Machine Learning

Deduction and Induction

A Match Made in Heaven

Stephan Schulz

The Inference Engine Machine Learning

• r a Deal with the Devil?

Agenda

◮ Search and choice points in saturating theorem proving ◮ Basic questions about learning ◮ Learning from performance data

◮ Classification and heuristic selection ◮ Parameters for clause selection

◮ Learning from proofs and search graphs

◮ Proof extraction ◮ Learning clause evaluations (?)

◮ Conclusion

2

Theorem Proving: Big Picture

8X : human(X) ! mortal(X) 8X : philosopher(X) ! human(X) philosopher(socrates) ? | = mortal(socrates)

Real World Problem Formalized Problem

ATP

Proof Search

Proof Countermodel Timeout

• r
• r

3

Contradiction and Saturation

◮ Proof by contradiction

◮ Assume negation of conjecture ◮ Show that axioms and negated conjecture imply falsity

◮ Saturation

◮ Convert problem to Clause Normal Form ◮ Systematically enumerate logical consequences of axioms and negated conjecture ◮ Goal: Explicit contradiction (empty clause)

◮ Redundancy elimination

◮ Use contracting inferences to simplify or eliminate some clauses

Formula set Equi- satisfiable clause set

Clausifier

4

Contradiction and Saturation

◮ Proof by contradiction

◮ Assume negation of conjecture ◮ Show that axioms and negated conjecture imply falsity

◮ Saturation

◮ Convert problem to Clause Normal Form ◮ Systematically enumerate logical consequences of axioms and negated conjecture ◮ Goal: Explicit contradiction (empty clause)

◮ Redundancy elimination

◮ Use contracting inferences to simplify or eliminate some clauses

Search control problem: How and in which order do we enumerate consequences?

Formula set Equi- satisfiable clause set

Clausifier

4

Proof Search and Choice Points

◮ First-order logic is semi-decidable

◮ Provers search for proof in infinite space ◮ . . . of possible derivations ◮ . . . of possible consequences

◮ Major choice points of Superposition calculus:

◮ Term ordering (which terms are bigger) ◮ (Negative) literal selection ◮ Selection of clauses for inferences (with the given clause algorithm)

5

Term Ordering and Literal Selection

◮ Negative Superposition with selection

C ∨ s ≃ t D ∨ u ≃ v (C ∨ D ∨ u[p←t] ≃ v)σ

◮ if σ = mgu(u|p, s)

◮ and (s ≃ t)σ is ≻-maximal in (C ∨ s ≃ t)σ ◮ and s is ≻-maximal in (s ≃ t)σ ◮ and u ≃ v is selected in D ∨ u ≃ v ◮ and u is ≻-maximal in (s ≃ t)σ

◮ Choice points:

◮ ≻ is a ground-total rewrite ordering

◮ Consistent throughout the proof search ◮ I.e. in practice determined up-front

◮ Any negative literal can be selected

◮ Current practice: Fixed scheme picked up-front 6

The Given-Clause Algorithm

U

(unprocessed clauses)

g P

(processed clauses)

g=☐ ?

◮ Aim: Move everything from U to P

7

The Given-Clause Algorithm

U

(unprocessed clauses) Gene- rate

g P

(processed clauses)

g=☐ ?

◮ Aim: Move everything from U to P ◮ Invariant: All generating inferences with premises from P have been performed

7

The Given-Clause Algorithm

U

(unprocessed clauses) Gene- rate Simpli- fiable? Simplify

g P

(processed clauses)

g=☐ ?

◮ Aim: Move everything from U to P ◮ Invariant: All generating inferences with premises from P have been performed ◮ Invariant: P is interreduced

7

The Given-Clause Algorithm

U

(unprocessed clauses) Gene- rate Simpli- fiable? Cheap Simplify Simplify

g P

(processed clauses)

g=☐ ?

◮ Aim: Move everything from U to P ◮ Invariant: All generating inferences with premises from P have been performed ◮ Invariant: P is interreduced ◮ Clauses added to U are simplified with respect to P

7

Choice Point Clause Selection

U

(unprocessed clauses) Gene- rate Simpli- fiable? Cheap Simplify Simplify

g P

(processed clauses)

g=☐ ?

U

(unprocessed clauses)

8

Choice Point Clause Selection

U

(unprocessed clauses) Gene- rate Simpli- fiable? Cheap Simplify Simplify

g P

(processed clauses)

g=☐ ?

U

(unprocessed clauses)

Choice Point

8

Induction for Deduction

◮ Question 1: What to learn from?

◮ Performance data (prover is a black box) ◮ Proofs (only final result of search is visible) ◮ Proof search graphs (most of search is visible)

◮ Question 2: What to learn?

◮ Here: Learn strategy selection ◮ Here: Learn parameterization for clause selection heuristics ◮ Here: Learn new clause evaluation functions ◮ . . .

?

9

Automatic Strategy Selection

10

Strategy Selection

Definition: A strategy is a collection of all search control parameters

◮ Term ordering ◮ Literal selection scheme ◮ Clause selection heuristic ◮ . . . (minor parameters)

11

Strategy Selection

Definition: A strategy is a collection of all search control parameters

◮ Term ordering ◮ Literal selection scheme ◮ Clause selection heuristic ◮ . . . (minor parameters) ◮ Observation: Different problems are simple for different strategies ◮ Question: Can we determine a good heuristic (or set of heuristics)

up-front?

◮ Original: Manually coded automatic modes

◮ Based on developer intuition/insight/experience ◮ Limited success, high maintenance

◮ State of the art: Automatic generation of automatic modes

11

“Learning” Heuristic Selection

TPTP problem library

12

“Learning” Heuristic Selection

TPTP problem library

12

“Learning” Heuristic Selection

TPTP problem library

Feature-based classification

12

“Learning” Heuristic Selection

TPTP problem library

Feature-based classification Assign strategies to classes based on collected performance data from previous experiments

• Simplest: Always pick best

strategy in class

• If no data, pick globally best

12

“Learning” Heuristic Selection

TPTP problem library

Feature-based classification Example features

• Number of clausse
• Arity of symbols
• Unit/Horn/Non-horn

Assign strategies to classes based on collected performance data from previous experiments

• Simplest: Always pick best

strategy in class

• If no data, pick globally best

12

Auto Mode Performance

6000 7000 8000 9000 10000 11000 50 100 150 200 250 300 E 1.8 Auto E 1.8 Best

TPTP 5.6.0 CNF&FOF problems

13

A Caveat

TPTP problem library

Feature-based classification Example features

• Number of clausse
• Arity of symbols
• Unit/Horn/Non-horn

Assign strategies to classes based on collected performance data from previous experiments

• Simplest: Always pick best

strategy in class

• If no data, pick globally best

14

A Caveat

TPTP problem library

Feature-based classification Example features

• Number of clausse
• Arity of symbols
• Unit/Horn/Non-horn

Assign strategies to classes based on collected performance data from previous experiments

• Simplest: Always pick best

strategy in class

• If no data, pick globally best

Features based on developer…

• …intuition
• …insight
• …experience

14

Current Work: Learning Classification

◮ Characterize problems by performance vectors

◮ Which strategy solved the problem how fast?

◮ Unsupervised clustering of problems based om

performance

◮ Each cluster contains problems on which the same strategies perform well

◮ Feature extraction: Try to find characterization of

clusters

◮ E.g. based on feature set ◮ E.g. using nearest-neighbour approaches

My Bachelor Student Ayatallah just started work on this topic - results in 6 months f.IE#iiEFEtI:tt

:

auto

• mode

( that is th practical

goal ) And b) to

better understand

which

features influence

Search ( that is the

theoretical goal )

:

me

Literature

would be

food

here

, e.g.

the

E

• paper

S C 1.8 and

brainiac

')

and

Something

• n

clustering

Quite

ford for

a

stat ! Thanks

15

Learning parameterization for clause selection heuristics

16

Reminder: Choice Point Clause Selection

U

(unprocessed clauses) Gene- rate Simpli- fiable? Cheap Simplify Simplify

g P

(processed clauses)

g=☐ ?

U

(unprocessed clauses)

Choice Point

17

Basic Approaches to Clause Selection

◮ Symbol counting

◮ Pick smallest clause in U ◮ |{f (X) = a, P(a) = $true, g(Y ) = f (a)}| = 10

◮ FIFO

◮ Always pick oldest clause in U

◮ Flexible weighting

◮ Symbol counting, but give different weight to different symbols ◮ E.g. lower weight to symbols from goal! ◮ E.g. higher weight for symbols in inference positions

◮ Combinations

◮ Interleave different schemes

18

Given-Clause Selection in E (1)

◮ Domain Specific Language (DSL) for clause selection scheme ◮ Arbitrary number of priority queues ◮ Each queue ordered by:

◮ Unparameterized priority function ◮ Parameterized heuristic evaluation function

◮ Clauses picked using weighted round-robin scheme

◮ Example (5 queues): (1*ConjectureRelativeSymbolWeight(SimulateSOS, 0.5, 100, 100, 100, 100, 1.5, 1.5, 1), 4*ConjectureRelativeSymbolWeight(ConstPrio, 0.1, 100, 100, 100, 100,1.5, 1.5, 1.5), 1*FIFOWeight(PreferProcessed), 1*ConjectureRelativeSymbolWeight(PreferNonGoals, 0.5, 100, 100, 100,100, 1.5, 1.5, 1), 4*Refinedweight(SimulateSOS,3,2,2,1.5,2))

19

Given-Clause Selection in E (2)

◮ Example clause selection heuristic

(1*ConjectureRelativeSymbolWeight(SimulateSOS, 0.5, 100, 100, 100, 100, 1.5, 1.5, 1), 4*ConjectureRelativeSymbolWeight(ConstPrio, 0.1, 100, 100, 100, 100,1.5, 1.5, 1.5), 1*FIFOWeight(PreferProcessed), 1*ConjectureRelativeSymbolWeight(PreferNonGoals, 0.5, 100, 100, 100,100, 1.5, 1.5, 1), 4*Refinedweight(SimulateSOS,3,2,2,1.5,2))

◮ Infinitely many possibilities

◮ Several integer and floating point parameters per evaluation function ◮ Arbitrary combinations of individual evaluation functions

20

Given-Clause Selection in E (2)

◮ Example clause selection heuristic

(1*ConjectureRelativeSymbolWeight(SimulateSOS, 0.5, 100, 100, 100, 100, 1.5, 1.5, 1), 4*ConjectureRelativeSymbolWeight(ConstPrio, 0.1, 100, 100, 100, 100,1.5, 1.5, 1.5), 1*FIFOWeight(PreferProcessed), 1*ConjectureRelativeSymbolWeight(PreferNonGoals, 0.5, 100, 100, 100,100, 1.5, 1.5, 1), 4*Refinedweight(SimulateSOS,3,2,2,1.5,2))

◮ Infinitely many possibilities

◮ Several integer and floating point parameters per evaluation function ◮ Arbitrary combinations of individual evaluation functions

How do we find good clause selection heuristics (without relying on developer intuition, insight, experience)?

20

Genetic Algorithms

◮ Optimization based on evolving population of individuals

◮ Optimization is organized in generations ◮ In each generation, individuals compete to reproduce

◮ Each individual is a candidate solution (i.e. search heuristic)

◮ Individuals are assigned a fitness score based on performance ◮ More fit individuals are more likely to reproduce into the next generation

◮ The next generation:

◮ Mutation - randomly modify individual ◮ Crossover - create new individual from two parents ◮ Survivors

21

Applying Genetic Algorithms to Clause Selection

◮ Encoding: DSL translated into S-Expressions ◮ Mutation: Randomly modify parameters of one heuristic ◮ Crossover:

◮ Compose individual by randomly inserting evaluation functions from both parents ◮ If the same generic evaluation function occurs in both, randomly exchange parameters

◮ Fitness: How many medium difficulty problems are solved

◮ . . . on smallish sample set ◮ . . . with short time limit

◮ Selection: Tournament selection (n ≈ 5)

22

Evolution in Action

80 85 90 95 100 105 110 115 120 20 40 60 80 100 120 140 Fitness (solved problems) Generations Fitness over generations

23

(Very) Preliminary Results

◮ Evolution finds good clause selection heuristics from random initial

population

◮ Convergence in ≈ 200 generations ◮ Time per generation ≈ 45 CPU hours ◮ . . . ≈ 40 minutes on 24 core server

◮ Best evolved heuristic beats best conventional heuristic

◮ Evaluation on 15758 problems from TPTP 6.0.0 ◮ 30 second time limit, 2.6GHz Intel Xeon machines, enough memory ◮ Evolved: 8814 solutions found ◮ Manual: 8750 solutions found ◮ Unique solutions: 466 evolved vs. 386 manual

24

Current Work: Diversity Beats Ferocity

25

Current Work: Diversity Beats Ferocity

25

Current Work: Diversity Beats Ferocity

25

Current Work: Diversity Beats Ferocity

25

Current Work: Diversity Beats Ferocity

25

Current Work: Diversity Beats Ferocity

25

Current Work: Diversity Beats Ferocity

25

Current Work: Diversity Beats Ferocity

25

Current Work: Diversity Beats Ferocity

25

Current Work: Diversity Beats Ferocity

◮ Idea: Modify fitness function

◮ Problems are prey ◮ Individual heuristics are predators ◮ If several predators catch the same prey, they have to share the benefit ◮ = ⇒ problems solved by no or few heuristics are more valuable ◮ = ⇒ Force diversity of the ecosystem

26

Current Work: Diversity Beats Ferocity

◮ Idea: Modify fitness function

◮ Problems are prey ◮ Individual heuristics are predators ◮ If several predators catch the same prey, they have to share the benefit ◮ = ⇒ problems solved by no or few heuristics are more valuable ◮ = ⇒ Force diversity of the ecosystem

My Bachelor Student Ahmed just started work on this topic - results in 6 months

26

Proof Extraction and Learning

27

Learning from Proofs and Proof Search Graphs

◮ Intuition: Previous proof searches are useful to

guide new proof attempts

◮ Naive approach:

◮ Clauses in the proof tree are positive examples ◮ (All other clauses are negative examples)

◮ Initial attempts

◮ DISCOUNT (Schulz 1995, Schulz&Denzinger 1996) - UEQ, patterns ◮ E (Schulz 2000, 2001) - CNF, patterns ◮ Overall, modest successes ◮ Mostly with positive examples only - compare Otter’s hints

28

Problems and Solutions

◮ Problem: Search protocol size

◮ Initial approach: Store all intermediate steps ◮ Bad time and space performance ◮ Borderline impossible in 2000, still hard today

◮ Problem: Not all examples represent search decisions

◮ Many intermediate results ◮ Also: Vastly unbalanced ratio of positive/negative examples

◮ Common solution:

◮ Internal proof object (re-)construction ◮ Compact representation of the search graph ◮ Actually evaluated and picked clauses are recorded ◮ Minimal overhead (0.24%) in time ◮ Small overhead in memory (due to structure sharing and early discarding of many redundant clauses)

29

Proof Generation with Limited Archiving

◮ DISCOUNT loop: Only clauses in P are used

for inferences

◮ U is subject to simplification, but is passive ◮ Only clauses in P need to be available in the proof tree

U

(unprocessed clauses) Gene- rate Simpli- fiable? Cheap Simplify Simplify

g P

(processed clauses)

g=☐ ?

30

Proof Generation with Limited Archiving

◮ DISCOUNT loop: Only clauses in P are used

for inferences

◮ U is subject to simplification, but is passive ◮ Only clauses in P need to be available in the proof tree

◮ Backward simplification is rare

◮ Only clauses in P can be backwards-simplified (and P is small) ◮ Heuristically, newer clauses are larger (and big clauses rarely simplify small clauses)

U

g P

U

(unprocessed clauses)

30

Proof Generation with Limited Archiving

◮ DISCOUNT loop: Only clauses in P are used

for inferences

◮ U is subject to simplification, but is passive ◮ Only clauses in P need to be available in the proof tree

◮ Backward simplification is rare

◮ Only clauses in P can be backwards-simplified (and P is small) ◮ Heuristically, newer clauses are larger (and big clauses rarely simplify small clauses)

◮ Solution: Non-destructive

backwards-simplification

◮ Clauses in P are archived on simplification ◮ Simplified new clause is build from fresh copy

U

g P

U

(unprocessed clauses)

30

Proof Generation

U

(unprocessed clauses) Gene- rate Simpli- fiable? Cheap Simplify Simplify

g P

(processed clauses)

g=☐ ?

31

Proof Generation

U

(unprocessed clauses) Gene- rate Simpli- fiable? Cheap Simplify Simplify

g P

(processed clauses)

g=☐ ?

A

(archive) 31

The Structure of Proofs: Commutative Rings

32

The Structure of Proofs: Commutative Rings

32

The Structure of Proofs: Commutative Rings

c0 c10 c17 c1 c12 c13 c16 c21 c2 c24 c3 c11 c27 c28 c4 c14 c15 c19 c20 c25 c5 c6 c7 c23 c26 c8 c30 c9 c18 c22 c29

32

The Structure of Proofs: Commutative Rings

c0 c10 c17 c1 c12 c13 c16 c21 c2 c24 c3 c11 c27 c28 c4 c14 c15 c19 c20 c25 c5 c6 c7 c23 c26 c8 c30 c9 c18 c22 c29

32

The Structure of Proofs: Commutative Rings

32

Classification of Search Decisions

◮ Proof state at success:

◮ All proof clauses are in P ∪ A ◮ Clauses in U never contribute

◮ All clauses in P ∪ A have been

selected for processing

◮ Positive examples: Proof clauses ◮ Negative examples: Non-proof clauses

U

(unprocessed clauses) Gene- rate Simpli- fiable? Cheap Simplify Simplify

g P

(processed clauses)

g=☐ ?

A

(archive)

33

Classification of Search Decisions

◮ Proof state at success:

◮ All proof clauses are in P ∪ A ◮ Clauses in U never contribute

◮ All clauses in P ∪ A have been

selected for processing

◮ Positive examples: Proof clauses ◮ Negative examples: Non-proof clauses

Idea: Apply Machine Learning

U

(unprocessed clauses) Gene- rate Simpli- fiable? Cheap Simplify Simplify

g P

(processed clauses)

g=☐ ?

A

(archive)

33

Example: Proof Objects RNG008-7

c0). c10). c17). c1). c12). c13). c16). c21). c2). c24). c3). c11). c27). c28). c4). c14). c15). c19). c20). c25). c5). c6). c7). c23). c26). c8). c30). c9). c18). c22). c29).

34

Example: Proof Objects RNG008-7

c0). c10). c1). c11). c2). c12). c3). c13). c4). c14). c5). c15). c6). c17). c7). c20). c8). c37). c9). c39). c16). c25). c19). c21). c24). c29). c32). c18). c35). c36). c22). c23). c27). c28). c33). c31). c34). c26). c30). c38). c40).

34

Example: Proof Objects RNG008-7

c0). c11). c18). c49). c74). c113). c115). c125). c126). c129). c140). c141). c144). c146). c150). c151). c152). c153). c154). c155). c156). c157). c158). c159). c160). c161). c162). c163). c164). c165). c166). c167). c168). c169). c170). c1). c13). c14). c17). c22). c29). c38). c2). c25). c31). c36). c99). c100). c101). c102). c104). c105). c106). c107). c108). c3). c12). c28). c30). c35). c37). c43). c44). c45). c46). c47). c51). c52). c53). c55). c56). c57). c60). c61). c62). c63). c64). c65). c66). c67). c68). c69). c70). c71). c72). c76). c77). c79). c80). c81). c84). c85). c86). c87). c88). c89). c90). c117). c124). c133). c134). c135). c136). c137). c138). c139). c171). c172). c173). c174). c175). c176). c177). c178). c179). c180). c182). c184). c185). c186). c187). c188). c190). c192). c193). c194). c195). c196). c199). c202). c205). c206). c207). c208). c211). c212). c213). c214). c215). c216). c217). c218). c219). c220). c221). c222). c223). c224). c4). c15). c16). c20). c21). c26). c5). c6). c48). c73). c91). c92). c93). c94). c95). c96). c97). c98). c103). c109). c110). c111). c112). c114). c116). c7). c24). c27). c233). c8). c33). c39). c128). c145). c225). c226). c227). c228). c231). c232). c9). c32). c234). c10). c41). c142). c143). c147). c148). c149). c19). c23). c42). c59). c83). c118). c119). c120). c121). c122). c123). c127). c130). c131). c132). c197). c198). c200). c201). c34). c58). c82). c40). c181). c183). c189). c191). c229). c50). c54). c75). c78). c203). c204). c209). c210). c230).

34

Example: Proof Objects RNG008-7

c0). c11). c1). c12). c2). c13). c3). c14). c4). c15). c5). c16). c6). c18). c7). c21). c8). c35). c9). c39). c10). c51). c17). c26). c60). c85). c124). c126). c136). c137). c140). c151). c152). c155). c157). c161). c162). c163). c164). c165). c166). c167). c168). c169). c170). c171). c172). c173). c174). c175). c176). c177). c178). c179). c180). c181). c20). c22). c25). c30). c38). c48). c33). c41). c46). c110). c111). c112). c113). c115). c116). c117). c118). c119). c19). c37). c40). c45). c47). c54). c55). c56). c57). c58). c61). c63). c64). c66). c67). c68). c70). c71). c73). c74). c75). c76). c77). c78). c79). c80). c81). c82). c83). c86). c88). c90). c91). c92). c94). c95). c97). c98). c99). c100). c101). c128). c135). c144). c145). c146). c147). c148). c149). c150). c182). c183). c184). c185). c186). c187). c188). c189). c190). c191). c193). c195). c196). c197). c198). c199). c201). c203). c204). c205). c206). c207). c210). c213). c216). c217). c218). c219). c222). c223). c224). c225). c226). c227). c228). c229). c230). c231). c232). c233). c234). c235). c23). c24). c28). c29). c34). c52). c153). c154). c156). c158). c159). c160). c59). c84). c102). c103). c104). c105). c106). c107). c108). c109). c114). c120). c121). c122). c123). c125). c127). c32). c244). c36). c27). c31). c53). c69). c93). c129). c130). c131). c132). c133). c134). c138). c139). c141). c142). c143). c208). c209). c211). c212). c43). c49). c236). c237). c238). c239). c242). c243). c44). c72). c96). c42). c50). c245). c192). c194). c200). c202). c241). c62). c65). c87). c89). c214). c215). c220). c221). c240).

34

Some Initial Results

◮ Training examples can be cheaply extracted ◮ Ratio of utilized to useless given clauses (GCU-ratio) is a good

predictor of Heuristic perfomance (Schulz/M¨

• hrmann, IJCAR 2016)

◮ Positive training examples can be automatically written into a watch

list and used as hints

◮ Clauses on the watchlist are preferred over all other clauses ◮ First experiments ◮ Reproving with much better GCU-ratio (and much faster) ◮ Some improvement even for related problems

35

Open Questions

◮ Abstractions

◮ Are concrete function symbols relevant? ◮ Is the concrete term structure relevant?

◮ Learning methods

◮ Folding architecture networks? ◮ Feature-based numerical methods? ◮ Pattern-based learning? ◮ Deep learning with convoluted networks?

◮ Trade-offs

◮ Power vs. convenience ◮ Speed vs. quality ◮ Online vs. offline costs

?

36

Open Questions

◮ Abstractions

◮ Are concrete function symbols relevant? ◮ Is the concrete term structure relevant?

◮ Learning methods

◮ Folding architecture networks? ◮ Feature-based numerical methods? ◮ Pattern-based learning? ◮ Deep learning with convoluted networks?

◮ Trade-offs

◮ Power vs. convenience ◮ Speed vs. quality ◮ Online vs. offline costs

?

Work in Progress

36

(Nearly) The End

37

Conclusion

◮ Controlling proof search for theorem provers is a

rich application for machine learning techniques

◮ Inductive techniques can be applied at several

different levels of search control

◮ Explicit proofs can be generated efficiently

◮ . . . and mined for training examples!

◮ Proofs are beautiful and informative

◮ Learning from proofs may be the future

38

Conclusion

◮ Controlling proof search for theorem provers is a

rich application for machine learning techniques

◮ Inductive techniques can be applied at several

different levels of search control

◮ Explicit proofs can be generated efficiently

◮ . . . and mined for training examples!

◮ Proofs are beautiful and informative

◮ Learning from proofs may be the future

Thank you!

Questions?

38

Image Credit

◮ Clipart via http://openclipart.org ◮ Hieronimous Bosch via https://commons.wikimedia.org

39
