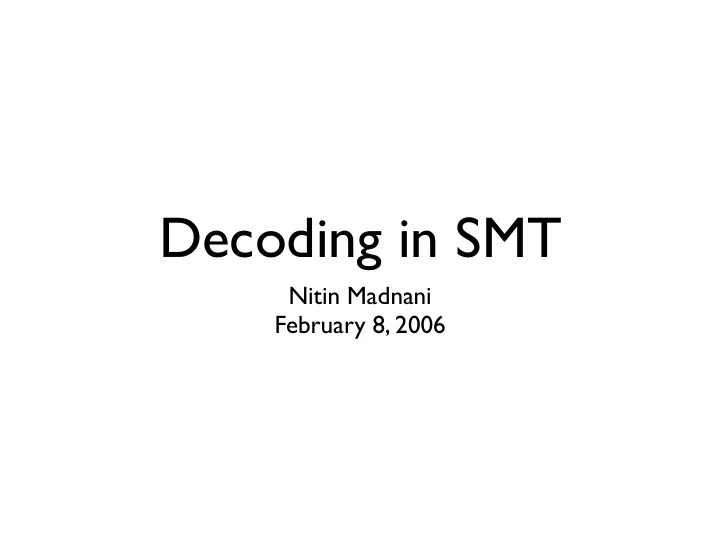

Decoding in SMT

Nitin Madnani February 8, 2006

The Decoding Problem

• Search
• Inputs:
• Input string
• Bunch of statistical models
• A function to assign score to any translation
• Output:
• Best scoring translation

Mathematically ...

e = arg max

ˆ e

S(ˆ e, f)

Mathematically ...

e = arg max

ˆ e

S(ˆ e, f)

Score (models, candidate, input string)

Mathematically ...

e = arg max

ˆ e

S(ˆ e, f)

Search operation Score (models, candidate, input string)

Mathematically ...

e = arg max

ˆ e

S(ˆ e, f)

Search operation Score (models, candidate, input string) search space (all possible translations)

Mathematically ...

e = arg max

ˆ e

S(ˆ e, f)

Search operation Score (models, candidate, input string) search space (all possible translations) “Best” Translation

Mathematically ...

e = arg max

ˆ e

S(ˆ e, f)

Search operation Score (models, candidate, input string) search space (all possible translations) “Best” Translation

Examples:

• Models = P(e), P(a,f|e); Score = P(e)*P(a,f|e)
• Models = P(e),P(f|e), P(e|f), P(a,f|e), P(e|f) etc; Score = exp(∑wnmn)

Decoding is hard

Decoding is hard

• Very simple example

f1 f2 f3 f4 fm

...

Decoding is hard

• Very simple example
• Models: LM, Model 1 (1/1)

f1 f2 f3 f4 fm

...

e1 e2 e3 e4 em

...

Decoding is hard

• Very simple example
• Models: LM, Model 1 (1/1)
• Search space: All possible
• rderings of e1..m

f1 f2 f3 f4 fm

...

e1 e2 e3 e4 em

...

Decoding is hard

• Very simple example
• Models: LM, Model 1 (1/1)
• Search space: All possible
• rderings of e1..m
• Picked by the LM

f1 f2 f3 f4 fm

...

e1 e2 e3 e4 em

...

Decoding is hard

• Very simple example
• Models: LM, Model 1 (1/1)
• Search space: All possible
• rderings of e1..m
• Picked by the LM
• w(e1→e2) = p(e2 | e1)

f1 f2 f3 f4 fm

...

e1 e2 e3 e4 em

...

e1 e2 e3 e4 e5 ... em

Decoding is hard

• Very simple example
• Models: LM, Model 1 (1/1)
• Search space: All possible
• rderings of e1..m
• Picked by the LM
• w(e1→e2) = p(e2 | e1)
• Look familiar ?

f1 f2 f3 f4 fm

...

e1 e2 e3 e4 em

...

e1 e2 e3 e4 e5 ... em

Decoding is hard

• Very simple example
• Models: LM, Model 1 (1/1)
• Search space: All possible
• rderings of e1..m
• Picked by the LM
• w(e1→e2) = p(e2 | e1)
• Look familiar ?
• TSP - NP Complete !

f1 f2 f3 f4 fm

...

e1 e2 e3 e4 em

...

e1 e2 e3 e4 e5 ... em

Problem characteristics

• Clear-cut optimization problem
• There is always one right answer
• Inherently Complex
• Number of ways to order words (LM)
• Number of ways to cover input words (TM)
• Harder than in SR:
• No left to right input-output correspondence

Decoding Methods

• Stack-based Decoding
• Most common
• Almost all contemporary decoders are stack-based
• Greedy Decoding
• Faster but more error-prone
• Optimal Decoding
• Finds the optimal translation
• Really Really Slow !

Stack-based Decoding

• Originally introduced by Jelinek in SR
• Stores partial translations (hypotheses) in a stack
• Builds new translations by extending existing hypotheses
• Optimal translation guaranteed if given unlimited stack size

and search time

• Note: stack does not imply LIFO; actually a (priority) queue

Stack-based Decoding

Hypothesis Stack (finite size and sorted by cost)

Stack-based Decoding

Hypothesis Stack (finite size and sorted by cost) Pop (1)

Stack-based Decoding

Hypothesis Stack (finite size and sorted by cost) Pop (1) Extend by translating every possible word (2)

Stack-based Decoding

Hypothesis Stack (finite size and sorted by cost) Pop (1) Extend by translating every possible word (2) Push (3)

Stack-based Decoding

Hypothesis Stack (finite size and sorted by cost) Pop (1) Extend by translating every possible word (2) Push (3) Repeat (1)-(3) until a complete hypothesis is encountered

• Hypothesis cost = cost of translation so far
• Problem: Shorter hypotheses will push longer ones out
• Solution: Use translation cost + future cost
• Future cost: What it would cost to complete an hypothesis
• A heuristic provides an estimate of the future cost
• No heuristic can be perfect (no monotonicity)
• Need to find another solution

Heuristic function

Multi-stack Decoding

• Use multiple stacks
• One for each subset of the input words (2n)
• One for each number of words covered (n)
• Extend the top hypothesis from each stack
• Competition is among similar hypotheses

Other Optimizations

• Beam-based Pruning
• Relative threshold - prune if p(h) < α * p(hbest)
• Histogram - Only keep a certain number of hypotheses,

prune the rest

• Can accidentally prune out a good hypothesis
• Hypothesis Recombination
• If similar(h1,h2) then keep only the cheaper one
• Risk-free

Greedy Decoding

• Start with the word-for-word English gloss
• Iterate exhaustively over all alignments one simple
• peration away
• Add, substitute, change order etc.
• Pick the one with the highest probability
• Commit the change
• Repeat until no improvement possible

Greedy Decoding

• Pros
• Much much faster
• Complexity only scales polynomially with

sentence length

• Cons
• Searches only a very small subspace
• Cannot find best translation if far from gloss

Optimal Decoding

• Transform decoding problem into a TSP instance
• Foreign words ~ Cities
• Translations ~ Hotels in cities
• Cost ~ Distance
• Solve TSP using Integer Programming (IP)
• Cast tour selection as a constrained integer program
• Can find tours of various lengths (n-best lists)

Optimal Decoding

• Pros
• Fast decoder development
• Optimal n-best lists
• Extremely customizable
• Cons
• Extremely slow !
• Hard to integrate non-related information

sources

Decoding Errors

• Search Error
• decode(f) = e, but ∃ e’ s.t. score(e’) > score(e)
• The right answer is in the space but we couldn’t find it
• Hard to prove sub-optimal decoding
• Model Error
• correct(f) ∉ Search space
• The right answer is not in the space because of

imperfect models

Observations*

• |spacegreedy| << |spacestack| (hence the speed)
• spacestack ⊂ spaceoptimal
• nSEgreedy >> nSEstack >> nSEoptimal (=0)
• tgreedy < tstack <<< toptimal (50 for m=6, 500 for 8!)
• nME >> 0 for all, since Model 4 is deficient

* All decoders are Model 4 and tested on the same set

Take Home Messages

• Optimal decoding is possible but highly impractical
• Optimized stack-based decoding provides good balance
• All modern decoders are basically the same (stack-based)
• Differences in models, score and extension operations.

Examples: Pharaoh, Rewrite

• Better translations will come from improving models

(Hiero)
