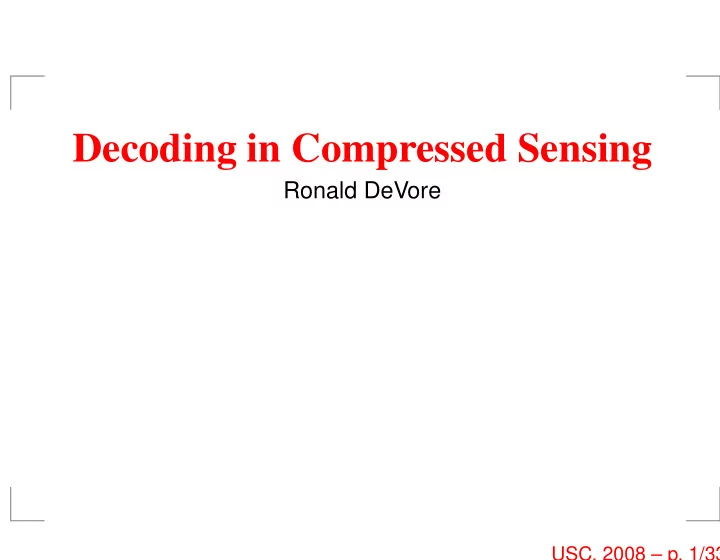

Decoding in Compressed Sensing

Ronald DeVore

USC, 2008 – p. 1/33

Discrete Compressed Sensing

x ∈ I RN with N large

USC, 2008 – p. 2/33

Discrete Compressed Sensing

x ∈ I RN with N large

We are able to ask n questions about x

USC, 2008 – p. 2/33

Discrete Compressed Sensing

x ∈ I RN with N large

We are able to ask n questions about x Question means inner product v · x with v ∈ I

RN - called

sample

USC, 2008 – p. 2/33

Discrete Compressed Sensing

x ∈ I RN with N large

We are able to ask n questions about x Question means inner product v · x with v ∈ I

RN - called

sample What are the best questions to ask??

USC, 2008 – p. 2/33

Discrete Compressed Sensing

x ∈ I RN with N large

We are able to ask n questions about x Question means inner product v · x with v ∈ I

RN - called

sample What are the best questions to ask?? Any such sampling is given by Φx where Φ is an n × N matrix

USC, 2008 – p. 2/33

Discrete Compressed Sensing

x ∈ I RN with N large

We are able to ask n questions about x Question means inner product v · x with v ∈ I

RN - called

sample What are the best questions to ask?? Any such sampling is given by Φx where Φ is an n × N matrix We are interested in the good / best matrices Φ

USC, 2008 – p. 2/33

Discrete Compressed Sensing

x ∈ I RN with N large

We are able to ask n questions about x Question means inner product v · x with v ∈ I

RN - called

sample What are the best questions to ask?? Any such sampling is given by Φx where Φ is an n × N matrix We are interested in the good / best matrices Φ Here good means the samples y = Φx contain enough information to approximate x well

USC, 2008 – p. 2/33

Encoder/Decoder

We view Φ as an encoder

USC, 2008 – p. 3/33

Encoder/Decoder

We view Φ as an encoder Since Φ : I

RN → I Rn many x are encoded with same y

USC, 2008 – p. 3/33

Encoder/Decoder

We view Φ as an encoder Since Φ : I

RN → I Rn many x are encoded with same y N := {η : Φη = 0} the null space of Φ

USC, 2008 – p. 3/33

Encoder/Decoder

We view Φ as an encoder Since Φ : I

RN → I Rn many x are encoded with same y N := {η : Φη = 0} the null space of Φ F(y) := {x : Φx = y} = x0 + N for any x0 ∈ F(y)

USC, 2008 – p. 3/33

Encoder/Decoder

We view Φ as an encoder Since Φ : I

RN → I Rn many x are encoded with same y N := {η : Φη = 0} the null space of Φ F(y) := {x : Φx = y} = x0 + N for any x0 ∈ F(y)

The hyperplanes F(y) with y ∈ I

Rn stratify I RN

USC, 2008 – p. 3/33

The sets F(y)

USC, 2008 – p. 4/33

Encoder/Decoder

We view Φ as an encoder Since Φ : I

RN → I Rn many x are encoded with same y N := {η : Φη = 0} the null space of Φ F(y) := {x : Φx = y} = x0 + N for any x0 ∈ F(y)

The hyperplanes F(y) with y ∈ I

Rn stratify I RN

Decoder is any (possibly nonlinear) mapping ∆ from

I Rn → I RN

USC, 2008 – p. 5/33

Encoder/Decoder

We view Φ as an encoder Since Φ : I

RN → I Rn many x are encoded with same y N := {η : Φη = 0} the null space of Φ F(y) := {x : Φx = y} = x0 + N for any x0 ∈ F(y)

The hyperplanes F(y) with y ∈ I

Rn stratify I RN

Decoder is any (possibly nonlinear) mapping ∆ from

I Rn → I RN ¯ x := ∆(Φ(x)) is our approximation to x from the

information extracted

USC, 2008 – p. 5/33

Encoder/Decoder

We view Φ as an encoder Since Φ : I

RN → I Rn many x are encoded with same y N := {η : Φη = 0} the null space of Φ F(y) := {x : Φx = y} = x0 + N for any x0 ∈ F(y)

The hyperplanes F(y) with y ∈ I

Rn stratify I RN

Decoder is any (possibly nonlinear) mapping ∆ from

I Rn → I RN ¯ x := ∆(Φ(x)) is our approximation to x from the

information extracted Let A := An,N := {(Φ, ∆) : Φ is n × N}

USC, 2008 – p. 5/33

GOAL: Instance-Optimal

How should we measure performance of the encoding-decoding?

USC, 2008 – p. 6/33

GOAL: Instance-Optimal

How should we measure performance of the encoding-decoding? Define Σk := {x ∈ I

RN : #supp(x) ≤ k} σk(x)ℓp := inf

z∈Σk x − zℓN

p

USC, 2008 – p. 6/33

GOAL: Instance-Optimal

How should we measure performance of the encoding-decoding? Define Σk := {x ∈ I

RN : #supp(x) ≤ k} σk(x)ℓp := inf

z∈Σk x − zℓN

p

Given an encoding - decoding pair (Φ, ∆), we say that this pair is Instance-Optimal of order k for ℓp if for an absolute constant C > 0

x − ∆(Φ(x))ℓp ≤ Cσk(x)ℓp

USC, 2008 – p. 6/33

GOAL: Instance-Optimal

How should we measure performance of the encoding-decoding? Define Σk := {x ∈ I

RN : #supp(x) ≤ k} σk(x)ℓp := inf

z∈Σk x − zℓN

p

Given an encoding - decoding pair (Φ, ∆), we say that this pair is Instance-Optimal of order k for ℓp if for an absolute constant C > 0

x − ∆(Φ(x))ℓp ≤ Cσk(x)ℓp

The encoding - decoding pairs which have the largest k are the best.

USC, 2008 – p. 6/33

What are optimal systems

Two issues: Good matrices and good decoders

USC, 2008 – p. 7/33

What are optimal systems

Two issues: Good matrices and good decoders We shall first discuss what are good matrices: everything is controlled by the null space

USC, 2008 – p. 7/33

What are optimal systems

Two issues: Good matrices and good decoders We shall first discuss what are good matrices: everything is controlled by the null space Theorem of Cohen-Dahmen-DeVore: We have instance

• ptimality of order k in ℓp for some decoder ∆ if and
• nly if Φ has the Null Space Property (NSP) of order 2k:

for each #(T) ≤ 2k we have

ηT ℓp ≤ CηT c

USC, 2008 – p. 7/33

What are optimal systems

Two issues: Good matrices and good decoders We shall first discuss what are good matrices: everything is controlled by the null space Theorem of Cohen-Dahmen-DeVore: We have instance

• ptimality of order k in ℓp for some decoder ∆ if and
• nly if Φ has the Null Space Property (NSP) of order 2k:

for each #(T) ≤ 2k we have

ηT ℓp ≤ CηT c

Notation: xT is the vector that agrees with x on T and is zero otherwise.

USC, 2008 – p. 7/33

What are optimal systems

Two issues: Good matrices and good decoders We shall first discuss what are good matrices: everything is controlled by the null space Theorem of Cohen-Dahmen-DeVore: We have instance

• ptimality of order k in ℓp for some decoder ∆ if and
• nly if Φ has the Null Space Property (NSP) of order 2k:

for each #(T) ≤ 2k we have

ηT ℓp ≤ CηT c

Notation: xT is the vector that agrees with x on T and is zero otherwise. Here the decoder is pushed into the background: The above theorem gives no information about whether practical decoders will work

USC, 2008 – p. 7/33

Restricted Isometry Property

How to check NSP?

USC, 2008 – p. 8/33

Restricted Isometry Property

How to check NSP? A sufficient condition is the Restricted Isometry Property

USC, 2008 – p. 8/33

Restricted Isometry Property

How to check NSP? A sufficient condition is the Restricted Isometry Property We say Φ has the Restricted Isometry Property (RIP)of

• rder k with constant δ ∈ (0, 1) if

(1 = δ)xℓ2 ≤ Φxℓ2 ≤ (1 + δ)xℓ2 x ∈ Σk

USC, 2008 – p. 8/33

Restricted Isometry Property

How to check NSP? A sufficient condition is the Restricted Isometry Property We say Φ has the Restricted Isometry Property (RIP)of

• rder k with constant δ ∈ (0, 1) if

(1 = δ)xℓ2 ≤ Φxℓ2 ≤ (1 + δ)xℓ2 x ∈ Σk

CDD show RIP is sufficient to guarantee NSP but the exact results depend very strongly on p

USC, 2008 – p. 8/33

Sample Results: ℓ1

If Φ has RIP for 2k then Φ is instance-optimal of order k in ℓ1:

x − ∆(Φ(x))ℓ1 ≤ Cσk(x)ℓ1

USC, 2008 – p. 9/33

Sample Results: ℓ1

If Φ has RIP for 2k then Φ is instance-optimal of order k in ℓ1:

x − ∆(Φ(x))ℓ1 ≤ Cσk(x)ℓ1

This means that there is some decoder - not practical

USC, 2008 – p. 9/33

Sample Results: ℓ1

If Φ has RIP for 2k then Φ is instance-optimal of order k in ℓ1:

x − ∆(Φ(x))ℓ1 ≤ Cσk(x)ℓ1

This means that there is some decoder - not practical We know there are matrices Φ with RIP property for

k ≤ c0n/ log(N/n)

USC, 2008 – p. 9/33

Sample Results: ℓ1

If Φ has RIP for 2k then Φ is instance-optimal of order k in ℓ1:

x − ∆(Φ(x))ℓ1 ≤ Cσk(x)ℓ1

This means that there is some decoder - not practical We know there are matrices Φ with RIP property for

k ≤ c0n/ log(N/n)

This range of k cannot be improved: from now on we refer to this as the largest range of k

USC, 2008 – p. 9/33

Sample Results: ℓp

If an n × N matrix Φ is instance-optimal of order k = 1 in

ℓ2 with constant C0 then n ≥ N/C0

USC, 2008 – p. 10/33

Sample Results: ℓp

If an n × N matrix Φ is instance-optimal of order k = 1 in

ℓ2 with constant C0 then n ≥ N/C0

This shows that instance-optimal is not a viable concept for ℓ2

USC, 2008 – p. 10/33

Sample Results: ℓp

If an n × N matrix Φ is instance-optimal of order k = 1 in

ℓ2 with constant C0 then n ≥ N/C0

This shows that instance-optimal is not a viable concept for ℓ2 For 1 < p < 2 and any k ≤ c0N

2−2/p 1−2/p[n/ log(N/n)] p 2−p

USC, 2008 – p. 10/33

Sample Results: ℓp

If an n × N matrix Φ is instance-optimal of order k = 1 in

ℓ2 with constant C0 then n ≥ N/C0

This shows that instance-optimal is not a viable concept for ℓ2 For 1 < p < 2 and any k ≤ c0N

2−2/p 1−2/p[n/ log(N/n)] p 2−p

This bound cannot be improved

USC, 2008 – p. 10/33

Sample Results: ℓp

If an n × N matrix Φ is instance-optimal of order k = 1 in

ℓ2 with constant C0 then n ≥ N/C0

This shows that instance-optimal is not a viable concept for ℓ2 For 1 < p < 2 and any k ≤ c0N

2−2/p 1−2/p[n/ log(N/n)] p 2−p

This bound cannot be improved Matrices that satisfy instance-optimal for this range of k are obtained from matrices which satisfy RIP for

¯ k = k2/p−1N2−2/p

USC, 2008 – p. 10/33

What are good matrices

How can we construct Φ satisfying RIP for the largest range of k?

USC, 2008 – p. 11/33

What are good matrices

How can we construct Φ satisfying RIP for the largest range of k? Choose at random N vectors from the unit sphere in I

Rn

and use these as the columns of Φ

USC, 2008 – p. 11/33

What are good matrices

How can we construct Φ satisfying RIP for the largest range of k? Choose at random N vectors from the unit sphere in I

Rn

and use these as the columns of Φ Choose each entry of Φ independently and at random from the Gaussian distribution N(0, 1/√n)

USC, 2008 – p. 11/33

What are good matrices

How can we construct Φ satisfying RIP for the largest range of k? Choose at random N vectors from the unit sphere in I

Rn

and use these as the columns of Φ Choose each entry of Φ independently and at random from the Gaussian distribution N(0, 1/√n) We choose each entry of Φ independently and at random from the Bernouli distribution and then normalize columns to have length one.

USC, 2008 – p. 11/33

What are good matrices

How can we construct Φ satisfying RIP for the largest range of k? Choose at random N vectors from the unit sphere in I

Rn

and use these as the columns of Φ Choose each entry of Φ independently and at random from the Gaussian distribution N(0, 1/√n) We choose each entry of Φ independently and at random from the Bernouli distribution and then normalize columns to have length one. With high probability on the draw the resulting matrix will have RIP for the largest range of k

USC, 2008 – p. 11/33

What are good matrices

How can we construct Φ satisfying RIP for the largest range of k? Choose at random N vectors from the unit sphere in I

Rn

and use these as the columns of Φ Choose each entry of Φ independently and at random from the Gaussian distribution N(0, 1/√n) We choose each entry of Φ independently and at random from the Bernouli distribution and then normalize columns to have length one. With high probability on the draw the resulting matrix will have RIP for the largest range of k Problem: None of these are constructive. Can we put

• ur hands on matrices??

USC, 2008 – p. 11/33

What are good matrices

How can we construct Φ satisfying RIP for the largest range of k? Choose at random N vectors from the unit sphere in I

Rn

and use these as the columns of Φ Choose each entry of Φ independently and at random from the Gaussian distribution N(0, 1/√n) We choose each entry of Φ independently and at random from the Bernouli distribution and then normalize columns to have length one. With high probability on the draw the resulting matrix will have RIP for the largest range of k Problem: None of these are constructive. Can we put

• ur hands on matrices??

No constructions are known for largest range of k

USC, 2008 – p. 11/33

Instance-Optimality in Probability

We saw that Instance-Optimality for ℓN

2 is not viable

Suppose Φ(ω) is a collection of random matrices We say this family satisfies RIP of order k with probability 1 − ǫ if a random draw {Φ(ω)} will satisfy RIP

• f order k with probability 1 − ǫ

We say {Φ(ω)} is bounded with probability 1 − ǫ if given any x ∈ I

RN with probability 1 − ǫ a random draw {Φ(ω)}

will satisfy

Φ(ω)(x)ℓN

2 ≤ C0xℓN 2

with C0 an absolute constant Our earlier analysis showed that Gaussian and Bernouli random matrices have these properties with ǫ = e−cn

USC, 2008 – p. 12/33

Theorem: Cohen-Dahmen-DeVore

If {Φ(ω)} satisfies RIP of order 3k and boundedness each with probability 1 − ǫ then there are decoders ∆(ω) such that given any x ∈ ℓN

2 we have with probability

1 − 2ǫ x − ∆(ω)Φ(ω)(x)ℓN

2 ≤ C0σk(x)ℓN 2

Instance-optimality in probability Range of k is k ≤ c0n/ log(N/n) Decoder is impractical

USC, 2008 – p. 13/33

Decoding

By far the most intriguing part of Compressed Sensing is the decoding

USC, 2008 – p. 14/33

Decoding

By far the most intriguing part of Compressed Sensing is the decoding There are continuing debates as to which decoding is numerically fastest

USC, 2008 – p. 14/33

Decoding

By far the most intriguing part of Compressed Sensing is the decoding There are continuing debates as to which decoding is numerically fastest Some common decoders

USC, 2008 – p. 14/33

Decoding

By far the most intriguing part of Compressed Sensing is the decoding There are continuing debates as to which decoding is numerically fastest Some common decoders

ℓ1 minimization: Long history (Donoho;

Candes-Romberg)

USC, 2008 – p. 14/33

Decoding

By far the most intriguing part of Compressed Sensing is the decoding There are continuing debates as to which decoding is numerically fastest Some common decoders

ℓ1 minimization: Long history (Donoho;

Candes-Romberg) Greedy algorithms - find support of a good approximation vector and then decode using ℓ2 minimization (Gilbert-Tropp; Needel-Vershynin(ROMP), Donoho (STOMP))

USC, 2008 – p. 14/33

Decoding

By far the most intriguing part of Compressed Sensing is the decoding There are continuing debates as to which decoding is numerically fastest Some common decoders

ℓ1 minimization: Long history (Donoho;

Candes-Romberg) Greedy algorithms - find support of a good approximation vector and then decode using ℓ2 minimization (Gilbert-Tropp; Needel-Vershynin(ROMP), Donoho (STOMP)) Iterative Reweighted Least Squares (Osborne, Daubechies-DeVore-Fornasier-Gunturk)

USC, 2008 – p. 14/33

Decoding

By far the most intriguing part of Compressed Sensing is the decoding There are continuing debates as to which decoding is numerically fastest Some common decoders

ℓ1 minimization: Long history (Donoho;

Candes-Romberg) Greedy algorithms - find support of a good approximation vector and then decode using ℓ2 minimization (Gilbert-Tropp; Needel-Vershynin(ROMP), Donoho (STOMP)) Iterative Reweighted Least Squares (Osborne, Daubechies-DeVore-Fornasier-Gunturk) We shall make some remarks on these decoders emphasizing the last one

USC, 2008 – p. 14/33

Issues in Decoding

Range of Instance Optimality: When combined with encoder does it give full range of instance optimality?

USC, 2008 – p. 15/33

Issues in Decoding

Range of Instance Optimality: When combined with encoder does it give full range of instance optimality? Number of computations to decode?

USC, 2008 – p. 15/33

Issues in Decoding

Range of Instance Optimality: When combined with encoder does it give full range of instance optimality? Number of computations to decode? Robustness to noise?

USC, 2008 – p. 15/33

Issues in Decoding

Range of Instance Optimality: When combined with encoder does it give full range of instance optimality? Number of computations to decode? Robustness to noise? Theorems versus numerical examples

USC, 2008 – p. 15/33

Issues in Decoding

Range of Instance Optimality: When combined with encoder does it give full range of instance optimality? Number of computations to decode? Robustness to noise? Theorems versus numerical examples Instance Optimality in Probability

USC, 2008 – p. 15/33

Issues in Decoding

Range of Instance Optimality: When combined with encoder does it give full range of instance optimality? Number of computations to decode? Robustness to noise? Theorems versus numerical examples Instance Optimality in Probability Given that we cant construct best encoding matrices it seems that the best results would correspond to random draws of matrices

USC, 2008 – p. 15/33

ℓ1 minimization

ℓ1 minimization: x∗ := Argmin

z∈F(y)

zℓ1

USC, 2008 – p. 16/33

ℓ1 minimization

ℓ1 minimization: x∗ := Argmin

z∈F(y)

zℓ1 x∗ = x − η∗ where η∗ := Argmin

η∈N

x − ηℓ1

USC, 2008 – p. 16/33

ℓ1 minimization

ℓ1 minimization: x∗ := Argmin

z∈F(y)

zℓ1 x∗ = x − η∗ where η∗ := Argmin

η∈N

x − ηℓ1

Can be solved by Linear Programming

USC, 2008 – p. 16/33

ℓ1 minimization

ℓ1 minimization: x∗ := Argmin

z∈F(y)

zℓ1 x∗ = x − η∗ where η∗ := Argmin

η∈N

x − ηℓ1

Can be solved by Linear Programming Let T := supp(x)

USC, 2008 – p. 16/33

ℓ1 minimization

ℓ1 minimization: x∗ := Argmin

z∈F(y)

zℓ1 x∗ = x − η∗ where η∗ := Argmin

η∈N

x − ηℓ1

Can be solved by Linear Programming Let T := supp(x) Recall that x is an ℓ1 minimizer if and only if

|

• i∈T

sign(xi)ηi| ≤

• i∈T c

|ηi|, ∀η ∈ N

USC, 2008 – p. 16/33

ℓ1 minimization

ℓ1 minimization: x∗ := Argmin

z∈F(y)

zℓ1 x∗ = x − η∗ where η∗ := Argmin

η∈N

x − ηℓ1

Can be solved by Linear Programming Let T := supp(x) Recall that x is an ℓ1 minimizer if and only if

|

• i∈T

sign(xi)ηi| ≤

• i∈T c

|ηi|, ∀η ∈ N

If N has the following null space property: there is a

γ < 1 with ηT ℓ1 ≤ γηT cℓ1, ∀η ∈ N, #(T) ≤ k

USC, 2008 – p. 16/33

ℓ1 minimization

ℓ1 minimization: x∗ := Argmin

z∈F(y)

zℓ1 x∗ = x − η∗ where η∗ := Argmin

η∈N

x − ηℓ1

Can be solved by Linear Programming Let T := supp(x) Recall that x is an ℓ1 minimizer if and only if

|

• i∈T

sign(xi)ηi| ≤

• i∈T c

|ηi|, ∀η ∈ N

If N has the following null space property: there is a

γ < 1 with ηT ℓ1 ≤ γηT cℓ1, ∀η ∈ N, #(T) ≤ k

then all x ∈ Σk have unique ℓ1 minimizers equal to x

USC, 2008 – p. 16/33

Orhtogonal Matching Pursuit (OMP)

We seek approximations to y from the dictionary

D := {φ1, . . . , φN} consisting of the columns of Φ

USC, 2008 – p. 17/33

Orhtogonal Matching Pursuit (OMP)

We seek approximations to y from the dictionary

D := {φ1, . . . , φN} consisting of the columns of Φ j1 := Argmax

j=1,···,N

|y, φj|

USC, 2008 – p. 17/33

Orhtogonal Matching Pursuit (OMP)

We seek approximations to y from the dictionary

D := {φ1, . . . , φN} consisting of the columns of Φ j1 := Argmax

j=1,···,N

|y, φj| y1 := z1

j1φj1 with z1 j1 := y, φj1/φj12

USC, 2008 – p. 17/33

Orhtogonal Matching Pursuit (OMP)

We seek approximations to y from the dictionary

D := {φ1, . . . , φN} consisting of the columns of Φ j1 := Argmax

j=1,···,N

|y, φj| y1 := z1

j1φj1 with z1 j1 := y, φj1/φj12

i-th step: {j1, · · · , ji} and yi = i

l=1 zi jlφji the orthogonal

projection of y onto Span{φj1, · · · , φjl}

USC, 2008 – p. 17/33

Orhtogonal Matching Pursuit (OMP)

We seek approximations to y from the dictionary

D := {φ1, . . . , φN} consisting of the columns of Φ j1 := Argmax

j=1,···,N

|y, φj| y1 := z1

j1φj1 with z1 j1 := y, φj1/φj12

i-th step: {j1, · · · , ji} and yi = i

l=1 zi jlφji the orthogonal

projection of y onto Span{φj1, · · · , φjl}

ji+1 := Argmax

j=1,···,N

|ri, φj| where ri := y − yi is the residual

USC, 2008 – p. 17/33

Orhtogonal Matching Pursuit (OMP)

We seek approximations to y from the dictionary

D := {φ1, . . . , φN} consisting of the columns of Φ j1 := Argmax

j=1,···,N

|y, φj| y1 := z1

j1φj1 with z1 j1 := y, φj1/φj12

i-th step: {j1, · · · , ji} and yi = i

l=1 zi jlφji the orthogonal

projection of y onto Span{φj1, · · · , φjl}

ji+1 := Argmax

j=1,···,N

|ri, φj| where ri := y − yi is the residual xi is zi

j1, · · · , zi ji augmented by zeros in the other

coordinates, xi

j = zi j, if j ∈ {j1, · · · , ji}, 0 otherwise.

USC, 2008 – p. 17/33

Results for Decoding for Random Draws

Gilbert and Tropp proved that for Bernouli random matrices, OMP captures a k sparse vector with high probability for the large range of k

USC, 2008 – p. 18/33

Results for Decoding for Random Draws

Gilbert and Tropp proved that for Bernouli random matrices, OMP captures a k sparse vector with high probability for the large range of k Cohen-Dahmen-DeVore extend this to general random families of matrices

USC, 2008 – p. 18/33

Results for Decoding for Random Draws

Gilbert and Tropp proved that for Bernouli random matrices, OMP captures a k sparse vector with high probability for the large range of k Cohen-Dahmen-DeVore extend this to general random families of matrices Are there practical decoders that give instance

• ptimality in ℓ2?

USC, 2008 – p. 18/33

Results for Decoding for Random Draws

Gilbert and Tropp proved that for Bernouli random matrices, OMP captures a k sparse vector with high probability for the large range of k Cohen-Dahmen-DeVore extend this to general random families of matrices Are there practical decoders that give instance

• ptimality in ℓ2?

Wojtaszcek has shown that for Gaussian matrices ℓ1 minimization does the job

USC, 2008 – p. 18/33

Results for Decoding for Random Draws

Gilbert and Tropp proved that for Bernouli random matrices, OMP captures a k sparse vector with high probability for the large range of k Cohen-Dahmen-DeVore extend this to general random families of matrices Are there practical decoders that give instance

• ptimality in ℓ2?

Wojtaszcek has shown that for Gaussian matrices ℓ1 minimization does the job This result rests on a geometric property of Gaussian matrices

USC, 2008 – p. 18/33

Results for Decoding for Random Draws

Gilbert and Tropp proved that for Bernouli random matrices, OMP captures a k sparse vector with high probability for the large range of k Cohen-Dahmen-DeVore extend this to general random families of matrices Are there practical decoders that give instance

• ptimality in ℓ2?

Wojtaszcek has shown that for Gaussian matrices ℓ1 minimization does the job This result rests on a geometric property of Gaussian matrices Namely the image of the unit ℓ1 ball under such matrices will with high probability contain an ℓ2 ball of radius 1/

√ k

USC, 2008 – p. 18/33

General Random Families

Cohen-Dahmen-DeVore

USC, 2008 – p. 19/33

General Random Families

Cohen-Dahmen-DeVore Given an arbitrary ǫ > 0 we can obtain

x − ∆(Φ(x))ℓ2 ≤ Cσk(x)ℓ2 + ǫ

with high probability

USC, 2008 – p. 19/33

General Random Families

Cohen-Dahmen-DeVore Given an arbitrary ǫ > 0 we can obtain

x − ∆(Φ(x))ℓ2 ≤ Cσk(x)ℓ2 + ǫ

with high probability Encoders that attain this

USC, 2008 – p. 19/33

General Random Families

Cohen-Dahmen-DeVore Given an arbitrary ǫ > 0 we can obtain

x − ∆(Φ(x))ℓ2 ≤ Cσk(x)ℓ2 + ǫ

with high probability Encoders that attain this

ℓ1 minimization

USC, 2008 – p. 19/33

General Random Families

Cohen-Dahmen-DeVore Given an arbitrary ǫ > 0 we can obtain

x − ∆(Φ(x))ℓ2 ≤ Cσk(x)ℓ2 + ǫ

with high probability Encoders that attain this

ℓ1 minimization

Greedy thresholding: at each iteration take all coordinates for which the inner product

r, φν ≥ δrℓ2/ √ k where r is the residual

USC, 2008 – p. 19/33

General Random Families

Cohen-Dahmen-DeVore Given an arbitrary ǫ > 0 we can obtain

x − ∆(Φ(x))ℓ2 ≤ Cσk(x)ℓ2 + ǫ

with high probability Encoders that attain this

ℓ1 minimization

Greedy thresholding: at each iteration take all coordinates for which the inner product

r, φν ≥ δrℓ2/ √ k where r is the residual

Here δ > 0 is a fixed threshold parameter

USC, 2008 – p. 19/33

Other Possible Decoders

We seek other possible decoding algorithms which may be faster

USC, 2008 – p. 20/33

Other Possible Decoders

We seek other possible decoding algorithms which may be faster Here we add in the knowledge of our Compressed Sensing setting - the RIP property for Φ

USC, 2008 – p. 20/33

Other Possible Decoders

We seek other possible decoding algorithms which may be faster Here we add in the knowledge of our Compressed Sensing setting - the RIP property for Φ We have also discussed the least squares problem

¯ x := Argmin

z∈F(y)

zℓ2 = Argmin

η∈N

x − ηℓ2

USC, 2008 – p. 20/33

Other Possible Decoders

We seek other possible decoding algorithms which may be faster Here we add in the knowledge of our Compressed Sensing setting - the RIP property for Φ We have also discussed the least squares problem

¯ x := Argmin

z∈F(y)

zℓ2 = Argmin

η∈N

x − ηℓ2

We know this does not work well

USC, 2008 – p. 20/33

Other Possible Decoders

We seek other possible decoding algorithms which may be faster Here we add in the knowledge of our Compressed Sensing setting - the RIP property for Φ We have also discussed the least squares problem

¯ x := Argmin

z∈F(y)

zℓ2 = Argmin

η∈N

x − ηℓ2

We know this does not work well However it is easy to compute

¯ x = Φt[ΦΦt]−1Φx = Φt[ΦΦt]−1y

USC, 2008 – p. 20/33

Other Possible Decoders

We seek other possible decoding algorithms which may be faster Here we add in the knowledge of our Compressed Sensing setting - the RIP property for Φ We have also discussed the least squares problem

¯ x := Argmin

z∈F(y)

zℓ2 = Argmin

η∈N

x − ηℓ2

We know this does not work well However it is easy to compute

¯ x = Φt[ΦΦt]−1Φx = Φt[ΦΦt]−1y O(Nn2) arithmetic operations

USC, 2008 – p. 20/33

Weighted Least Squares

Consider weighted ℓ2 minimization.

USC, 2008 – p. 21/33

Weighted Least Squares

Consider weighted ℓ2 minimization. Let wj > 0, j = 1, . . . , N be a positive weight

USC, 2008 – p. 21/33

Weighted Least Squares

Consider weighted ℓ2 minimization. Let wj > 0, j = 1, . . . , N be a positive weight

uℓ2(w) := N

j=1 wju2 j

1/2

USC, 2008 – p. 21/33

Weighted Least Squares

Consider weighted ℓ2 minimization. Let wj > 0, j = 1, . . . , N be a positive weight

uℓ2(w) := N

j=1 wju2 j

1/2 u, vw := N

j=1 wjujvj

USC, 2008 – p. 21/33

Weighted Least Squares

Consider weighted ℓ2 minimization. Let wj > 0, j = 1, . . . , N be a positive weight

uℓ2(w) := N

j=1 wju2 j

1/2 u, vw := N

j=1 wjujvj

Define x(w) := Argmin

z∈F(y)

zℓ2(w)

USC, 2008 – p. 21/33

Weighted Least Squares

Consider weighted ℓ2 minimization. Let wj > 0, j = 1, . . . , N be a positive weight

uℓ2(w) := N

j=1 wju2 j

1/2 u, vw := N

j=1 wjujvj

Define x(w) := Argmin

z∈F(y)

zℓ2(w) x(w) = x − η(w) where η(w) := Argmin

η∈N

x − ηℓ2(w)

USC, 2008 – p. 21/33

Weighted Least Squares

Consider weighted ℓ2 minimization. Let wj > 0, j = 1, . . . , N be a positive weight

uℓ2(w) := N

j=1 wju2 j

1/2 u, vw := N

j=1 wjujvj

Define x(w) := Argmin

z∈F(y)

zℓ2(w) x(w) = x − η(w) where η(w) := Argmin

η∈N

x − ηℓ2(w)

Note that this solution is characterized by the

• rthogonality conditions x(w), ηw = 0,

η ∈ N

USC, 2008 – p. 21/33

Weighted Least Squares

Consider weighted ℓ2 minimization. Let wj > 0, j = 1, . . . , N be a positive weight

uℓ2(w) := N

j=1 wju2 j

1/2 u, vw := N

j=1 wjujvj

Define x(w) := Argmin

z∈F(y)

zℓ2(w) x(w) = x − η(w) where η(w) := Argmin

η∈N

x − ηℓ2(w)

Note that this solution is characterized by the

• rthogonality conditions x(w), ηw = 0,

η ∈ N

We can again solve for x(w) in O(Nn2) operations

USC, 2008 – p. 21/33

Connections

Suppose x∗ ∈ I

RN is the ℓ1 minimizer from F(y) and T = supp(x∗)

USC, 2008 – p. 22/33

Connections

Suppose x∗ ∈ I

RN is the ℓ1 minimizer from F(y) and T = supp(x∗)

If wj = |x∗

j|−1, j ∈ T then

x(w) = x∗

USC, 2008 – p. 22/33

Connections

Suppose x∗ ∈ I

RN is the ℓ1 minimizer from F(y) and T = supp(x∗)

If wj = |x∗

j|−1, j ∈ T then

x(w) = x∗

If x∗ has full support then ℓ1 minimization means that

(sign(xi))N

i=1 is orthogonal to N

USC, 2008 – p. 22/33

Connections

Suppose x∗ ∈ I

RN is the ℓ1 minimizer from F(y) and T = supp(x∗)

If wj = |x∗

j|−1, j ∈ T then

x(w) = x∗

If x∗ has full support then ℓ1 minimization means that

(sign(xi))N

i=1 is orthogonal to N

For least squares we have wix∗

i = sign(x∗ i ) and so x∗

satisfies the weighted ℓ2 orthogonality conditions.

USC, 2008 – p. 22/33

Connections

Suppose x∗ ∈ I

RN is the ℓ1 minimizer from F(y) and T = supp(x∗)

If wj = |x∗

j|−1, j ∈ T then

x(w) = x∗

If x∗ has full support then ℓ1 minimization means that

(sign(xi))N

i=1 is orthogonal to N

For least squares we have wix∗

i = sign(x∗ i ) and so x∗

satisfies the weighted ℓ2 orthogonality conditions. Unique minimizer for these problems shows x(w) = x∗

USC, 2008 – p. 22/33

Iterative Weighted Least Squares

We would like to iteratively choose weights with the result convergence to the ℓ1 minimizer x∗ ∈ F(y)

USC, 2008 – p. 23/33

Iterative Weighted Least Squares

We would like to iteratively choose weights with the result convergence to the ℓ1 minimizer x∗ ∈ F(y) In the process, we want to always deal with strictly convex problems and strictly positive weights

USC, 2008 – p. 23/33

Iterative Weighted Least Squares

We would like to iteratively choose weights with the result convergence to the ℓ1 minimizer x∗ ∈ F(y) In the process, we want to always deal with strictly convex problems and strictly positive weights To do this we introduce the following functional

USC, 2008 – p. 23/33

Iterative Weighted Least Squares

We would like to iteratively choose weights with the result convergence to the ℓ1 minimizer x∗ ∈ F(y) In the process, we want to always deal with strictly convex problems and strictly positive weights To do this we introduce the following functional

J (z, w, ǫ) := 1 2  

N

• j=1

z2

j wj + N

• j=1

(ǫ2wj + w−1

j )

  .

USC, 2008 – p. 23/33

Iterative Weighted Least Squares

We would like to iteratively choose weights with the result convergence to the ℓ1 minimizer x∗ ∈ F(y) In the process, we want to always deal with strictly convex problems and strictly positive weights To do this we introduce the following functional

J (z, w, ǫ) := 1 2  

N

• j=1

z2

j wj + N

• j=1

(ǫ2wj + w−1

j )

  .

We will now describe a recursive algorithm

USC, 2008 – p. 23/33

Iterative Weighted Least Squares

We would like to iteratively choose weights with the result convergence to the ℓ1 minimizer x∗ ∈ F(y) In the process, we want to always deal with strictly convex problems and strictly positive weights To do this we introduce the following functional

J (z, w, ǫ) := 1 2  

N

• j=1

z2

j wj + N

• j=1

(ǫ2wj + w−1

j )

  .

We will now describe a recursive algorithm If z ∈ I

RN we let r(z)K be its K-th largest entry (in

absolute value)

USC, 2008 – p. 23/33

The Algorithm

J (z, w, ǫ) := 1 2  

N

• j=1

z2

j wj + N

• j=1

(ǫ2wj + w−1

j )

  .

USC, 2008 – p. 24/33

The Algorithm

J (z, w, ǫ) := 1 2  

N

• j=1

z2

j wj + N

• j=1

(ǫ2wj + w−1

j )

  .

Initialize: w0 := (1, . . . , 1),

ǫ0 := 1

USC, 2008 – p. 24/33

The Algorithm

J (z, w, ǫ) := 1 2  

N

• j=1

z2

j wj + N

• j=1

(ǫ2wj + w−1

j )

  .

Initialize: w0 := (1, . . . , 1),

ǫ0 := 1 xm+1 := Argmin

z∈F(y)

J (z, wm, ǫm), m = 0, 1, . . .

USC, 2008 – p. 24/33

The Algorithm

J (z, w, ǫ) := 1 2  

N

• j=1

z2

j wj + N

• j=1

(ǫ2wj + w−1

j )

  .

Initialize: w0 := (1, . . . , 1),

ǫ0 := 1 xm+1 := Argmin

z∈F(y)

J (z, wm, ǫm), m = 0, 1, . . . ǫm+1 := min(ǫm, r(xm+1)K

N

),

USC, 2008 – p. 24/33

The Algorithm

J (z, w, ǫ) := 1 2  

N

• j=1

z2

j wj + N

• j=1

(ǫ2wj + w−1

j )

  .

Initialize: w0 := (1, . . . , 1),

ǫ0 := 1 xm+1 := Argmin

z∈F(y)

J (z, wm, ǫm), m = 0, 1, . . . ǫm+1 := min(ǫm, r(xm+1)K

N

), K is a fixed integer to be described

USC, 2008 – p. 24/33

The Algorithm

J (z, w, ǫ) := 1 2  

N

• j=1

z2

j wj + N

• j=1

(ǫ2wj + w−1

j )

  .

Initialize: w0 := (1, . . . , 1),

ǫ0 := 1 xm+1 := Argmin

z∈F(y)

J (z, wm, ǫm), m = 0, 1, . . . ǫm+1 := min(ǫm, r(xm+1)K

N

), K is a fixed integer to be described wm+1 := Argmin

w>0

J (xm+1, w, ǫm+1)

USC, 2008 – p. 24/33

The Algorithm

J (z, w, ǫ) := 1 2  

N

• j=1

z2

j wj + N

• j=1

(ǫ2wj + w−1

j )

  .

Initialize: w0 := (1, . . . , 1),

ǫ0 := 1 xm+1 := Argmin

z∈F(y)

J (z, wm, ǫm), m = 0, 1, . . . ǫm+1 := min(ǫm, r(xm+1)K

N

), K is a fixed integer to be described wm+1 := Argmin

w>0

J (xm+1, w, ǫm+1) wm+1

j

= [(xm+1

j

)2 + ǫ2

m+1]−1/2,

j = 1, . . . , N

USC, 2008 – p. 24/33

Daubechies-DeVore-Fornasier-Gunturk

These authors prove several results on the convergence of the above algorithm

USC, 2008 – p. 25/33

Daubechies-DeVore-Fornasier-Gunturk

These authors prove several results on the convergence of the above algorithm The main result we prove is the following theorem Theorem Let k ≥ 1 and define K = k + 6. We assume that Φ satisfies the Null Space Property for ℓ1 of order 3K for

γ ≤ 1/2. Then, for each x ∈ I RN, y = Φ(x), the Algorithm

converges and its limit ¯

x satisfies x − ¯ xℓ1 ≤ C1σk(x)ℓ1, C1 := 5(1 + γ) 1 − γ .

In particular if x is k-sparse then xm converges to x.

USC, 2008 – p. 25/33

Exponential Convergence

A second theorem shows that the algorithm converges exponentially to x∗ if x∗ ∈ Σk and the starting point is close enough Theorem For a given 0 < ρ < 1, assume Φ satisfies NSP of order 3K with constant γ such that

µ :=

γ 1−ρ

• 1 +

1 K−k

• < 1. Let m0 be such that

xm0 − x∗ℓ1 ≤ R∗ := ρ min

i∈T |xi| = ρ r(x)k.

Then for all m ≥ m0, we have

xm+1 − x∗ℓ1 ≤ µxm − x∗ℓ1

Consequently xm converges to x∗ exponentially.

USC, 2008 – p. 26/33

Exponential Convergence

A second theorem shows that the algorithm converges exponentially to x∗ if x∗ ∈ Σk and the starting point is close enough Theorem For a given 0 < ρ < 1, assume Φ satisfies NSP of order 3K with constant γ such that

µ :=

γ 1−ρ

• 1 +

1 K−k

• < 1. Let m0 be such that

xm0 − x∗ℓ1 ≤ R∗ := ρ min

i∈T |xi| = ρ r(x)k.

Then for all m ≥ m0, we have

xm+1 − x∗ℓ1 ≤ µxm − x∗ℓ1

Consequently xm converges to x∗ exponentially.

USC, 2008 – p. 26/33

Exponential Convergence 2

It is an interesting question whether the algorithm actually converges exponentially to x∗ ∈ Σk from the get go

USC, 2008 – p. 27/33

Exponential Convergence 2

It is an interesting question whether the algorithm actually converges exponentially to x∗ ∈ Σk from the get go This is observed in practice but only proved for one or two supported vectors Theorem Assume Φ satisfies NSP of order 3K with constant γ sufficiently small. Then for any vector x∗ which has support k = 1, 2 there is an absolute constant

C0 and a ρ < 1 such that xm − x∗ℓ1 ≤ C0ρmxℓ1, m = 1, 2, . . .

USC, 2008 – p. 27/33

Proofs of these Results

The proofs of these results are interesting in how they utilize RIP in the form of the Null Space Property

USC, 2008 – p. 28/33

Proofs of these Results

The proofs of these results are interesting in how they utilize RIP in the form of the Null Space Property We shall begin with the proof of the convergence of the algorithm

USC, 2008 – p. 28/33

Proofs of these Results

The proofs of these results are interesting in how they utilize RIP in the form of the Null Space Property We shall begin with the proof of the convergence of the algorithm Before embarking on the proof we want to bring out a certain geometric result on ℓ1 minimization which we shall utilize

USC, 2008 – p. 28/33

Proofs of these Results

The proofs of these results are interesting in how they utilize RIP in the form of the Null Space Property We shall begin with the proof of the convergence of the algorithm Before embarking on the proof we want to bring out a certain geometric result on ℓ1 minimization which we shall utilize As a preliminary we consider the operation of rearrangements

USC, 2008 – p. 28/33

Proofs of these Results

The proofs of these results are interesting in how they utilize RIP in the form of the Null Space Property We shall begin with the proof of the convergence of the algorithm Before embarking on the proof we want to bring out a certain geometric result on ℓ1 minimization which we shall utilize As a preliminary we consider the operation of rearrangements We define r(z) as the rearrangement of the sequence

|zj| into decreasing order. In other words r(z)j is the j-th largest of the |zν|

USC, 2008 – p. 28/33

Rearrangements

Rearrangement is a Lipschitz map on · ℓ∞

USC, 2008 – p. 29/33

Rearrangements

Rearrangement is a Lipschitz map on · ℓ∞ More precisely r(z) − r(z′)ℓ∞ ≤ z − z′ℓ∞

USC, 2008 – p. 29/33

Rearrangements

Rearrangement is a Lipschitz map on · ℓ∞ More precisely r(z) − r(z′)ℓ∞ ≤ z − z′ℓ∞ Moreover, for any j, we have

|σj(z)ℓ1 − σj(z′)ℓ1| ≤ z − z′ℓ1

USC, 2008 – p. 29/33

Rearrangements

Rearrangement is a Lipschitz map on · ℓ∞ More precisely r(z) − r(z′)ℓ∞ ≤ z − z′ℓ∞ Moreover, for any j, we have

|σj(z)ℓ1 − σj(z′)ℓ1| ≤ z − z′ℓ1

For any J > j, we have

(J − j)r(z)J ≤ z − z′ℓ1 + σj(z′)ℓ1

USC, 2008 – p. 29/33

Proof of Rearrangement Lemma

Given z, z′ and j ∈ {1, . . . , N}, let Λ be a set corresponding to the j − 1 largest entries in z′

USC, 2008 – p. 30/33

Proof of Rearrangement Lemma

Given z, z′ and j ∈ {1, . . . , N}, let Λ be a set corresponding to the j − 1 largest entries in z′

r(z)j ≤ max

i∈Λc |zi| ≤ max i∈Λc |z′ i| + z − z′ℓ∞ ≤ r(z′)j + z − z′ℓ∞

USC, 2008 – p. 30/33

Proof of Rearrangement Lemma

Given z, z′ and j ∈ {1, . . . , N}, let Λ be a set corresponding to the j − 1 largest entries in z′

r(z)j ≤ max

i∈Λc |zi| ≤ max i∈Λc |z′ i| + z − z′ℓ∞ ≤ r(z′)j + z − z′ℓ∞

Reverse the roles of z and z′

USC, 2008 – p. 30/33

Proof of Rearrangement Lemma

Given z, z′ and j ∈ {1, . . . , N}, let Λ be a set corresponding to the j − 1 largest entries in z′

r(z)j ≤ max

i∈Λc |zi| ≤ max i∈Λc |z′ i| + z − z′ℓ∞ ≤ r(z′)j + z − z′ℓ∞

Reverse the roles of z and z′ Next we approximate z by the j-term approximation u of

z′ in ℓ1 σj(z)ℓ1 ≤ z − uℓ1 ≤ z − z′ℓ1 + σj(z′)ℓ1,

USC, 2008 – p. 30/33

Proof of Rearrangement Lemma

Given z, z′ and j ∈ {1, . . . , N}, let Λ be a set corresponding to the j − 1 largest entries in z′

r(z)j ≤ max

i∈Λc |zi| ≤ max i∈Λc |z′ i| + z − z′ℓ∞ ≤ r(z′)j + z − z′ℓ∞

Reverse the roles of z and z′ Next we approximate z by the j-term approximation u of

z′ in ℓ1 σj(z)ℓ1 ≤ z − uℓ1 ≤ z − z′ℓ1 + σj(z′)ℓ1,

Again reverse roles of z, z′

USC, 2008 – p. 30/33

Proof of Rearrangement Lemma

Given z, z′ and j ∈ {1, . . . , N}, let Λ be a set corresponding to the j − 1 largest entries in z′

r(z)j ≤ max

i∈Λc |zi| ≤ max i∈Λc |z′ i| + z − z′ℓ∞ ≤ r(z′)j + z − z′ℓ∞

Reverse the roles of z and z′ Next we approximate z by the j-term approximation u of

z′ in ℓ1 σj(z)ℓ1 ≤ z − uℓ1 ≤ z − z′ℓ1 + σj(z′)ℓ1,

Again reverse roles of z, z′

(J − j)r(z)J ≤ σj(z)ℓ1

USC, 2008 – p. 30/33

A Geometric Property

Assume that NSP holds for some k and γ < 1

USC, 2008 – p. 31/33

A Geometric Property

Assume that NSP holds for some k and γ < 1 For any z, z′ ∈ F(y)

z′ − zℓ1 ≤ 1 + γ 1 − γ

• z′ℓ1 − zℓ1 + 2σk(z)ℓ1
• .

USC, 2008 – p. 31/33

Proof of Geometric Property

T the set of indices of the k largest entries in z (z′ − z)T cℓ1 ≤ z′

T cℓ1 + zT cℓ1

= z′ℓ1 − z′

T ℓ1 + σk(z)ℓ1

= zℓ1 + z′ℓ1 − zℓ1 − z′

T ℓ1 + σk(z)ℓ1

≤ zT ℓ1 − z′

T ℓ1 + z′ℓ1 − zℓ1 + 2σk(z)ℓ1

≤ (z′ − z)Tℓ1 + z′ℓ1 − zℓ1 + 2σk(z)ℓ1

USC, 2008 – p. 32/33

Proof of Geometric Property

T the set of indices of the k largest entries in z (z′ − z)T cℓ1 ≤ z′

T cℓ1 + zT cℓ1

= z′ℓ1 − z′

T ℓ1 + σk(z)ℓ1

= zℓ1 + z′ℓ1 − zℓ1 − z′

T ℓ1 + σk(z)ℓ1

≤ zT ℓ1 − z′

T ℓ1 + z′ℓ1 − zℓ1 + 2σk(z)ℓ1

≤ (z′ − z)Tℓ1 + z′ℓ1 − zℓ1 + 2σk(z)ℓ1

Using NSP (z′ − z)T ℓ1

≤ γ(z′−z)T cℓ1 ≤ γ((z′−z)Tℓ1+z′ℓ1−zℓ1+2σk(z)ℓ1)

USC, 2008 – p. 32/33

Proof Continued

In other words,

(z′ − z)T ℓ1 ≤ γ 1 − γ (z′ℓ1 − zℓ1 + 2σk(z)ℓ1).

USC, 2008 – p. 33/33

Proof Continued

In other words,

(z′ − z)T ℓ1 ≤ γ 1 − γ (z′ℓ1 − zℓ1 + 2σk(z)ℓ1).

Finally

z′ − zℓ1 = (z′ − z)T cℓ1 + (z′ − z)Tℓ1 ≤ 1 + γ 1 − γ (z′ℓ1 − zℓ1 + 2σk(z)ℓ1),

USC, 2008 – p. 33/33
