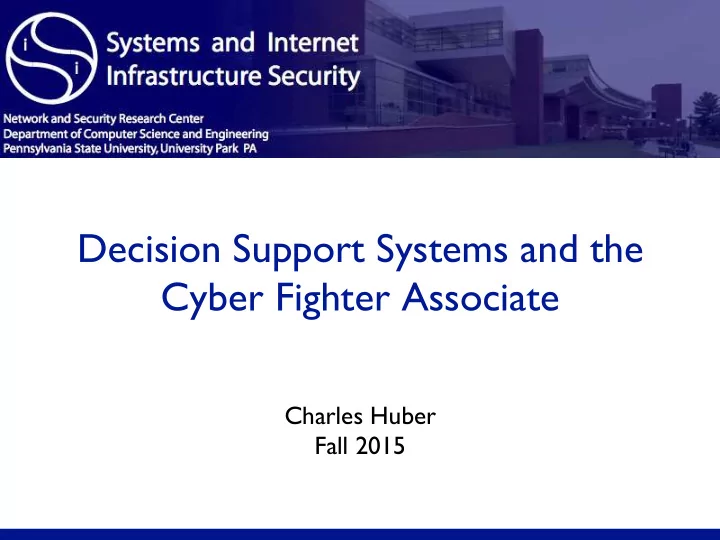

Decision Support Systems and the Cyber Fighter Associate

Charles Huber Fall 2015

Page

Decision Support Systems

• Intelligent systems that help make difficult decisions
• Suggest actions to a user
• Composed of three interdependent systems
• Database Management System
• Where the information is kept
• Model-base Management System
• Where the information is fed
• Makes decisions based on model rules and links
• Dialog Generation Management System
• Output to the user

Page

How It’s Made

• These systems usually have many sensors that gather

data from the environment

• Sensor data is stored in the DBMS and filtered through

the MBMS

• Often MBMS takes the form of a graph
• MBMS passes its decision to DGMS to be displayed to

user

• User very often will feed more information to sensors

and begin the cycle again

Page

Circular Thinking

• The generally accepted decision-making process in the

military is the OODA loop

• Observe
• Orient
• Decide
• Act

Observes'and'Extracts' data'from'world'and' converts'to'world'states' Output'being'intelligent' decisions'and'ac8ons' Uses'knowledge'bases'to' reason'about'informa8on' with'output'of'intelligent' decisions'and'ac8ons' Searches'and'monitors'for' significant'events'in'data' and'responds'to'events'

OODA$Loop$

Orient Decide Act Observe

Page

OODA

• Observe – Gathering of data about the environment

from sensors

• Orient – Filter data from the sensors into a form that

is usable for decision making

• What is the meaning of the data?
• Decide – Determine what options are available with

the given orientation.

• Create plans and goals given the state of the environment
• Act – Do something that alters the environment
• In DSS this usually takes the form of suggestions to a user

Page

Now What?

• How do you implement such a system?
• Cognitive engines
• Cognitive engines are systems designed to think
• Given the right set of rules a cognitive engine can be

programmed to think a certain way.

• The Solomon Engine by Veloxiti Inc. uses two different

graphs to “think”

• Graphs basically define a rule set for how data is filtered and

how plans and goals are created.

Page

Solomon the Wise

• The Solomon Engine uses two graphs to create its

thinking structure

• Conveniently named the Observe-Orient graph (OOG) and

the Decide-Act graph (DAG)

• Uses links to pass information between nodes in the same

graph

• Uses monitors to pass information between graphs most of

the time (more later)

• Monitors and links have virtually the same functionality but

monitors are more powerful

• The Solomon Engine provides its own output provider

Page

What’s Missing?

• The OOG and the DAG make up the MBMS
• The output provider makes up the DGMS
• The designer must implement his/her own DBMS
• This way DB can be structured to how the MB wants inputs.
• Database can be a completely separate entity from the

Solomon Engine entirely

Page

A Few More Things

• The Solomon Engine uses a Domain Specific Language

(DSL) for its coding

• Language has strong ties to Java (and JavaScript really)
• Nodes in the OOG and DAG take the form of *.kb

files

• *.kb files are then compiled into Java classes
• Xbase identifiers used in front of variables inside nodes
• “keys” are values that must be set for a node to be created
• “attributes” are just normal variables
• Can be Null

Page

Links and Monitors

• Connections between nodes in graphs
• Links connect nodes in same graph
• Monitors connect nodes in different graphs or connect plans

to goals in the same graph

• Contain some basic methods
• Links use compute setKeys, compute setAttributes,

constraints

• Monitors use same update methods except constraint

functions are different

• Constraints
• Links use update, childRevoke, linkRevoke
• Monitors use fire instead of update

Page

The OOG

• Consists of data structure called beliefs
• Used to filter data
• Each belief must have at least one key
• Beliefs are connected using links
• Multiple parent beliefs can be linked to the same child belief

Page

The OOG

Page

The DAG

• Consists of data structures called Plans and Goals
• Follows two basic rules
• “In order to be satisfied, all of a plan’s child goals must be

satisfied”

• “Any of a goal’s child plans should be sufficient for satisfying

the goal”

• The DAG can end up rather large due to these two rules
• Graph looks like a decision tree with Plan nodes as the leaves
• Must have a root Plan. This plan must have at least one key

and must be made when the engine is instantiated in code

• Actions live on Plan nodes

Page

The DAG

Page

On To The Good Stuff

• Has the Solomon Engine been used successfully before?
• Yes! The Pilot’s Associate and more recently the Warfighter

Associate

• The Warfighter Associate draws information from a

variety of sensors

• Voice communication, text messages, weather sensors, UAV’s
• Outputs suggestions for a variety of scenarios
• IEDs, injured soldiers, enemy troop movements, etc.

Page

The Cyber Domain

• Idea is to bring OODA loop into the cyber domain
• The Cyber Fighter Associate (CyFiA) will eventually be

a DSS that aids network admin and analysts in thwarting cyber attacks

• Currently CyFiA runs on a simulation using the

network simulator NS-3

• Makes network agility decisions to stop and eradicate

malware from a network

• Turn based simulation

Page

Agility Maneuvers

• Four maneuvers
• Patching – Distribute and implement a patch from some other

node

• Healing – Software patches itself
• Quarantining – Functionality that is affected by malware

becomes unusable

• IP Blocking – Node connections are removed to stop

malware from spreading

Page

Decisions Decisions

• How do we determine which maneuver to pick?
• CyFiA is programmed to have priorities
• Nodes have different attributes such as Security, Health,

Capability, Batter Life, etc.

• Choose an attribute to prioritize and do that calculation first
• For our simulation sake we focused primarily on

maximizing node Health and Capability while minimizing Energy Costs (Battery Drain)

• Order matters
• CyFiA needs to know which calculation to prioritize

Page

Operation Priority

• In the military, there may be an overall operation

priority

• Defend Network, Prioritize Critical Nodes, All Services

Available, etc.

• CyFiA allows for two operational priorities
• Critical Nodes First (CNF) or Lowest Health First (LHF)
• The operational priority cannot be changed
• Calculation priorities can be changed

Page

Experiments

• Used a small tactical network of 10 nodes
• All nodes exactly the same
• Chose a two nodes – one infected, one immune (has

the patch)

• NS-3 would send information to CyFiA, CyFiA would

respond with an agility maneuver

• Continues until all nodes have been patched

Page

How’d We Do?

• The point of a DSS is to make informed decisions

faster

• Try to make CyFiA so its decisions are as good as the optimal

solution

• Optimal Solution:
• Highest average network health, security, and capability
• So what are the values for optimal in a case like this?
• Assign values to health, capability, and security (0, 25, 50, 75,

100)

• We did an exhaustive search using NS-3 to determine the

best values we could obtain by patching

• 400+ cases

Page

How’d We Do?

• Test CyFiA in 4 scenarios
• CNF with priority of health
• CNF with priority of capability
• LHF with priority of health
• LHF with priority of capability
• CyFiA managed to patch the network optimally for all
• f our test cases
• Good Right?
• Maybe.

Page

Problems/Future Research

• Our simulation is only one simple scenario
• Malware is not the only attack on a computer system or

network

• Battery Life does not drain quickly
• Turn based system needs to go
• But NS-3 is so fast, so how do we find a timing balance so

that it seems like someone is actually attacking the network?

• How do we decide what agility maneuver to perform?
• Currently uses battery life to determine agility maneuver
• This might not always cause the best case. What if we need

to plan ahead?

Page

CyFiA OOG

Page

CyFiA DAG

Page

Simulation Network

Page

Experiment Setup
