Decision-making for integrated energy systems 10th DS&OR Forum, Paderborn, 01/07/2017 Daniela Guericke ( dngk@dtu.dk ) Ignacio Blanco Henrik Madsen Technical University of Denmark Department of Applied Mathematics and Computer Science The

slide-1

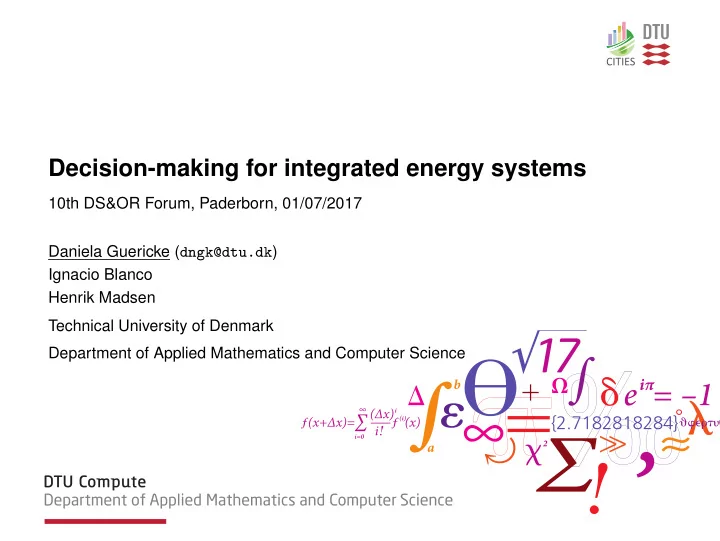

SLIDE 1

Decision-making for integrated energy systems

10th DS&OR Forum, Paderborn, 01/07/2017 Daniela Guericke (dngk@dtu.dk) Ignacio Blanco Henrik Madsen Technical University of Denmark Department of Applied Mathematics and Computer Science

slide-2
SLIDE 2

The CITIES Project

funded by Det Strategiske Forskningsr˚ ad through the CITIES research center (no.1035-00027B)

CITIES = Center for IT-Intelligent Energy Systems in Cities and many partners from Danish Industry as well as international companies and research institutions www.smart-cities-centre.org

2 Department of Applied Mathematics and Computer Science Decision-making for integrated energy systems 23.3.2018

slide-3
SLIDE 3

The CITIES Project

The central hypothesis of CITIES is that by intelligently integrating currently distinct energy flows (heat, power, gas and biomass) in urban environments, we can enable large shares of renewables, and consequently obtain substantial reductions in CO2 emissions. Intelligent integration will enable lossless virtual storage.

3 Department of Applied Mathematics and Computer Science Decision-making for integrated energy systems 23.3.2018

slide-4
SLIDE 4

The CITIES Project

Appliance Building District

City

Country Continent

Geographical Scale Complexity

Data

Communication Optimisation

Models Power

Integration based on data and IT solutions leading to models and methods for planning and operation of future flexible energy systems

4 Department of Applied Mathematics and Computer Science Decision-making for integrated energy systems 23.3.2018

slide-5
SLIDE 5

The CITIES Project

5 Department of Applied Mathematics and Computer Science Decision-making for integrated energy systems 23.3.2018

slide-6
SLIDE 6

The CITIES Project

  Project’s Methodology and Results

6 Department of Applied Mathematics and Computer Science Decision-making for integrated energy systems 23.3.2018

slide-7
SLIDE 7

CITIES WP7 - Decision-making and Support Methods

Objectives:

  • 1. Development of decision-making models for the optimal market participation of

energy companies

  • 2. Using the decision-making models to perform cost/benefit analyses for smart cities

Methods:

  • Decision-making under uncertainty (stochastic programming, robust optimization)
  • Large-scale optimization (decomposition, heuristics)

7 Department of Applied Mathematics and Computer Science Decision-making for integrated energy systems 23.3.2018

slide-8
SLIDE 8

CITIES WP7 - Decision-making and Support Methods

Application areas:

  • Planning problems of energy companies
  • Evaluation of energy systems

with special focus on:

  • Energy systems integration (mostly power and heat)
  • Flexibility and controllability of those sources
  • Portfolios of energy sources
  • Different sources of uncertainty

8 Department of Applied Mathematics and Computer Science Decision-making for integrated energy systems 23.3.2018

slide-9
SLIDE 9

Work in progress

Decision support methods for

  • Biomass supply planning
  • Optimal heat production in district heating systems

9 Department of Applied Mathematics and Computer Science Decision-making for integrated energy systems 23.3.2018

slide-10
SLIDE 10

Work in progress

Decision support methods for

  • Biomass supply planning
  • Optimal heat production in district heating systems

Common background

  • Combined Heat and Power (CHP) plants (Heizkraftwerk)
  • District heating (Fernw¨

arme)

9 Department of Applied Mathematics and Computer Science Decision-making for integrated energy systems 23.3.2018

slide-11
SLIDE 11

Combined heat and power plants

  • produce electricity and warm water at the same time
  • are connected the electricity grid and the district heating network
  • in our case fueled by biomass

Biomass Boiler

~

Power Generation Extraction Turbine

Pmax Pmin Qmax

10 Department of Applied Mathematics and Computer Science Decision-making for integrated energy systems 23.3.2018

slide-12
SLIDE 12

Biomass supply planning

For a large scale producer the biomass is delivered based on supplier contracts which often have a runtime of one year. Our goal is to determine the optimal portfolio of biomass contracts minimizing the costs and taking uncertainty into account.

11 Department of Applied Mathematics and Computer Science Decision-making for integrated energy systems 23.3.2018

slide-13
SLIDE 13

Biomass supply planning

Biomass Boiler Biomass Storage

~

Power Generation Heat Exchanger Extraction Turbine Pump Gas Boiler Heat Tank Storage Cold Water from DH Hot Water to DH Natural Gas from Pipeline

CHP plant

12 Department of Applied Mathematics and Computer Science Decision-making for integrated energy systems 23.3.2018

slide-14
SLIDE 14

Biomass supply planning

Biomass Storage

Biomass contracts

  • The biomass can be delivered by a number of suppliers
  • Each supplier offers one or more contracts defining the

minimum and maximum amount of biomass per delivery, the total number of deliveries and frequency

Biomass storage

  • The biomass storage has a capacity and the maximum in-

and outflow is restricted per period

13 Department of Applied Mathematics and Computer Science Decision-making for integrated energy systems 23.3.2018

slide-15
SLIDE 15

Biomass supply planning

Extraction-condensing CHP unit

Biomass Boiler

~

Power Generation Extraction Turbine

Pmax Pmin Qmax

  • Technical characteristics and limitations (e.g. min. up and down time, ramping

constraints, capacity)

  • Commitment status

14 Department of Applied Mathematics and Computer Science Decision-making for integrated energy systems 23.3.2018

slide-16
SLIDE 16

Biomass supply planning

Gas Boiler Natural Gas from Pipeline

Heat Tank Storage

Gas Boiler

  • Handles heat demand peaks
  • Gas is bought instantaneously from the gas grid at

the natural gas spot price

  • Technical characteristics and limitations of the gas

boiler (e.g. capacity)

  • Cheaper heat production than the CHP

Heat storage

  • Stores heat that can be supplied to the DH

network

  • Provides some flexibility to the system
  • Is limited in capacity and flow

15 Department of Applied Mathematics and Computer Science Decision-making for integrated energy systems 23.3.2018

slide-17
SLIDE 17

Biomass supply management

Objective Cost minimization

  • biomass supply
  • operation

... and always satisfying the heat demand Uncertainty

  • Heat demand
  • Electricity prices
  • Natural gas prices

16 Department of Applied Mathematics and Computer Science Decision-making for integrated energy systems 23.3.2018

slide-18
SLIDE 18

Biomass supply mass

Heat demand

5000 10000 15000 20000 25000 5 10 15 20 25 30 Time [hours] Heat Demand [MWht]

18 Department of Applied Mathematics and Computer Science Decision-making for integrated energy systems 23.3.2018

slide-19
SLIDE 19

Biomass supply planning

Stochastic programming with scenarios for heat demand, electricity prices and gas prices Hybrid model combining stochastic programming and robust

  • ptimization
  • Heat demand scenarios
  • Confidence intervals for gas and electricity prices, due to variability.

50 100 150 20 40 60 80 100 Power prices for 1 week in June Time [hours] Power Price [Euro−MWhe] Estimate Price 95% Confidence Interval Forecasts from ARIMA(2,0,1)(1,0,1)[7] 500 1000 1500 2000 2500 10 15 20 25 30 35 40 45 Price [Euro−MWh] Time [hours] 5000 10000 15000 20000 25000 5 10 15 20 25 30 Time [hours] Heat Demand [MWht]

19 Department of Applied Mathematics and Computer Science Decision-making for integrated energy systems 23.3.2018

slide-20
SLIDE 20

Biomass supply planning

Decision stages

Selection of biomass contracts and delivery weeks Operation of CHP plant and gas boiler in scenario 2 Operation of CHP plant and gas boiler in scenario 1 Operation of CHP plant and gas boiler in scenario Ω

. . .

20 Department of Applied Mathematics and Computer Science Decision-making for integrated energy systems 23.3.2018

slide-21
SLIDE 21

Biomass supply planning

Integrated model:

  • Time scale: Hourly for one year
  • Long computation times due to complexity
  • Apply decomposition techniques to reduce computation time

Two-phase approach:

  • Divide in yearly planning and weekly planning
  • Forecasts can be updated every week
  • Loss of optimization potential, but closer to planning in practice

21 Department of Applied Mathematics and Computer Science Decision-making for integrated energy systems 23.3.2018

slide-22
SLIDE 22

Biomass supply planning

Two-phase approach

Long-term planning Selection of biomass contracts based on heat demand scenarios

  • Time scale: 1 year with weekly

resolution

  • Without most of the technical

requirements

Operational planning Weekly production scheduling

  • Time scale: 1 week with hourly

resolution

  • Higher level of detail
  • Uncertainty of heat demand,

electricity price and gas price

Resembles the planning process in practice

22 Department of Applied Mathematics and Computer Science Decision-making for integrated energy systems 23.3.2018

slide-23
SLIDE 23

Optimal heat production in district heating systems

Demo project with EMD International A/S and ENFOR A/S

CHP CHP TS TS SC SC FB FB EB EB HP HP

Heating Grid Power Grid

23 Department of Applied Mathematics and Computer Science Decision-making for integrated energy systems 23.3.2018

slide-24
SLIDE 24

Optimal heat production in district heating systems

1-stage decisions: Unit commitment for slow dispatchable units Participation in electricity market 2-stage decisions: Unit commitment of fast dis- patchable units Based on forecasts regarding:

  • Heat demand
  • Solar thermal production
  • Electricity price

Reactive decisions based on realizations of uncertainty

24 Department of Applied Mathematics and Computer Science Decision-making for integrated energy systems 23.3.2018

slide-25
SLIDE 25

Optimal heat production in district heating systems

Requirements Heat demand fulfillment Technical requirements of the producing units Thermal storage characteristics Costs Network

Operational planning Operational planning

CHP CHP TS TS SC SC FB FB EB EB HP HP Heating Grid Power Grid

25 Department of Applied Mathematics and Computer Science Decision-making for integrated energy systems 23.3.2018

slide-26
SLIDE 26

Optimal heat production in district heating systems

Methodology Two-stage stochastic program Depending on the complexity and runtime experiments → Decomposition techniques or heuristic solution approaches

26 Department of Applied Mathematics and Computer Science Decision-making for integrated energy systems 23.3.2018

slide-27
SLIDE 27

Summary

CITIES aims at IT-intelligent solutions for integrated energy systems CITIES WP 7 addresses decision making and planning problems for in companies in smart cities / integrated energy systems with special focus on uncertainties We are currently addressing two planning problems

  • Biomass supply planning for CHP plants
  • Optimal operation of production in district

heating networks

Contact: Daniela Guericke dngk@dtu.dk (+45) 45253428 Department of Applied Mathematics and Computer Science Technical University of Denmark www.smart-cities-centre.org www.citiesinnovation.org www.compute.dtu.dk

27 Department of Applied Mathematics and Computer Science Decision-making for integrated energy systems 23.3.2018
