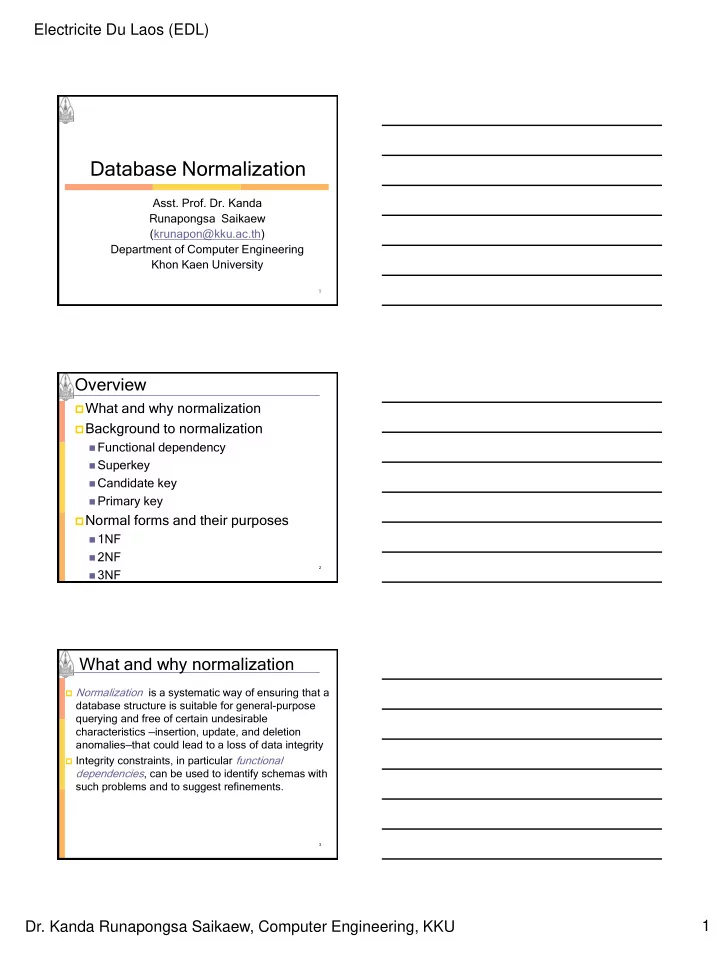

SLIDE 1

Electricite Du Laos (EDL)

Dr. Kanda Runapongsa Saikaew, Computer Engineering, KKU

1

Asst. Prof. Dr. Kanda

Runapongsa Saikaew (krunapon@kku.ac.th) Department of Computer Engineering Khon Kaen University

Database Normalization

2

Overview

What and why normalization Background to normalization

Functional dependency Superkey Candidate key Primary key

Normal forms and their purposes

1NF 2NF 3NF

3

What and why normalization

 Normalization is a systematic way of ensuring that a

database structure is suitable for general-purpose querying and free of certain undesirable characteristics —insertion, update, and deletion anomalies—that could lead to a loss of data integrity

 Integrity constraints, in particular functional

dependencies, can be used to identify schemas with such problems and to suggest refinements.

SLIDE 2

Electricite Du Laos (EDL)

Dr. Kanda Runapongsa Saikaew, Computer Engineering, KKU

2

Normalized tables

Informally, a relational database table

is often described as "normalized" if it is in the third normal form (3NF)

Most 3NF tables are free of insertion,

update, and deletion anomalies, i.e. in most cases 3NF tables adhere to BCNF, 4NF, and 5NF (but typically not 6NF)

4

When we apply normalization

A standard piece of database design

guidance is that the designer should begin by fully normalizing the design

Selectively denormalize only in places

where doing so is absolutely necessary to address performance issues

Some modeling disciplines, such as the

dimensional modeling approach to data warehouse design, explicitly recommend non-normalized designs

5 6

Functional dependency

 Functional dependency: Attribute B has a

functional dependency on attribute B (i.e., A -> B)

 If, for each value of attribute A, there is exactly one

value of attribute B

 If value of A is repeating in tuples then value of B

will also repeat In our example, branch address and

branch phone number has a functional dependency on branch no.

SLIDE 3

Electricite Du Laos (EDL)

Dr. Kanda Runapongsa Saikaew, Computer Engineering, KKU

3

7

All instance that satisfies AB  C

A B C D a1 b1 c1 d1 a1 b1 c1 d2 a1 b2 c2 d1 a2 b1 c3 d1

8

Trivial functional dependency

 Trivial functional dependency A trivial functional dependency is a

functional dependency of attribute of a superset of itself

Examples

{Branch No, Branch Address} -> {Branch

Address}

 {Branch Address} -> {Branch Address}

Full functional dependency

 An attribute is fully functional dependency

n a set of attributes X if it is

Functionally dependent on X, and Not functionally dependent on any

proper subset of X

 Example: {Employee Address} has a functional

dependency on {Employee ID, Skill}, but not a full functional dependency because it is also dependent on {Employee ID}

9

SLIDE 4

Electricite Du Laos (EDL)

Dr. Kanda Runapongsa Saikaew, Computer Engineering, KKU

4

Transitive dependency

Transitive dependency is an indirect

functional dependency, one in which X→Z only by virtue

f X→Y and Y→Z

Example:

Employee ID -> Employee office Employee office -> Employee phone Employee ID -> Employee phone

10

Superkey

Superkey

A superkey is an attribute or set of

attributes that uniquely identifies rows within a table

Two distinct rows are always guaranteed to

have distinct superkeys

Example

 {Employee ID, Salary, Year} would be a

superkey for the {Employee ID, Salary, Bonus, Year} table

{Employee ID, Year} would also be a

superkey

11

Candidate key

Candidate key is a minimal superkey,

that is, a superkey for which we can say that no proper subset of it is also a superkey

Example:

{Employee ID, Year} would be a

candidate key for the table {Employee ID, Salary, Bonus, Year} table.

12

SLIDE 5

Electricite Du Laos (EDL)

Dr. Kanda Runapongsa Saikaew, Computer Engineering, KKU

5

Non-prime attribute

A non-prime attribute is an attribute

that does not occur in any candidate key

Bonus would be a non-prime attribute

in the "Employees' Bonus" table.

13

Primary key

Most DBMSs require a table to be

defined as having a single unique key, rather than a number of possible unique keys

A primary key is a candidate key

which the database designer has designated for this purpose

14 15

Example: Constraints on Entity Set

 Consider relation obtained from Hourly_Emps:

 Hourly_Emps (ssn, name, lot, rating, hrly_wages,

hrs_worked)

 Notation: We will denote this relation schema by

listing the attributes: SNLRWH

 This is really the set of attributes {S,N,L,R,W,H}.  Sometimes, we will refer to all attributes of a relation by

using the relation name. (e.g., Hourly_Emps for SNLRWH)

 Some FDs on Hourly_Emps:

 ssn is the key:

S  SNLRWH

 rating determines hrly_wages:

R  W

SLIDE 6

Electricite Du Laos (EDL)

Dr. Kanda Runapongsa Saikaew, Computer Engineering, KKU

6

16

Data redundancy example1 (1/3)

ssn name lot rating Hr_Wages Hr_Worked 1 A 48 8 10 40 2 B 22 8 10 30 3 C 35 5 7 30 4 D 35 5 7 32 5 E 35 8 10 40

17

Data redundancy example1 (2/3)

Redu

dunda ndant nt Stora rage ge: The rating value 8 corresponds to the hourly wage 10, and this association is repeated three times

Upda

date e Anoma malie lies: s: The hourly_wages in the first tuple could be updated without making a similar change in the second tuple

18

Data redundancy example1 (3/3)

 Inserti

rtion Anomalies: We cannot insert a tuple for an employee unless we know the hourly wage for the employee‟s rating value

 Deletion A

Anomalies: If we delete all tuples with a given rating value (e.g., we delete the tuples for C and D) we lose the association between the rating value and its hourly_wage value

SLIDE 7

Electricite Du Laos (EDL)

Dr. Kanda Runapongsa Saikaew, Computer Engineering, KKU

7

19

Decompositions (1/2)

Redundancy arises when a relational

schema forces an association between attributes that is not natural.

Functional dependencies can be used

to identify such situations and suggest refinement to the schema

20

Decompositions (2/2)

 The essential idea is that many problems

arising from redundancy can be addressed by replacing a relation with a collection of „smaller‟ relations

 R consists of replacing the relation

schema by two (or more) relation schemas that each contain a subset of attributes of R and together include all attributes in R

21

Examples

We can decompose Hourly_Emps

into two relations:

Hourly_Emps2(ssn, name, lot, rating,

hours_worked)

Wages(rating, hourly_wages)

This is more efficient than updating

several tuples (as in the original design), and it eliminates the potential for inconsistency

SLIDE 8

Electricite Du Laos (EDL)

Dr. Kanda Runapongsa Saikaew, Computer Engineering, KKU

8

Data redundancy example2

22

Redundant Storage: the branchNo B001 and B002 corresponds to their branchAddress and telNo are repeated

Example2 Problem

 Update Anomalies: If we change address of

Tom Daniels, we also need to change address of Sally Adams

 Insertion Anomalies: We cannot insert a

tuple for a staff unless we know the address and phone number of the branch of that stuff

 Deletion Anomalies: If we delete all tuples

with a given branch value (e.g., we delete the tuples for branch B002) we lose the association between the branch and its address and phone number

23

Example2 Solution

24

SLIDE 9

Electricite Du Laos (EDL)

Dr. Kanda Runapongsa Saikaew, Computer Engineering, KKU

9

25

Normal Forms (1/2)

Given a relation schema, we need to

decide whether it is a good design or we need to decompose it into smaller relations

To provide such guidance, several

normal forms have been proposed

26

Normal Forms (2/2)

The normal forms based on FDs are

first normal form (1NF), second normal form (2NF), and third normal form (3NF)

Every relation in 3NF is also in 2NF Every relation in 2NF is also in 1NF

First Normal Form (1NF)

A relation is in first normal form if

every field contains only atomic values, that is, no lists or sets

This requirement is implicit in our

definition of the relation model

Table faithfully represents

a relation and has no "repeating groups"

27

SLIDE 10

Electricite Du Laos (EDL)

Dr. Kanda Runapongsa Saikaew, Computer Engineering, KKU

10

Branch Table is not in 1NF

28

Converting Branch Table into 1NF

29

Second normal form (2NF)

2NF only applies to tables with

composite primary keys.

No non-prime attribute in the table

is functionally dependent on a part (proper subset) of a candidate key

30

SLIDE 11

Electricite Du Laos (EDL)

Dr. Kanda Runapongsa Saikaew, Computer Engineering, KKU

11

TempStaffAllocation Table is not in 2NF

31

Formal Definition of 2NF

Formal definition of 2NF is a table

that is in 1NF and every non-prime attribute is fully functional dependent

n the primary key

Full functional dependency indicates

that if A and B are columns of a table, B is fully dependent on A if B is functionally dependent on A but not

n any proper subset of A

32

Converting TempStaffAllocation table to 2NF

33

SLIDE 12

Electricite Du Laos (EDL)

Dr. Kanda Runapongsa Saikaew, Computer Engineering, KKU

12

Third Normal Form (3NF)

A table that is in 1NF and 2NF and in

which all non-prime attributes can be derived from only the primary key column(s) and no other columns

The formal definition of 3NF is a table

that is in 1NF and 2NF and in which no non-prime attributes is transitively dependent on the primary key

34

StaffBranch table is not in 3NF

35

Converting StaffBranch table to 3NF

36

SLIDE 13

Electricite Du Laos (EDL)

Dr. Kanda Runapongsa Saikaew, Computer Engineering, KKU

13

Summary (1/2)

Norma

rmaliz lizati ation

n is a systematic way of

ensuring that a database structure is suitable for general-purpose querying

Free of certain undesirable

characteristics—insertion, update, and deletion anomalies—that could lead to a loss of data integrity

Informally, a relational database table

is often described as "normalized" if it is in the 3NF

37

Summary (2/2)

1NF: Table faithfully represents

a relation and has no "repeating groups"

2NF: No non-prime attribute in the

table is functionally dependent on a part (proper subset) of a candidate key

3NF: Every non-prime attribute is

non-transitively dependent on every key of the table

38
