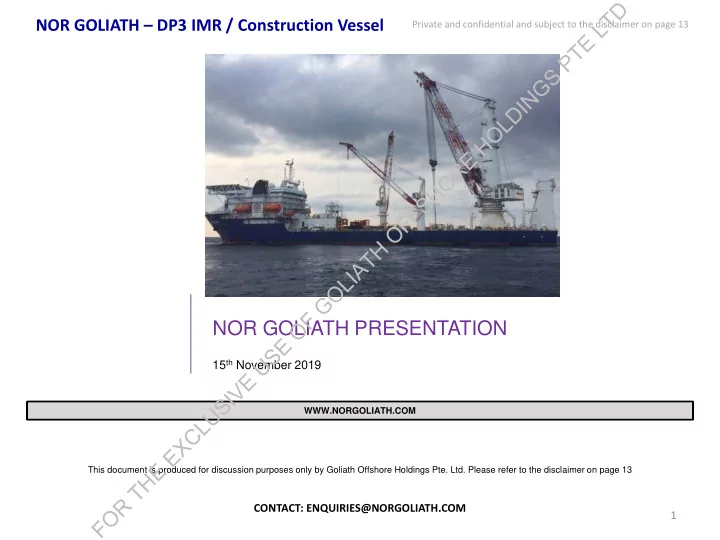

NOR GOLIATH – DP3 IMR / Construction Vessel

NOR GOLIATH PRESENTATION

15th November 2019 1

This document is produced for discussion purposes only by Goliath Offshore Holdings Pte. Ltd. Please refer to the disclaimer on page 13 WWW.NORGOLIATH.COM

CONTACT: ENQUIRIES@NORGOLIATH.COM

F O R T H E E X C L U S I V E U S E O F G O L I A T H O F F S H O R E H O L D I N G S P T E L T D

slide-2
SLIDE 2

Private and confidential and subject to the disclaimer on page 13

NOR GOLIATH – DP3 IMR / Construction Vessel

Table of Contents

3 Vessel Specifications 4 - 5 Crane & DP Systems Specifications 7 - 8 2017 / 2018 Lifts 9 - 10 Photos 11 General Arrangement 6 Engine & Deck Specifications

2

12 Ownership Structure

CONTACT: ENQUIRIES@NORGOLIATH.COM

13 Disclaimer

F O R T H E E X C L U S I V E U S E O F G O L I A T H O F F S H O R E H O L D I N G S P T E L T D

slide-3
SLIDE 3

Private and confidential and subject to the disclaimer on page 13

NOR GOLIATH – DP3 IMR / Construction Vessel Vessel Specifications

  • Length (overall)

590.6 ft (180.0 m)

  • Width

105.0 ft (32.0 m)

  • Draft (design/max)

24.6 ft (7.5 m)

  • Draft (mean)

21.3 ft (6.5 m)

  • Draft (max with retractable thrusters extended)

38.0 ft (11.6 m)

  • Class

ABS + A1 + E + AMS + ACCU + ICE CO + ✠DP3 + HELIDECK + ES + FiFi 2

  • Registered tonnage (gross)

25,812

  • Registered tonnage (net)

7,743

  • Registry

Marshall Islands

  • Year built

2009

  • Shipbuilder

Drydocks World Pertama

  • Accommodation

296 people

  • Helideck Dimensions

75.5 ft (23.0 m) diameter designed for Sikorsky S61N

  • Survey status

10 year ABS survey completed

  • Managing company

V.Ships Limited

  • Registered owning company

Goliath Offshore Holdings PTE Ltd

3 CONTACT: ENQUIRIES@NORGOLIATH.COM
