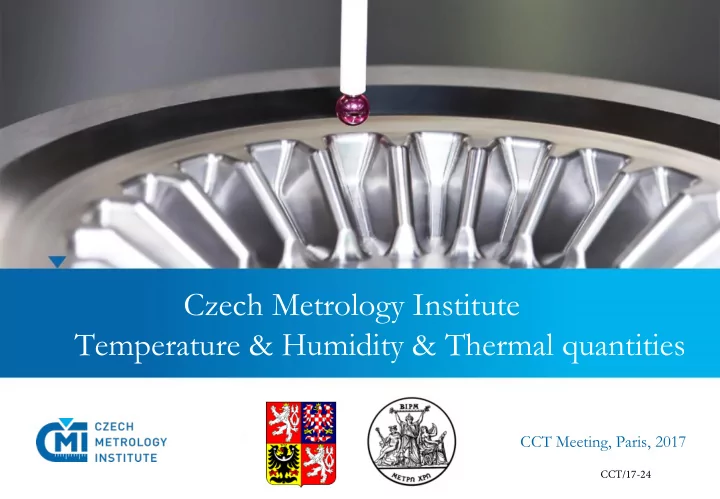

Czech Metrology Institute Temperature & Humidity & Thermal quantities

CCT Meeting, Paris, 2017

CCT/17-24

2

Contact Thermometry

• Contact thermometry:
• ITS-90 temperature scale - Ar, Hg, TPW

, Ga, In, Sn, Zn, Al- Cu, Al, Ag-Cu, Ag, Au, Cu, Pd, Pt

• Measurements by comparison (-80 °C to 1800 °C) - alcohol,

water, oil and salt baths, different types of furnaces with blocks (dry well)

• Whole range CMC and Accreditation

3

Contact Thermometry - Alternative fixed points

Experiment with:

• CO2
• Al-Cu
• I2

Inflex 𝑢Al−Cu = 548.137 ± 0.004 °C 1/F 𝑢Al−Cu = 548.149 ± 0.003 °C CO2 −56.564 ± 0,002 °C CO2 7h plateau, 80g Inflex 𝑢I2 = 113.290 ± 0.006 °C 1/F 𝑢I2 = 113.293 ± 0.003 °C

4

Contact Thermometry - Doping experiments

CO2 −56.564 ± 0,002 °C CO2 7h plateo, 80g

• Sheill calculation of c, m, k
• Modified Sheill
• Inflex x end point
• Proper mixing x waiting

time

• Doping as pure or oxide
• Ga with Ni, Pb
• Al with Ni, Pb
• 0.15
• 0.10
• 0.05

0.00 0.05 0.10 0.15 Ga0 Ga1 Ga2 Ga3 Ga4 Difference from Ga113 (mK) 10.9.2014 12.9.2014 26.9.2013

𝑈

𝑔,𝑗𝑛𝑞 𝐺 ≈ 𝑈 𝑔 − 𝐿 𝑔 𝑦𝑗𝑛𝑞,𝑚 𝑙0 − 1 𝐺𝑙0−1 + 𝐿 𝑔 𝑦𝑗𝑛𝑞,𝑚 𝑙0 − 1

1 − 𝐺 𝑙0−1

5 CO2 −56.564 ± 0,002 °C 5

y = 269.81x + 3.8624 y = 291.47x - 98.272

• 600.0
• 400.0
• 200.0

0.0 200.0 400.0 600.0 800.0 1 000.0 0.0 1.0 2.0 3.0 Temperature diff (µK) Concentration (µmol/mol) Rault µK inflex µK Optimalisation µK

Raoult μK

y = -131.35x + 136.4 y = -143.82x + 159.21

• 10000
• 9000
• 8000
• 7000
• 6000
• 5000
• 4000
• 3000
• 2000
• 1000

1000 20 40 60 80 Temperature diff (µK) Concentration (µmol/mol) Rault µK inflex µK Optimalisation µK

• 0.060
• 0.040
• 0.020

0.000 0.020 0.040 0.060 10 20 30 Temperature diff (°C) Concentration (µmol/mol) Rault Inflex voltage Inflex temperature Optimalisation

• 0.100
• 0.080
• 0.060
• 0.040
• 0.020

0.000 0.020 0.040 0.060 0.080 0.0 20.0 40.0 60.0 Temperature diff (°C) Concentration (µmol/mol) Rault Inflex voltage Inflex temperature Optimalisation

Raoult μK

Contact Thermometry - Doping experiments

Raoult μK Raoult μK

6

Non – contact thermometry

• Fixed points
• In, Sn, Al and Cu
• LP5 (650 nm and 1.6 µm)
• Traceability for lower temperatures (<1000 °C)
• SPRT
• Pt-Au
• 2015 – establishments of the radiation

thermometry national standard in range (-30 to 1800) °C

• Whole range CMC and Accreditation (-30 °C

to 1800 °C)

7

Humidity

Property Type 1 Type 2 Specification Specification Medium air, nitrogen, methane, natural gas air Pressure 101.325 kPa to 15 MPa atmospheric Dew point (-70 to +40) °C (-50 to +20) °C Uncertainty (k=2) (0.08 to 0.5) °C (0.14 to 0.3) °C

8

Thermal quantities- improvements

High-Temperaure Guarded Hot Plate (HTGHP)

• high-temperature thermal conductivity

measurements for insulating materials

• old heater plates are being replaced
• investigation of new suitable material for

heater plates up to 850 °C

• was employed in EMRP Thermo inter-

laboratory comparisons (2016)

• using new high-temperature reference

material developed in this project

9

Thermal quantities- improvements

Small Guarded Hot Plate (SGHP)

• new apparatus
• employed in European

metrology projects (EMRP VITCEA, EMPIR Eura- Thermal)

• enables thermal conductivity

measurements for composite materials, ceramics, etc.

• double/single specimen
• temperature range (0 to 80) °C

10

Thermal quantities- improvements

Adiabatic calorimeter

• heat capacity measurements
• minor upgrades performed
• employed in EMPIR VITCEA for heat capacity measurements of

composite materials (CFRPs/GFRPs)

• temperature range ~(0 to 80) °C

11

Areas of interests

• Industrial thermometry
• Using of alternative methods for uncertainty propagation in

interpolation

• Radiation thermometry for temperatures lower than 1000 °C
• Thermal imagers
• Humidity generators at elevated pressure
• High temperature Guarded hot plates for insulation materials

THANK YOU FOR YOUR ATTENTION!
