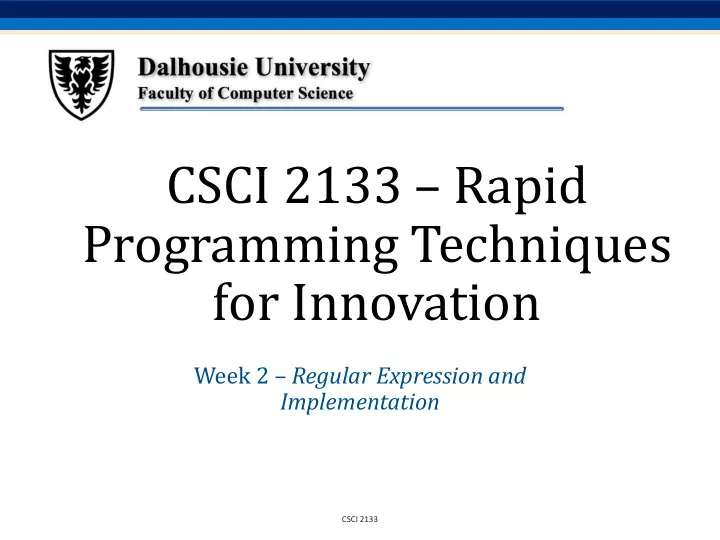

CSCI 2133 – Rapid Programming Techniques for Innovation

Week 2 – Regular Expression and Implementation

CSCI 2133

Previous Lecture

• About the course project
• Choosing a topic, defining scope, and forming

a team

• Preparing design document (P0)
• Planning the process
• Interfaces, choices, tools
• About background knowledge: Java, C, Linux

command line

CSCI 2133

Regular Expressions

• Covered in CSCI 2132
• We will now look at a basic implementation
• They illustrate a good general tool used in software

development and different implementations

• An implementation is described in the textbook

[Kernighan and Pike, sec. 9.2, p. 222]

• Regular expressions are pervasive in Unix environments,

but not so much in other platforms

• There are different flavours of RegEx’es; we can start

with grep

CSCI 2133

What Is a Regular Expression?

• A regular expression (regex) describes a set of

possible input strings.

• Regular expressions descend from a fundamental

concept in Computer Science called finite automata theory

• Regular expressions are endemic to Unix
• vi, ed, sed, and emacs
• awk, tcl, perl and Python
• grep, egrep, fgrep
• compilers

CSCI 2133

What is a regular expression?

/[a-zA-Z_\-]+@(([a-zA-Z_\-])+\.)+[a-zA-Z]{2,4}/

• regular expression ("regex"): describes a pattern of

text

• can test whether a string matches the expr's pattern
• can use a regex to search/replace characters in a string
• very powerful, but tough to read
• regular expressions occur in many places:
• text editors (TextPad) allow regexes in search/replace
• languages: JavaScript; Java Scanner, String split
• Unix/Linux/Mac shell commands (grep, sed, find, etc.)

CSCI 2133

UNIX Tools rocks.

match

UNIX Tools sucks.

match

UNIX Tools is okay.

no match regular expression

c k s

CSCI 2133

Regular Expressions

• A regular expression can match a string in more

than one place.

Scrapple from the apple.

match 1 match 2 regular expression

a p p l e

CSCI 2133

Regular Expressions

• The . regular expression can be used to match any

character.

For me to poop on.

match 1 match 2 regular expression

• .

CSCI 2133

Character Classes

• Character classes [] can be used to match any

specific set of characters.

beat a brat on a boat

match 1 match 2 regular expression

b [eor] a t

match 3

CSCI 2133

Negated Character Classes

• Character classes can be negated with the [^]

syntax.

beat a brat on a boat

match regular expression

b [^eo] a t

CSCI 2133

More About Character Classes

• [aeiou] will match any of the characters a, e, i, o,
• r u
• [kK]orn will match korn or Korn
• Ranges can also be specified in character classes
• [1-9] is the same as [123456789]
• [abcde] is equivalent to [a-e]
• You can also combine multiple ranges
• [abcde123456789] is equivalent to [a-e1-9]
• Note that the - character has a special meaning in a

character class but only if it is used within a range, [-123] would match the characters -, 1, 2, or 3

CSCI 2133

Named Character Classes

• Commonly used character classes can be referred

to by name (alpha, lower, upper, alnum, digit, punct, cntrl)

• Syntax [:name:]
• [a-zA-Z]

[[:alpha:]]

• [a-zA-Z0-9]

[[:alnum:]]

• [45a-z]

[45[:lower:]]

• Important for portability across languages

CSCI 2133

Anchors

• Anchors are used to match at the beginning or end of a line (or both).
• ^ means beginning of the line
• $ means end of the line

CSCI 2133

beat a brat on a boat

match regular expression

^ b [eor] a t

regular expression

b [eor] a t $ beat a brat on a boat

match

^$ ^word$

CSCI 2133

Repetition

• The * is used to define zero or more occurrences of

the single regular expression preceding it.

CSCI 2133

I got mail, yaaaaaaaaaay!

match regular expression

y a * y For me to poop on.

match regular expression

• a * o

.*

CSCI 2133

Match length

Scrapple from the apple.

no yes regular expression

a . * e

• A match will be the longest string that satisfies the

regular expression.

no

CSCI 2133

Question

• Can you utilize the knowledge learned by now to

specify one regex to represent phone numbers: 123-234-3455, (123)-234-2344, (123)123-2345, ( 212) 123 - 23445?

18

CSCI 2133

Repetition Ranges

• Ranges can also be specified
• { } notation can specify a range of repetitions for the

immediately preceding regex

• {n} means exactly n occurrences
• {n,} means at least n occurrences
• {n,m} means at least n occurrences but no more than

m occurrences

• Example:
• .{0,} same as .*
• a{2,} same as aaa*

CSCI 2133

Subexpressions

• If you want to group part of an expression so that *
• r { } applies to more than just the previous

character, use ( ) notation

• Subexpresssions are treated like a single character
• a* matches 0 or more occurrences of a
• abc* matches ab, abc, abcc, abccc, …
• (abc)* matches abc, abcabc, abcabcabc, …
• (abc){2,3} matches abcabc or abcabcabc

CSCI 2133

grep

• grep comes from the ed (Unix text editor) search

command “global regular expression print” or g/re/p

• This was such a useful command that it was written

as a standalone utility

• There are two other variants, egrep and fgrep that

comprise the grep family

• grep is the answer to the moments where you

know you want the file that contains a specific phrase but you can’t remember its name

CSCI 2133

Family Differences

• grep - uses regular expressions for pattern

matching

• fgrep - file grep, does not use regular expressions,
• nly matches fixed strings but can get search

strings from a file

• egrep - extended grep, uses a more powerful set of

regular expressions but does not support backreferencing, generally the fastest member of the grep family

• agrep – approximate grep; not standard

CSCI 2133

Syntax

• Regular expression concepts we have seen so far are

common to grep and egrep.

• grep and egrep have slightly different syntax
• grep: BREs
• egrep: EREs (enhanced features we will discuss)
• Major syntax differences:
• grep: \( and \), \{ and \}
• egrep: ( and ), { and }

CSCI 2133

Protecting Regex Metacharacters

• Since many of the special characters used in regexs

also have special meaning to the shell, it’s a good idea to get in the habit of single quoting your regexs

• This will protect any special characters from being
• perated on by the shell
• If you habitually do it, you won’t have to worry about

when it is necessary

CSCI 2133

Escaping Special Characters

• Even though we are single quoting our regexs so the

shell won’t interpret the special characters, some characters are special to grep (eg * and .)

• To get literal characters, we escape the character with

a \ (backslash)

• Suppose we want to search for the character

sequence a*b*

• Unless we do something special, this will match zero or

more ‘a’s followed by zero or more ‘b’s, not what we want

• a\*b\* will fix this - now the asterisks are treated as

regular characters

CSCI 2133

Egrep: Alternation

• Regex also provides an alternation character | for

matching one or another subexpression

• (T|Fl)an will match ‘Tan’ or ‘Flan’
• ^(From|Subject): will match the From and Subject

lines of a typical email message

• It matches a beginning of line followed by either the characters

‘From’ or ‘Subject’ followed by a ‘:’

• Subexpressions are used to limit the scope of the

alternation

• At(ten|nine)tion then matches “Attention” or

“Atninetion”, not “Atten” or “ninetion” as would happen without the parenthesis - Atten|ninetion

CSCI 2133

Egrep: Repetition Shorthands

• The * (star) has already been seen to specify zero
• r more occurrences of the immediately preceding

character

• + (plus) means “one or more”
• abc+d will match ‘abcd’, ‘abccd’, or ‘abccccccd’ but will

not match ‘abd’

• Equivalent to {1,}

CSCI 2133

Egrep: Repetition Shorthands cont

• The ‘?’ (question mark) specifies an optional character, the

single character that immediately precedes it

• July? will match ‘Jul’ or ‘July’
• Equivalent to {0,1}
• Also equivalent to (Jul|July)
• The *, ?, and + are known as quantifiers because they

specify the quantity of a match

• Quantifiers can also be used with subexpressions
• (a*c)+ will match ‘c’, ‘ac’, ‘aac’ or ‘aacaacac’ but will not match

‘a’ or a blank line

CSCI 2133

Grep: Backreferences

• Sometimes it is handy to be able to refer to a

match that was made earlier in a regex

• This is done using backreferences
• \n is the backreference specifier, where n is a number
• Looks for nth subexpression
• For example, to find if the first word of a line is the

same as the last:

• ^\([[:alpha:]]\{1,\}\) .* \1$
• The \([[:alpha:]]\{1,\}\) matches 1 or more

letters

CSCI 2133

Practical Regex Examples

• Variable names in C
• [a-zA-Z_][a-zA-Z_0-9]*
• Dollar amount with optional cents
• \$[0-9]+(\.[0-9][0-9])?
• Time of day
• (1[012]|[1-9]):[0-5][0-9] (am|pm)
• HTML headers <h1> <H1> <h2> …
• <[hH][1-4]>

CSCI 2133

Javascript Regex functions

.match(regexp) returns first match for this string against the given regular expression; if global /g flag is used, returns array of all matches .replace(regexp, text) replaces first occurrence of the regular expression with the given text; if global /g flag is used, replaces all occurrences .search(regexp) returns first index where the given regular expression occurs .split(delimiter[,limit]) breaks apart a string into an array

• f strings using the given regular

as the delimiter; returns the array of tokens

CSCI 2133

grep Family

• Syntax

grep [-hilnv] [-e expression] [filename] egrep [-hilnv] [-e expression] [-f filename] [expression] [filename] fgrep [-hilnxv] [-e string] [-f filename] [string] [filename]

• -h

Do not display filenames

• -i

Ignore case

• -l

List only filenames containing matching lines

• -n

Precede each matching line with its line number

• -v

Negate matches

• -x

Match whole line only (fgrep only)

• -e expression

Specify expression as option

• -f filename

Take the regular expression (egrep) or a list of strings (fgrep) from filename

CSCI 2133

grep Examples

• grep 'men' GrepMe
• grep 'fo*' GrepMe
• egrep 'fo+' GrepMe
• egrep -n '[Tt]he' GrepMe
• fgrep 'The' GrepMe
• egrep 'NC+[0-9]*A?' GrepMe
• fgrep -f expfile GrepMe
• Find all lines with signed numbers

$ egrep ’[-+][0-9]+\.?[0-9]*’ *.c

• bsearch. c: return -1;
• compile. c: strchr("+1-2*3", t-> op)[1] - ’0’, dst,
• convert. c: Print integers in a given base 2-16 (default 10)
• convert. c: sscanf( argv[ i+1], "% d", &base);
• strcmp. c: return -1;
• strcmp. c: return +1;

CSCI 2133

Fun with the Dictionary

• /usr/dict/words contains about 25,000 words
• egrep hh /usr/dict/words
• beachhead
• highhanded
• withheld
• withhold
• egrep as a simple spelling checker: Specify plausible

alternatives you know

egrep "n(ie|ei)ther" /usr/dict/words neither

• How many words have 3 a’s one letter apart?
• egrep a.a.a /usr/dict/words | wc –l
• 54
• egrep u.u.u /usr/dict/words
• cumulus

CSCI 2133

Other Notes

• Use /dev/null as an extra file name
• Will print the name of the file that matched
• grep test bigfile
• This is a test.
• grep test /dev/null bigfile
• bigfile:This is a test.
• Return code of grep is useful
• grep fred filename > /dev/null && rm filename

CSCI 2133

x xyz Ordinary characters match themselves (NEWLINES and metacharacters excluded) Ordinary strings match themselves \m ^ $ . [xy^$x] [^xy^$z] [a-z] r* r1r2 Matches literal character m Start of line End of line Any single character Any of x, y, ^, $, or z Any one character other than x, y, ^, $, or z Any single character in given range zero or more occurrences of regex r Matches r1 followed by r2 \(r\) \n \{n,m\} Tagged regular expression, matches r Set to what matched the nth tagged expression (n = 1-9) Repetition r+ r? r1|r2 (r1|r2)r3 (r1|r2)* {n,m} One or more occurrences of r Zero or one occurrences of r Either r1 or r2 Either r1r3 or r2r3 Zero or more occurrences of r1|r2, e.g., r1, r1r1, r2r1, r1r1r2r1,…) Repetition

fgrep, grep, egrep grep, egrep grep egrep This is one line of text

• .*o

input line regular expression

Quick Reference

CSCI 2133

Grep Regular Expressions

• literal characters match themselves; except

metacharacters: . [ ] * ˆ $ \

• . matches any single character
• [. . . ] matches a character from a set, includes ranges
• [ˆ. . . ] matches any character not from a set, includes

ranges

• * is used for repetition, 0 or more times, after another

regular expression

• \c matches exactly character c unless c is ( ) or a digit
• \( \) is used for tagging, and \1 . . . matches tagged

regular expressions

CSCI 2133

egrep — Extended Regular Expressions

• allows: + ?
• alternation: | and grouping (...)

CSCI 2133

Variations of Regular Expressions in Practice

• grep — basic regular expressions
• egrep — extended regular expressions
• fgrep — a fast grep with on or more fixed

strings (parallel search for many fixed strings)

• agrep — “approximate” grep; search with

errors; not available by default

• many languages use regular expressions;

Perl-style regular expressions

• simple versinos: “wild cards” in shells
• LIKE operator in SQL, Visual Basic, and similar

CSCI 2133

Implementing Regular Expressions

• A basic implementation is relatively simple
• A more efficient implementation would rely on

automata theory and significantly more programming

• If we were to implement the program ‘grep’,

what would be the pseudocode of the main algorithm?

CSCI 2133

/* Basic grep algorithm */ while (get a line) if match(regexpr, line) print line /* Some ideas: Regular expression could be a string or translated to an internal representation suitable for efficient matching match shold try different starting positions in the line */

CSCI 2133

Implementation of ‘match’

• What would be function prototype of ‘match’ in

C?

• How would we implement it if we assume that

we want to handle the anchor ‘ˆ’ as well?

CSCI 2133

/* match: search for regexp anywhere in text */ int match(char *regexp, char *text) { if (regexp[0] == ’ˆ’) return matchhere(regexp+1, text); do {/* must look even if string is empty */ if (matchhere(regexp, text)) return 1; } while (*text++ != ’\0’); return 0; }

CSCI 2133

Matching Exactly at the Start

• How could we implement the function to match

exactly at a specific string position?

• We want to handle a very simple Kleene star.

CSCI 2133

/* matchhere: search for regexp at beginning of text */ int matchhere(char *regexp, char *text) { if (regexp[0] == ’\0’) return 1; if (regexp[1] == ’*’) return matchstar(regexp[0], regexp+2, text); if (regexp[0] == ’$’ && regexp[1] == ’\0’) return *text == ’\0’; if ( *text!=’\0’ && (regexp[0] regexp[0] == == ’.’ || *text) ) return matchhere(regexp+1, text+1); return 0; }

CSCI 2133

Matching with Simple Star Operator

• How could we implement a function to match

with the simple star operator?

CSCI 2133

/* matchstar: search for c*regexp at beginning

• f text */

int matchstar(int c, char *regexp, char *text) { do { /* a* matches zero or more instances */ if (matchhere(regexp, text)) return 1; } while (*text != ’\0’ && (*text++ == c || c == ’.’)); return 0; }

CSCI 2133

Matching with Simple Star Operator

• Does this function make the shortest or longest

match?

CSCI 2133

Matching with Simple Star Operator

• Does this function make the shortest or longest

match?

• It is the shortest match. The longest would be

as follows. ..

CSCI 2133

/* matchstar: leftmost longest search for c*regexp */ int matchstar(int c, char *regexp, char *text) { char *t; for (t = text; *t != ’\0’ && (*t == c || c == ’.’); t++) ; do { /* * matches zero or more */ if (matchhere(regexp, t)) return 1; } while (t-- > text); return 0; }

CSCI 2133

Putting a ‘grep’ together

• How could we put the final grep-like program

together?

• How does grep behave given

– standard input? – one file? – multiple files?

CSCI 2133

int main(int argc, char *argv[]) { int i, nmatch; FILE *f; if (argc < 2) fprintf(stderr, "usage: grep regexp [file ...]"); nmatch = 0; if (argc == 2) { if (grep(argv[1], stdin, NULL)) nmatch++; } else { for (i = 2; i < argc; i++) { f = fopen(argv[i], "r"); if (f == NULL) { fprintf(stderr, "can’t open %s:", argv[i]); continue; }

CSCI 2133

if (grep(argv[1], f, argc>3 ? argv[i] : NULL) > 0) nmatch++; fclose(f); } } return nmatch == 0; }

CSCI 2133

Previous Lecture

• Review of regular expressions
• grep style regular expressions
• egrep and other variations of regular expressions
• an approach to implementing basic regular expressions

5 4

CSCI 2133

Question

• Match vs strstr, which one is faster?

55

CSCI 2133

Regular Expressions grep and egrep

CSCI 2133

Previously

• Basic UNIX Commands
• Files: rm, cp, mv, ls, ln
• Processes: ps, kill
• Unix Filters
• cat, head, tail, tee, wc
• cut, paste
• find
• sort, uniq
• tr

CSCI 2133

Subtleties of commands

• Executing commands with find
• Specification of columns in cut
• Specification of columns in sort
• Methods of input
• Standard in
• File name arguments
• Special "-" filename
• Options for uniq

CSCI 2133

Today

• Regular Expressions
• Allow you to search for text in files
• grep command
• Stream manipulation:
• sed

CSCI 2133

/* grep: search for regexp in file */ int grep(char *regexp, FILE *f, char *name) { int n, nmatch; char buf[BUFSIZ]; nmatch = 0; while (fgets(buf, sizeof buf, f) != NULL) { n = strlen(buf); if (n > 0 && buf[n-1] == ’\n’) buf[n-1] = ’\0’; if (match(regexp, buf)) { nmatch++; if (name != NULL) printf("%s:", name); printf("%s\n", buf); } } return nmatch; } 6

CSCI 2133

Some Important Lessons and Ideas

• Use of tools (grep)
• Notation (regex)
• Don’t worry about performance if it does not

matter

• “Hacking” can improve performance but also

introduce complexity and errors

• Better algorithm can produce a large gain in

performance

• Code profiling (tuning) can help later

6 1

CSCI 2133

Assignment Tasks

• This will be described as a part of Assignment 1
• Put together the C program based on provided code and

prepare a testing package

• Copy and modify code to make version with operators ?

and +

• Write a Java class by translating C code with some

minor additional functionality (likely for A2)

• Write a Java class by translating C code with some

minor additional functionality

• More details will be posted

6 2

CSCI 2133
