[PPT] - CS107: Computing for Math CS107: Computing for Math and Science PowerPoint Presentation

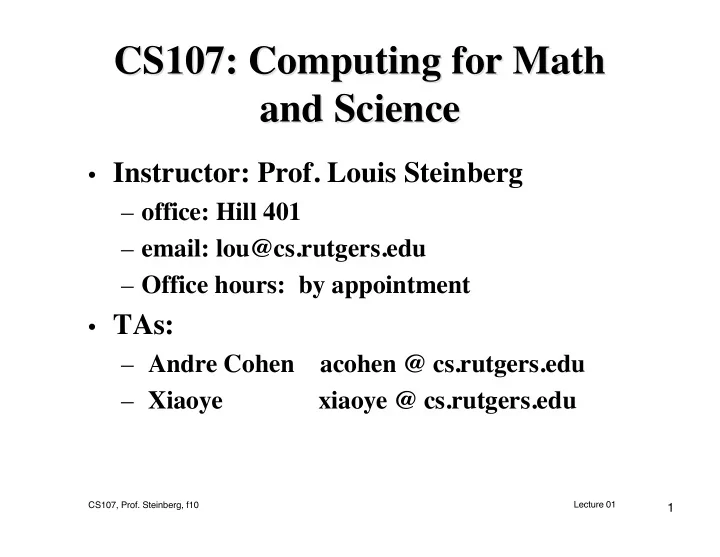

SLIDE 1

CS107, Prof. Steinberg, f10

1

Lecture 01

CS107: Computing for Math CS107: Computing for Math and Science and Science

Instructor: Prof. Louis Steinberg

– office: Hill 401 – email: lou@cs.rutgers.edu – Office hours: by appointment

TAs:

– Andre Cohen acohen @ cs.rutgers.edu – Xiaoye xiaoye @ cs.rutgers.edu

SLIDE 2

CS107, Prof. Steinberg, f10

2

Lecture 01

CS107: Computing for Math CS107: Computing for Math and Science and Science

Instructor: Prof. Apostolos Gerasoulis

– office: Core 328 – email: grasoul@cs.rutgers.edu – Office hours: by appointment

TA:

– Nader Boushehrinejadmoradi naderb@cs.rutgers.edu

SLIDE 3

CS107, Prof. Steinberg, f10

3

Lecture 01

CS107: Computing for Math CS107: Computing for Math and Science and Science

Course will use the computer for

communication and instruction as much as possible

SLIDE 4

CS107, Prof. Steinberg, f10

4

Lecture 01

Class Web Pages Class Web Pages

http://

http://remus remus. .rutgers rutgers. .edu edu/CS107 /CS107

– Policies – Syllabus – Assignments – Lecture notes – etc....

– You are assumed to know anything

posted.

SLIDE 5

CS107, Prof. Steinberg, f10

5

Lecture 01

Class Web Pages Class Web Pages

Sakai:

Sakai: cs cs 107, Fall 2010 107, Fall 2010

– Announcements – Posting grades – Chat room – Etc.

– You are assumed to know anything

posted.

SLIDE 6

CS107, Prof. Steinberg, f10

6

Lecture 01

What is CS107? What is CS107?

A course about using computers
Aimed at majors in Math and Science
After this class you should know
Methods for using the computer that will be useful

for mathematicians & scientists

Some key ideas in computer science
CS 107 does not prepare you to take further

courses in the CS Dept.

SLIDE 7

CS107, Prof. Steinberg, f10

7

Lecture 01

Prerequisite Prerequisite

Calc I

– 640:135 or 151 or 153 or 191 – Grade of C or better

No previous programming experience is

assumed

We will assume you do know how to use a

mouse, web browser, etc.

SLIDE 8

CS107, Prof. Steinberg, f10

8

Lecture 01

Should you take CS107? Should you take CS107?

Math or science major, had calc I: YES
Exceptions:

– Computer Science major or minor: NO

– Except: unsure about CS: MAYBE

– Option B: The Computer-Oriented Mathematics Major: NO

SLIDE 9

CS107, Prof. Steinberg, f10

9

Lecture 01

Grade based on Grade based on

Homework
Midterm exam
In-lecture quizzes
Final exam

SLIDE 10

CS107, Prof. Steinberg, f10

10

Lecture 01

Textbooks Textbooks

Introduction to Scientific Computation and Programming

Daniel T Kaplan Brooks/Cole

The Maple Book

Frank Garman Chapman & Hall/CRC

SLIDE 11

CS107, Prof. Steinberg, f10

11

Lecture 01

What is a computer? What is a computer?

SLIDE 12

CS107, Prof. Steinberg, f10

12

Lecture 01

What is a computer? What is a computer?

A machine that follows instructions
Note the anthropomorphism here

SLIDE 13

CS107, Prof. Steinberg, f10

13

Lecture 01

Anthropomorphism: Anthropomorphism:

Use of a term normally applied to people when speaking of something that is not a person

An analogy
Useful but dangerous

– What is the same – What is different

SLIDE 14

CS107, Prof. Steinberg, f10

14

Lecture 01

How can a machine follow How can a machine follow instructions? instructions?

Example: Washing machine controller

– Controls hot water, cold water, drain, motor

SLIDE 15

CS107, Prof. Steinberg, f10

15

Lecture 01

Hot Wash, Warm Rinse Hot Wash, Warm Rinse

C M D H

Peg No Peg

SLIDE 16

CS107, Prof. Steinberg, f10

16

Lecture 01

Washing Machine Instructions Washing Machine Instructions

A pattern of physical objects (pegs)

– Physically causes the specified behavior

SLIDE 17

CS107, Prof. Steinberg, f10

17

Lecture 01

Computer Computer Instructions Instructions

A pattern of electrical voltages

– Physically causes the specified behavior

5 volts

Random Access Memory

0 volts

SLIDE 18

CS107, Prof. Steinberg, f10

18

Lecture 01

People can read, write, think about the

pattern without really having the pegs

Patterns can be thought of as a language

for expressing washing machine instructions

Washing Machine Language Washing Machine Language

SLIDE 19

CS107, Prof. Steinberg, f10

19

Lecture 01

Anthropomorphism Alert Anthropomorphism Alert

How is washing machine language like a

human (“natural”) language?

How is it different?

SLIDE 20

CS107, Prof. Steinberg, f10

20

Lecture 01

People can read, write, think about the

pattern without really having the voltages

Patterns can be thought of as a language

for expressing computer instructions

Computer Computer Machine Language Machine Language

SLIDE 21

CS107, Prof. Steinberg, f10

21

Lecture 01

Washing Machine Languages Washing Machine Languages

Each washing machine operation does a

very small amount of work

People would find it tedious and error

prone to instruct their washers in this language

So, we have a higher level language

– Warm wash, cold rinse

SLIDE 22

CS107, Prof. Steinberg, f10

22

Lecture 01

Computer Computer Languages Languages

Each computer operation does a

very small amount of work

People would find it tedious and error

prone to instruct their computers in this language

So, we have a higher level language

– Matlab – Java, Basic, Fortran, C, Lisp, ...

SLIDE 23

CS107, Prof. Steinberg, f10

23

Lecture 01

Washing Machine Languages Washing Machine Languages

There is a fixed set of primitive operations

– Hot, Cold, Drain, Motor

And a way of combining operations

– Rows obeyed in sequence

We have to build behavior we want out of

the primitives available

– Hot + Cold => Warm

SLIDE 24

CS107, Prof. Steinberg, f10

24

Lecture 01

Computer Computer Languages Languages

There is a fixed set of primitive operations
And a way of combining operations
We have to build behavior we want out of

the primitives available

SLIDE 25

CS107, Prof. Steinberg, f10

25

Lecture 01

Is a Washing Machine a Is a Washing Machine a Computer? Computer?

A computer is a machine that

follows instructions and processes data

SLIDE 26

CS107, Prof. Steinberg, f10

26

Lecture 01

Data Data

Numbers, words, pictures, …
Data processing

– What Kaplan text calls “computation” – Any process that transforms some data into

ther data, e.g. addition

SLIDE 27

CS107, Prof. Steinberg, f10

27

Lecture 01

Representation Representation

In a computer, data embodied as charge
r voltage

– E.g.: 0 volts means 0, 5 volts means 1 – A “bit”: a 2-way choice, e.g. 0 volts vs 5 volts

Data is represented by groups of bits

– E.g.: 3 bits gives 8 patterns: 000 001 010 011 100 101 110 111

SLIDE 28

CS107, Prof. Steinberg, f10

28

Lecture 01

Translation Translation

Problem: pegs & switches understand
nly machine language
How can we get instructions in higher

level language obeyed?

Translation:

– “warm wash, cold rinse” dial selects a set of pegs

SLIDE 29

CS107, Prof. Steinberg, f10

29

Lecture 01

Translation Translation

Problem: transistors understand only

machine language

How can we get instructions in higher

level language obeyed?

Translation:

– Instructions are also data – A program does the translation

SLIDE 30

CS107, Prof. Steinberg, f10

30

Lecture 01

Grammar Grammar

To make it easier to translate, a program

must have a structure that obeys a grammar

– simple but rigid rules

SLIDE 31

CS107, Prof. Steinberg, f10

31

Lecture 01

A Program A Program

is more like a mechanism you build than a sentence you say.

SLIDE 32

CS107, Prof. Steinberg, f10

32

Lecture 01

Kinds of Knowledge Kinds of Knowledge

Knowing that

– Knowing a fact, e.g. rules of Chess

Knowing how

– Knowing how to use facts to achieve a goal, e.g. how to win at chess

SLIDE 33

CS107, Prof. Steinberg, f10

33

Lecture 01

E.G., Algebra E.G., Algebra

Knowing that

If X = Y then X + a = Y + a

Knowing how

– To solve 3x - 5 = 10, start by adding 5 to both sides of the equation 3x - 5 + 5 = 10 + 5 3*x = 15

SLIDE 34

CS107, Prof. Steinberg, f10

34

Lecture 01

To Construct a Program To Construct a Program

Is 5% “Know that” and 95% “Know how”

SLIDE 35

CS107, Prof. Steinberg, f10

35

Lecture 01

Learning Learning “ “Knowing How Knowing How” ”

The only way to learn “How” is practice
Only way to learn most of the course

material is to do homework

Purpose of lecture and textbook is to

prepare you to do this work

SLIDE 36

CS107, Prof. Steinberg, f10

36

Lecture 01

Extra Help Extra Help

For some people writing a program is very

hard.

– Even some people who do very well in other courses

Extra help will be available

– See Prof. Steinberg or a TA – Do so as soon as possible if you find the homework extremely hard

Everyone should be able to pass this class, with

hard work.

SLIDE 37

CS107, Prof. Steinberg, f10

37

Lecture 01

Matlab Matlab

Matlab is:

– A programming language – A library of programs and pieces – An Interactive Development Environment (IDE)

– A program that helps you build and test programs

SLIDE 38

CS107, Prof. Steinberg, f10

38

Lecture 01

Matlab Matlab as a Calculator as a Calculator

E.g., convert 75 degrees Fahrenheit to

Celsius

E.g. convert $100 to Euros ($1 = .79 Eur.)
E.g. wall area of a room 10’ x 12’ x 8’
Note: precedence
Note: infix vs prefix form
Note: lack of units

SLIDE 39

CS107, Prof. Steinberg, f10

39

Lecture 01

Operations Operations

Plus

+ 4 + 5

Minus
4 - 5
Times

.* 4 .* 5

Divide

./ 4 ./ 5

Power

.^ 4 .^ 5

Square root

sqrt sqrt(4)

Sin

sin sin(4)

… etc.

SLIDE 40

CS107, Prof. Steinberg, f10

40

Lecture 01

Variables Variables

Typically, calculators have a memory;

matlab has many memory cells

Memory cell in matlab is called a

“variable”

A variable has

– a name, e.g. age, year, area, … – a value

SLIDE 41

CS107, Prof. Steinberg, f10

41

Lecture 01

Variables Variables

The first time you type a variable’s name,

Matlab:

– Reserves a space in the computer’s memory – Associates that space with the name you typed

After that, when you type the name,

Matlab uses the associated memory space

SLIDE 42

CS107, Prof. Steinberg, f10

42

Lecture 01

Using Variables Using Variables

To refer to a variable just type its name
Most of the time name means “the value

stored there”

(degreesF - 32) .* 5 ./ 9

To say “store this value here”, use =

degreesF = 72 degreesC = (degreesF - 32) .* 5 ./ 9

SLIDE 43

CS107, Prof. Steinberg, f10

43

Lecture 01

Why use a variable? Why use a variable?

One use: to store an intermediate result

for reuse

discriminant = b.^2-4.a.c b + sqrt(discriminant)/(2.a) b - sqrt(discriminant)/(2.a)

SLIDE 44

CS107, Prof. Steinberg, f10

44

Lecture 01

Why use a variable? Why use a variable?

Another use: in a repetitive computation

– E.g. compute square root of 5. Use a variable named, say, root >> root = 2 root = 2 >> root = (root + 5 ./ root) ./ 2 root = 2.2500 >> root = (root + 5 ./ root) ./ 2 root = 2.2361 >> root .* root ans = 5.0000

SLIDE 45

CS107, Prof. Steinberg, f10

45

Lecture 01

Matlab Matlab Programs Programs

A Matlab program is made up of

statements

– One per line

One kind of statement is:

Assignment statement

SLIDE 46

CS107, Prof. Steinberg, f10

46

Lecture 01

Assignment statement Assignment statement

Purpose: store a piece of data in a variable
Form:

variableName = expression

Meaning:

– Evaluate expression – Store the result in the variable with name variableName – Print the result

SLIDE 47

CS107, Prof. Steinberg, f10

47

Lecture 01

Assignment statement Assignment statement

May end with ; to prevent printing the

value of the expression

degreesF = 72;

SLIDE 48

CS107, Prof. Steinberg, f10

48

Lecture 01

What does this do? What does this do?

x = 4 + 5 y = x + 3 z = 6 .* 2 x = 1 x = x + 3

SLIDE 49

CS107, Prof. Steinberg, f10

49

Lecture 01

What does this do? What does this do?

total = 0; total = total + 5; total = total + 8; total = total + 7

SLIDE 50

CS107, Prof. Steinberg, f10

50

Lecture 01

Getting help Getting help

The help command gets help, e.g. -

> help + gets help on the + operator

Also, under the Help menu, select

Product Help, type sum in “search for” box

SLIDE 51

CS107, Prof. Steinberg, f10

51

Lecture 01
