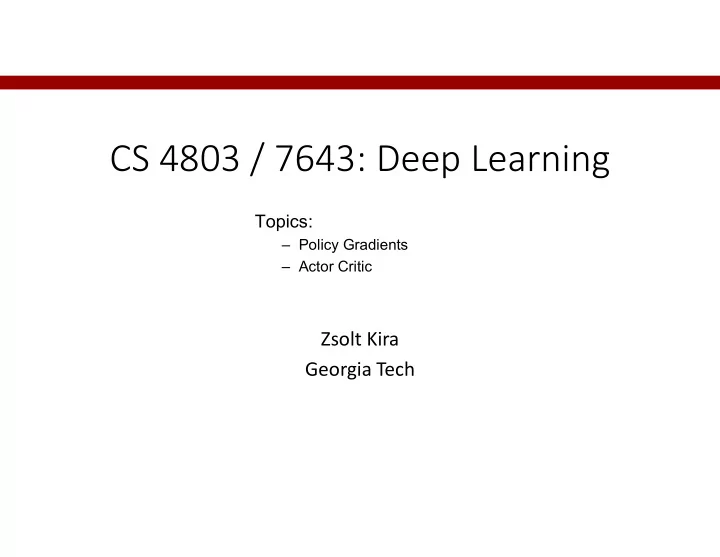

CS 4803 / 7643: Deep Learning

Zsolt Kira Georgia Tech

Topics:

– Policy Gradients – Actor Critic

2

Administrative

• PS3/HW3 due Tuesday 03/31
• PS4/HW4 is optional and due 04/03
• There are lots of bonus/Extra credit questions there!
• Sessions with Facebook for project (fill out spreadsheet)

3

Administrative

• How to ask questions during live lecture:
• Use Q&A window (other students can upvote)
• Raise hands

4

Topics we’ll cover

• Overview of RL
• RL vs other forms of learning
• RL “API”
• Applications
• Framework: Markov Decision Processes (MDP’s)
• Definitions and notations
• Policies and Value Functions
• Solving MDP’s
• Value Iteration (recap)
• Q-Value Iteration (new)
• Policy Iteration
• Reinforcement learning
• Value-based RL (Q-learning, Deep-Q Learning)
• Policy-based RL (Policy gradients)
• Actor-Critic

5

• Markov Decision Processes (MDP):
• States:
• Actions:
• Rewards:
• Transition Function:
• Discount Factor:

Recap: MDPs

6

Value Function

Following policy that produces sample trajectories s0, a0, r0, s1, a1, …

How good is a state? The value function at state s, is the expected cumulative reward from state s (and following the policy thereafter): How good is a state-action pair? The Q-value function at state s and action a, is the expected cumulative reward from taking action a in state s (and following the policy thereafter):

Slide Credit: Fei-Fei Li, Justin Johnson, Serena Yeung, CS 231n

7

Optimal Quantities

Given optimal policy that produces sample trajectories s0, a0, r0, s1, a1, …

How good is a state? The optimal value function at state s, and acting optimally thereafter How good is a state-action pair? The optimal Q-value function at state s and action a, is the expected cumulative reward from taking action a in state s and acting optimally thereafter

Slide Credit: Fei-Fei Li, Justin Johnson, Serena Yeung, CS 231n

8

Recap: Optimal Value Function

The optimal Q-value function at state s and action a, is the expected cumulative reward from taking action a in state s and acting optimally thereafter

9

Recap: Optimal Value Function

The optimal Q-value function at state s and action a, is the expected cumulative reward from taking action a in state s and acting optimally thereafter Optimal policy:

Bellman Optimality Equations

• Relations:
• Recursive optimality equations:

10

Value Iteration (VI)

11 Slide credit: Pieter Abbeel

[NOTE: Here we are showing calculations for the action we know is argmax (go right), but in general we have to calculate this for each actions and return max]

Snapshot of Demo – Gridworld V Values

Noise = 0.2 Discount = 0.9 Living reward = 0

Slide Credit: http://ai.berkeley.edu

Computing Actions from Values

• Let’s imagine we have the optimal values V*(s)
• How should we act?
• It’s not obvious!
• We need to do a one step calculation
• This is called policy extraction, since it gets the policy implied by the

values

Slide Credit: http://ai.berkeley.edu

Snapshot of Demo – Gridworld Q Values

Noise = 0.2 Discount = 0.9 Living reward = 0

Slide Credit: http://ai.berkeley.edu

Computing Actions from Q-Values

• Let’s imagine we have the optimal q-values:
• How should we act?
• Completely trivial to decide!
• Important lesson: actions are easier to select from q-

values than values!

Slide Credit: http://ai.berkeley.edu

Recap: Learning Based Methods

• Typically, we don’t know the environment
• unknown, how actions affect the environment.
• unknown, what/when are the good actions?

17

Recap: Learning Based Methods

• Typically, we don’t know the environment
• unknown, how actions affect the environment.
• unknown, what/when are the good actions?
• But, we can learn by trial and error.
• Gather experience (data) by performing actions.
• Approximate unknown quantities from data.

18

Sample-Based Policy Evaluation?

• We want to improve our estimate of V by computing these averages:
• Idea: Take samples of outcomes s’ (by doing the action!) and average

(s) s s, (s) '

1

s '

2

s '

3

s s, (s),s’ s '

Almost! But we can’t rewind time to get sample after sample from state s.

What’s the difficulty of this algorithm?

Temporal Difference Learning

• Big idea: learn from every experience!
• Update V(s) each time we experience a transition (s, a, s’, r)
• Likely outcomes s’ will contribute updates more often
• Temporal difference learning of values
• Policy still fixed, still doing evaluation!
• Move values toward value of whatever successor occurs: running

average

(s) s s, (s) s’ Sample of V(s): Update to V(s): Same update:

Deep Q-Learning

• Q-Learning with linear function approximators
• Has some theoretical guarantees
• Deep Q-Learning: Fit a deep Q-Network
• Works well in practice
• Q-Network can take RGB images

21

Image Credits: Fei-Fei Li, Justin Johnson, Serena Yeung, CS 231n

• Collect a dataset
• Loss for a single data point:
• Act optimally according to the learnt Q function:

Recap: Deep Q-Learning

22

Target Q-Value Predicted Q-Value Pick action with best Q value

Exploration Problem

• What should

be?

• Greedy? -> Local minimas, no exploration
• An exploration strategy:
• 23

Experience Replay

• Address this problem using experience replay
• A replay buffer stores transitions
• Continually update replay buffer as game (experience)

episodes are played, older samples discarded

• Train Q-network on random minibatches of transitions from

the replay memory, instead of consecutive samples

24 Slide Credit: Fei-Fei Li, Justin Johnson, Serena Yeung, CS 231n

25

Transition function and reward function

Getting to the optimal policy

Use value / policy iteration known Obtain “optimal” policy

26

Transition function and reward function

Getting to the optimal policy

Use value / policy iteration known Estimate Q values From data Obtain “optimal” policy

Previous class: Q - learning

unknown

27

Transition function and reward function

Getting to the optimal policy

Use value / policy iteration known Obtain “optimal” policy Estimate and from data Estimate Q values From data unknown

Homework!

28

Transition function and reward function

Getting to the optimal policy

Use value / policy iteration known Obtain “optimal” policy Estimate and from data Estimate Q values From data unknown unknown

This class!

29

• Class of policies defined by parameters
• Eg: can be parameters of linear transformation, deep network, etc.

Learning the optimal policy

30

• Class of policies defined by parameters
• Eg: can be parameters of linear transformation, deep network, etc.
• Want to maximize:

Learning the optimal policy

31

• Class of policies defined by parameters
• Eg: can be parameters of linear transformation, deep network, etc.
• Want to maximize:
• In other words,

Learning the optimal policy

32

Learning the optimal policy

Sample a few trajectories by acting according to

REINFORCE algorithm

Mathematically, we can write: Where r(𝜐) is the reward of a trajectory

Slide Credit: Fei-Fei Li, Justin Johnson, Serena Yeung, CS 231n

REINFORCE algorithm

Expected reward:

Slide Credit: Fei-Fei Li, Justin Johnson, Serena Yeung, CS 231n

REINFORCE algorithm

Now let’s differentiate this: Expected reward:

Slide Credit: Fei-Fei Li, Justin Johnson, Serena Yeung, CS 231n

REINFORCE algorithm

Intractable! Expectation of gradient is problematic when p depends on θ

Now let’s differentiate this: Expected reward:

Slide Credit: Fei-Fei Li, Justin Johnson, Serena Yeung, CS 231n

REINFORCE algorithm

Intractable! Expectation of gradient is problematic when p depends on θ

Now let’s differentiate this: However, we can use a nice trick: Expected reward:

Slide Credit: Fei-Fei Li, Justin Johnson, Serena Yeung, CS 231n

REINFORCE algorithm

Intractable! Expectation of gradient is problematic when p depends on θ Can estimate with Monte Carlo sampling

Now let’s differentiate this: However, we can use a nice trick: If we inject this back: Expected reward:

Slide Credit: Fei-Fei Li, Justin Johnson, Serena Yeung, CS 231n

REINFORCE algorithm

Can we compute those quantities without knowing the transition probabilities? We have:

Slide Credit: Fei-Fei Li, Justin Johnson, Serena Yeung, CS 231n

REINFORCE algorithm

Can we compute those quantities without knowing the transition probabilities? We have: Thus:

Slide Credit: Fei-Fei Li, Justin Johnson, Serena Yeung, CS 231n

REINFORCE algorithm

Can we compute those quantities without knowing the transition probabilities? We have: Thus: And when differentiating:

Doesn’t depend on transition probabilities!

Slide Credit: Fei-Fei Li, Justin Johnson, Serena Yeung, CS 231n

REINFORCE algorithm

Can we compute those quantities without knowing the transition probabilities? We have: Thus: And when differentiating: Therefore when sampling a trajectory 𝜐, we can estimate J(𝜄) with

Doesn’t depend on transition probabilities!

Slide Credit: Fei-Fei Li, Justin Johnson, Serena Yeung, CS 231n

43

Policy Gradients

Doesn’t depend on Transition probabilities!

44

Policy Gradients

45

Policy Gradients

46

• 1. Sample trajectories by acting according to
• 2. Compute policy gradient as
• 3. Update policy

REINFORCE

Run the policy and sample trajectories Compute policy gradient Update policy Slide credit: Sergey Levine

Pong from pixels

47

Image Credit: http://karpathy.github.io/2016/05/31/rl/

Pong from pixels

48

Image Credit: http://karpathy.github.io/2016/05/31/rl/

Intuition

(C) Dhruv Batra 49

50

Policy Gradients

Formalizes notion of “trial and error”:

• If reward is high, probability of actions seen is increased
• If reward is low, probability of actions seen is reduced
• But in expectation, it averages out

51

Issues with Policy Gradients

• Credit assignment is hard!
• Which specific action led to increase in reward
• Suffers from high variance  leading to unstable training
• How to reduce the variance?
• Subtract a constant from the reward!

52

Issues with Policy Gradients

• Credit assignment is hard!
• Which specific action led to increase in reward
• Suffers from high variance  leading to unstable training
• How to reduce the variance?
• Subtract a constant from the reward!
• Why does it work?
• What is the best choice of b?

Homework!

Variance reduction

Gradient estimator: First idea: Push up probabilities of an action seen, only by the cumulative future reward from that state

Slide Credit: Fei-Fei Li, Justin Johnson, Serena Yeung, CS 231n

Variance reduction

Gradient estimator: First idea: Push up probabilities of an action seen, only by the cumulative future reward from that state Second idea: Use discount factor 𝛿 to ignore delayed effects

Slide Credit: Fei-Fei Li, Justin Johnson, Serena Yeung, CS 231n

55

Issues with Policy Gradients

• Credit assignment is hard!
• Which specific action led to increase in reward
• Suffers from high variance  leading to unstable training

How to choose the baseline?

A better baseline: Want to push up the probability of an action from a state, if this action was better than the expected value of what we should get from that state. Q: What does this remind you of?

Slide Credit: Fei-Fei Li, Justin Johnson, Serena Yeung, CS 231n

How to choose the baseline?

A better baseline: Want to push up the probability of an action from a state, if this action was better than the expected value of what we should get from that state. Q: What does this remind you of? A: Q-function and value function!

Slide Credit: Fei-Fei Li, Justin Johnson, Serena Yeung, CS 231n

How to choose the baseline?

A better baseline: Want to push up the probability of an action from a state, if this action was better than the expected value of what we should get from that state. Q: What does this remind you of? A: Q-function and value function! Intuitively, we are happy with an action at in a state st if is large. On the contrary, we are unhappy with an action if it’s small.

Slide Credit: Fei-Fei Li, Justin Johnson, Serena Yeung, CS 231n

How to choose the baseline?

A better baseline: Want to push up the probability of an action from a state, if this action was better than the expected value of what we should get from that state. Q: What does this remind you of? A: Q-function and value function!

Slide Credit: Fei-Fei Li, Justin Johnson, Serena Yeung, CS 231n

60

• Learn both policy and Q function
• Use the “actor” to sample trajectories
• Use the Q function to “evaluate” or “critic” the policy

Actor-Critic

61

• Learn both policy and Q function
• Use the “actor” to sample trajectories
• Use the Q function to “evaluate” or “critic” the policy
• REINFORCE:
• Actor-critic:

Actor-Critic

62

• Learn both policy and Q function
• Use the “actor” to sample trajectories
• Use the Q function to “evaluate” or “critic” the policy
• REINFORCE:
• Actor-critic:
• Q function is unknown too! Update using

Actor-Critic

63

• Initialize s, (policy network) and (Q network)

Actor-Critic

64

• Initialize s, (policy network) and (Q network)
• sample action

Actor-Critic

65

• Initialize s, (policy network) and (Q network)
• sample action
• For each step:
• Sample reward and next state

Actor-Critic

66

• Initialize s, (policy network) and (Q network)
• sample action
• For each step:
• Sample reward and next state
• evaluate “actor” using “critic”

Actor-Critic

67

• Initialize s, (policy network) and (Q network)
• sample action
• For each step:
• Sample reward and next state
• evaluate “actor” using “critic” and update policy:

Actor-Critic

68

• Initialize s, (policy network) and (Q network)
• sample action
• For each step:
• Sample reward and next state
• evaluate “actor” using “critic” and update policy:
• Update “critic”:
• Recall Q-learning

Actor-Critic

69

• Initialize s, (policy network) and (Q network)
• sample action
• For each step:
• Sample reward and next state
• evaluate “actor” using “critic” and update policy:
• Update “critic”:
• Recall Q-learning
• Update Accordingly
• Actor-Critic

70

Actor-critic

• In general, replacing the policy evaluation or the “critic” leads to

different flavors of the actor-critic

• REINFORCE:
• Q – Actor Critic

How to choose the baseline?

A better baseline: Want to push up the probability of an action from a state, if this action was better than the expected value of what we should get from that state. Q: What does this remind you of? A: Q-function and value function! Intuitively, we are happy with an action at in a state st if is large. On the contrary, we are unhappy with an action if it’s small. Using this, we get the estimator:

Slide Credit: Fei-Fei Li, Justin Johnson, Serena Yeung, CS 231n

72

Actor-critic

• In general, replacing the policy evaluation or the “critic” leads to

different flavors of the actor-critic

• REINFORCE:
• Q – Actor Critic
• Advantage Actor Critic:

“how much better is an action than expected?

73

• Policy Learning:
• Policy gradients
• REINFORCE
• Reducing Variance (Homework!)
• Actor-Critic:
• Other ways of performing “policy evaluation”
• Variants of Actor-critic

Summary
