CROM An Introduction Juan Carlos Mora Radiation Protection for the Public and the Environment CIEMAT Vienna january 27th 2011 Environmental impact assessment Transfer to plants MODEL(S) and animals Release Concentration in foodstuffs

slide-1
SLIDE 1

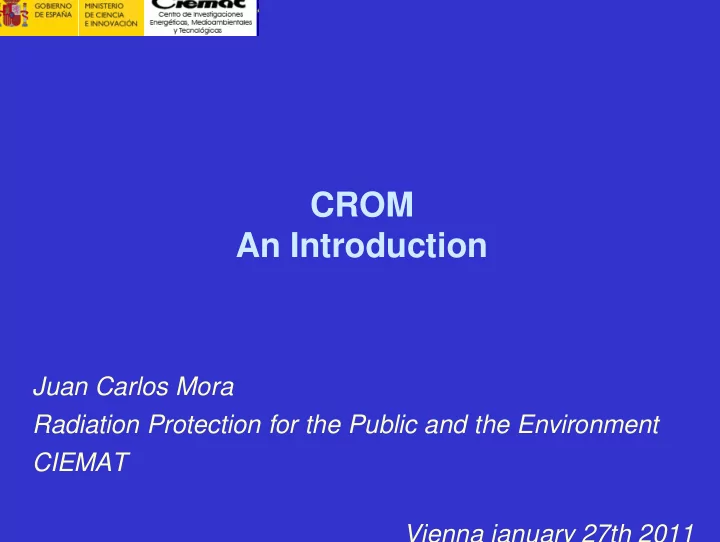

CROM An Introduction

Juan Carlos Mora Radiation Protection for the Public and the Environment CIEMAT Vienna january 27th 2011

slide-2
SLIDE 2

Environmental impact assessment

Dispersion and/or dilution processes Concentration in foodstuffs Concentrations in water, air and surfaces Transfer to plants and animals

Release Dose

MODEL(S) MODEL(S) MODEL(S) Dose estimation

slide-3
SLIDE 3

Safety Report Series No 19 Generic methods for use in assessing the impact of discharges

slide-4
SLIDE 4

Screening approach - Iterative approach

  • Step by step process - model complexity increases

as predicted doses increase

  • 1st step

= ‘no dilution model’

  • 2nd step

= ‘generic environmental model

  • 3rd step

= ‘modified generic assessment’

  • 4th step

= ‘site specific assessment’

slide-5
SLIDE 5
slide-6
SLIDE 6

CROM

  • v. 6

DETERMINISTIC

  • v. 7

PROBABILISTIC FREE CROM

slide-7
SLIDE 7
  • Deterministic

CROM is being maintained, focusing mainly on the English version

  • Probabilistic CROM under development (launch

in 2011?)

  • Free CROM community developed

CROM

DEVELOPMENT

slide-8
SLIDE 8

Center for Research of Energy, Environment and Technology (CIEMAT): UPRPYMA Polytechnic University of Madrid:

  • LAB. INFORMATICS ETSII

CROM

DEVELOPED BY

slide-9
SLIDE 9

CROM

Models based in IAEA SRS-19 with “improvements” based in RP-72 (EUR-15760). 2001 IAEA - SRS 19 - "Generic Models for Use in Assessing the Impact of Discharges o f Radioactive Substances to the Environment". 1995 UE - RP 72 – “Methodology for assessing the radiological consequences of routine releases of radionuclides to the environment”.

slide-10
SLIDE 10

CROM 6

QUALITY CONTROL TRANSFERED TO THE IAEA IN 2008 FOR ITS FREE DISTRIBUTION The software was quality controled by CIEMAT and RPD-HPA, formerly NRPB, (document RPD- EA-11-2005) for its adoption by the IAEA as the reference code for those models. Other people acting as testers of CROM in different situations (EMRAS II)

slide-11
SLIDE 11

CROM

Conceptual model

slide-12
SLIDE 12

CROM

Conceptual model

Instalación Atmósfera Suelo Medio Acuático Sedimentos Agua Alimentos Acuáticos Cultivos humanos Cultivos Animales Productos Animales Dosis total al individuo crítico Dosis Int. Inhalación Dosis Ext.

  • Inm. Nube

Dosis Ext.

  • Dep. Suelo

Dosis Int. Ingestión Dosis Ext.

  • Sed. Orilla

Dosis Ext

  • Inm. Baño

Dosis Ext.

  • Sed. Fondo

Dosis Ext.

  • Sed. Susp.

Efluente Gaseoso Efluente Líquido No Diluci ón No Diluci ón Inhalación Depósito seco y húmedo Irradiación Externa Irradiación Externa Depósito seco y húmedo Ingestión Ing. Ingestión Ingesti ón Bioacumulación Riego

  • F. conc

Irradiación Externa Irradiación Externa Irradiación Externa Irradiación Externa Sediment No sedimentación Absorción Radicular Instalación Atmósfera Suelo Medio Acuático Sedimentos Agua Alimentos Acuáticos Cultivos humanos Cultivos Animales Productos Animales Dosis total al individuo crítico Dosis Int. Inhalación Dosis Ext.

  • Inm. Nube

Dosis Ext.

  • Dep. Suelo

Dosis Int. Ingestión Dosis Ext.

  • Sed. Orilla

Dosis Ext

  • Inm. Baño

Dosis Ext.

  • Sed. Fondo

Dosis Ext.

  • Sed. Susp.

Efluente Gaseoso Efluente Líquido No Diluci ón No Diluci ón Inhalación Depósito seco y húmedo Irradiación Externa Irradiación Externa Depósito seco y húmedo Ingestión Ing. Ingestión Ingesti ón Bioacumulación Riego

  • F. conc

Irradiación Externa Irradiación Externa Irradiación Externa Irradiación Externa Sediment No sedimentación Absorción Radicular

slide-13
SLIDE 13

CROM

Models implemented Atmosphere discharges Building affected models Roughness affected wind profiles Aquatic discharges River / Sewers Small lakes Sea / Great lakes Estuaries Sedimentation Transfer to biota H3 & C14

slide-14
SLIDE 14

CROM

Features of CROM code: Continuous (routine/controlled) releases Default Pasquill stability category D Groundwater not considered Effective height not calculated Irrigation considered Sedimentation in surface waters Bath considered Crustacean considered A lot of not default values can be used

slide-15
SLIDE 15

CROM

Features of CROM code: Effective dose and concentration calc. 8 SRS 19 examples in the default DB Growth of daughter considered (transport and deposition) Today 151 radioisotopes in the default DB New radionuclides easily implementable External DCFs based in FGR 12 Internal DCFs from IAEA’s BSS

slide-16
SLIDE 16

CROM

Problems that can be solved

slide-17
SLIDE 17

CROM

Problems that can be solved

slide-18
SLIDE 18

CROM

Problems that can be solved

slide-19
SLIDE 19

CROM

Problems that can be solved

slide-20
SLIDE 20

CROM

Problems that can be solved

slide-21
SLIDE 21

CROM

EXTERNAL EXPOSURE PATHWAYS

  • IMMERSION IN THE GASEOUS PLUME
  • DEPOSITION IN THE SOIL
  • SUBMERSION IN WATER DURING THE BATH
  • SHORE SEDIMENTS
slide-22
SLIDE 22

CROM

  • INGESTION OF CONTAMINATED WATER
  • INGESTION

OF VEGETABLES CONTAMINATED BY ATMOSPHERE DEPOSIT OR IRRIGATION

  • INGESTION OF ANIMAL MEAT CONTAMINATED BY

CONTAMINATED WATER OR VEGETABLES

  • INGESTION

OF FRESHWATER FISHES AND CRUSTACEAN

  • INGESTION OF MARINE FISHES AND CRUSTACEAN
  • INHALATION

INTERNAL EXPOSURE PATHWAYS

slide-23
SLIDE 23

CROM

DOSE CONVERSION FACTORS

  • EXTERNAL:
  • Based in Federal Guidance Report No 12.

Considers the growth of the daughters using Bateman equations

  • INTERNAL:
  • Based in BSS (IAEA No 115). Committed

effective dose up to 70 y.

  • 6 age groups as defined in BSS.
  • Different

absortion cathegories (F,M,S) considered.

slide-24
SLIDE 24
  • SCREEN
  • WORD BASED REPORT
  • EXCEL BASED DATA

CROM

Results

slide-25
SLIDE 25

The models implemented in Crom were designed for assessing doses due to releases from nuclear

  • r radioactive installations provided that:
  • ~ 30 YEARS EMMISSIONS.
  • CONTINUOUS EMMISSIONS (In any single day is

not emitted more than 1% of the annual release)

  • NEUTRAL ATMOSPHERIC CONDITIONS (Pasquill

D difussion category)

CROM

What CROM can do

slide-26
SLIDE 26

Using some additional calculations Crom can be used for:

  • ANY NUMBER OF YEARS EMMISSIONS.
  • ANY ATMOSPHERIC CONDITIONS (Any Pasquill

difussion category)

  • Effective height considerations
  • Resuspension of deposited material
  • Other radioisotopes can be used calculating the

DCFs and introducing them into the DB.

  • H3 & C14
  • Sewers

CROM

What CROM can do (with help)

slide-27
SLIDE 27

The models implemented in Crom are not valid for assessing doses in:

  • SHORT TIME EMMISSIONS (accidents)
  • VERY LONG TIME EMMISSIONS (HLW repository)
  • GROUNDWATER DISPERSION

CROM

What CROM can’t do

slide-28
SLIDE 28

CROM - Installation

slide-29
SLIDE 29

CROM - Installation

slide-30
SLIDE 30

CROM - Installation

slide-31
SLIDE 31

CROM - Installation

slide-32
SLIDE 32

CROM - Installation

slide-33
SLIDE 33

CROM - Installation

slide-34
SLIDE 34

CROM - Installation

slide-35
SLIDE 35

CROM - Use

slide-36
SLIDE 36

CROM - Use

slide-37
SLIDE 37

CROM - Use

slide-38
SLIDE 38

CROM - Use

slide-39
SLIDE 39

CROM - Use

slide-40
SLIDE 40

CROM - Use

slide-41
SLIDE 41

CROM - Use

slide-42
SLIDE 42

CROM - Use

slide-43
SLIDE 43

CROM - Use

slide-44
SLIDE 44

CROM - Use

slide-45
SLIDE 45

CROM - Use

slide-46
SLIDE 46

CROM - Use

slide-47
SLIDE 47

CROM - Use

slide-48
SLIDE 48

CROM - Use

slide-49
SLIDE 49

CROM - Use

slide-50
SLIDE 50

CROM - Use

slide-51
SLIDE 51

CROM - Use

slide-52
SLIDE 52

CROM - Use

slide-53
SLIDE 53

CROM - Use

slide-54
SLIDE 54

CROM - Use

slide-55
SLIDE 55

CROM - Use

slide-56
SLIDE 56

CROM - Use

5 receptor point More than 20 radionuclides in the source term

slide-57
SLIDE 57

CROM - Use

slide-58
SLIDE 58

CROM - Use

slide-59
SLIDE 59

CROM - Use

slide-60
SLIDE 60

CROM - Use

slide-61
SLIDE 61

CROM - Use

slide-62
SLIDE 62

CROM - Use

slide-63
SLIDE 63

CROM - Use

slide-64
SLIDE 64

CROM - Use

slide-65
SLIDE 65

CROM - Use

slide-66
SLIDE 66

CROM - Use

slide-67
SLIDE 67

CROM - Use

slide-68
SLIDE 68

CROM - Use

slide-69
SLIDE 69

CROM - Use

slide-70
SLIDE 70

CROM - Use

slide-71
SLIDE 71

CROM - Use

slide-72
SLIDE 72

CROM - Use

slide-73
SLIDE 73

CROM - Use

slide-74
SLIDE 74

CROM - Use

slide-75
SLIDE 75

CROM - Use

slide-76
SLIDE 76

CROM - Use

slide-77
SLIDE 77

CROM - Use

slide-78
SLIDE 78

CROM - Use

slide-79
SLIDE 79

CROM - Use

slide-80
SLIDE 80

CROM - Use

slide-81
SLIDE 81

CROM - Use

slide-82
SLIDE 82

CROM - Use

slide-83
SLIDE 83

CROM - Use

slide-84
SLIDE 84

CROM - Use

slide-85
SLIDE 85

CROM - Use

slide-86
SLIDE 86

CROM - Use

slide-87
SLIDE 87

CROM - Use

slide-88
SLIDE 88

CROM - Use

slide-89
SLIDE 89

CROM - Use

slide-90
SLIDE 90

CROM - Use

slide-91
SLIDE 91

CROM - Use

slide-92
SLIDE 92

CROM - Use

slide-93
SLIDE 93

1 km 20 m 60 m

CROM - Examples

slide-94
SLIDE 94

1 km 20 m 5 m

CROM - Examples

slide-95
SLIDE 95

1 km 30 m 150 m 33 m

CROM - Examples

slide-96
SLIDE 96

A 500m 500m 9000m Atm2 Atm3 Atm4 Riv4 Riv5 Riv6

CROM - Examples

slide-97
SLIDE 97

A 500m 500m 9000m Atm2 Atm3 Atm4 Riv4 Riv5 Riv6

CROM - Examples

slide-98
SLIDE 98

CROM - Examples

slide-99
SLIDE 99

50 m D = 30 m 2000 m

CROM - Examples

slide-100
SLIDE 100

CROM - Examples

slide-101
SLIDE 101

CROM - Examples

slide-102
SLIDE 102

CROM - Examples

slide-103
SLIDE 103

CROM - Examples

slide-104
SLIDE 104

CROM - Examples

slide-105
SLIDE 105
  • Control of releases
  • Optimization of new installations
  • Derivation of authorized discharge

limits

  • …

CROM - Aplications

slide-106
SLIDE 106

Thank you for your attention Jc.mora@ciemat.es
