CREAM CE Certification and CREAM CE Certification and Testing Di - - PowerPoint PPT Presentation

Enabling Grids for E sciencE Enabling Grids for E-sciencE

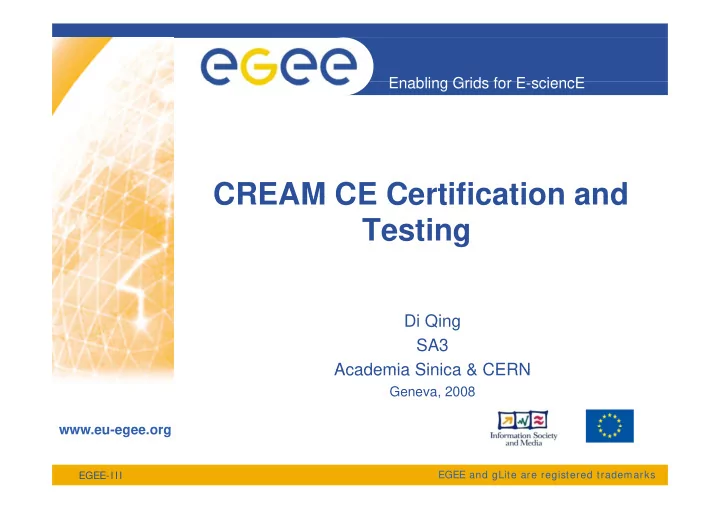

CREAM CE Certification and CREAM CE Certification and Testing

Di Qing SA3 Academia Sinica & CERN

www eu egee org

Academia Sinica & CERN

Geneva, 2008

EGEE-III

www.eu-egee.org

EGEE and gLite are registered trademarks

Enabling Grids for E-sciencE

Introduction

• Goals

– Verify installation and configuration – Pass normal certification procedures – 5 days unattended continuously stress test

50 lti l 50 multiple users Less than 0.5% failures

• Patches

Patches

– 1755, CREAM server – 1790, CREAM client

• Test started at the end of May
• The test scripts provided by INFN
• One wiki page setup for test results

– https://twiki.cern.ch/twiki/bin/view/EGEE/CREAMTest

EGEE-III

• CE checklist

– https://twiki.cern.ch/twiki/bin/view/EGEE/CECheckList

CREAM CE certification and testing - Qing 2

Enabling Grids for E-sciencE

Testbed setup

• One separated Torque server

– BLParser server installed there by hand

• 11 WNs

– 110 Virtual CPUs

• One UI
• One physical CREAM CE for stress testing

– 4 2.2 GHz cores – 4GB memory

• One CREAM CE for installation and configuration test
• One CREAM CE for installation and configuration test

EGEE-III 3 CREAM CE certification and testing - Qing

Enabling Grids for E-sciencE

Test performed

• Installation and configuration

– Followed the formal installation procedure, specially check the package dependency – Tested different installation scenario Configured it by YAIM – Configured it by YAIM

• Basic functionalities

– Submission through CLI job status check delegate proxy etc Submission through CLI, job status check, delegate proxy etc.

• Stress testing

– Submission through CLI g – 9800 jobs per day with 49 users – Jobs accumulated in queues as fast as possible

EGEE-III CREAM CE certification and testing - Qing 4

Enabling Grids for E-sciencE

Test results

• Basic functionality tests passed
• Dependency missing on some packages

p y g p g

– tomcat, mysql-server and mysql-connector-java

• Configuration issues

– Configurations of BLPaser server and blah – LCAS and LCMAPS generate too many logs I ith th d f Gl – Issue with the upgrade of Glexec

fixed

• Other issues

Other issues

– Need to restart tomcat if CAs are updated

problems in trustmanager

– too many files left under the home directories of pool accounts – Authentication fails with new type of VO attributes in VOMS proxy

fi ed

EGEE-III

fixed

5 CREAM CE certification and testing - Qing

Enabling Grids for E-sciencE

Stress test results

• System load

– CPU load is quite low, even less than 1 for most of time, only when submitting massive jobs to cream CE, it can reach 9 – Memory usage is low too, less than 2GB Disk usage can increase – Disk usage can increase

Can be solved by purging jobs and limiting the log level of services

• Job submission

– Job submission to CREAM CE can fail

Happened in last two days test, even more than 3% of jobs could not b b itt d be submitted

– Job success rate

More than 99.5% jobs succeeded in 6 of 10 days test j y The worst failure rate is about 9.5%

• Most of failures only give error message, “blah error”

EGEE-III CREAM CE certification and testing - Qing 6

Enabling Grids for E-sciencE

Conclusion

• Still need more works to reach production quality

p q y

– We never reached 5 days unattended continuously stress test with less than 0.5% failure rate on certification testbed

N b l d t PPS f t t t d t

• Now can be released to PPS for users to test and get

some experiences after sorting out the installation and configuration issues configuration issues

– In principle, it can be done today

• The tests have been done only by CREAM CLI

y y

– Tests through WMS will be done when ICE is ready

A recipe on how to setup a WMS plus ICE is available

• A new CREAM CE patch is in preparation for

certification

EGEE-III CREAM CE certification and testing - Qing 7
