CPSC 121: Models of Computation 2018S Proof (First Visit) Meghan - - PowerPoint PPT Presentation

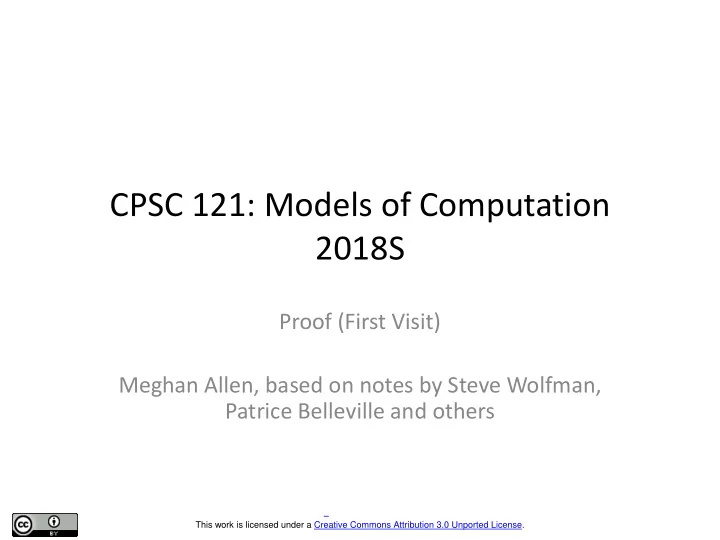

CPSC 121: Models of Computation 2018S

Proof (First Visit) Meghan Allen, based on notes by Steve Wolfman, Patrice Belleville and others

1

This work is licensed under a Creative Commons Attribution 3.0 Unported License.

Outline

• Prereqs, Learning Goals, and Quiz Notes
• Prelude: What Is Proof?
• Problems and Discussion

– “Prove Your Own Adventure” – Why rules of inference? (advantages + tradeoffs) – Onnagata, Explore and Critique

• Next Lecture Notes

2

Learning Goals: Pre-Class

By the start of class, you should be able to:

– Use truth tables to establish or refute the validity

• f a rule of inference.

– Given a rule of inference and propositional logic statements that correspond to the rule’s premises, apply the rule to infer a new statement implied by the original statements.

3

Learning Goals: In-Class

By the end of this unit, you should be able to:

– Explore the consequences of a set of propositional logic statements by application of equivalence and inference rules, especially in order to massage statements into a desired form. – Critique a propositional logic proof; that is, determine whether or not is valid (and explain why) and judge the applicability of its result to a specific context. – Devise and attempt multiple different, appropriate strategies for proving a propositional logic statement follows from a list of premises.

4

Where We Are in The Big Stories

Theory How do we model computational systems? Now: Continuing to build the foundation for our proofs. (We’ll get to the level of proof we really need starting with the next unit.) Hardware How do we build devices to compute? Now: Taking a bit of a vacation in lecture!

5

Motivating Problem: Changing cond Branches

Assuming that a and c cannot both be true and that this function produces true:

;; Boolean Boolean Boolean Boolean Boolean -> Boolean (define (rearrange-cond? a b c d e) (cond [a b] [c d] [else e]))

Prove that the following function also produces true:

;; Boolean Boolean Boolean Boolean Boolean -> Boolean (define (rearrange-cond? a b c d e) (cond [c d] [a b] [else e]))

6

But first, prove these handy “lemmas”:

• 1. p → (q ∧ r) ≡ (p → q) ∧ (p → r)
• 2. p → (q → r) ≡ q → (p → r)

(Reality check: you must be able to do formal proofs. But, as with using equivalence laws to reorganize code, in practice you’ll often reason using proof techniques but without a formal proof.)

Quiz 4 Notes (“lining up”)

a → b b → c ∴ a → c To apply this to: p → (q ∨ r) q → s ..what must we replace b with?

• a. p
• b. q
• c. (q ∨ r)
• d. Something else
• e. We cannot apply it

7

Next set of quiz notes will come much later!

NOT a Quiz Note

~p ∴~(p v q)

• a. This is valid by generalization (p ⇒ p v q).
• b. This is valid because anytime ~p is true, ~(p v q)

is also true.

• c. This is invalid by generalization (p ⇒ p v q).
• d. This is invalid because when p = F and q = T, ~p is

true but ~(p v q) is false.

• e. None of these.

8

What does this mean?

We can always substitute something equivalent for a subexpression of a logical expression. We cannot always apply a rule of inference to just a part of a logical statement. Therefore, we will only apply rules of inference to complete statements, no matter what!

9

Outline

• Prereqs, Learning Goals, and Quiz Notes
• Prelude: What Is Proof?
• Problems and Discussion

– “Prove Your Own Adventure” – Why rules of inference? (advantages + tradeoffs) – Onnagata, Explore and Critique

• Next Lecture Notes

10

What is Proof?

11

A rigorous formal argument that unequivocally demonstrates the truth of a proposition, given the truth

• f the proof’s premises.

Adapted from MathWorld: http://mathworld.wolfram.com/Proof.html

What is Proof?

12

A rigorous formal argument that unequivocally demonstrates the truth of a proposition (conclusion), given the truth of the proof’s premises.

Adapted from MathWorld: http://mathworld.wolfram.com/Proof.html

Problem: Meaning of Proof

Let’s say you prove the following: Premise 1 Premise 2 ⁞ Premise n ∴Conclusion

13

Can one of the premises be false?

• a. No, proofs may not use false premises
• b. No, the proof shows that the premises are true
• c. Yes, but then the conclusion is false
• d. Yes, but then we know nothing about the conclusion
• e. Yes, but we still know the conclusion is true

Tasting Powerful Proof: Some Things We Might Prove

• We can build a “light that changes state when a switch is

flipped” system with any number of switches. 

• We can build a combinational circuit matching any truth
• table. 
• We can build any digital logic circuit using nothing but NOR
• gates. 
• We can sort a list by breaking it in half, and then sorting

and merging the halves.

• We can find the GCD of two numbers by finding the GCD of

the 2nd and the remainder when dividing the 1st by the 2nd.

• Is there any fair way to run elections?
• Are there problems that no program can solve?

14

Meanwhile...

What Is a Propositional Logic Proof?

15

An argument in which: (1) each line is a propositional logic statement, (2) each statement is a premise or follows unequivocally by a previously established rule of inference from the truth of previous statements, and (3) the last statement is the conclusion.

A very constrained form of proof, but a good starting point. Interesting proofs will usually come in less structured packages than propositional logic proofs.

Outline

• Prereqs, Learning Goals, and Quiz Notes
• Prelude: What Is Proof?
• Problems and Discussion

– “Prove Your Own Adventure” – Why rules of inference? (advantages + tradeoffs) – Onnagata, Explore and Critique

• Next Lecture Notes

16

Prop Logic Proof Problem

To prove: ~(q ∨ r) (u ∧ q) ↔ s ~s → ~p___ ∴ ~p

17

“Prove Your Own Adventure”

To prove: ~(q ∨ r) (u ∧ q) ↔ s ~s → ~p___ ∴ ~p

18

Which step is the easiest to fill in?

• 1. ~(q ∨ r)

Premise

• 2. (u ∧ q) ↔ s

Premise

• 3. ~s → ~p

Premise [STEP A: near the start] [STEP B: in the middle] [STEP C: near the end] [STEP D: last step]

D: Last Step

To prove: ~(q ∨ r) (u ∧ q) ↔ s ~s → ~p___ ∴ ~p

19

• 1. ~(q ∨ r)

Premise

• 2. (u ∧ q) ↔ s

Premise

• 3. ~s → ~p

Premise ... ~q ∧ ~r De Morgan’s (1) ~q Specialization (?) ... ((u ∧ q) → s) ∧ Bicond (2) (s → (u ∧ q)) ...

~s

~p Modus ponens (3,?)

Why do we want to put ~p at the end? a. ~p is the proof’s conclusion b. ~p is the end of the last premise c. every proof ends with ~p d. None of these but some other reason e. None of these because we don’t want it there

C: Near the End

To prove: ~(q ∨ r) (u ∧ q) ↔ s ~s → ~p___ ∴ ~p

20

• 1. ~(q ∨ r)

Premise

• 2. (u ∧ q) ↔ s

Premise

• 3. ~s → ~p

Premise ... ~q ∧ ~r De Morgan’s (1) ~q Specialization (?) ... ((u ∧ q) → s) ∧ Bicond (2) (s → (u ∧ q)) ...

~s

~p Modus ponens (3,?)

Why do we want to put the blue line/justification at the end? a. ~s → ~p is the last premise b. ~s → ~p is the only premise that mentions ~s c. ~s → ~p is the only premise that mentions p d. None of these but some other reason e. None of these b/c we don’t want it there

A: Near the Start

To prove: ~(q ∨ r) (u ∧ q) ↔ s ~s → ~p___ ∴ ~p

21

• 1. ~(q ∨ r)

Premise

• 2. (u ∧ q) ↔ s

Premise

• 3. ~s → ~p

Premise ... ~q ∧ ~r De Morgan’s (1) ~q Specialization (?) ... ((u ∧ q) → s) ∧ Bicond (2) (s → (u ∧ q)) ...

~s

~p Modus ponens (3,?)

Why do we want the blue lines/justifications? a. ~(q ∨ r) is the first premise b. ~(q ∨ r) is a useless premise c. We can’t work directly with a premise with a negation “on the outside” d. Neither the conclusion nor another premise mentions r e. None of these

B: In the Middle

To prove: ~(q ∨ r) (u ∧ q) ↔ s ~s → ~p___ ∴ ~p

22

• 1. ~(q ∨ r)

Premise

• 2. (u ∧ q) ↔ s

Premise

• 3. ~s → ~p

Premise ... ~q ∧ ~r De Morgan’s (1) ~q Specialization (?) ... ((u ∧ q) → s) ∧ Bicond (2) (s → (u ∧ q)) ...

~s

~p Modus ponens (3,?)

Why do we want the blue line/justification? a. (u ∧ q) ↔ s is the only premise left b. (u ∧ q) ↔ s is the only premise that mentions u c. (u ∧ q) ↔ s is the only premise that mentions s without a negation d. We have no rule to get directly from

• ne side of a biconditional to the other

e. None of these

Prop Logic Proof Strategies

• Work backwards from the end
• Play with alternate forms of premises
• Identify and eliminate irrelevant information
• Identify and focus on critical information
• Alter statements’ forms so they’re easier to work

with

• “Step back” from the problem frequently to think

about assumptions you might have wrong or

• ther approaches you could take

23

And, if you don’t know that what you’re trying to prove follows... switch from proving to disproving and back now and then.

Continuing From There

To prove: ~(q ∨ r) (u ∧ q) ↔ s ~s → ~p___ ∴ ~p

24

• 1. ~(q ∨ r)

Premise

• 2. (u ∧ q) ↔ s

Premise

• 3. ~s → ~p

Premise

• 4. ~q ∧ ~r

De Morgan’s (1)

• 5. ~q

Specialization (4)

• 6. ((u ∧ q) → s) ∧ Bicond (2)

(s → (u ∧ q))

• 7. ??????

Specialization (6)

... ~s

~p Modus ponens (3,?)

Which direction of ↔ goes in step 7? a. (u ∧ q) → s because the simple part is on the right b. (u ∧ q) → s because the other direction can’t establish ~s c. s → (u ∧ q) because the simple part is on the left d. s → (u ∧ q) because the other direction can’t establish ~s e. None of these

Aside: What does it mean to “work backward”?

Take the conclusion of the proof. Use a rule in reverse to generate something closer to a statement you already have (like a premise).

25

Finishing Up (1 of 3)

To prove: ~(q ∨ r) (u ∧ q) ↔ s ~s → ~p___ ∴ ~p

26

• 1. ~(q ∨ r)

Premise

• 2. (u ∧ q) ↔ s

Premise

• 3. ~s → ~p

Premise

• 4. ~q ∧ ~r

De Morgan’s (1)

• 5. ~q

Specialization (4)

• 6. ((u ∧ q) → s) ∧ Bicond (2)

(s → (u ∧ q))

• 7. s → (u ∧ q)

Specialization (6)

• 8. ????

????

• 9. ~(u ∧ q)

????

• 10. ~s

Modus tollens (7, 9)

• 11. ~p

Modus ponens (3,10)

We know we needed ~(u ∧ q) on line 9 because that’s what we created line 7 for! Side Note: Can we work directly with a statement with a negation “on the outside”?

Finishing Up (1 of 3)

To prove: ~(q ∨ r) (u ∧ q) ↔ s ~s → ~p___ ∴ ~p

27

• 1. ~(q ∨ r)

Premise

• 2. (u ∧ q) ↔ s

Premise

• 3. ~s → ~p

Premise

• 4. ~q ∧ ~r

De Morgan’s (1)

• 5. ~q

Specialization (4)

• 6. ((u ∧ q) → s) ∧ Bicond (2)

(s → (u ∧ q))

• 7. s → (u ∧ q)

Specialization (6)

• 8. ????

????

• 9. ~(u ∧ q)

????

• 10. ~s

Modus tollens (7, 9)

• 11. ~p

Modus ponens (3,10)

We know we needed ~(u ∧ q) on line 9 because that’s what we created line 7 for! Now, how do we get ~(u ∧ q)? Working forward is tricky. Let’s work backward. What is ~(u ∧ q) equivalent to?

Finishing Up (2 of 3)

To prove: ~(q ∨ r) (u ∧ q) ↔ s ~s → ~p___ ∴ ~p

28

• 1. ~(q ∨ r)

Premise

• 2. (u ∧ q) ↔ s

Premise

• 3. ~s → ~p

Premise

• 4. ~q ∧ ~r

De Morgan’s (1)

• 5. ~q

Specialization (4)

• 6. ((u ∧ q) → s) ∧ Bicond (2)

(s → (u ∧ q))

• 7. s → (u ∧ q)

Specialization (6)

• 8. ~u ∨ ~q

????

• 9. ~(u ∧ q)

De Morgan’s (8)

• 10. ~s

Modus tollens (7, 9)

• 11. ~p

Modus ponens (3,10)

All that’s left is to get to ~u ∨ ~q. How do we do it?

Finishing Up (3 of 3)

To prove: ~(q ∨ r) (u ∧ q) ↔ s ~s → ~p___ ∴ ~p

29

• 1. ~(q ∨ r)

Premise

• 2. (u ∧ q) ↔ s

Premise

• 3. ~s → ~p

Premise

• 4. ~q ∧ ~r

De Morgan’s (1)

• 5. ~q

Specialization (4)

• 6. ((u ∧ q) → s) ∧ Bicond (2)

(s → (u ∧ q))

• 7. s → (u ∧ q)

Specialization (6)

• 8. ~u ∨ ~q

Generalization (5)

• 9. ~(u ∧ q)

De Morgan’s (8)

• 10. ~s

Modus tollens (7, 9)

• 11. ~p

Modus ponens (3,10)

As usual in our slides, we made no mistakes and reached no dead

• ends. That’s not the way things

really go on difficult proofs! Mistakes and dead ends are part of the discovery process! So, step back now and then and reconsider your assumptions and approach!

Outline

• Prereqs, Learning Goals, and Quiz Notes
• Prelude: What Is Proof?
• Problems and Discussion

– “Prove Your Own Adventure” – Why rules of inference? (advantages + tradeoffs) – Onnagata, Explore and Critique

• Next Lecture Notes

30

Limitations of Truth Tables

Why not just use truth tables to prove propositional logic theorems?

• a. No reason; truth tables are enough.
• b. Truth tables scale poorly to large problems.
• c. Rules of inference and equivalence rules can

prove theorems that cannot be proven with truth tables.

• d. Truth tables require insight to use, while rules of

inference can be applied mechanically.

31

Limitations of Logical Equivalences

Why not use logical equivalences to prove that the conclusions follow from the premises?

• a. No reason; logical equivalences are enough.
• b. Logical equivalences scale poorly to large

problems.

• c. Rules of inference and truth tables can prove

theorems that cannot be proven with logical equivalences.

• d. Logical equivalences require insight to use, while

rules of inference can be applied mechanically.

32

Outline

• Prereqs, Learning Goals, and Quiz Notes
• Prelude: What Is Proof?
• Problems and Discussion

– “Prove Your Own Adventure” – Why rules of inference? (advantages + tradeoffs) – Onnagata: Explore and Critique

• Next Lecture Notes

33

Preparatory Comments

When we apply logic to a domain, we give interpretations for the logical symbols. That interpretation is where we can argue things like “meaning”, “values”, and “moral right”. Within the logical context, we argue purely on the basis of structure and irrefutable manipulations of that structure. And… statements contradict each other when, taken together, they are logically equivalent to F, such as (a ∧ ~a). There is no way for them to be simultaneously true.

34

Problem: Onnagata

Problem: Critique the following argument. Premise 1: If women are too close to femininity to portray women then men must be too close to masculinity to play men, and vice versa. Premise 2: And yet, if the onnagata are correct, women are too close to femininity to portray women and yet men are not too close to masculinity to play men. Conclusion: Therefore, the

• nnagata are incorrect, and

women are not too close to femininity to portray women.

35

Contradictory Premises?

Do premises #1 and #2 contradict each other (i.e., is (premise1 ∧ premise2) logically equivalent to F)?

• a. Yes
• b. No
• c. Not enough information to tell.

37

Defining the Problem

Does it make sense to use the definition “w = women” for a propositional logic variable w? a. Yes, in this problem. b. Yes, but not in this problem. c. No, not in this problem. d. No, not in any problem.

38

Translating the Statements

Which of these is an accurate translation of one

• f the statements?
• a. w ↔ m
• b. (w → m) ∧ (m → w)
• c. o → (w ∧ ~m)
• d. ~o ∧ ~w

39

Contradictory Premises?

So premises #1 and #2 are w ↔ m and o → (w ∧ ~m). Do premises #1 and #2 contradict each other (i.e., is (premise1 ∧ premise2) logically equivalent to F)?

• a. Yes
• b. No
• c. Not enough information to tell.

40

Problem: Now, Explore!

Critique the argument by either: (1) Proving it correct (and commenting on how good the propositional logic model’s fit to the context is). How do we prove prop logic arguments? (2) Showing that it is an invalid argument. How do we show an argument is invalid? (Remember the quiz!)

41

Outline

• Prereqs, Learning Goals, and Quiz Notes
• Prelude: What Is Proof?
• Problems and Discussion

– “Prove Your Own Adventure” – Why rules of inference? (advantages + tradeoffs) – Onnagata, Explore and Critique

• Next Lecture Notes

42

Next Lecture Learning Goals: Pre-Class

By the start of class, you should be able to:

– Evaluate the truth of statements that include predicates applied to particular values. – Show predicate logic statements are true by enumerating examples (i.e., all examples in the domain for a universal or one for an existential). – Show predicate logic statements are false by enumerating counterexamples (i.e., one counterexample for universals or all in the domain for existentials). – Translate between statements in formal predicate logic notation and equivalent statements in closely matching informal language (i.e., informal statements with clear and explicitly stated quantifiers).

43

Next Lecture Prerequisites

Review (Epp 4th ed) Chapter 2 and be able to solve any Chapter 2 exercise. Read Sections 3.1 and 3.3 (skipping the “Negation” sections in 3.3) Complete the open-book, untimed online quiz.

44

Motivating Problem: Changing cond Branches

Assuming that a and c cannot both be true and that this function produces true:

;; Boolean Boolean Boolean Boolean Boolean -> Boolean (define (rearrange-cond? a b c d e) (cond [a b] [c d] [else e]))

Prove that the following function also produces true:

;; Boolean Boolean Boolean Boolean Boolean -> Boolean (define (rearrange-cond? a b c d e) (cond [c d] [a b] [else e]))

45

First, prove these handy “lemmas”:

• 1. p → (q ∧ r) ≡ (p → q) ∧ (p → r)
• 2. p → (q → r) ≡ q → (p → r)

Motivating Problem: Changing cond Branches

Assuming that a and c cannot both be true, and that this function produces true:

;; Boolean Boolean Boolean Boolean Boolean -> Boolean (define (rearrange-cond? a b c d e) (cond [a b] [c d] [else e]))

We leave the lemmas as an exercise: 1. p → (q ∧ r) ≡ (p → q) ∧ (p → r) 2. p → (q → r) ≡ q → (p → r) In prop logic: 1. ~(a ∧ b) premise 2. (a → b) ∧ (~a → ((c → d) ∧ (~c → e))) premise 3. … 4. (c → d) ∧ (~c → ((a → b) ∧ (~a → e))) target conclusion

46

We’ll use our “heuristics” to work forward and backward until we solve the problem.

Motivating Problem: Changing cond Branches

In prop logic: 1. ~(a ∧ c) premise 2. (a → b) ∧ (~a → ((c → d) ∧ (~c → e))) premise 3. … 4. (c → d) “subgoal” 5. (~c → ((a → b) ∧ (~a → e))) “subgoal” 6. (c → d) ∧ (~c → ((a → b) ∧ (~a → e))) by CONJ on 4, 5

47

Lemmas: 1. p → (q ∧ r) ≡ (p → q) ∧ (p → r) 2. p → (q → r) ≡ q → (p → r)

We start by working backward; how de we prove x ∧ y? Well,

• ne way is to prove x and also

prove y. We’ll break those into two separate subproblems!

Side note: we’ll use the two statements you proved as exercises as “lemmas”: rules we proved for use in this proof. (Want to use them on an assignment / exam? Prove them there!)

Motivating Problem: Changing cond Branches

In prop logic: 1. ~(a ∧ c) premise 2. (a → b) ∧ (~a → ((c → d) ∧ (~c → e))) premise 3. … 4. (c → d) “subgoal” 5. (~c → (a → b)) ∧ (~c → (~a → e))) “subgoal” 6. (~c → ((a → b) ∧ (~a → e))) Lemma 1 on 5 7. (c → d) ∧ (~c → ((a → b) ∧ (~a → e))) by CONJ on 4, 6

48

Lemmas: 1. p → (q ∧ r) ≡ (p → q) ∧ (p → r) 2. p → (q → r) ≡ q → (p → r)

The second of these subgoals is still huge. We decided to break it into two pieces (and that’s why we went off and proved Lemma 1).

Motivating Problem: Changing cond Branches

In prop logic: 1. ~(a ∧ c) premise 2. (a → b) ∧ (~a → ((c → d) ∧ (~c → e))) premise 3. … 4. (c → d) “subgoal” 5. ~c → (a → b) “subgoal” 6. ~c → (~a → e) “subgoal” 7. (~c → (a → b)) ∧ (~c → (~a → e))) by CONJ on 5, 6 8. (~c → ((a → b) ∧ (~a → e))) Lemma 1 on 7 9. (c → d) ∧ (~c → ((a → b) ∧ (~a → e))) by CONJ on 4, 8

49

Lemmas: 1. p → (q ∧ r) ≡ (p → q) ∧ (p → r) 2. p → (q → r) ≡ q → (p → r)

Now, we can attack those two pieces separately (which feels like it might be the wrong approach to me… but worth a try!)

Motivating Problem: Changing cond Branches

In prop logic: 1. ~(a ∧ c) premise 2. (a → b) ∧ (~a → ((c → d) ∧ (~c → e))) premise 3. ~a ∨ ~c by DM on 1 4. … 5. (c → d) “subgoal” 6. ~c → (a → b) “subgoal” 7. ~c → (~a → e) “subgoal” 8. (~c → (a → b)) ∧ (~c → (~a → e))) by CONJ on 6, 7 9. (~c → ((a → b) ∧ (~a → e))) Lemma 1 on 8 10. (c → d) ∧ (~c → ((a → b) ∧ (~a → e))) by CONJ on 5, 9

50

Lemmas: 1. p → (q ∧ r) ≡ (p → q) ∧ (p → r) 2. p → (q → r) ≡ q → (p → r)

I’m out of ideas at the end. I switch to the beginning and play around with premises. (Foreshadowing: I didn’t figure out what to do with this premise until near the end.)

Motivating Problem: Changing cond Branches

In prop logic: 1. ~(a ∧ c) premise 2. (a → b) ∧ (~a → ((c → d) ∧ (~c → e))) premise 3. ~a ∨ ~c by DM on 1 4. a → b by SPEC on 2 5. … 6. (c → d) “subgoal” 7. ~c → (a → b) “subgoal” 8. ~c → (~a → e) “subgoal” 9. (~c → (a → b)) ∧ (~c → (~a → e))) by CONJ on 7, 8 10. (~c → ((a → b) ∧ (~a → e))) Lemma 1 on 9 11. (c → d) ∧ (~c → ((a → b) ∧ (~a → e))) by CONJ on 6, 10

51

Lemmas: 1. p → (q ∧ r) ≡ (p → q) ∧ (p → r) 2. p → (q → r) ≡ q → (p → r)

Let’s try the other premise.

Motivating Problem: Changing cond Branches

In prop logic: 1. ~(a ∧ c) premise 2. (a → b) ∧ (~a → ((c → d) ∧ (~c → e))) premise 3. ~a ∨ ~c by DM on 1 4. a → b by SPEC on 2 5. ~a → ((c → d) ∧ (~c → e)) by SPEC on 2 6. … 7. (c → d) “subgoal” 8. ~c → (a → b) “subgoal” 9. ~c → (~a → e) “subgoal” 10. (~c → (a → b)) ∧ (~c → (~a → e))) by CONJ on 8, 9 11. (~c → ((a → b) ∧ (~a → e))) Lemma 1 on 10 12. (c → d) ∧ (~c → ((a → b) ∧ (~a → e))) by CONJ on 7, 11

52

Lemmas: 1. p → (q ∧ r) ≡ (p → q) ∧ (p → r) 2. p → (q → r) ≡ q → (p → r)

Continuing with that premise… Hey! We can use our Lemma again!

Motivating Problem: Changing cond Branches

In prop logic: 1. ~(a ∧ c) premise 2. (a → b) ∧ (~a → ((c → d) ∧ (~c → e))) premise 3. ~a ∨ ~c by DM on 1 4. a → b by SPEC on 2 5. ~a → ((c → d) ∧ (~c → e)) by SPEC on 2 6. (~a → (c → d)) ∧ (~a → (~c → e)) by Lemma 1 on 5 7. … 8. (c → d) “subgoal” 9. ~c → (a → b) “subgoal” 10. ~c → (~a → e) “subgoal” 11. (~c → (a → b)) ∧ (~c → (~a → e))) by CONJ on 9, 10 12. (~c → ((a → b) ∧ (~a → e))) Lemma 1 on 11 13. (c → d) ∧ (~c → ((a → b) ∧ (~a → e))) by CONJ on 8, 12

53

Lemmas: 1. p → (q ∧ r) ≡ (p → q) ∧ (p → r) 2. p → (q → r) ≡ q → (p → r)

Continuing with that premise…

Motivating Problem: Changing cond Branches

In prop logic: 1. ~(a ∧ c) premise 2. (a → b) ∧ (~a → ((c → d) ∧ (~c → e))) premise 3. ~a ∨ ~c by DM on 1 4. a → b by SPEC on 2 5. ~a → ((c → d) ∧ (~c → e)) by SPEC on 2 6. (~a → (c → d)) ∧ (~a → (~c → e)) by Lemma 1 on 5 7. ~a → (c → d) by SPEC on 6 8. … 9. (c → d) “subgoal” 10. ~c → (a → b) “subgoal” 11. ~c → (~a → e) “subgoal” 12. (~c → (a → b)) ∧ (~c → (~a → e))) by CONJ on 10, 11 13. (~c → ((a → b) ∧ (~a → e))) Lemma 1 on 12 14. (c → d) ∧ (~c → ((a → b) ∧ (~a → e))) by CONJ on 9, 13

54

Lemma 2: p → (q → r) ≡ q → (p → r)

Continuing with that premise…

Motivating Problem: Changing cond Branches

In prop logic: 1. ~(a ∧ c) premise 2. (a → b) ∧ (~a → ((c → d) ∧ (~c → e))) premise 3. ~a ∨ ~c by DM on 1 4. a → b by SPEC on 2 5. ~a → ((c → d) ∧ (~c → e)) by SPEC on 2 6. (~a → (c → d)) ∧ (~a → (~c → e)) by Lemma 1 on 5 7. ~a → (c → d) by SPEC on 6 8. ~a → (~c → e) by SPEC on 6 9. … 10. (c → d) “subgoal” 11. ~c → (a → b) “subgoal” 12. ~c → (~a → e) “subgoal” 13. (~c → (a → b)) ∧ (~c → (~a → e))) by CONJ on 11, 12 14. (~c → ((a → b) ∧ (~a → e))) Lemma 1 on 13 15. (c → d) ∧ (~c → ((a → b) ∧ (~a → e))) by CONJ on 10, 14

55

AHA!!

Lemma 2: p → (q → r) ≡ q → (p → r)

Continuing with that premise… We treated connecting these as its own problem and came up with Lemma 2!

Motivating Problem: Changing cond Branches

In prop logic: 1. ~(a ∧ c) premise 2. (a → b) ∧ (~a → ((c → d) ∧ (~c → e))) premise 3. ~a ∨ ~c by DM on 1 4. a → b by SPEC on 2 5. ~a → ((c → d) ∧ (~c → e)) by SPEC on 2 6. (~a → (c → d)) ∧ (~a → (~c → e)) by Lemma 1 on 5 7. ~a → (c → d) by SPEC on 6 8. ~a → (~c → e) by SPEC on 6 9. … 10. (c → d) “subgoal” 11. ~c → (a → b) “subgoal” 12. ~c → (~a → e) by Lemma 2 on 8 13. (~c → (a → b)) ∧ (~c → (~a → e))) by CONJ on 11, 12 14. (~c → ((a → b) ∧ (~a → e))) Lemma 1 on 13 15. (c → d) ∧ (~c → ((a → b) ∧ (~a → e))) by CONJ on 10, 14

56

Lemma 2: p → (q → r) ≡ q → (p → r)

Lemma 2 lets us connect these directly! Now what. Let’s pause, remind

• urselves what
• ur (sub)goals

are, and look at what we have.

Motivating Problem: Changing cond Branches

In prop logic: 1. ~(a ∧ c) premise 2. (a → b) ∧ (~a → ((c → d) ∧ (~c → e))) premise 3. ~a ∨ ~c by DM on 1 4. a → b by SPEC on 2 5. ~a → ((c → d) ∧ (~c → e)) by SPEC on 2 6. (~a → (c → d)) ∧ (~a → (~c → e)) by Lemma 1 on 5 7. ~a → (c → d) by SPEC on 6 8. ~a → (~c → e) by SPEC on 6 9. … 10. (c → d) “subgoal” 11. ~c → (a → b) “subgoal” 12. ~c → (~a → e) by Lemma 2 on 8 13. (~c → (a → b)) ∧ (~c → (~a → e))) by CONJ on 11, 12 14. (~c → ((a → b) ∧ (~a → e))) Lemma 1 on 13 15. (c → d) ∧ (~c → ((a → b) ∧ (~a → e))) by CONJ on 10, 14

57

Hmm..

Lemma 2: p → (q → r) ≡ q → (p → r)

How do we do something with this? Again, we treated this as a separate problem:

Motivating Problem: Changing cond Branches

Subproblem: 1. a → b premise 2. … 3. ~c → (a → b) “subgoal”

58

Now we do our

• usual. Get rid of

→, work backward, work forward… This time, we’ll show you what we

• did. We broke out

the goal and starting point and turned them into a whole other proof problem!

Motivating Problem: Changing cond Branches

Subproblem: 1. a → b premise 2. ~a ∨ b by IMP on 1 3. … 4. c ∨ ~a ∨ b “subgoal” 5. c ∨ (a → b) by IMP on 4 6. ~c → (a → b) by IMP on 5

59

That’s about as far as dumping → can take us. But, look at step 2 and step 4. What’s the difference?

Motivating Problem: Changing cond Branches

Subproblem: 1. a → b premise 2. ~a ∨ b by IMP on 1 3. c ∨ ~a ∨ b by GEN on 2 4. c ∨ (a → b) by IMP on 3 5. ~c → (a → b) by IMP on 4

60

Great! We can always OR on something else. We did it! Let’s patch it back into the original proof. But… could we have done it more easily? Question your solutions! (Hint: check out line 4. How can you get there?)

Motivating Problem: Changing cond Branches

In prop logic: 1. ~(a ∧ c) premise 2. (a → b) ∧ (~a → ((c → d) ∧ (~c → e))) premise 3. ~a ∨ ~c by DM on 1 4. a → b by SPEC on 2 5. ~a → ((c → d) ∧ (~c → e)) by SPEC on 2 6. (~a → (c → d)) ∧ (~a → (~c → e)) by Lemma 1 on 5 7. ~a → (c → d) by SPEC on 6 8. ~a → (~c → e) by SPEC on 6 9. … 10. (c → d) “subgoal” 11. c ∨ (a → b) “subgoal” 12. ~c → (a → b) by IMP on 11 13. ~c → (~a → e) by Lemma 2 on 8 14. (~c → (a → b)) ∧ (~c → (~a → e))) by CONJ on 12, 13 15. (~c → ((a → b) ∧ (~a → e))) Lemma 1 on 14 16. (c → d) ∧ (~c → ((a → b) ∧ (~a → e))) by CONJ on 10, 15

61

Patching in “step 4” of the previous proof. Can it get us back to step 4 of this proof?

Motivating Problem: Changing cond Branches

In prop logic: 1. ~(a ∧ c) premise 2. (a → b) ∧ (~a → ((c → d) ∧ (~c → e))) premise 3. ~a ∨ ~c by DM on 1 4. a → b by SPEC on 2 5. ~a → ((c → d) ∧ (~c → e)) by SPEC on 2 6. (~a → (c → d)) ∧ (~a → (~c → e)) by Lemma 1 on 5 7. ~a → (c → d) by SPEC on 6 8. ~a → (~c → e) by SPEC on 6 9. … 10. (c → d) “subgoal” 11. c ∨ (a → b) by GEN on 4 12. ~c → (a → b) by IMP on 11 13. ~c → (~a → e) by Lemma 2 on 8 14. (~c → (a → b)) ∧ (~c → (~a → e))) by CONJ on 12, 13 15. (~c → ((a → b) ∧ (~a → e))) Lemma 1 on 14 16. (c → d) ∧ (~c → ((a → b) ∧ (~a → e))) by CONJ on 10, 15

62

Sure! In one step! Now what? Only

• ne subgoal left.

How does it connect to the top of the proof?

Motivating Problem: Changing cond Branches

In prop logic: 1. ~(a ∧ c) premise 2. (a → b) ∧ (~a → ((c → d) ∧ (~c → e))) premise 3. ~a ∨ ~c by DM on 1 4. a → b by SPEC on 2 5. ~a → ((c → d) ∧ (~c → e)) by SPEC on 2 6. (~a → (c → d)) ∧ (~a → (~c → e)) by Lemma 1 on 5 7. ~a → (c → d) by SPEC on 6 8. ~a → (~c → e) by SPEC on 6 9. … 10. (c → d) “subgoal” 11. c ∨ (a → b) by GEN on 4 12. ~c → (a → b) by IMP on 11 13. ~c → (~a → e) by Lemma 2 on 8 14. (~c → (a → b)) ∧ (~c → (~a → e))) by CONJ on 12, 13 15. (~c → ((a → b) ∧ (~a → e))) Lemma 1 on 14 16. (c → d) ∧ (~c → ((a → b) ∧ (~a → e))) by CONJ on 10, 15

63

Hmm… That works if a is false. Can we make a false? What if a is true?

Motivating Problem: Changing cond Branches

In prop logic: 1. ~(a ∧ c) premise 2. (a → b) ∧ (~a → ((c → d) ∧ (~c → e))) premise 3. ~a ∨ ~c by DM on 1 4. a → b by SPEC on 2 5. ~a → ((c → d) ∧ (~c → e)) by SPEC on 2 6. (~a → (c → d)) ∧ (~a → (~c → e)) by Lemma 1 on 5 7. ~a → (c → d) by SPEC on 6 8. ~a → (~c → e) by SPEC on 6 9. … 10. (c → d) “subgoal” 11. c ∨ (a → b) by GEN on 4 12. ~c → (a → b) by IMP on 11 13. ~c → (~a → e) by Lemma 2 on 8 14. (~c → (a → b)) ∧ (~c → (~a → e))) by CONJ on 12, 13 15. (~c → ((a → b) ∧ (~a → e))) Lemma 1 on 14 16. (c → d) ∧ (~c → ((a → b) ∧ (~a → e))) by CONJ on 10, 15

64

If a is true, then c isn’t. If c’s not true, then c → d is true. Let’s put that in logic! I looked around for a way to establish ~a but couldn’t. So, I checked what happens if a is true.

Motivating Problem: Changing cond Branches

In prop logic: 1. ~(a ∧ c) premise 2. (a → b) ∧ (~a → ((c → d) ∧ (~c → e))) premise 3. ~a ∨ ~c by DM on 1 4. ~a ∨ ~c ∨ d by GEN on 3 5. a → b by SPEC on 2 6. ~a → ((c → d) ∧ (~c → e)) by SPEC on 2 7. (~a → (c → d)) ∧ (~a → (~c → e)) by Lemma 1 on 6 8. ~a → (c → d) by SPEC on 7 9. ~a → (~c → e) by SPEC on 7 10. … 11. (c → d) “subgoal” 12. c ∨ (a → b) by GEN on 5 13. ~c → (a → b) by IMP on 12 14. ~c → (~a → e) by Lemma 2 on 9 15. (~c → (a → b)) ∧ (~c → (~a → e))) by CONJ on 13, 14 16. (~c → ((a → b) ∧ (~a → e))) Lemma 1 on 15 17. (c → d) ∧ (~c → ((a → b) ∧ (~a → e))) by CONJ on 11, 16

65

We need to “fabricate” a d. The rest will be just IMP applications.

Motivating Problem: Changing cond Branches

In prop logic: 1. ~(a ∧ c) premise 2. (a → b) ∧ (~a → ((c → d) ∧ (~c → e))) premise 3. ~a ∨ ~c by DM on 1 4. ~a ∨ ~c ∨ d by GEN on 3 5. ~a ∨ (c → d) by IMP on 4 6. a → (c → d) by IMP on 5 7. a → b by SPEC on 2 8. ~a → ((c → d) ∧ (~c → e)) by SPEC on 2 9. (~a → (c → d)) ∧ (~a → (~c → e)) by Lemma 1 on 8 10. ~a → (c → d) by SPEC on 9 11. ~a → (~c → e) by SPEC on 9 12. … 13. (c → d) “subgoal” 14. c ∨ (a → b) by GEN on 7 15. ~c → (a → b) by IMP on 14 16. ~c → (~a → e) by Lemma 2 on 11 17. (~c → (a → b)) ∧ (~c → (~a → e))) by CONJ on 15, 16 18. (~c → ((a → b) ∧ (~a → e))) Lemma 1 on 17 19. (c → d) ∧ (~c → ((a → b) ∧ (~a → e))) by CONJ on 13, 18

66

Now, we put these together, and we’re done!

Motivating Problem: Changing cond Branches

In prop logic: 1. ~(a ∧ c) premise 2. (a → b) ∧ (~a → ((c → d) ∧ (~c → e))) premise 3. ~a ∨ ~c by DM on 1 4. ~a ∨ ~c ∨ d by GEN on 3 5. ~a ∨ (c → d) by IMP on 4 6. a → (c → d) by IMP on 5 7. a → b by SPEC on 2 8. ~a → ((c → d) ∧ (~c → e)) by SPEC on 2 9. (~a → (c → d)) ∧ (~a → (~c → e)) by Lemma 1 on 8 10. ~a → (c → d) by SPEC on 9 11. (~a ∨ a) → (c → d) by CASE on 10, 6 12. T → (c → d) by NEG on 11 13. (c → d) by M.PON on 12, T 14. ~a → (~c → e) by SPEC on 9 15. c ∨ (a → b) by GEN on 7 16. ~c → (a → b) by IMP on 15 17. ~c → (~a → e) by Lemma 2 on 14 18. (~c → (a → b)) ∧ (~c → (~a → e))) by CONJ on 16, 17 19. (~c → ((a → b) ∧ (~a → e))) Lemma 1 on 18 20. (c → d) ∧ (~c → ((a → b) ∧ (~a → e))) by CONJ on 13, 19

67

(At step 13, no need to separately establish T. T is a “tautology”; it’s always true!) QED!! Whew!

Motivating Problem: Changing cond Branches

In prop logic: 1. ~(a ∧ c) premise 2. (a → b) ∧ (~a → ((c → d) ∧ (~c → e))) premise … …

• 20. (c → d) ∧ (~c → ((a → b) ∧ (~a → e)))

by CONJ on 13, 19

68

So, what did that prove? Technically: that if the conditions on the cond branches are mutually exclusive (cannot both be true at the same time) and if the result of the original version was true, then the version with switched cond branches will also be true. In fact, if you go back and think carefully about the proof, we can conclude something much bigger without too much more work: “If two conditions on neighboring cond branches are mutually exclusive (and have no ‘side effects’), we can switch those branches without changing the meaning of the program.”

Motivating Problem: Changing cond Branches

In prop logic: 1. ~(a ∧ c) premise 2. (a → b) ∧ (~a → ((c → d) ∧ (~c → e))) premise … …

• 20. (c → d) ∧ (~c → ((a → b) ∧ (~a → e)))

by CONJ on 13, 19

69

For reference: fruitless directions I tried include changing a → b to ~a ∨ b, attempting to form the negation of c → d, and a bunch of other false starts… all of which helped me build pieces I needed for my final strategy! You should have lots of scratchwork if you do a problem this large.

Motivating Problem: Changing cond Branches

In prop logic: 1. ~(a ∧ c) premise 2. (a → b) ∧ (~a → ((c → d) ∧ (~c → e))) premise … …

• 20. (c → d) ∧ (~c → ((a → b) ∧ (~a → e)))

by CONJ on 13, 19

70

Exercise: For expressions a, b, and c that evaluate to Booleans (with no side effects), we can translate code like: (if a b c) To logic like this instead of our usual: (a ∧ b) ∨ (~a ∧ c) Prove that they’re equivalent. Then, figure out how a cond would similarly translate. Finally, go back and redo some of our proofs (like the one we just did) with the new representation.

More problems to solve...

(on your own or if we have time)

71

Problem: Who put the cat in the piano?

Hercule Poirot has been asked by Lord Martin to find out who closed the lid of his piano after dumping the cat inside. Poirot interrogates two of the servants, Akilna and Eiluj. One and only one of them put the cat in the

• piano. Plus, one always lies and one never lies.

Akilna says:

– Eiluj did it. – Urquhart paid her $50 to help him study.

Eiluj says:

– I did not put the cat in the piano. – Urquhart gave me less than $60 to help him study.

Problem: Whodunit?

72

Problem: Automating Proof

Given:

p → q p ∨ ~q ∨ r (r ∧ ~p) ∨ s ∨ ~p ~r

Problem: What’s everything you can prove?

73

Problem: Canonical Form

A common form for propositional logic expressions, called “disjunctive normal form”

• r “sum of products form”, looks like this:

(a ∧ ~b ∧ d) ∨ (~c) ∨ (~a ∧ ~d) ∨ (b ∧ c ∧ d ∧ e) ∨ ... In other words, each clause is built up of simple propositions or their negations, ANDed together, and all the clauses are ORed together.

74

Problem: Canonical Form

Problem: Prove that any propositional logic statement can be expressed in disjunctive normal form.

75

Mystery #1

Theorem: p → q q → (r ∧ s) ~r ∨ (~t ∨ u) p ∧ t ∴ u

76

Is this argument valid or invalid? Is whatever u means true?

Mystery #2

Theorem: p p → r p → (q ∨ ~r) ~q ∨ ~s ∴ s

77

Is this argument valid or invalid? Is whatever s means true?

Mystery #3

Theorem: q p ∨ m q → (r ∧ m) m ∨ q ∴ p

78

Is this argument valid or invalid? Is whatever p means true?

Practice Problem (for you!)

Prove (with truth tables) that hypothetical syllogism is a valid rule of inference: p → q q → r ∴ p → r

79

Practice Problem (for you!)

Prove (with truth tables) whether this is a valid rule of inference: q p → q ∴ p

80

Practice Problem (for you!)

Are the following arguments valid? This apple is green. If an apple is green, it is sour. ∴ This apple is sour. Sam is not barking. If Sam is barking, then Sam is a dog. ∴ Sam is not a dog.

81

Practice Problem (for you!)

Are the following arguments valid? This shirt is comfortable. If a shirt is comfortable, it’s chartreuse. ∴ This shirt is chartreuse. It’s not cold. If it’s January, it’s cold. ∴ It’s not January.

82

Is valid (as a term) the same as true or correct (as English ideas)?

More Practice

Meghan is rich. If Meghan is rich, she will pay your tuition. ∴ Meghan will pay your tuition.

83

Is this argument valid? Should you bother sending in a check for your tuition, or is Meghan going to do it?

Problem: Equivalent Java Programs

Problem: How many valid Java programs are there that do exactly the same thing?

84

Resources: Statements

From the Java language specification, a standard statement is one that can be:

85

http://java.sun.com/docs/books/jls/third_edition/html/statements.html#14.5

Resources: Statements

From the Java language specification, a standard statement is one that can be:

86

http://java.sun.com/docs/books/jls/third_edition/html/statements.html#14.5

What’s a “Block”?

Back to the Java Language Specification:

87

http://java.sun.com/docs/books/jls/third_edition/html/statements.html#14.2

What’s a “Block”?

A block is a sequence of statements, local class declarations and local variable declaration statements within braces. … A block is executed by executing each of the local variable declaration statements and

• ther statements in order from first to last

(left to right).

88

What’s an “EmptyStatement”

Back to the Java Language Specification:

89

http://java.sun.com/docs/books/jls/third_edition/html/statements.html#14.6

Problem: Validity of Arguments

Problem: If an argument is valid, does that mean its conclusion is true? If an argument is invalid, does that mean its conclusion is false?

90
