2 nd APCTP-TUS Workshop on Dark Energy, Tokyo 2015 Cosmology with Strong Lensing Systems Zhu, Zong-Hong , (zhuzh@bnu.edu.cn) Beijing Normal University, Beijing 100875, China , 100875,

slide-1
SLIDE 1

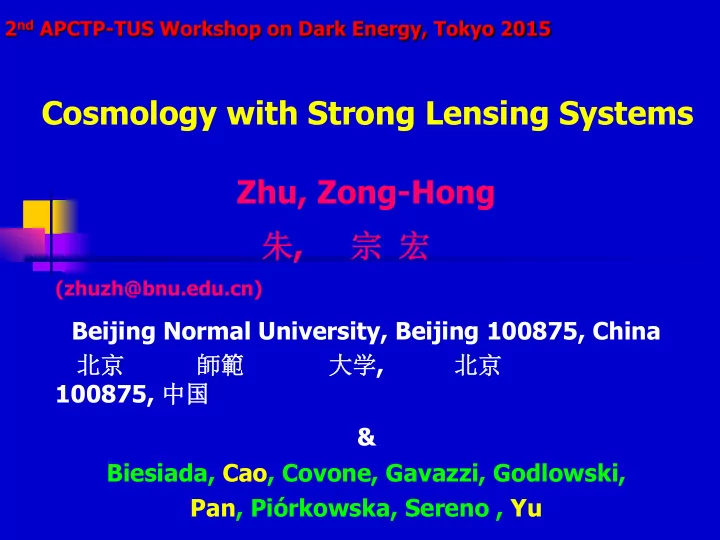

Cosmology with Strong Lensing Systems Zhu, Zong-Hong 朱, 宗 宏

(zhuzh@bnu.edu.cn)

Beijing Normal University, Beijing 100875, China 北京 師範 大学, 北京 100875, 中国 & Biesiada, Cao, Covone, Gavazzi, Godlowski, Pan, Piórkowska, Sereno , Yu

2nd APCTP-TUS Workshop on Dark Energy, Tokyo 2015

slide-2
SLIDE 2

APCTP - TUS workshop on DE

Cosmology with strong lensing systems

Ø Cosmology from strong lensing systems

S.Cao, M.Biesiada, R.Gavazzi, A.Piórkowska, Z-HZ 2015 ApJ 806, 185

Ø Testing the dark energy with gravitational lensing statistics

S.Cao, G.Covone, Z-HZ 2012 ApJ 755, 31

Ø Constraints on cosmological models from lens redshift data

  • S. Cao & Z-HZ 2012 A&A 538, A43

Ø Constraints on cosmological models from strong GL systems

  • S. Cao, Y. Pan, M. Biesiada, W. Godlowski, Z-HZ 2012 JCAP 03, 016

Ø Testing and selecting dark energy models with lens redshift data

  • S. Cao & Z-HZ 2011 PRD 84, 023005

Ø

Combining optical and X-ray observations of galaxy clusters to constrain cosmological parameters

  • H. Yu & Z-HZ 2011 RAA 84, 023001

Ø Testing the DGP model with gravitational lensing statistics

Z-HZ & M. Sereno 2008 A&A 487, 831

24-Aug-15 2

slide-3
SLIDE 3

APCTP - TUS workshop on DE 24-Aug-15 3

slide-4
SLIDE 4

Betoule, et al. (2014)

APCTP - TUS workshop on DE 24-Aug-15 4

slide-5
SLIDE 5

APCTP - TUS workshop on DE

n Cosmology from time delay

  • Strong lensing time delay challenge (TDC)

n Cosmology from standard lensing statistics n Cosmology from lens redshift distributions n Cosmology from Dds/Ds of strong lensing systems

Cosmology with strong lensing systems

24-Aug-15 5

slide-6
SLIDE 6

APCTP - TUS workshop on DE

Basics of gravitational lensing

n Light rays are deflected by gravity.

Ø One consequence of Einstein’s General Relativity

24-Aug-15 6

slide-7
SLIDE 7

APCTP - TUS workshop on DE

Lens equation Lens equation relates true source position β to the

  • bserved image position θ

Multiple images occur when lens equation has multiple solutions

24-Aug-15 7

slide-8
SLIDE 8

APCTP - TUS workshop on DE

Lens equation: Singular Isothermal Sphere (SIS)

24-Aug-15 8

slide-9
SLIDE 9

APCTP - TUS workshop on DE

Basics of gravitational lensing statistics

n Cosmological constraints (Ωm, Ωx, wx) n Gravitational lensing statistics

l (e.g., Turner et al. 1984; Fukugita et al. 1992; Kochanek

1993; Chae 2007; Oguri et al. 2008; Zhu et al. 2008)

24-Aug-15 9

slide-10
SLIDE 10

APCTP - TUS workshop on DE

Number density of galaxies

24-Aug-15 10

slide-11
SLIDE 11

APCTP - TUS workshop on DE

Cosmological constraints: Chae 2007

24-Aug-15 11

slide-12
SLIDE 12

APCTP - TUS workshop on DE

Cosmological constraints: Oguri et al. 2008

24-Aug-15 12

slide-13
SLIDE 13

APCTP - TUS workshop on DE

Cosmological constraints: Zhu & Sereno 2008

24-Aug-15 13

slide-14
SLIDE 14

APCTP - TUS workshop on DE

n Cosmology from time delay

  • Strong lensing time delay challenge (TDC)

n Cosmology from standard lensing statistics n Cosmology from lens redshift distributions n Cosmology from Dds/Ds of strong lensing systems

Cosmology with strong lensing systems

24-Aug-15 14

slide-15
SLIDE 15

APCTP - TUS workshop on DE

Lens redshift test: Kochanek 1992

24-Aug-15 15

slide-16
SLIDE 16

APCTP - TUS workshop on DE

Number density of galaxies

24-Aug-15 16

slide-17
SLIDE 17

APCTP - TUS workshop on DE

  • S. Cao & Z.-H. Zhu 2011

24-Aug-15 17

slide-18
SLIDE 18

APCTP - TUS workshop on DE

Combined with BAO and BAO +CMB

Cosmological constraints from lens redshift data

  • S. Cao & Z.-H. Zhu 2011

24-Aug-15 18

slide-19
SLIDE 19

APCTP - TUS workshop on DE

Testing and selecting dark energy models

  • S. Cao & Z.-H. Zhu 2012

24-Aug-15 19

slide-20
SLIDE 20

APCTP - TUS workshop on DE

A difference in BIC (ΔBIC) of 2 is considered

positive evidence against the model with the higher BIC; A ΔBIC of 6 is considered strong evidence.

Selecting models: BIC

24-Aug-15 20

slide-21
SLIDE 21

APCTP - TUS workshop on DE

Testing and selecting dark energy models

  • S. Cao & Z.-H. Zhu 2012

24-Aug-15 21

slide-22
SLIDE 22

APCTP - TUS workshop on DE

  • S. Cao, G. Covone & Z.-H. Zhu 2012

24-Aug-15 22

slide-23
SLIDE 23

APCTP - TUS workshop on DE 24-Aug-15 23

slide-24
SLIDE 24

APCTP - TUS workshop on DE

n Cosmology from time delay

  • Strong lensing time delay challenge (TDC)

n Cosmology from standard lensing statistics n Cosmology from lens redshift distributions n Cosmology from Dds/Ds of strong lensing systems

Cosmology with strong lensing systems

24-Aug-15 24

slide-25
SLIDE 25

Dds/Ds : from Einstein radius and velocity dispersion

APCTP - TUS workshop on DE

Ratio determined by cosmological models

24-Aug-15 25

slide-26
SLIDE 26

APCTP - TUS workshop on DE 24-Aug-15 26

slide-27
SLIDE 27

APCTP - TUS workshop on DE

Galaxy clusters: as cosmological probes

] Sunyaev-Zel’dovich measurements +

X-ray observations

] Large sample of clusters of galaxies ] Gas mass fraction, fgas ] Lensing clusters + X-ray measurements

24-Aug-15 27

slide-28
SLIDE 28

APCTP - TUS workshop on DE

where ne0 is the central electron density, βx describes the slope, and rc stands for the core radius.

Galaxy clusters: emission of X-ray

When a galaxy cluster is relaxed enough, the hydrostatic isothermal spherical symmetric β-model (Cavaliere & Fusco-Femiano, 1976) can be used to describe the intracluster medium(ICM) density profile:

24-Aug-15 28

slide-29
SLIDE 29

APCTP - TUS workshop on DE

Assuming all the gases are isothermal (with the temperature Tx), the gravity of relaxing cluster and its gas pressure should balance each other according to the hydrostatic equilibrium condition. With the approximation of spherical symmetry we can estimate mass distribution using gas density, which comes from x-ray luminosity fitting result. The cluster mass profile can be given by

Galaxy clusters: mass profile

24-Aug-15 29

slide-30
SLIDE 30

APCTP - TUS workshop on DE

Galaxy clusters: Dds/Ds

24-Aug-15 30

slide-31
SLIDE 31

APCTP - TUS workshop on DE

Dds/Ds : data obtained Yu & Zhu 2011

24-Aug-15 31

slide-32
SLIDE 32

APCTP - TUS workshop on DE

Dds/Ds : more data Bonamente et al., 2006

24-Aug-15 32

slide-33
SLIDE 33

APCTP - TUS workshop on DE

Dds/Ds : more data Kubo et al., 2010

24-Aug-15 33

slide-34
SLIDE 34

APCTP - TUS workshop on DE

Cosmological constraints from Dds/Ds

  • S. Cao, Y. Pan, M. Biesiada, W. Godlowski, Z-HZ 2011

24-Aug-15 34

slide-35
SLIDE 35

Biesiada et al., 2010

APCTP - TUS workshop on DE 24-Aug-15 35

slide-36
SLIDE 36

New ideas for this method:

  • Work on larger well-defined samples!
  • Consider the evolution of lens mass density profile!

APCTP - TUS workshop on DE 24-Aug-15 36

slide-37
SLIDE 37

APCTP - TUS workshop on DE 24-Aug-15 37

slide-38
SLIDE 38

APCTP - TUS workshop on DE 24-Aug-15 38

slide-39
SLIDE 39

APCTP - TUS workshop on DE 24-Aug-15 39

slide-40
SLIDE 40

APCTP - TUS workshop on DE 24-Aug-15 40

slide-41
SLIDE 41

SLACS 57 lenses BELLS 25 lenses SL2S 31 lenses LSD 5 lenses Total 118 lenses Lensing Sample

the Sloan Lens ACS Survey, BOSS emission-line lens survey, Lens Structure and Dynamics, and Strong Lensing Legacy Survey

APCTP - TUS workshop on DE 24-Aug-15 41

slide-42
SLIDE 42

Cao et al. (2015)

APCTP - TUS workshop on DE 24-Aug-15 42

slide-43
SLIDE 43

Cao et al. (2015)

APCTP - TUS workshop on DE 24-Aug-15 43

slide-44
SLIDE 44

Cao et al. (2015)

APCTP - TUS workshop on DE 24-Aug-15 44

slide-45
SLIDE 45

Cao et al. (2015)

APCTP - TUS workshop on DE 24-Aug-15 45

slide-46
SLIDE 46

Cao et al. (2015)

APCTP - TUS workshop on DE 46

From SN Union2.1 From strong lensing

slide-47
SLIDE 47

Conclusion & perspectives

n

Strong lensing systems with known central velocity dispersions are a new class of "standard rulers“ (Einstein radius being standardized by stellar kinematics)

n

Measurements of time delays between images – will provide distances not just distance ratios!

n

Strong lens redshift test, which is independent of magnification bias, can be a complementarity to other cosmological probes.

n

Strong lensing systems will be abundant because of existing surveys such as CLASS, SLACS, SL2S, SQLS, AEGIS, COSMOS,

CASSOWARY, BELLS, and new projects such as Pan-STARRS, LSST, JDEM / IDECS3, SKA4.

APCTP - TUS workshop on DE 24-Aug-15 47

slide-48
SLIDE 48

APCTP - TUS workshop on DE 24-Aug-15 48

slide-49
SLIDE 49

APCTP - TUS workshop on DE

Beijing Normal University: main building

24-Aug-15 49

slide-50
SLIDE 50

APCTP - TUS workshop on DE

Beijing Normal University: astronomy department

n Founded in 1960

— the second Department of Astronomy (DA) at Universities in China

n Staff: 25+4

— a modern Astrophysics Lab — an Astronomy Detection Technology Lab — an Accurate Satellite Orbit Determination Lab — an Astronomical Observations Lab

24-Aug-15 50

slide-51
SLIDE 51

APCTP - TUS workshop on DE

Beijing Normal University: astronomy department — Undergraduate student: ～25 /year; Graduate student: ～20 /year; In total: ～160 students in astronomy. — Master's degree in 3 areas: Astrophysics, Astrometry and Celestial Mechanics, Optics. — Ph.D. degree: Astrophysics.

24-Aug-15 51

slide-52
SLIDE 52

APCTP - TUS workshop on DE

－Equipments: two 40-cm telescopes on the campus;

  • ne radio telescope on the campus;

¼ time of a 85-cm telescope at XL; A computer room for students.

Beijing Normal University: astronomy department

24-Aug-15 52

slide-53
SLIDE 53

APCTP - TUS workshop on DE

n Research funding:

～50,000 ＄/person/year

n Funding sources:

National Natural Science Foundation Ministry of Science and Technology Ministry of Education Beijing Local Government Chinese Academy of Sciences Beijing Normal University etc.

Beijing Normal University: astronomy department

24-Aug-15 53

slide-54
SLIDE 54

APCTP - TUS workshop on DE

n Research fields:

－Cosmology －Stellar physics variable stars, massive stars, stellar evolution. －Quasar & Galaxy －High energy astrophysics －Laboratory astrophysics

Beijing Normal University: astronomy department

24-Aug-15 54

slide-55
SLIDE 55

APCTP - TUS workshop on DE

My group

n Staff:

－Prof.M Biesiada & Dr.S Cao,Z Li: Cosmology －Prof.P Tozzi & Dr.H Yu: X-ray clusters －Prof.M Hendry, H Siong & Dr. F Zhang: GWs, NR

n Students:

－PhD student: 8 －MSc Graduate student: 7 －Undergraduate student: 3

n Research fields

－Cosmology: DE , Lensing, X-ray clusters

－Gravitational waves

24-Aug-15 55
