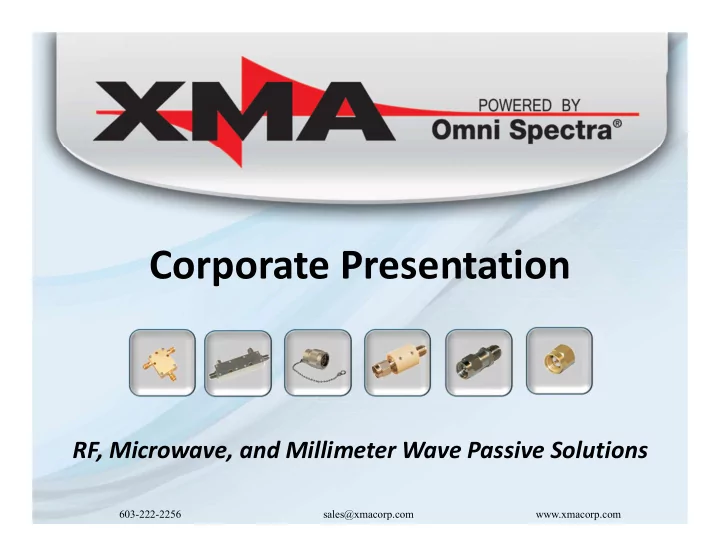

Corporate Presentation

RF, Microwave, and Millimeter Wave Passive Solutions

603-222-2256 sales@xmacorp.com www.xmacorp.com

About XMA Corp

• Global manufacturing and technology company serving Aerospace & Defense,

Telecommunications, Test, and Commercial Markets around the world

• Privately held USA Corporation founded in 2003
• Headquarters in Manchester, NH (USA)
• Product lines include Adapters, Adaptenuators, Attenuators, DC Blocks,

Directional Couplers, Dust Caps and Shorts, Fixed Equalizers, Power Dividers, and Terminations

2002

2003

2008 2008 Founded XMA Trademarked Omni Spectra Launched Omni Spectra Acquired MA/Com

2014

AS9100 Certified

2016

Moved into new facility

603-222-2256 sales@xmacorp.com www.xmacorp.com

XMA Corporation - Our Global Presence

Manchester Tel Aviv Stoneham England, UK

Headquarters Engineering Centers of Excellence Sales Channels – Distributors, ETC

Southern, CA Florida

Tianjin

Northern, CA France Germany

603-222-2256 sales@xmacorp.com www.xmacorp.com

Market Segments

Telecommunication

• All of the tier 1 network equipment providers

Defense & Aerospace

• Top 10 defense and aerospace contracts
• Focus on differentiated solutions for long term value

Test & Measurement

• Components for high­end equipment

Quantum Computing

• New cryogenic technology and advancements for RF transmittal

603-222-2256 sales@xmacorp.com www.xmacorp.com

Application Spectrum

Adaptive Radar Automotive FM Broadcasting Base station Communications Integrated Radio Systems Wi Max LTE Air traffic Control Radar Adaptive Radar Automotive Electronic Jamming Systems Counter Measure Systems Unmanned Aircraft Phased Array Radar Vehicle Radar RFID Extreme Mobile Communication platforms Electronic Warfare Satellite GPS Radio Astronomy Near Earth Object Observation

Commercial Commercial Aerospace & Defense Aerospace & Defense

Tower transmitters Precision Laboratory Test systems Satellite UHF / VHF

30 to 300 MHz 30 to 300 MHz 300 to 3000 MHz 3 to 30 GHz 30 GHz to 300 GHz XMA excels at delivering high volume commercial AND complex solutions

603-222-2256 sales@xmacorp.com www.xmacorp.com

Product Portfolio

Current Product Portfolio

Fixed Coaxial, Flange and Tab

• Attenuators
• Terminations
• DC Blocks
• Power Dividers
• Directional Couplers
• Fixed Equalizers
• Power: 0.5 to 300 Watts Avg.
• Frequency: DC­67 GHz
• Connectors: SMA, SSMA, SMB,

SMP, Type N, TNC, 2.92mm, 2.4mm, DIN7­16, BNC

Latest Products

• 1.85mm adapters, attenuators

and terminations

• 40 and 50 GHz Power Dividers

603-222-2256 sales@xmacorp.com www.xmacorp.com

Proprietary Thin Film Resistor Materials

Films are sealed utilizing thin film coatings for moisture resistance Custom designs are easily attained with rapid turnaround Can be combined with Thick Film Conductors for lower costs Cryogenic compatible thin film available TCR is very low Film thickness offer optimum RF Performance Resistive Hybrid fabrication techniques used Extremely stable performance over product life

603-222-2256 sales@xmacorp.com www.xmacorp.com

Additional Key Value

• Full In­house Design Capabilities
• AutoCad
• SolidWorks (3D)
• CST (Modeling software)
• Full In­house fabrication lines
• Thin film sputtering
• PCB Lab
• Quick response times on all stages of development cycle
• Quoting, prototyping, evaluation units, and production

builds

• Two design / manufacturing sites:
• Manchester, NH – Mil­Spec & High Performance Commercial
• Tianjin, China

Innovative engineering staff coupled with flexible manufacturing

603-222-2256 sales@xmacorp.com www.xmacorp.com

In-House Testing Capabilities

On Site Control

• Integration of sales & production teams
• Allows for a high level of customization
• DFARS & RoHS compliance capabilities
• Flexible production & shipping schedules

Electrical and mechanical parametric testing

• MIL-DTL-3933
• MIL-DTL-39030
• MIL-STD-348
• MIL-PRF-39012
• Up to 67 GHz
• Burn in Chambers
• Thermal Shock -65°C to -180°C to
• Peak Power Testing
• Pulsed Signals at Power

Strategic Partners for

• Shock, Vibration, Radiography, SEM, Moisture,
• ATP, Group A, B, and C
• Qualification, First Article

All Test Equipment Calibrated to NIST
