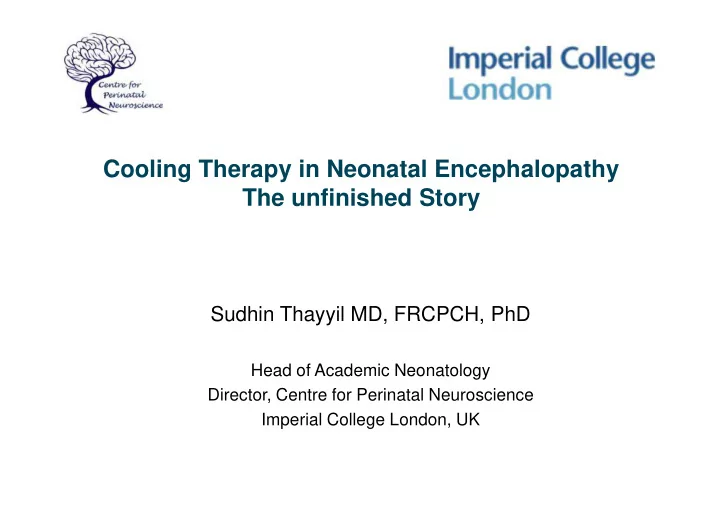

Cooling Therapy in Neonatal Encephalopathy The unfinished Story

Sudhin Thayyil MD, FRCPCH, PhD

Head of Academic Neonatology Director, Centre for Perinatal Neuroscience Imperial College London, UK

2 Contents

• A. Recap of the cooling story so far
• B. Ongoing work

– Magnetic Resonance Biomarkers – Magnetic Resonance Biomarkers – Transcriptomic signatures – HELIX trial

3

4

Healthy Control HIE – Normothermic HIE – Cooled

5 Clinical trials

Cool cap Trial: Lancet 2005 (Auckland and Imperial College London)

NICHD (USA) Trial: NEJM 2005 TOBY Trial: NEJM 2009 (Imperial College London)

6 10 years…and still doesn’t work in all !!!

• 1. How can we speed up?

CONTENTS

• 2. Why doesn’t it work in all?

7 MR Imaging in neonatal encephalopathy

8 Proton MR spectroscopy

normal

Lac Naa

severe HI

Naa Lac Cho Lac Cr

9 Which MR Biomarker

Thayyil et al., Pediatrics 2010

10

MARBLE (Magnetic Resonance Biomarkers in neonatal Encephalopathy) Can MR biomarkers accurately predict neurological outcome 2 years in a multicenter setting? – MR spectroscopy (metabolic injury) – Diffusion MRI (microstructural injury) – Diffusion MRI (microstructural injury) – ‘Conventional’ structural MRI

• 223 babies from 8 centres in the UK and USA over 3 years
• Bayley III at 2 years of age

Lally et al., BMJ Open 2016

11

MARBLE (Magnetic Resonance Biomarkers in neonatal Encephalopathy)

12 Use in future clinical trials

NAA: Surrogate endpoint arm Neurodevelopment as endpoint r arm Power No per arm Power No per ar

(Mean difference 2.5 mmol/kg, SD 2.) (CER 50%, RRR 20%, alpha 0.05)

13

Co-existent infection and FIRS Maternal illness Growth restriction

Clinical Heterogeneity

Encephalopathy Cerebral Palsy Hypoxia- Ischemia Acute versus Sub acute hypoxia

14

Can transcriptomic signature aid in disease stratification at birth?

Number of gene copies (up and down) ‘signature’

15

NE Babies Controls NE infants

Transcriptomic signature

Controls total 6305 genes adj pvalue<0.05

16

Transcriptomic signature

17

1 million deaths per year from neonatal encephalopathy

Why do a cooling trial in LMIC?

Lawn et al., Lancet 2005

18 Why do a cooling trial in LMIC?

• Clinical heterogeneity

– Population differences – Nature and origins of brain injury – Higher perinatal infection & other co-morbidities – Higher perinatal infection & other co-morbidities

• Sub optimal intensive care

– Public sector versus Private sector issues – Lack of effective transport system

19 Why do a cooling trial in LMIC?

20

21 Phase Change Material for Cooling

54 babies with mild, moderate or severe encephalopathy born at Calicut Medical College, Kerala Thayyil et al., Arch Dis Childhood 2007

22 HELIX feasibility study

• 1. Connect Tecotherm Helix to the

electric supply via the power unit

• 2. Connect T

ecotherm Helix to the mattress using the hose

I 2

T ecotherm-Helix Set up

• 3. Add pre-mixed

coolant till the fluid level is visible (first use only)

• 5. Add more pre-mixed coolant

holding the mattress vertical so that the air bubbles escape and mattress is fully filled with fluid

• 4. Switch on the machine

Keep baby on the mattress, Attach the rectal probe to tecotherm helix (red arrow) Insert the rectal probe (4 to 6 cm) (blue arrow) Wrap the mattress around the baby using a small tape (non-sticking) through the mattress eye hole (black arrow) (green arrow)

• 6. Keep a thin cloth over the mattress

3 5 7 6 4

Oliveira et al., BMJ Ped Open 2018

23

• To examine the feasibility of whole body cooling using a servo

controlled cooling device (Tecotherm HELIX) and short term neonatal morbidity

• 82 babies with moderate or severe encephalopathy recruited from 4

HELIX feasibility study

• 82 babies with moderate or severe encephalopathy recruited from 4

centres in India

• 22% babies died

Oliveira et al., BMJ Ped Open 2018

24 HELIX feasibility study Survivors (n=67) Non-survivors (n=15) P-value Gestational age (weeks) 38.8 ± 1.3 38.0 ± 1.2 0.14 Age at start of cooling (hours) 3.6 ± 1.4 4.1 ± 1.4 0.22 Birth weight (g) 2912 ± 364 2855 ± 388 0.58 10 min Apgar 5.5 ± 0.8 5.0 ± 1.0 0.36 Severe encephalopathy 11/67 (16%) 10/15 (67%) <0.001 Seizures within 6 h of birth 55/64 (86%) 13/14 (93%) 0.68 Place of delivery Inborn 15/65 (23%) 4/13 (31%) Inborn 15/65 (23%) 4/13 (31%) Outborn – hospital 48/65 (74%) 9/13 (69%) 0.81 Outborn – home 2/65 (3%) 0/13 (0%) Neonatal complications Gastric bleeds 14/38 (37%) 11/11 (100%) <0.001 Pulmonary haemorrhage 1/38 (3%) 5/11 (45%) 0.001 PPHN 1/38 (3%) 6/11 (55%) <0.001 Thrombocytopenia 42/67 (63%) 10/15 (67%) 1.00 Metabolic acidosis 26/67 (39%) 9/15 (60%) 0.16 Treatment duration (days) Invasive ventilation 1.4 ± 1.8 3.3 ± 1.5 0.002 Sedation 0.9 ± 1.5 1.4 ± 1.8 0.40 Inotropic support 3.1 ± 1.3 3.9 ± 0.3 0.04 Anticonvulsive drugs 2.9 ± 1.7 3.9 ± 0.3 0.07

Oliveira et al., BMJ Ped Open 2018

25 HELIX feasibility - Heart rate and Mortality

Oliveira et al., BMJ Ped Open 2018

26 HELIX – Main Trial

Primary

• To examine whether whole body cooling to 33.5˚ C initiated within 6

hours of birth and continued for 72 hours reduces death or neurodisability at 18 to 22 months after neonatal encephalopathy in a ‘real life setting’ in low and middle-income countries. ‘real life setting’ in low and middle-income countries. Secondary

• Proton MR spectroscopy Thalamic N-acetyl aspartate level and white

matter fractional anisotropy at 1 week

• Host gene expression profile
• Perinatal infection

Thayyil et al., BMJ Open 2017

27 Study design and Centers

• 408 babies with moderate or severe encephalopathy

– Sion – Mumbai (J Mondkar) – IGH Bangalore (N Benkappa) – ICH, Madras Medical College (Mangalabharathi) – IOG, Madras Medical College (Aresar) – SAT, Trivandrum (Radhika) – MAMC, New Delhi (Ramji) – Kelaniya, Sri Lanka (Rodrigo) – BSMMU, Dhaka (Shahidullah)

• Babies randomized (web-based) to whole body cooling (Tecotherm)

for 3 days or usual care

• 3T MR imaging and spectroscopy within 2 weeks
• Detailed infection screening and transcriptomics
• Bayley III at 18 to 22 months

Thayyil et al., BMJ Open 2017

28 HELIX so far

• 288 babies recruited since Aug 2015 (12 to 15 babies per month)
• Expected to complete recruitment (120 more) by October 2018
• All recruited cases surviving till 2 weeks had MRI and MRS
• Follow up is challenging
• Follow up is challenging

– Frequent changes in mobile numbers – Migrant families and slum population – Despite this, all except one family in contact – Often the team visited homes, slums, had to fly to different states – Second (external team) for parents upset with recruiting centers

• Highly committed team and MAJOR team effort

29 Survey of Cooling in Indian Neonatal Units

Hospitals participated in the survey Public (n=25) Private (n=68) Total (n=93) Offers cooling as standard care 10 (21%) 37 (79%) 47 (51%) Offers cooling as standard care 10 (21%) 37 (79%) 47 (51%) Do not offer due to lack of cooling devices and trained staff 13 (52% 28 (41%) 41 (44%) Do not offer as strong evidence from clinical trials are lacking 2 (8%) 3 (4%) 5 (5%)

Chandrasekeran, Swamy et al., Indian Pediatrics 2018

30

Hospitals offering therapeutic hypothermia Public (n=10) Private (n=37) Total (n=47)

Cooling devices Approved cooling devices* 9 (90%) 13 (35%) 22 (47%) Indigenous cooling solutions** 1 (10%) 24 (65%) 25 (53%) Initiation of cooling

Survey of Cooling in Indian Neonatal Units

Initiation of cooling Within 6 hours after birth 10 (100%) 28 (76%) 38 (81%) Upto 12 hours after birth 0 (0%) 7 (19%) 7 (15%) Upto 24 hours after birth 0 (0%) 2 (5%) 2 (4%) Sedation during cooling Intravenous sedation 6 (60%) 20 (54%) 26 (55%) Oral sedation only 2 (20%) 2 (5%) 4 (9%) None 2 (20%) 15 (41%) 17 (36%)

Chandrasekeran, Swamy et al., Indian Pediatrics 2018

31 Take home messages

• Cooling (33 to 34 C) within 6 h of age for 72 h improves survival

without disability after moderate or severe encephalopathy in high income countries

• Safety and efficacy of cooling in LMIC is not known, and hence this
• Safety and efficacy of cooling in LMIC is not known, and hence this

therapy should be considered experiential, until the HELIX trial data is available.

• MR spectroscopy biomarkers and transcriptomic profile will help speed

up the clinical translation of novel therapies and personalized neuroprotection

32

Thankyou
