VLSI Institute for Applied Information Processing and Communications (IAIK) VLSI & Security Contact-based Fault Injections and Power Analysis on RFID Tags Michael Hutter, Jrn-Marc Schmidt, Thomas Plos ECCTD 2009 Institute for Applied

slide-1

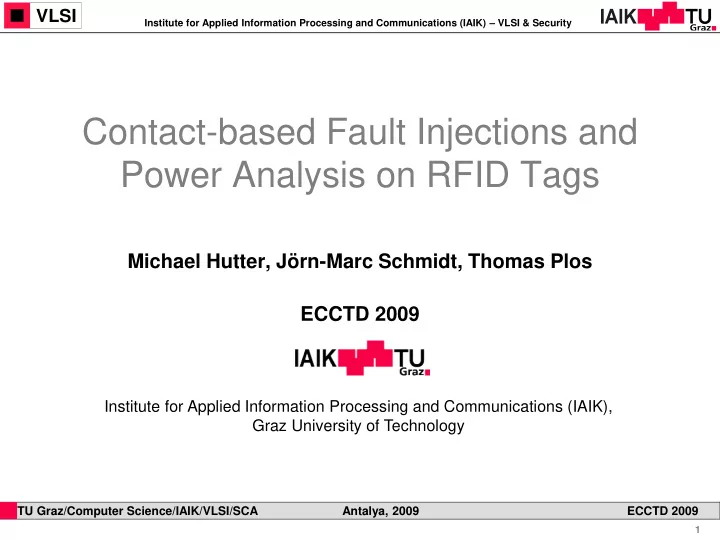

SLIDE 1

Institute for Applied Information Processing and Communications (IAIK) – VLSI & Security 1

TU Graz/Computer Science/IAIK/VLSI/SCA Antalya, 2009 ECCTD 2009

Institute for Applied Information Processing and Communications (IAIK), Graz University of Technology

VLSI

Contact-based Fault Injections and Power Analysis on RFID Tags

Michael Hutter, Jörn-Marc Schmidt, Thomas Plos ECCTD 2009

slide-2
SLIDE 2

http://www.iaik.tugraz.at

Institute for Applied Information Processing and Communications (IAIK) – VLSI & Security 2

TU Graz/Computer Science/IAIK/VLSI/SCA ECCTD 2009

VLSI

Antalya, 2009

Presentation Outline

  • Introduction
  • Implementation attacks on RFID
  • Related work
  • Contact-based measurement setup
  • Fault injection setup and results
  • Power analysis setup and results
  • Conclusions and future work
slide-3
SLIDE 3

http://www.iaik.tugraz.at

Institute for Applied Information Processing and Communications (IAIK) – VLSI & Security 3

TU Graz/Computer Science/IAIK/VLSI/SCA ECCTD 2009

VLSI

Antalya, 2009

Introduction

  • RFID … Radio Frequency Identification
  • Small microchip attached to an antenna
  • Reader field is used for
  • Communication
  • Power supply
  • (Clock signal)

Reader

slide-4
SLIDE 4

http://www.iaik.tugraz.at

Institute for Applied Information Processing and Communications (IAIK) – VLSI & Security 4

TU Graz/Computer Science/IAIK/VLSI/SCA ECCTD 2009

VLSI

Antalya, 2009

Implementation Attacks on RFID

  • Active attacks
  • Fault attacks
  • Passive attacks
  • Physical probing
  • Side-channel attacks
  • Power consumption
  • Electromagnetic radiation
  • Timing analysis
slide-5
SLIDE 5

http://www.iaik.tugraz.at

Institute for Applied Information Processing and Communications (IAIK) – VLSI & Security 5

TU Graz/Computer Science/IAIK/VLSI/SCA ECCTD 2009

VLSI

Antalya, 2009

Recent Work

  • Oren and Shamir 2006
  • Simple power analysis attacks on UHF tags
  • Hutter et al. 2007
  • Differential electromagnetic analysis on HF tags
  • Plos 2008
  • Differential electromagnetic analysis on UHF tags
  • Hutter et al. 2008
  • Fault attacks on HF and UHF tags
  • This work
  • Differential power analysis and fault attacks on UHF and HF

tags

slide-6
SLIDE 6

http://www.iaik.tugraz.at

Institute for Applied Information Processing and Communications (IAIK) – VLSI & Security 6

TU Graz/Computer Science/IAIK/VLSI/SCA ECCTD 2009

VLSI

Antalya, 2009

Our Analysis

  • Performed fault attacks and power-analysis

attacks on different RFID tags

  • We induced over-voltage spikes into the chip-antenna

connections

  • Analyzed HF and UHF tags
  • ISO 15693 and ISO 18000-6C (EPC Gen2)
  • Focus on write operation
  • Critical in terms of power consumption and execution time
  • Used a contact-based measurement setup
slide-7
SLIDE 7

http://www.iaik.tugraz.at

Institute for Applied Information Processing and Communications (IAIK) – VLSI & Security 7

TU Graz/Computer Science/IAIK/VLSI/SCA ECCTD 2009

VLSI

Antalya, 2009

Contact-based Measurement Setup

Tag chip RFID reader

Rterm Rseries PC Reader control

  • The chip of the tag is separated from its antenna
  • Chip and reader are directly connected by 2 wires
  • No air interface (no inductive/electromagnetic coupling)
  • The setup allows…
  • … contact-based fault injections
  • … power-consumption measurements of

the chip

slide-8
SLIDE 8

http://www.iaik.tugraz.at

Institute for Applied Information Processing and Communications (IAIK) – VLSI & Security 8

TU Graz/Computer Science/IAIK/VLSI/SCA ECCTD 2009

VLSI

Antalya, 2009

Basic Communication Process

Response time Reader request Tag response

slide-9
SLIDE 9

http://www.iaik.tugraz.at

Institute for Applied Information Processing and Communications (IAIK) – VLSI & Security 9

TU Graz/Computer Science/IAIK/VLSI/SCA ECCTD 2009

VLSI

Antalya, 2009

Fault-Injection Setup

Reader control Trigger PC

Tag chip µC RFID reader

RTerm

FPGA board DC supply

Switch control

  • Two high-speed multiplexers connect the chip to

a DC voltage (over-voltage injection)

  • Trigger device
slide-10
SLIDE 10

http://www.iaik.tugraz.at

Institute for Applied Information Processing and Communications (IAIK) – VLSI & Security 10

TU Graz/Computer Science/IAIK/VLSI/SCA ECCTD 2009

VLSI

Antalya, 2009

Trigger Signal

  • Trigger device
  • SASEBO board used to control the trigger delay and duration
  • A microcontroller is used to listen to the reader communication

and to provide a trigger signal after a write command

  • Fault injections during the response time of the

chip (a few milliseconds)

  • Trigger device was programmed to sweep across the response

time (automatic sweep)

  • Injected spikes in steps of 9ns
  • Over-voltage was induced for at least 80ns
slide-11
SLIDE 11

http://www.iaik.tugraz.at

Institute for Applied Information Processing and Communications (IAIK) – VLSI & Security 11

TU Graz/Computer Science/IAIK/VLSI/SCA ECCTD 2009

VLSI

Antalya, 2009

Results

  • Faults cause the chip to write faulty values into

the memory

  • Tags perform a reset during the writing of data
  • The faulty value depends on

the trigger delay

  • Different tags have a

different writing time

Allows fingerprinting of RFID tags

slide-12
SLIDE 12

http://www.iaik.tugraz.at

Institute for Applied Information Processing and Communications (IAIK) – VLSI & Security 12

TU Graz/Computer Science/IAIK/VLSI/SCA ECCTD 2009

VLSI

Antalya, 2009

Power-Analysis Setup

  • For HF tags
  • Power is measured over a 100 Ohm resistor
  • For UHF tags
  • Power is measured over the internal capacity (0.1pF) of the differential

probe (no resistor used)

Reader control Trigger PC Differential probe Oscilloscope control Digital-storage

  • scilloscope

Tag chip µC RFID reader

RTerm RMeas

slide-13
SLIDE 13

http://www.iaik.tugraz.at

Institute for Applied Information Processing and Communications (IAIK) – VLSI & Security 13

TU Graz/Computer Science/IAIK/VLSI/SCA ECCTD 2009

VLSI

Antalya, 2009

Power-Analysis Attacks

  • Trace acquisition
  • 1000 traces for UHF tags and 10000 traces for HF tags were

measured

  • Sampling rate: 100 MS/s
  • Post-processing techniques
  • Calculated the envelope signal (absolute values + 2 MHz low-

pass filter

  • Horizontal and vertical trace alignment
  • Target of the attack
  • 8-bit value that was written into memory
  • Different Power models applied
slide-14
SLIDE 14

http://www.iaik.tugraz.at

Institute for Applied Information Processing and Communications (IAIK) – VLSI & Security 14

TU Graz/Computer Science/IAIK/VLSI/SCA ECCTD 2009

VLSI

Antalya, 2009

Results

  • All attacks have been successful

ISO 18006C UHF tag ISO 15693 HF tag

slide-15
SLIDE 15

http://www.iaik.tugraz.at

Institute for Applied Information Processing and Communications (IAIK) – VLSI & Security 15

TU Graz/Computer Science/IAIK/VLSI/SCA ECCTD 2009

VLSI

Antalya, 2009

Summary

  • Performed fault and power-analysis attacks on

RFID

  • Analyzed HF and UHF RFID tags
  • Contact-based measurement setup used
  • All attacks have been performed successfully
  • Security-enabled RFID devices have to include

countermeasures to thwart these attacks

slide-16
SLIDE 16

http://www.iaik.tugraz.at

Institute for Applied Information Processing and Communications (IAIK) – VLSI & Security 16

TU Graz/Computer Science/IAIK/VLSI/SCA ECCTD 2009

VLSI

Antalya, 2009

http://www.iaik.tugraz.at/content/research/implementation_attacks/

Michael.Hutter@iaik.tugraz.at Jörn-Marc.Schmidt@iaik.tugraz.at Thomas.Plos@iaik.tugraz.at

Thank you for your attention.

Questions?
