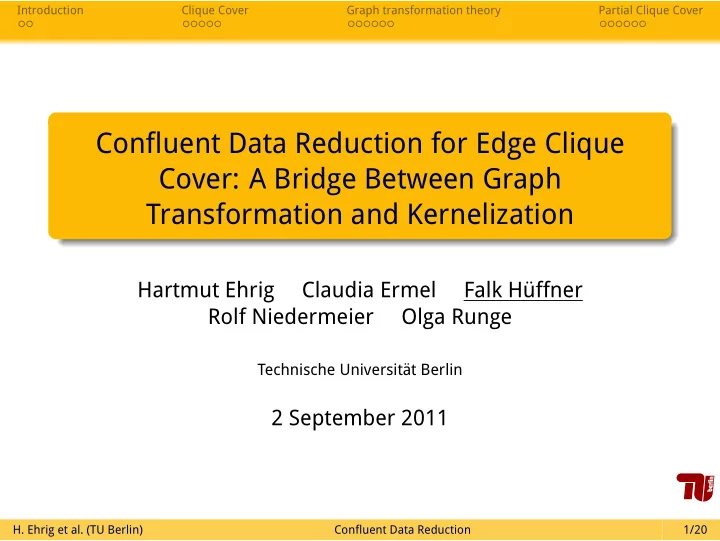

Confluent Data Reduction for Edge Clique Cover: A Bridge Between Graph Transformation and Kernelization

Hartmut Ehrig Claudia Ermel Falk H¨ uffner Rolf Niedermeier Olga Runge

Technische Universit¨ at Berlin

2 September 2011

  • H. Ehrig et al. (TU Berlin)

Confluent Data Reduction 1/20

slide-2
SLIDE 2

Introduction Clique Cover Graph transformation theory Partial Clique Cover

Interaction of data reduction rules

Kernelizations typically use a set of data reduction rules Up to now, little research on interaction of reduction rules

  • H. Ehrig et al. (TU Berlin)

Confluent Data Reduction 2/20

slide-3
SLIDE 3

Introduction Clique Cover Graph transformation theory Partial Clique Cover

Interaction of data reduction rules

Kernelizations typically use a set of data reduction rules Up to now, little research on interaction of reduction rules

Definition

A set of data reduction rules is called confluent if any order of application yields the same instance.

  • H. Ehrig et al. (TU Berlin)

Confluent Data Reduction 2/20

slide-4
SLIDE 4

Introduction Clique Cover Graph transformation theory Partial Clique Cover

Why is confluence interesting?

If a kernel is confluent, it is “robust”; in an implementation, we can optimize for speed of application.

  • H. Ehrig et al. (TU Berlin)

Confluent Data Reduction 3/20

slide-5
SLIDE 5

Introduction Clique Cover Graph transformation theory Partial Clique Cover

Why is confluence interesting?

If a kernel is confluent, it is “robust”; in an implementation, we can optimize for speed of application. If a kernel is not confluent, it has “slack”: some orders might lead to worse results; investigating this might lead to improved rules.

  • H. Ehrig et al. (TU Berlin)

Confluent Data Reduction 3/20

slide-6
SLIDE 6

Introduction Clique Cover Graph transformation theory Partial Clique Cover

Why is confluence interesting?

If a kernel is confluent, it is “robust”; in an implementation, we can optimize for speed of application. If a kernel is not confluent, it has “slack”: some orders might lead to worse results; investigating this might lead to improved rules. Further, insights on the interaction between rules can lead to faster kernelizations.

  • H. Ehrig et al. (TU Berlin)

Confluent Data Reduction 3/20

slide-7
SLIDE 7

Introduction Clique Cover Graph transformation theory Partial Clique Cover

Clique Cover

Clique Cover

Input: An undirected graph G = (V , E ) and an integer k 0. Question: Is there a set of at most k cliques in G such that each edge in E has both its endpoints in at least one of the selected cliques?

  • H. Ehrig et al. (TU Berlin)

Confluent Data Reduction 4/20

slide-8
SLIDE 8

Introduction Clique Cover Graph transformation theory Partial Clique Cover

Clique Cover

Clique Cover

Input: An undirected graph G = (V , E ) and an integer k 0. Question: Is there a set of at most k cliques in G such that each edge in E has both its endpoints in at least one of the selected cliques?

  • H. Ehrig et al. (TU Berlin)

Confluent Data Reduction 4/20

slide-9
SLIDE 9

Introduction Clique Cover Graph transformation theory Partial Clique Cover

Clique Cover

Clique Cover

Input: An undirected graph G = (V , E ) and an integer k 0. Question: Is there a set of at most k cliques in G such that each edge in E has both its endpoints in at least one of the selected cliques?

  • H. Ehrig et al. (TU Berlin)

Confluent Data Reduction 4/20

slide-10
SLIDE 10

Introduction Clique Cover Graph transformation theory Partial Clique Cover

Clique Cover

Clique Cover

Input: An undirected graph G = (V , E ) and an integer k 0. Question: Is there a set of at most k cliques in G such that each edge in E has both its endpoints in at least one of the selected cliques?

  • H. Ehrig et al. (TU Berlin)

Confluent Data Reduction 4/20

slide-11
SLIDE 11

Introduction Clique Cover Graph transformation theory Partial Clique Cover

Clique Cover

Clique Cover

Input: An undirected graph G = (V , E ) and an integer k 0. Question: Is there a set of at most k cliques in G such that each edge in E has both its endpoints in at least one of the selected cliques?

  • H. Ehrig et al. (TU Berlin)

Confluent Data Reduction 4/20

slide-12
SLIDE 12

Introduction Clique Cover Graph transformation theory Partial Clique Cover

Data reduction for Clique Cover

Rule 1

Delete isolated vertices.

  • H. Ehrig et al. (TU Berlin)

Confluent Data Reduction 5/20

slide-13
SLIDE 13

Introduction Clique Cover Graph transformation theory Partial Clique Cover

Data reduction for Clique Cover

Rule 1

Delete isolated vertices.

Rule 2

Delete isolated edges.

  • H. Ehrig et al. (TU Berlin)

Confluent Data Reduction 5/20

slide-14
SLIDE 14

Introduction Clique Cover Graph transformation theory Partial Clique Cover

Data reduction for Clique Cover

Rule 1

Delete isolated vertices.

Rule 2

Delete isolated edges.

Rule 3

Delete one of two twins.

  • H. Ehrig et al. (TU Berlin)

Confluent Data Reduction 5/20

slide-15
SLIDE 15

Introduction Clique Cover Graph transformation theory Partial Clique Cover

Data reduction for Clique Cover

Rule 1

Delete isolated vertices.

Rule 2

Delete isolated edges.

Rule 3

Delete one of two twins.

  • H. Ehrig et al. (TU Berlin)

Confluent Data Reduction 5/20

slide-16
SLIDE 16

Introduction Clique Cover Graph transformation theory Partial Clique Cover

Kernelization for Clique Cover

Theorem ([Gy´ arf´ as 1990, Gramm et al. 2008])

Rules 1 to 3 yield a kernel with at most 2k vertices.

  • H. Ehrig et al. (TU Berlin)

Confluent Data Reduction 6/20

slide-17
SLIDE 17

Introduction Clique Cover Graph transformation theory Partial Clique Cover

Confluence of Clique Cover kernel

Theorem

Rules 1 to 3 are confluent.

Proof

  • H. Ehrig et al. (TU Berlin)

Confluent Data Reduction 7/20

slide-18
SLIDE 18

Introduction Clique Cover Graph transformation theory Partial Clique Cover

Confluence of Clique Cover kernel

Theorem

Rules 1 to 3 are confluent.

Proof

  • H. Ehrig et al. (TU Berlin)

Confluent Data Reduction 7/20

slide-19
SLIDE 19

Introduction Clique Cover Graph transformation theory Partial Clique Cover

Confluence of Clique Cover kernel

Theorem

Rules 1 to 3 are confluent.

Proof

  • H. Ehrig et al. (TU Berlin)

Confluent Data Reduction 7/20

slide-20
SLIDE 20

Introduction Clique Cover Graph transformation theory Partial Clique Cover

Confluence of Clique Cover kernel

Corollary

A 2k -vertex kernel for CLIQUE COVER can be found in linear time.

  • H. Ehrig et al. (TU Berlin)

Confluent Data Reduction 8/20

slide-21
SLIDE 21

Introduction Clique Cover Graph transformation theory Partial Clique Cover

Graph transformation theory

Started in the early 1970s Generalizes Chomsky grammars (on strings) and term rewriting systems (on trees) to graphs Used to model operational sematics of changing networks

  • H. Ehrig et al. (TU Berlin)

Confluent Data Reduction 9/20

slide-22
SLIDE 22

Introduction Clique Cover Graph transformation theory Partial Clique Cover

Reduction rules in graph transformation theory

  • H. Ehrig et al. (TU Berlin)

Confluent Data Reduction 10/20

slide-23
SLIDE 23

Introduction Clique Cover Graph transformation theory Partial Clique Cover

Reduction rules in graph transformation theory

  • H. Ehrig et al. (TU Berlin)

Confluent Data Reduction 10/20

slide-24
SLIDE 24

Introduction Clique Cover Graph transformation theory Partial Clique Cover

Reduction rules in graph transformation theory

  • H. Ehrig et al. (TU Berlin)

Confluent Data Reduction 10/20

slide-25
SLIDE 25

Introduction Clique Cover Graph transformation theory Partial Clique Cover

Reduction rules in graph transformation theory

  • H. Ehrig et al. (TU Berlin)

Confluent Data Reduction 10/20

slide-26
SLIDE 26

Introduction Clique Cover Graph transformation theory Partial Clique Cover

Clique Cover reduction as graph transformation

  • H. Ehrig et al. (TU Berlin)

Confluent Data Reduction 11/20

slide-27
SLIDE 27

Introduction Clique Cover Graph transformation theory Partial Clique Cover

Clique Cover reduction as graph transformation

  • H. Ehrig et al. (TU Berlin)

Confluent Data Reduction 11/20

slide-28
SLIDE 28

Introduction Clique Cover Graph transformation theory Partial Clique Cover

Clique Cover reduction as graph transformation

  • H. Ehrig et al. (TU Berlin)

Confluent Data Reduction 11/20

slide-29
SLIDE 29

Introduction Clique Cover Graph transformation theory Partial Clique Cover

Local confluence

Newman’s lemma [Newman 1942]

To show confluence of a system of data reduction rules, it is sufficient to show local confluence. G G1 G2 G3 Confluence ∗ ∗ ∗ ∗ G G1 G2 G3 Local confluence ∗ ∗

  • H. Ehrig et al. (TU Berlin)

Confluent Data Reduction 12/20

slide-30
SLIDE 30

Introduction Clique Cover Graph transformation theory Partial Clique Cover

Critical pair analysis

Theorem ([Plump 2005])

To show confluence of a system of data reduction rules on directed graphs, it is sufficient to consider critical pairs, that is, rule applications that conflict and have minimal context. G G1 G2 G3 Confluence of critical pair (G → G1, G → G2) ∗ ∗

  • H. Ehrig et al. (TU Berlin)

Confluent Data Reduction 13/20

slide-31
SLIDE 31

Introduction Clique Cover Graph transformation theory Partial Clique Cover

Critical pair analysis with AGG

  • H. Ehrig et al. (TU Berlin)

Confluent Data Reduction 14/20

slide-32
SLIDE 32

Introduction Clique Cover Graph transformation theory Partial Clique Cover

Partial Clique Cover

  • H. Ehrig et al. (TU Berlin)

Confluent Data Reduction 15/20

slide-33
SLIDE 33

Introduction Clique Cover Graph transformation theory Partial Clique Cover

Data reduction for Partial Clique Cover

Rule 4

Delete vertices incident only on covered edges.

  • H. Ehrig et al. (TU Berlin)

Confluent Data Reduction 16/20

slide-34
SLIDE 34

Introduction Clique Cover Graph transformation theory Partial Clique Cover

Data reduction for Partial Clique Cover

Rule 4

Delete vertices incident only on covered edges.

Rule 5

Delete isolated edges.

  • H. Ehrig et al. (TU Berlin)

Confluent Data Reduction 16/20

slide-35
SLIDE 35

Introduction Clique Cover Graph transformation theory Partial Clique Cover

Data reduction for Partial Clique Cover

Rule 4

Delete vertices incident only on covered edges.

Rule 5

Delete isolated edges.

Rule 6

Delete one of two twins when connections are labelled identically.

  • H. Ehrig et al. (TU Berlin)

Confluent Data Reduction 16/20

slide-36
SLIDE 36

Introduction Clique Cover Graph transformation theory Partial Clique Cover

Data reduction for Partial Clique Cover

Rule 4

Delete vertices incident only on covered edges.

Rule 5

Delete isolated edges.

Rule 6

Delete one of two twins when connections are labelled identically.

  • H. Ehrig et al. (TU Berlin)

Confluent Data Reduction 16/20

slide-37
SLIDE 37

Introduction Clique Cover Graph transformation theory Partial Clique Cover

Kernel for Partial Clique Cover?

b1 b3 c1 c7

  • H. Ehrig et al. (TU Berlin)

Confluent Data Reduction 17/20

slide-38
SLIDE 38

Introduction Clique Cover Graph transformation theory Partial Clique Cover

Kernel for Partial Clique Cover?

b1 b3 c1 c7

Theorem

Rules 4 to 6 yield a kernel with at most 2k +c vertices, where c is the number of covered edges.

  • H. Ehrig et al. (TU Berlin)

Confluent Data Reduction 17/20

slide-39
SLIDE 39

Introduction Clique Cover Graph transformation theory Partial Clique Cover

Confluence of Partial Clique Cover rules

Theorem

Rules 4 to 6 are confluent.

Proof

u w = x1 x2 xm y1 yj . . .

1 1 1

R4(w) R6(u,v) R6(u,v) R4(w)

G2 G3 G1 G

... v

1

m ≥ 2 m ≥ 2

u x2 xm y1 yj . . . ... v u w = x1 x2 xm y1 yj . . .

1 1 1

... v

1 1 1 1

u x2 xm y1 yj . . . ... v

1 1 1

  • H. Ehrig et al. (TU Berlin)

Confluent Data Reduction 18/20

slide-40
SLIDE 40

Introduction Clique Cover Graph transformation theory Partial Clique Cover

Future work and open questions

Kernelizations

Analyze more kernelizations for confluence Does it make non-existence proofs easier when only asking for confluent problem kernels? Does confluence help subsequent solution strategies that build on top of the kernel?

  • H. Ehrig et al. (TU Berlin)

Confluent Data Reduction 19/20

slide-41
SLIDE 41

Introduction Clique Cover Graph transformation theory Partial Clique Cover

Future work and open questions

Kernelizations

Analyze more kernelizations for confluence Does it make non-existence proofs easier when only asking for confluent problem kernels? Does confluence help subsequent solution strategies that build on top of the kernel?

Graph transformation theory

Extend critical pair theory to undirected graphs Extend critical pair theory to rule schemes Extend software tools with this

  • H. Ehrig et al. (TU Berlin)

Confluent Data Reduction 19/20

slide-42
SLIDE 42

Introduction Clique Cover Graph transformation theory Partial Clique Cover

Future work and open questions

Clique Cover

Is PARTIAL CLIQUE COVER in FPT wrt. k ? If so, does it have a singly-exponential kernel wrt. k ?

  • H. Ehrig et al. (TU Berlin)

Confluent Data Reduction 20/20
