Conditioning by adaptive sampling for robust design David Brookes Jennifer Listgarten Biophysics Graduate Group EECS and Center for Computational Biology University California, Berkeley University California, Berkeley Motivating problem:

slide-1
SLIDE 1

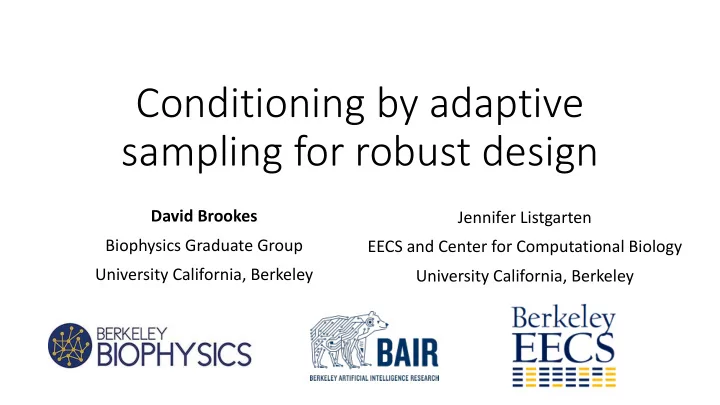

Conditioning by adaptive sampling for robust design

David Brookes Biophysics Graduate Group University California, Berkeley Jennifer Listgarten EECS and Center for Computational Biology University California, Berkeley

slide-2
SLIDE 2

Motivating problem: design protein sequences

  • Proteins are made up of sequences of amino acids (20 possibilities)
  • Huge variety of proteins whose function we would like to improve
slide-3
SLIDE 3

Motivating problem: design protein sequences

  • Proteins are made up of sequences of amino acids (20 possibilities)
  • Huge variety of proteins whose function we would like to improve

Proteins that fluoresce

slide-4
SLIDE 4

Motivating problem: design protein sequences

  • Proteins are made up of sequences of amino acids (20 possibilities)
  • Huge variety of proteins whose function we would like to improve

Proteins that fluoresce … that act as drugs

slide-5
SLIDE 5

Motivating problem: design protein sequences

  • Proteins are made up of sequences of amino acids (20 possibilities)
  • Huge variety of proteins whose function we would like to improve

Proteins that fluoresce … that act as drugs … that fixate carbon in the atmosphere

slide-6
SLIDE 6

Motivating problem: design protein sequences

  • Proteins are made up of sequences of amino acids (20 possibilities)
  • Huge variety of proteins whose function we would like to improve

Proteins that fluoresce …. that act as drugs … that fixate carbon in the atmosphere … that deliver gene-editing tools to tissues

slide-7
SLIDE 7

How to map sequence to function?

A law of molecular biology:

Sequence Structure

Hughes A, Mort M, Carlisle F, et al B04 Alternative Splicing In Htt Journal of Neurology, Neurosurgery & Psychiatry 2014;85:A10. http://www.rcsb.org/structure/6FWW

Function

How to map sequence to function?

A law of molecular biology:

Sequence Structure

Hughes A, Mort M, Carlisle F, et al B04 Alternative Splicing In Htt Journal of Neurology, Neurosurgery & Psychiatry 2014;85:A10. http://www.rcsb.org/structure/6FWW

Function

ex: fluorescence

slide-8
SLIDE 8

Bypassing the structure relationships

Sequence Structure

Hughes A, Mort M, Carlisle F, et al B04 Alternative Splicing In Htt Journal of Neurology, Neurosurgery & Psychiatry 2014;85:A10. http://www.rcsb.org/structure/6FWW

Function

A law of molecular biology:

High throughput experiments (& ML)

slide-9
SLIDE 9

Can we solve the inverse problem?

Sequence Structure

Hughes A, Mort M, Carlisle F, et al B04 Alternative Splicing In Htt Journal of Neurology, Neurosurgery & Psychiatry 2014;85:A10. http://www.rcsb.org/structure/6FWW

Function

A law of molecular biology:

Design problem: Given a model, find sequences with desired function

slide-10
SLIDE 10

Why is protein design difficult?

  • Huge, rugged search space

⟹ size scales as 20$

Atoms in universe Grains of sand on earth

slide-11
SLIDE 11

Why is protein design difficult?

  • Huge, rugged search space

⟹ size scales as 20$

  • Discrete search space (no gradients)

Atoms in universe Grains of sand on earth

slide-12
SLIDE 12

Why is protein design difficult?

  • Huge, rugged search space

⟹ size scales as 20$

  • Discrete search space (no gradients)
  • Uncertainty in predictor

https://livingthing.danmackinlay.name/gaussian_processes.html69

Atoms in universe Grains of sand on earth

slide-13
SLIDE 13

Possible solution: model-based optimization (MBO)

Idea: replace the standard (hard) objective

e.g. the space of sequences

slide-14
SLIDE 14

Possible solution: model-based optimization (MBO)

Idea: replace the standard (hard) objective with a potentially easier one

the space of sequences model over sequence space

slide-15
SLIDE 15

Possible solution: model-based optimization (MBO)

Idea: replace the standard (hard) objective with a potentially easier one Solution approach is to iterate: 1. Sample from “search model” 𝑞 𝑦 𝜄 2. Evaluate samples on 𝑔 𝑦 3. Adjust 𝜄 so the model favors samples with large function evals

slide-16
SLIDE 16

Possible solution: model-based optimization (MBO)

Idea: replace the standard (hard) objective with a potentially easier one Solution approach is to iterate: 1. Sample from “search model” 𝑞 𝑦 𝜄 2. Evaluate samples on 𝑔 𝑦 3. Adjust 𝜄 so the model favors sequences with large function evals

ü Model can sample broad areas of sequence space ü Does not require gradients of 𝑔 ü Can incorporate uncertainty

slide-17
SLIDE 17

Our aim is solve the MBO objective:

First attempt at MBO for protein design:

Design by Adaptive Sampling (DbAS)

slide-18
SLIDE 18

Our aim is solve the MBO objective: where

  • 𝑞 𝑦 𝜄 is the search model (VAE, HMM…)

First attempt at MBO for protein design:

Design by Adaptive Sampling (DbAS)

slide-19
SLIDE 19

Our aim is solve the MBO objective: where

  • 𝑞 𝑦 𝜄 is the search model (VAE, HMM…)
  • 𝑇 is desired set of property values

à e.g. fluorescence > 𝛽

First attempt at MBO for protein design:

Design by Adaptive Sampling (DbAS)

slide-20
SLIDE 20

Our aim is solve the MBO objective: where

  • 𝑞 𝑦 𝜄 is the search model (VAE, HMM…)
  • 𝑇 is desired set of property values

à e.g. fluorescence > 𝛽

  • 𝑄(𝑇|𝑦) is a stochastic predictive model (“oracle”)

that maps sequences to property

First attempt at MBO for protein design:

Design by Adaptive Sampling (DbAS)

slide-21
SLIDE 21

Design by Adaptive Sampling (cont.)

Two issues:

  • 1. 𝜄 is in the expectation

distribution.

slide-22
SLIDE 22

Design by Adaptive Sampling (cont.)

Two issues:

  • 1. 𝜄 is in the expectation

distribution.

maximize a lower bound

≥

slide-23
SLIDE 23

Design by Adaptive Sampling (cont.)

Two issues:

  • 1. 𝜄 is in the expectation

distribution.

  • 2. MC estimates for rare

events.

maximize a lower bound

≥

slide-24
SLIDE 24

Design by Adaptive Sampling (cont.)

Two issues:

  • 1. 𝜄 is in the expectation

distribution.

  • 2. MC estimates for rare

events.

maximize a lower bound

anneal a sequence of relaxations: 𝑇0 → 𝑇, where 𝑇0 ⊃ 𝑇034

≥

slide-25
SLIDE 25

Design by Adaptive Sampling (cont.)

Two issues:

  • 1. 𝜄 is in the expectation

distribution.

  • 2. MC estimates for rare

events.

maximize a lower bound

≥ Anneal and MC

slide-26
SLIDE 26

Design by Adaptive Sampling (cont.)

Two issues:

  • 1. 𝜄 is in the expectation

distribution.

  • 2. MC estimates for rare

events.

maximize a lower bound

≥ Anneal and MC

Assumes oracle is unbiased and has good uncertainty estimates

slide-27
SLIDE 27

How pathological oracles lead you astray

slide-28
SLIDE 28

How pathological oracles lead you astray

Acceptable Many training examples

slide-29
SLIDE 29

How pathological oracles lead you astray

Acceptable Many training examples Fewer training examples Pathological

slide-30
SLIDE 30

How pathological oracles lead you astray

Acceptable Pathological

Idea: estimate training distribution of x conditioned on high values of oracle

slide-31
SLIDE 31

Fixing pathological oracles w/ conditioning

Idea: estimate training distribution of x conditioned on high values of oracle

slide-32
SLIDE 32

Fixing pathological oracles w/ conditioning

Idea: estimate training distribution of x conditioned on high values of oracle Don’t have access to training distribution, but can build a model 𝑞 𝒚 𝜾 7 to approximate it

slide-33
SLIDE 33

Conditioning by Adaptive Sampling (CbAS)

≥ Anneal and MC Previous formulation: New formulation:

𝑞 𝒚 𝜾(𝟏) models the training distribution

slide-34
SLIDE 34

≥ Anneal and MC Previous formulation: New formulation: =

Conditioning by Adaptive Sampling (CbAS)

slide-35
SLIDE 35

≥ Anneal and MC Previous formulation: New formulation: =

Can’t anneal when sampling

  • dist. doesn’t change!

Conditioning by Adaptive Sampling (CbAS)

slide-36
SLIDE 36

≥ Anneal and MC Previous formulation: New formulation: = =

Importance sampling proposal dist.

Conditioning by Adaptive Sampling (CbAS)

slide-37
SLIDE 37

≥ Anneal and MC Previous formulation: New formulation: = = Anneal and MC ≥ Anneal and MC

Conditioning by Adaptive Sampling (CbAS)

slide-38
SLIDE 38

Testing is fundamentally different

  • We don’t trust our oracle and generally

can’t query the ground truth

slide-39
SLIDE 39

Testing is fundamentally different

  • We don’t trust our oracle and generally

can’t query the ground truth

  • We can’t hold-out a test set of good

sequences

  • Near-zero chance of any of these

sequences being found by the method Test set

slide-40
SLIDE 40

Testing is fundamentally different

  • We don’t trust our oracle and generally

can’t query the ground truth

  • We can’t hold-out a test set of good

sequences

  • Near-zero chance of any of these

sequences being found by the method

  • We can’t use some canonical test

function as the oracle

  • In our problem it is untrustworthy
slide-41
SLIDE 41

Testing strategy

  • Simulate a ground truth based on real data

à “Ground truth” is a GP mean function

Ground truth GP

slide-42
SLIDE 42

Testing strategy

  • Simulate a ground truth based on real data

à “Ground truth” is a GP mean function

  • Ground truth vales values are sampled from

the GP for given sequences

  • Use these input-output pairs to train oracles.

Ground truth GP Oracles Training data

slide-43
SLIDE 43

Testing strategy

  • Simulate a ground truth based on real data

à “Ground truth” is a GP mean function

  • Ground truth vales values are sampled from

the GP for given sequences

  • Use these input-output pairs to train oracles
  • Coerce training set so these oracles exhibit

pathologies

slide-44
SLIDE 44

Results

slide-45
SLIDE 45

Results

Model-based optimizations

Use weighted ML updates with weights:

  • CbAS:

: 𝑦 𝜄 7 : 𝑦 𝜄(0) 𝑄 𝑇 0 𝑦)

  • DbAS:

𝑄 𝑇 0 𝑦)

  • RWR:

𝑓< = >

  • CEM-PI: 𝕞 @A > BC D (𝑦)
  • FB-VAE: 𝕞 = > BC D (𝑦) w/ additional

considerations

slide-46
SLIDE 46

Results

Model-based optimizations Gradient descent on latent spaces

slide-47
SLIDE 47

Results

Oracle Ground truth Seq1 Seq2 Seq3 Seq4 Seq5 Seq6 Seq7 Seq8 Seq9

What does each bar represent?

slide-48
SLIDE 48

Results

Oracle Ground truth Seq1 Seq2 Seq3 Seq4 Seq5 Seq6 Seq7 Seq8 Seq9 Greater than ith percentile Mean

What does each bar represent?

slide-49
SLIDE 49

Results

slide-50
SLIDE 50

Wrap-up

  • Introduced a new model-based optimization method

that is robust to pathological oracles

  • Specifically targeted for discrete design problems
  • Ongoing work to move beyond proof-of-principle:
  • Collaboration with wet-lab to perform end-to-end

validation

slide-51
SLIDE 51

Thanks!

Funding:
