Computational social science: interactions among people and complex - - PowerPoint PPT Presentation

Nov 25, 2022 569 likes •1.39k views

Anxo Snchez Computational social science: interactions among people and complex socio-technological systems Grupo Interdisciplinar de Sistemas Complejos (GISC), Departamento de Matemticas & Institute UC3M-BS of Financial Big Data

slide-1
SLIDE 1

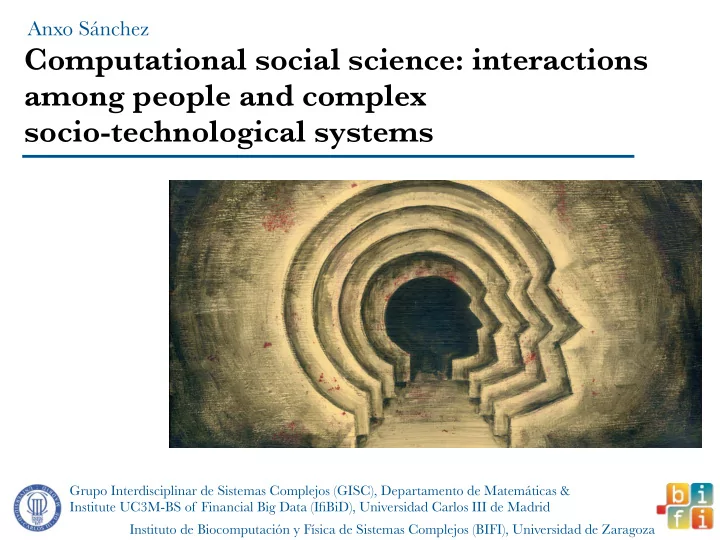

Computational social science: interactions among people and complex socio-technological systems

Grupo Interdisciplinar de Sistemas Complejos (GISC), Departamento de Matemáticas & Institute UC3M-BS of Financial Big Data (IfiBiD), Universidad Carlos III de Madrid

Anxo Sánchez

Instituto de Biocomputación y Física de Sistemas Complejos (BIFI), Universidad de Zaragoza

slide-2
SLIDE 2

@anxosan

Computational Social Science Physics / Math of Complex Systems Behavioral Sciences

The interactions-based approach

slide-3
SLIDE 3

@anxosan

Living on the edge

Nature (Special Issue) 525, 305 (17 September 2015)

Why scientists must work together to save the world PAGE 305

INTERDISCIPLINARITY

THE INTERNATIONAL WEEKLY JOURNAL OF SCIENCE

To solve the grand challenges facing society — energy, water, climate, food, health — scientists and social scientists must work together.

slide-4
SLIDE 4

@anxosan

Adolphe Quetelet (1796-1874) Astronomer, mathematician, statistician, and sociologist

Frame: Adam Smith (1723-1790), David Ricardo (1772-1823), Thomas Malthus (1766-1834)

Social physics

slide-5
SLIDE 5

@anxosan

Quetelet was keenly aware of the overwhelming complexity

  • f social phenomena, and the many variables that needed
  • measurement. His goal was to understand the statistical laws

underlying such phenomena as crime rates, marriage rates

  • r suicide rates. He wanted to explain the values of these

variables by other social factors. These ideas were rather controversial among other scientists at the time who held that it contradicted a concept of freedom of choice. His most influential book was Sur l'homme et le développement de ses facultés, ou Essai de physique sociale, published in 1835. In it, he outlines the project of a social physics and describes his concept of the "average man" (l'homme moyen) who is characterized by the mean values of measured variables that follow a normal distribution.

Social physics

slide-6
SLIDE 6

@anxosan

Physicists and interdisciplinarity

Physicists, it turns out, are almost perfectly suited to invading other people’s disciplines, being not only extremely clever but also generally much less fussy than most about the problems they choose to study. Physicists tend to see themselves as the lords of the academic jungle, loftily regarding their own methods as above the ken of anybody else and jealously guarding their own terrain. But their alter egos are closer to scavengers, happy to borrow ideas and technologies from anywhere if they seem like they might be useful, and delighted to stomp all over someone else’s problem.

slide-7
SLIDE 7

@anxosan

As irritating as this attitude can be to everybody else, the arrival of the physicists into a previously non-physics area of research often presages a period of great discovery and

  • excitement. Mathematicians do the same thing
  • ccasionally, but no one descends with such

fury and in so great a number as a pack of hungry physicists, adrenalized by the scent of a new problem.

Physicists and interdisciplinarity

slide-8
SLIDE 8

@anxosan

Physicists study collective phenomena emerging from the interactions of individuals as elementary units in complex socio-technological systems

The interactions-based approach

slide-9
SLIDE 9

@anxosan

The interactions-based approach

Strategic interactions / local optimization

slide-10
SLIDE 10

@anxosan

Computational Social Science

Aimed to favor and take advantage

  • f massive ICT data

A [computer] model-based science yielding predictive and explanatory models

slide-11
SLIDE 11

@anxosan

Computational Social Science

slide-12
SLIDE 12

@anxosan

Behavioral Science

Systematic analysis and investigation of human behavior through controlled and naturalistic observation, and disciplined scientific experimentation Effects of psychological, social, cognitive, and emotional factors on economic decisions; bounds of rationality of economic agents… …and back!

slide-13
SLIDE 13

@anxosan

Test inferences from data Test simulation predictions Small vs large-scale Emergent behavior Challenges for new experimental work
 in integration with the modeling process:

Where disciplines meet

slide-14
SLIDE 14

@anxosan

SMALL DATA

So we look for

slide-15
SLIDE 15

@anxosan

SMALL DATA

So we look for

slide-16
SLIDE 16

@anxosan

SMALL

controlled

DATA

So we look for

slide-17
SLIDE 17

@anxosan

Data Science vs Behavioral Science

slide-18
SLIDE 18

@anxosan

Data Science vs Behavioral Science

slide-19
SLIDE 19

@anxosan

Data Science vs Behavioral Science

slide-20
SLIDE 20

@anxosan

By way of llustration: Case studies

Networks, cooperation and reputation Cooperation in hierarchical systems Behavioral phenotype classification Climate change mitigation

slide-21
SLIDE 21

@anxosan

Work with

José A. Cuesta Carlos Gracia-Lázaro Yamir Moreno Alfredo Ferrer Cuesta et al. Sci. Rep. 5, 7843 (2015) Cronin et al, Sci. Rep. 5, 18 634 (2015) Katherine A. Cronin Daniel J. Acheson Penélope Hernández

slide-22
SLIDE 22

@anxosan

Work with

Mario Gutiérrez-Roig Julián Vicens Gutiérrez-Roig et al., in preparation (2016) Julia Poncela-Casasnovas Jesús Gómez-Gardeñes Josep Perelló Jordi Duch Antonioni et al., submitted (2016) Alberto Antonioni Marco Tomassini Nereida Bueno Poncela-Casasnovas et al., submitted (2016)

slide-23
SLIDE 23

@anxosan

Nowak & May, Nature 359, 826 (1992)

C

Case study 1. Networks

slide-24
SLIDE 24

@anxosan

Prisoner’s dilemma

A game theoretical paradigm of social dilemma

D C C D 1 S T

  • 2 players
  • 2 actions: Cooperate or Defect

T > 1 : temptation to defect S < 0 : risk in cooperation

slide-25
SLIDE 25

@anxosan

1229 players (625, lattice; 604, heterogeneous) Last year high school students 44% male, 56% female 42 high schools in Aragón From 10 AM till noon 10 000 €, on December 20, 2011; largest size ever

  • C. Gracia-Lázaro, A. Ferrer, G. Ruiz, A. Tarancón, J. A. Cuesta, A. S., Y

. Moreno,

  • Proc. Natl. Acad. Sci USA 109, 12922-12926 (2012)

Cooperation on networks: setup

slide-26
SLIDE 26

@anxosan

Cooperation on networks: setup

  • C. Gracia-Lázaro, A. Ferrer, G. Ruiz, A. Tarancón, J. A. Cuesta, A. S., Y

. Moreno,

  • Proc. Natl. Acad. Sci USA 109, 12922-12926 (2012)
slide-27
SLIDE 27

@anxosan

Cooperation on networks: facts

  • C. Gracia-Lázaro, A. Ferrer, G. Ruiz, A. Tarancón, J. A. Cuesta, A. S., Y

. Moreno,

  • Proc. Natl. Acad. Sci USA 109, 12922-12926 (2012)
slide-28
SLIDE 28

@anxosan

Cooperation on networks: mechanism

  • J. Grujić, C. Gracia-Lázaro, M. Milinski, D. Semmann, A. Traulsen, J. A. Cuesta, A. S., Y

. Moreno, Sci. Rep. 4, 4615 (2014)

slide-29
SLIDE 29

@anxosan

Static networks do not support cooperation in a Prisoner’s Dilemma

Kirchkamp & Nagel. Games Econ. Behav. 58, 269–292 (2007) Traulsen et al. Proc. Natl. Acad. Sci. USA 107, 2962 (2010) Grujić et al. PLOS ONE 5, e13749 (2010) Gracia-Lázaro et al. Proc. Natl. Acad. Sci. USA 109, 12922 (2012) Grujić et al. Sci. Rep. 4, 4615 (2014)

No network reciprocity

slide-30
SLIDE 30

@anxosan

Dynamic networks support cooperation in a Prisoner’s Dilemma

Rand et al. Proc. Natl. Acad. Sci. USA 108, 19193 (2011) Wang et al. Proc. Natl. Acad. Sci. USA 109, 14363 (2012)

Dynamic networks

slide-31
SLIDE 31

@anxosan Wang et al. Proc. Natl. Acad. Sci. USA 109, 14363 (2012)

Dynamic networks

slide-32
SLIDE 32

@anxosan Wang et al. Proc. Natl. Acad. Sci. USA 109, 14363 (2012)

Emergence of cooperation

slide-33
SLIDE 33

@anxosan

What is the mechanism?

slide-34
SLIDE 34

@anxosan

Experiment on information

Stage 1: Play Prisoner’s Dilemma with current neighbors

Cuesta et al. Sci. Rep. 5, 7843 (2015)

slide-35
SLIDE 35

@anxosan

Experiment on information

Stage 2: Modify network

slide-36
SLIDE 36

@anxosan

Experiment on information No information [A] [AAB] [ABBAA]

slide-37
SLIDE 37

@anxosan

Results: Cooperation

[A] [AAB] [ABBAA] No information

slide-38
SLIDE 38

@anxosan

Results: Network

[A] [AAB] [ABBAA] No information

slide-39
SLIDE 39

@anxosan

Results: Network

[ABBAA] [AAB] [A] No information

slide-40
SLIDE 40

@anxosan

Results: Reputation

[ABBAA]

slide-41
SLIDE 41

@anxosan

Results: Reputation

[ABBAA] [ABBAA] [AAB]

slide-42
SLIDE 42

@anxosan

Results: Reputation

[ABBAA] [AAB]

slide-43
SLIDE 43

@anxosan

Independent confirmation

[ABBAA]

Gallo & Yan. Proc. Natl. Acad. Sci. USA 112, 3647 (2015)

slide-44
SLIDE 44

@anxosan

But, what if reputation can be faked?

Antonioni, Tomassini, AS, submitted (2015)

5 10 15 20 25 30 1 2 3 4 5 round cooperation index (α)
  • ●
  • ● ● ● ● ● ● ● ● ● ● ●
  • ● ● ● ● ● ● ● ● ● ●
  • RR treatment (true)
FR treatment (true) FR treatment (observable) points purchased per round participants proportion 0.0 0.1 0.2 0.3 0.4 0.5 1 1.5 2 2.5 3 3.5 4 4.5
  • 1
2 3 4 5 0.0 0.2 0.4 0.6 0.8 1.0 points purchased per round individual cooperation frequency
slide-45
SLIDE 45

@anxosan

Cheaters manage to disguise

1 2 3 4 5 true cooperation index participants proportion 0.0 0.1 0.2 0.3 0.4 0.5 reliable players cheater players

(a)

1 2 3 4 5
  • bservable cooperation index
participants proportion 0.0 0.1 0.2 0.3 0.4 0.5 reliable players cheater players

(b)

slide-46
SLIDE 46

@anxosan

Inequality increases

5 10 15 20 25 30 500 1000 1500

round cumulated wealth

  • ●
  • RR treatment
FR treatment reliable players cheater players

Gini coefficients: 0.27 (Finland) vs 0.37 (Tanzania)

slide-47
SLIDE 47

@anxosan

Case study 2: Bridging experiments and reality

slide-48
SLIDE 48

@anxosan

Non-non-human primate project

Cottontop tamarin (Saguinus oedipus)

slide-49
SLIDE 49

@anxosan

Non-non-human primate project

Chimpanzee (Pan troglodytes)

slide-50
SLIDE 50

@anxosan

Experimentally induced hierarchy

Cronin et al., Sci Rep. 5, 18 634 (2015)

slide-51
SLIDE 51

@anxosan

Collaborative task

Contribute to a pot totalling 20 points or more Receive 40 points for both of you

slide-52
SLIDE 52

@anxosan

Splitting task

Higher ranked guy proposes a splitting (ultimatum-like) Lower-ranked guy accepts or “fights”

slide-53
SLIDE 53

@anxosan

Hierarchy decreases cooperation

slide-54
SLIDE 54

@anxosan

Role of the lower ranked subject

slide-55
SLIDE 55

@anxosan

Rank difference predicts contributions

slide-56
SLIDE 56

@anxosan

Offers and expectations

slide-57
SLIDE 57

@anxosan

Case study 3: Behavioral “phenotypes”

slide-58
SLIDE 58

@anxosan

Case study 3: Behavioral “phenotypes”

slide-59
SLIDE 59

@anxosan

Case study 3: Behavioral “phenotypes”

slide-60
SLIDE 60

@anxosan

Social dilemmas

D C C D 1 S T

slide-61
SLIDE 61

@anxosan

Behavior across different situations

5 7 9 11 13 15 T 2 4 6 8 10 S 5 7 9 11 13 15 T 2 4 6 8 10 S 2 4 6 8 10 S

PD SH SG HG

slide-62
SLIDE 62

@anxosan

Aggregate results

15 5 7 9 11 13 15 T 2 4 6 8 10 S 5 7 9 11 13 15 T 2 4 6 8 10 S 0.2 0.4 0.6 0.8 1

PD SH

Predicted Observed

slide-63
SLIDE 63

@anxosan

Agnostic individual classification

slide-64
SLIDE 64

@anxosan

Phenotypes

Experiment Numerical Difference Aggregation Trustful Envious Optimist Pessimist Clueless 5 7 9 11 13 15 T 2 4 6 8 1 S 0.2 0.4 0.6 0.8 1 5 7 9 11 13 15 T 2 4 6 8 1 S 0.2 0.4 0.6 0.8 1 5 7 9 11 13 15 T 2 4 6 8 1 S 1 2 3 4 5 7 9 11 13 15 T 2 4 6 8 1 S 0.2 0.4 0.6 0.8 1 5 7 9 11 13 15 T 2 4 6 8 1 S 0.2 0.4 0.6 0.8 1 5 7 9 11 13 15 T 2 4 6 8 1 S 1 2 3 4 5 7 9 11 13 15 T 2 4 6 8 1 S 0.2 0.4 0.6 0.8 1 5 7 9 11 13 15 T 2 4 6 8 1 S 0.2 0.4 0.6 0.8 1 5 7 9 11 13 15 T 2 4 6 8 1 S 1 2 3 4 5 7 9 11 13 15 T 2 4 6 8 1 S 0.2 0.4 0.6 0.8 1 5 7 9 11 13 15 T 2 4 6 8 1 S 0.2 0.4 0.6 0.8 1 5 7 9 11 13 15 T 2 4 6 8 1 S 1 2 3 4 5 7 9 11 13 15 T 2 4 6 8 1 S 0.2 0.4 0.6 0.8 1 5 7 9 11 13 15 T 2 4 6 8 1 S 0.2 0.4 0.6 0.8 1 5 7 9 11 13 15 T 2 4 6 8 1 S 1 2 3 4 5 7 9 11 13 15 T 2 4 6 8 1 S 0.2 0.4 0.6 0.8 1 5 7 9 11 13 15 T 2 4 6 8 1 S 0.2 0.4 0.6 0.8 1 5 7 9 11 13 15 T 2 4 6 8 1 S Risk-aversion
  • Defeats
  • pponent
Maximizes max-payoff Maximizes min-payoff Cooperates always Decides randomly

S - T ≥ 0 T < R S > P p(C) = 1 p(C) = 0.5

0.2 0.4 0.6 0.8 1
slide-65
SLIDE 65

@anxosan

Too many phenotypes?

slide-66
SLIDE 66

@anxosan

Case study 4: Climate change mitigation

slide-67
SLIDE 67

@anxosan

Climate change game

slide-68
SLIDE 68

@anxosan

Climate change game

slide-69
SLIDE 69

@anxosan

Climate change game

slide-70
SLIDE 70

@anxosan

Climate change game

slide-71
SLIDE 71

@anxosan

Climate change game, heterogeneous version

slide-72
SLIDE 72

@anxosan

Is collective action successful?

slide-73
SLIDE 73

@anxosan

How do players behave?

slide-74
SLIDE 74

@anxosan

How do players behave?

slide-75
SLIDE 75

@anxosan

Summary: case study 1

The mechanism for cooperation in dynamic networks is reputation Reputation combines last action with average action Faking reputation does not affect cooperation but increases inequality

slide-76
SLIDE 76

@anxosan

Summary: case studies 2 & 3

Hierarchy is detrimental for cooperation People seem classifiable in a few recognizable phenotypes No (self-regarding) rationality

slide-77
SLIDE 77

@anxosan

Summary: case study 4

Climate change is averted by all groups (50% in 2008) People 3 times richer contributed 1/3 less

slide-78
SLIDE 78

@anxosan

Outlook

Small vs large-scale: FET Open IBSEN (Sep 15 - Aug 18)
 Bridging the gap: from Individual Behaviour to the Socio-tEchnical maN http://www.ibsen-h2020.eu @IBSEN_H2020

slide-79
SLIDE 79

@anxosan

Outlook: example

Small vs large-scale: FET Open IBSEN (Sep 15 - Aug 18) Trading in networks

slide-80
SLIDE 80

@anxosan

Computational social science: interactions among people and complex socio-technological systems

Refs available from http://www.anxosanchez.eu
