Communication of Swarm Robots Lennart Manthey December 5, 2016 Lennart Manthey Swarm Robots December 5, 2016 1 / 27 Contents Swarm 1 GUARDIANS 2 Designing a Swarming Algorithm 3 Additional Behaviour 4 Conclusion 5 Lennart Manthey

slide-1

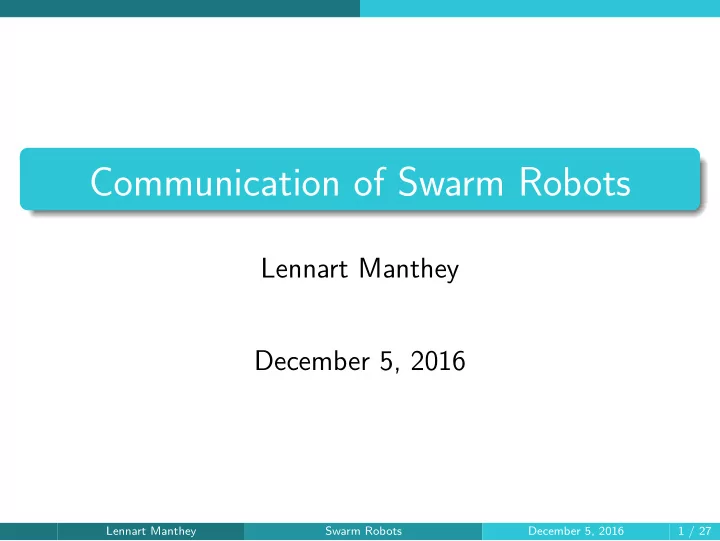

SLIDE 1

Communication of Swarm Robots

Lennart Manthey December 5, 2016

Lennart Manthey Swarm Robots December 5, 2016 1 / 27

slide-2
SLIDE 2

Contents

1

Swarm

2

GUARDIANS

3

Designing a Swarming Algorithm

4

Additional Behaviour

5

Conclusion

Lennart Manthey Swarm Robots December 5, 2016 2 / 27

slide-3
SLIDE 3

Swarm

Swarms

large numbers, scalability, fault tolerance coordination of large multirobot systems inspired by nature

Lennart Manthey Swarm Robots December 5, 2016 3 / 27

slide-4
SLIDE 4

Swarm

(D. Dibenski, 1986)

Lennart Manthey Swarm Robots December 5, 2016 4 / 27

slide-5
SLIDE 5

Swarm

(Mehmet Karatay, n.d.)

Lennart Manthey Swarm Robots December 5, 2016 5 / 27

slide-6
SLIDE 6

Swarm

(Tero et al., 2010)

Lennart Manthey Swarm Robots December 5, 2016 6 / 27

slide-7
SLIDE 7

GUARDIANS

GUARDIANS: swarm robots to aid firefighters

(Witkowski et al., 2008) (Penders et al., 2007) Scenario: fire in an industrial warehouse complex architecture metal and concrete walls toxic materials

Lennart Manthey Swarm Robots December 5, 2016 7 / 27

slide-8
SLIDE 8

GUARDIANS

The Swarm’s Task

aid the firefighters maintain a communication link detect humans locate danger: fire, smoke, toxic material

Lennart Manthey Swarm Robots December 5, 2016 8 / 27

slide-9
SLIDE 9

GUARDIANS

The Swarm’s Task

dynamic adhoc communication network positioning and mapping system toxic alarm system

Lennart Manthey Swarm Robots December 5, 2016 9 / 27

slide-10
SLIDE 10

GUARDIANS

Equipment

WLAN, Bluetooth, ZigBee special sensors: temperature, gas SLAM mobility light, sound for communication with humans

Lennart Manthey Swarm Robots December 5, 2016 10 / 27

slide-11
SLIDE 11

Designing a Swarming Algorithm

Designing a Swarming Algorithm

Situation: burning warehouse, lots of robots Task: search for hazards Problem: efficiently search and disperse to cover a large area

Lennart Manthey Swarm Robots December 5, 2016 11 / 27

slide-12
SLIDE 12

Designing a Swarming Algorithm

Designing a Swarming Algorithm

centralised leader based behaviour based virtual structure learning based spring based models social potential fields (Reif and Wang, 1999)

Lennart Manthey Swarm Robots December 5, 2016 12 / 27

slide-13
SLIDE 13

Designing a Swarming Algorithm

Social Potential Field

every robot has a goal − → EA

  • bstacles to avoid

−

→ ER wants to stay in contact with the other robots

−

→ IA but also doesn’t want to come to close

−

→ IR F = − → EA +

  • bstacles

− → ER +

  • ther robots

(− → IA + − → IR)

Lennart Manthey Swarm Robots December 5, 2016 13 / 27

slide-14
SLIDE 14

Designing a Swarming Algorithm

Social Potential Field

Fi,j = f (xj − xi) xj − xi xj − xi choose for example f (r) = − c1 r σ1 + c2 r σ2 with c1, c2 ≥ 0 ∧ σ1 > σ2 > 0

Lennart Manthey Swarm Robots December 5, 2016 14 / 27

slide-15
SLIDE 15

Designing a Swarming Algorithm

A Typical Potential Function

(Reif and Wang, 1999)

Lennart Manthey Swarm Robots December 5, 2016 15 / 27

slide-16
SLIDE 16

Designing a Swarming Algorithm

Example

(Calerga Sarl, n.d.)

Lennart Manthey Swarm Robots December 5, 2016 16 / 27

slide-17
SLIDE 17

Designing a Swarming Algorithm

Example

(Damer et al., 2006)

Lennart Manthey Swarm Robots December 5, 2016 17 / 27

slide-18
SLIDE 18

Designing a Swarming Algorithm

Advantages

high level distributed still works with limited communication grouping possible analytical solutions

Lennart Manthey Swarm Robots December 5, 2016 18 / 27

slide-19
SLIDE 19

Additional Behaviour

Additional Behaviour

Problem: swarm found something, how does it communicate it to the base station? build a communication network static beacon robots communication and localisation swarming algorithm to dynamically build the network topology

Lennart Manthey Swarm Robots December 5, 2016 19 / 27

slide-20
SLIDE 20

Additional Behaviour

Dynamic Triangulation Method

(Witkowski et al., 2008)

Lennart Manthey Swarm Robots December 5, 2016 20 / 27

slide-21
SLIDE 21

Additional Behaviour

Dynamic Triangulation Method

(Witkowski et al., 2008)

Lennart Manthey Swarm Robots December 5, 2016 21 / 27

slide-22
SLIDE 22

Additional Behaviour

Communicative Swarming

the global communication enables communicative swarming i.e. each robot can use global information to calculate its social potential field this also enables more effective division of labour grouping the robots with different social potential functions

Lennart Manthey Swarm Robots December 5, 2016 22 / 27

slide-23
SLIDE 23

Additional Behaviour

Human-Robot Interaction

the swarm provides a danger map at the base station the firefighter in the warehouse needs to command the swarm for example by applying a new potential, i.e. a new goal, a safe route robots needs to show the human potential hazards, paths . . .

Lennart Manthey Swarm Robots December 5, 2016 23 / 27

slide-24
SLIDE 24

Additional Behaviour

UI

(Christof et al., 2010)

Lennart Manthey Swarm Robots December 5, 2016 24 / 27

slide-25
SLIDE 25

Conclusion

Conclusion

a swarm can achieve more than a single actor distributed swarm algorithms are needed to control it as micromanaging is not feasible this is really complex but the control models can help by simplifying the problem interaction with and control by humans must also be considered

Lennart Manthey Swarm Robots December 5, 2016 25 / 27

slide-26
SLIDE 26

Conclusion

Citations I

Calerga Sarl. Mobile Robot Navigation with Sysquake. url: https://www.calerga.com/products/Sysquake/robotnav.html. Christof, Breckenfelder et al. (2010). “A Cognitive Glove Sensor Network for Fire Fighters”. In: Ambient Intelligence and Smart Environments,

  • pp. 158–169. issn: 1875-4163. doi: 10.3233/978-1-60750-639-3-158.
  • D. Dibenski (1986). Auklet flock Shumagins 1986. url:

https://commons.wikimedia.org/wiki/File: Auklet_flock_Shumagins_1986.jpg. Damer, Steven et al. (2006). “Dispersion and exploration algorithms for robots in unknown environments”. In: ed. by Grant R. Gerhart, Charles M. Shoemaker, and Douglas W. Gage, 62300Q. doi: 10.1117/12.668915. Mehmet Karatay. Safari ants. url: https://commons.wikimedia.org/wiki/File:Safari_ants.jpg.

Lennart Manthey Swarm Robots December 5, 2016 26 / 27

slide-27
SLIDE 27

Conclusion

Citations II

Penders, Jacques et al. (2007). “Guardians: a swarm of autonomous robots for emergencies”. In: Proceedings of the 20th International Joint Conference on Artificial Intelligence (IJCAI’07) Workshop on Multirobotic Systems for Societal Applications, pp. 8–16. Reif, John H. and Hongyan Wang (1999). “Social potential fields: A distributed behavioral control for autonomous robots”. In: Robotics and Autonomous Systems 27.3, pp. 171–194. issn: 09218890. doi: 10.1016/S0921-8890(99)00004-4. Tero, A. et al. (2010). “Rules for Biologically Inspired Adaptive Network Design”. In: Science 327.5964, pp. 439–442. issn: 0036-8075, 1095-9203. doi: 10.1126/science.1177894. Witkowski, Ulf et al. (2008). “Ad-hoc network communication infrastructure for multi-robot systems in disaster scenarios”. In: Proceedings of the International Workshop on Robotics for Risky Interventions and Surveillance

  • f the Environment.

Lennart Manthey Swarm Robots December 5, 2016 27 / 27
