Climate Change effects on hydropower plants in the Upper Danube watershed F. Koch 1 , H. Bach 2 , A. Reiter 1 & W. Mauser 1 Hydrology and Remote Sensing WG of the BMBF-project GLOWA-Danube 1 Department of Geography, University of Munich

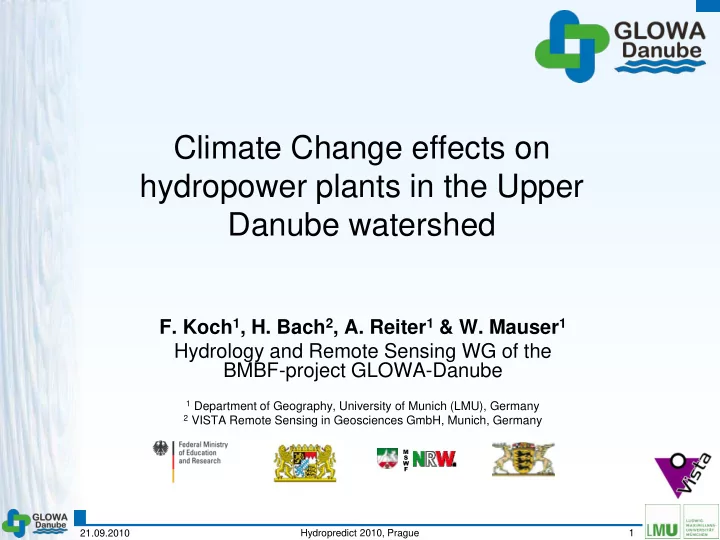

SLIDE 1

21.09.2010 Hydropredict 2010, Prague 1

Climate Change effects on hydropower plants in the Upper Danube watershed

F. Koch1, H. Bach2, A. Reiter1 & W. Mauser1

Hydrology and Remote Sensing WG of the BMBF-project GLOWA-Danube

1 Department of Geography, University of Munich (LMU), Germany 2 VISTA Remote Sensing in Geosciences GmbH, Munich, Germany

M S W F

SLIDE 2

21.09.2010 Hydropredict 2010, Prague 2

A Regional Scale River Basin

Upper Danube Basin:

Area: 77.000 km²
Population: 11 Mio.
Elevation Gradient: 3.600 m

SLIDE 3

21.09.2010 Hydropredict 2010, Prague 3

Routing

runoff concentration
ground water flow
lake retention
reservoir management
water transfers

SLIDE 4

21.09.2010 Hydropredict 2010, Prague 4

Hydropower Plants

maximum capacity > 5 MW ~ 120 runoff-river power plants ~ 20 reservoir hydropower plants

runoff-river power plant hydropower generation [GWh] reservoir hydropower plant hydropower generation [GWh] reservoir

SLIDE 5

21.09.2010 Hydropredict 2010, Prague 5

Hydropower Module

Capacity: P = η * ρ * Q * g * H [kW] runoff-river power plant reservoir hydropower plant Parameters: hydraulic height, maximum capacity, maximum turbine discharge, efficiency

SLIDE 6

21.09.2010 Hydropredict 2010, Prague 6

Hydropower generation vs. discharge

Example: runoff-river power plant Vohburg, Danube (1995)

SLIDE 7

21.09.2010 Hydropredict 2010, Prague 7

Validation hydropower generation

SLIDE 8

21.09.2010 Hydropredict 2010, Prague 8

GLOWA-Danube climate scenarios

Selection 1: climate trends Selection 2: climate variants REMO regional Extrapolation Baseline 5 warm winters 5 hot summers 5 dry years IPCC regional MM5 regional 16 different climate scenarios

x =

SLIDE 9

21.09.2010 Hydropredict 2010, Prague 9

Development of hydropower generation in the Upper Danube watershed

Baseline: 2011 – 2035:

1,8%

2036 – 2060:

11,3%

5 dry years: 2021 – 2025:

17,1%

REMO regional x

SLIDE 10

21.09.2010 Hydropredict 2010, Prague 10

Regional differences

Reduction of hydro- power generation [%] 2036 – 2060

Reference time period: 1971 – 2000

Iller Inn Lech Isar Danube Salzach climate scenario: REMO regional – Baseline

SLIDE 11

21.09.2010 Hydropredict 2010, Prague 11

Conclusions

Hydropower generation is expected to decrease in the

next decades

Strong influence of dry years
Regional differences based on future low-flow

conditions and the snow & ice storage

Changes of the runoff regime will also influence the

inter-annual hydropower generation

Development, analysis and evaluation of scenarios

and adaption strategies in cooperation with Stakeholders, e.g. hydropower plant operators

SLIDE 12

21.09.2010 Hydropredict 2010, Prague 12

Thank you very much for your attention!

http://www.christianengl.de/Schlegeisspeicher.jpg

www.glowa-danube.de www.vista-geo.de

SLIDE 13

21.09.2010 Hydropredict 2010, Prague 13

SLIDE 14

21.09.2010 Hydropredict 2010, Prague 14

Hydropower Plants

maximum capacity > 5 MW ~ 120 runoff-river power plants ~ 20 reservoir hydropower plants

runoff-river power plant hydropower generation [GWh] reservoir hydropower plant hydropower generation [GWh] reservoir

runoff-river power plants

hydropower generation

SLIDE 15

21.09.2010 Hydropredict 2010, Prague 15

Validation runoff

400 800 1200 1600 2000 1.8.95 15.8.95 29.8.95 12.9.95 26.9.95 10.10.95 24.10.95 7.11.95

discharge [m³/s]

Hofkirchen Dillingen hourly discharge

---- measured
---- simulated

Slope R² NSC Hofkirchen 1.11 0.87 0.81 Dillingen 1.13 0.84 0.72 daily average runoff, based on the time period 1971-2003 (Mauser & Bach 2009)

SLIDE 16

21.09.2010 Hydropredict 2010, Prague 16

Low-flow conditions

2036 – 2060

Reference time period: 1971 – 2000

 more drastic  less drastic

Development of the low-flow situation [%]

climate scenario: REMO regional – Baseline

SLIDE 17

21.09.2010 Hydropredict 2010, Prague 17

Seasonal development

discharge maximum is shifted from summer to spring smoother annual hydrograph Influence on inter-annual hydropower generation

Discharge (outlet Achleiten) precipitation

climate scenario: REMO regional – Baseline

discharge [m³/s] precipitation [mm]
