SLIDE 1

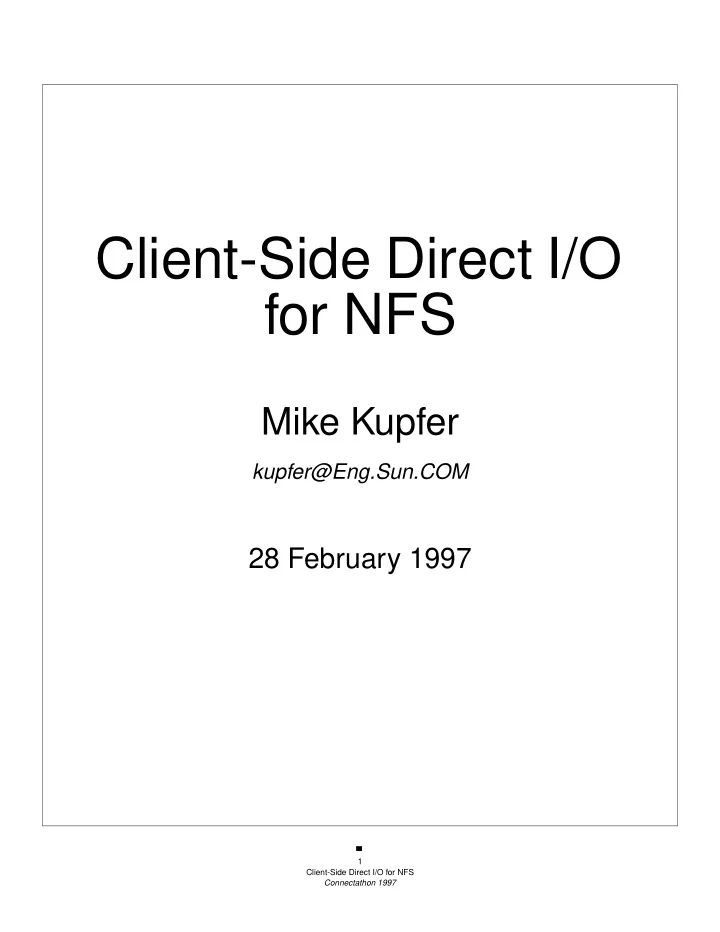

1 Client-Side Direct I/O for NFS Connectathon 1997
Client-Side Direct I/O for NFS
Mike Kupfer
kupfer@Eng.Sun.COM
2 Client-Side Direct I/O for NFS Connectathon 1997
Client-Side Direct I/O for NFS Mike Kupfer kupfer@Eng.Sun.COM 28 - - PDF document
Client-Side Direct I/O for NFS Mike Kupfer kupfer@Eng.Sun.COM 28 - - PDF document
Client-Side Direct I/O for NFS Mike Kupfer kupfer@Eng.Sun.COM 28 February 1997 1 Client-Side Direct I/O for NFS Connectathon 1997 Disclaimer This is not a product announcement. 2 Client-Side Direct I/O for NFS Connectathon 1997
SLIDE 2
SLIDE 3
3 Client-Side Direct I/O for NFS Connectathon 1997
Overview
- Background
- Changes
- Performance Results
- Future Work, Issues
SLIDE 4
4 Client-Side Direct I/O for NFS Connectathon 1997
Background
SLIDE 5
5 Client-Side Direct I/O for NFS Connectathon 1997
The Benchmark what
- sequential I/O: mkfile a 60 MB file, then
dd it to /dev/null
- unmounts on client and server to flush
caches
why
- LADDIS (SPEC SFS) doesn’t measure
client
- LADDIS measures aggregate, not point-to-
point
- expect 6+ MB/s on SS10/20 with
FastEthernet, only getting 5 MB/s (up from 3.4 MB/s)
SLIDE 6
6 Client-Side Direct I/O for NFS Connectathon 1997
Direct I/O
- bypass page cache
- best for large files, no locality of
reference
- avoid page cache overhead
- avoid polluting page cache
- UFS Direct I/O project in 2.6
- databases, decision support software
- might help NFS server; what about
client?
SLIDE 7
7 Client-Side Direct I/O for NFS Connectathon 1997
Direct I/O (cont’d)
- SGI’s Bulk Data Service
- O_DIRECT flag combined with NFS file
- stuff bytes into a TCP socket connection
- 60 MB/s over HIPPI (March 1996)
- uses private protocol, requires client
and server changes
SLIDE 8
8 Client-Side Direct I/O for NFS Connectathon 1997
Changes
SLIDE 9
9 Client-Side Direct I/O for NFS Connectathon 1997
Overview of Changes
- API support: make look like UFS
- add array of buffers to rnode
- kmem_alloc, kmem_free buffers as
needed
- use buffers instead of VM segment
- keep the pipe full
- use readahead and write-behind
- large transfer sizes
- safe asynchronous writes
- transparent to server except for larger
transfer size
SLIDE 10
10 Client-Side Direct I/O for NFS Connectathon 1997
Client Structure
nfs3_read, nfs3_write nfs3read, nfs3write VM (page cache) code direct I/O code (including VNOCACHE) async threads
SLIDE 11
11 Client-Side Direct I/O for NFS Connectathon 1997
Performance Results
SLIDE 12
12 Client-Side Direct I/O for NFS Connectathon 1997
Issues, Future Work
SLIDE 13
13 Client-Side Direct I/O for NFS Connectathon 1997
Issues
- to productize or not to productize
- verify on UltraSPARC, other
benchmarks
- API for determining transfer size
- tuning
- how many buffers
- when to issue COMMIT
- MT support too hairy?
- less arcane scheme for iterating over
buffers
SLIDE 14
14 Client-Side Direct I/O for NFS Connectathon 1997
Things To Do
- failover support
- cache management, error handling
- make direct I/O consistent with VM-
based code (such as it is)
- misc. cleanup
- API for enabling/disabling direct I/O
- code organization
- plug into kmem reclaim logic
- coexistence with mmap
- etc.
SLIDE 15
15 Client-Side Direct I/O for NFS Connectathon 1997
Futures
- application-directed readahead?
- page flipping?
- server-side direct I/O
- assume client cache takes most hits for
NFS
- use UFS direct I/O
SLIDE 16
16 Client-Side Direct I/O for NFS Connectathon 1997
Conclusions
- bypassing page cache is a win for
sequential access, no locality of reference
- the win gets bigger if the file doesn’t fit in
memory
- keeping the pipe full is more work, but
