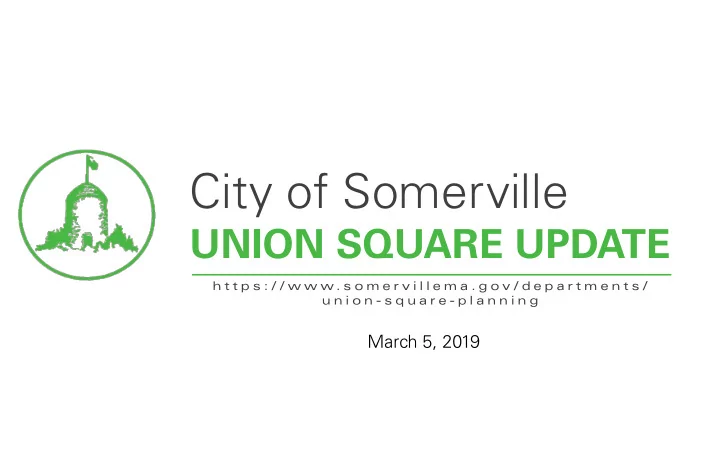

City of Somerville UNION SQUARE UPDATE h t t p s : / / w w w . s o - - PowerPoint PPT Presentation

City of Somerville

City of Somerville

UNION SQUARE UPDATE

h t t p s : / / w w w . s o m e r v i l l e m a . g o v / d e p a r t m e n t s / u n i o n - s q u a r e - p l a n n i n g

March 5, 2019

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

PURPOSE:

• Provide an update on the status of the design of USQ Block D2
• Review the impacts and costs of different alternatives to the design submitted in 2017 for the CDSP
• Receive an update on current status and next steps

AGENDA:

• Design Efforts
• Cost Estimating
• Additional Alternate Studies (Underground and Off-site)
• Ongoing Issues
• Next Steps

T

• day’s Meeting

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

DESIGN EFFORTS

Public Process

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

Neighborhood Plan

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

Approved CDSP

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

Approved CDSP

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

Approved CDSP

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

Next step: Design and Site Plan Review Plans recently submitted – internal review beginning soon Submitted plan reflects feedback from the neighborhood meeting and DRC

Approved CDSP

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

• Design workshop included 3 teams
• This version was determined to be a

preferred option

• This version requires:
• No on-site above-grade parking
• MBTA station entrance

relocation

Neighborhood T eam Design

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

COST ESTIMATING

Original and Peer Review

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

US2 Original Cost Estimate

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

• NorthStar –

US2 consultant

• This estimate

is a premium cost – relative to the above- ground garage cost.

• $74,000 cost

premium per space

Underground Parking – US2 Estimate

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

From Exhibit D:

• 1. Dewatering Costs. The geotechnical report

notes that the water table on D2 varies from 2.8 feet below grade to 10.3 feet below grade. Extensive underground construction will result in dewatering costs and treatment of dewatering effluent due to the site contamination.

• 2. Waterproofing. Since the underground parking

structure will be sitting below-grade in an area with a high water table that has been prone to flooding, additional waterproofing and drainage measures will need to be incorporated into the underground garage to keep the garage dry and mitigate ground surface uplift at the lowest level. The Site Section Assumptions do not include the topsoil and plantings necessary to achieve the landscape vision illustrated by the Alternate Designs. From page 7 of the NorthStar Estimate:

Cost Estimate Notes

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

• 3. Site Environmental Cleanup. The D2 project is planned on land partially

created by the filling in of the Millers River in the late-1800s, and has since been used for a combination of commercial, residential and industrial

• purposes. Both the fill materials and historic industrial operations have

contributed oil and hazardous materials to the soil over time. The site is contaminated with polychlorinated biphenyls (PCBs), metals, petroleum hydrocarbons, and polyaromatic hydrocarbons (PAHs) in the soil and VOCs have been detected in groundwater on the small northeast portion of the site.

Cost Estimate Notes

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

• Due to the contamination, the site cleanup will be regulated by both

federal and state laws. The cost associated with site cleanup can be estimated based on the testing performed to date, but the actual cost is uncertain until actual subsurface conditions are uncovered during the construction.

• For the CDSP D2 Plan (i.e., above ground parking plan), sub-surface soil

removal and the associated risk and cost is minimized. Soil with PCB concentrations greater than EPA approved clean-up standards will be excavated and disposed of at an out of state land fill. For the balance of the site, a combination of soil removal and soil capping will be employed.

Cost Estimate Notes

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

• In the Alternate D2 Plan (i.e. underground parking plan), sub-surface soil

removal and the associated risk and cost will be much more significant. All the soil excavated will need to be trucked offsite to landfills and in the case of contaminated soil, landfills that charge a premium for disposal. Different levels of contamination will require different disposal costs (assumed $250 per ton for PCBs > 50ppm; $100 per ton for PCBs > 1ppm < 50ppm; $40 per ton for urban fill).

Cost Estimate Notes

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

• 4. Brownfield Tax Credits. The estimate assumes that the project takes

advantage of the Massachusetts Brownfield Tax Credit program and receives tax credits of 25 – 50% of the eligible environmental remediation cost in accordance with the eligibility requirements of the state program. The market value of the tax credits in the resale market is estimated at 85% based on input from a tax credit seller’s opinion of current market conditions.

Cost Estimate Notes

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

• 5. Additional Rentable SF above grade. In comparing the two building

programs, the Alternate D2 Plan yielded approximately 19,000 square feet of additional market rate residential (i.e., 80% of 24,000 square feet

• f additional residential) on levels 1 and levels 2 in the mid-rise and

approximately 6,000 square feet of off-street retail/arts space located in the eastern midrise residential building. The land value attributable to this area was estimated to determine the credit amount in the estimate.

Cost Estimate Notes

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

• 6. Exclusions. The estimate does not include the additional operating

costs associated with operating the additional garage MEP systems in the Alternate D2 Plan. It’s also noted that the western mid-rise residential building and the underground parking construction will conflict with the planned ingress/egress construction easements for the MBTA GLX

• contractor. The impact of this construction logistics conflict has not been

captured in the cost estimate but will not be insignificant if the Alternate D2 Plan is implemented. Lastly, the cost of redesigning the project and any necessary re-permitting that would be required in order to implement the Alternate D2 Plan have not been included.

Cost Estimate Notes

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

Base estimate for above-ground parking

• The above grade option is approximately $45,000 per space (or $13.5 million total including

soft costs)

• Adding the base number and the underground premium, the actual cost per parking space

would be approximately $120,000. Soft costs

• The estimate does not include additional design costs

Timeline extension and permitting revision

• The estimate does not include cost of the additional time required to complete and apply

for a new design

• This may require a CDSP modification, with additional meetings. This results in increased

time and money to the project

• This also adds carrying costs on city bonds OR slows the streetscape work in Union

Square

Additional Costs

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

Peer Review Cost Estimate

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

• Vermeulens – the City’s

consultant that was recommended by residents.

• Our estimate for the below

grade parking garage is yielding a $126,429/space unit price. ”

Peer Review (Cost Estimate)

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

“ As an added premium to finish the landscaping on the roof of the garage we would recommend carrying an additional $30/sf over the 68,900sf of additional roof area totaling approximately $2M. An additional premium cost if additional depth is required to the garage finished floor level due to landscaping depth requirements we recommend adding $1M per foot of depth added. ” “Excluded from the estimate are: loose furnishings and equipment, project contingency, architect’s and engineer’s fees, moving, administrative and financing costs. ”

Peer Review Notes

From page E.18 of the Vermeulens Peer Review:

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

Initial NorthStar Estimate Estimate cost of above-ground parking $45,000 per space NorthStar additional premium for underground $74,618 per space Total per space approximately $119,618 Total cost $35,288,580

Summary of Costs

Vermeulens Peer Review Vermeulens estimate for underground parking $126,429 per space Total per space approximately $126,429 Total cost $37 ,928,827

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

ALTERNATE STUDIES

Underground & Off-Site

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

300 Parking Spaces

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

Alternate Underground Studies

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

Alternate Underground Possibilities

• Alternate 1: 4 levels under D2.1 only
• 112,464sf for $23,207

,970

• Approximately $78,671 per space

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

Alternate Underground Possibilities

• Alternate 2: 1 level semi-automated
• 54,334sf for $16,197

,884

• Approximately $107

,986 per space

• Additional cost required for stacking

equipment required to achieve 295 spaces

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

Summary of Costs

Above Ground Garage: $45,000 per space $13,500,000 total cost NorthStar Estimate of Underground Garage $119,618 per space $35,288,580 total cost $21.8 million cost premium Vermeulens Initial Peer Review $126,429 per space $37 ,928,827 total cost $24.4 million cost premium Four levels under D1 – Vermuelens Estmiate Approximately $78,671 per space $23,601,300 total cost $10.1 million cost premium Semi-automated Garage –Vermuelens Estmiate** $107 ,986 per space $16,197 ,884 total cost $2.7 million cost premium ** Does not anticipate stacked parking or provide for cost of vehicle stackers

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

Alternative Off-Site Studies

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

• Off-site office parking cannot be TOO far from the front door
• Off-site parking in some locations must be temporary
• There can be no gap in time for access to parking
• Surface lots for 300 spaces can be very large
• Temporary structures can work, but add cost

The off-site challenge

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

• Temporary structures – can be

dismantled, relocated, and re-used

• Stacking systems

T emporary and Off-Site Possibilities

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

T emporary and Off-Site Possibilities

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

T emporary and Off-Site Possibilities

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

T emporary and Off-Site Possibilities

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

There are not feasible off-site options

The Offsite Challenge

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

ON-GOING ISSUES

Related & Surrounding

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

STATION ENTRANCE DESIGN

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

MBTA Station Entrance Design

From: https://www.mass.gov/files/documents/2019/02/05/glx_Union_Sq_Station_1218.pdf

January 30th Public meeting presentation is available online at https://www.mass.gov/files/documents/2019/02/04/dot-glx-presentation013019.pdf

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

A PARK FOR UNION SQUARE

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

Park Sites

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

Park Sites

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

Park Sites

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

Park Sites

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

“The Neighborhood Park shall be located as shown in the application ... on Parcel D1 or on a comparably sized location approved by the Director of Planning in accordance with conditions 3 and 8 above. If further study and additional community input indicates to the Director of Planning that an alternative location on the D blocks would improve the attractiveness, access, and functionality of the park, the Director of Planning shall, at that time, direct the Applicant to move this civic space to Parcel D7 while maintaining at a minimum the amount of appropriately sited open space described in earlier versions of the plan on the D blocks. Regardless of this, a Civic Space must be maintained on D1 and on D7 ...

Condition #30

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

Additional community input, as referenced above, shall include, but not be limited to, a design workshop (format approved by the Director

• f Planning) to be attended by urban designers and other

professionals with appropriate backgrounds who are familiar with the neighborhood, in addition to representatives of the Applicant and the City, and any such workshop will consider the open space plan for the D Blocks in the context of the Neighborhood Plan, from an urban design and planning perspective, taking into account the multiple perspectives expressed and documented at earlier community meetings. The workshop shall be open to the public and/or incorporate or be followed by a public presentation of findings and results.

Condition #30

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

As this process continues, the Director of Planning will also submit a zoning amendment to change the overlay subdistrict on the portion of D7 mapped as MR4 to be mapped at MR5. Should an amendment be approved that changes this subdistrict, without any other substantive change being made to the zoning as approved in June 2017 , the Applicant has agreed to file an application to shift some development from D7 across Warren Street into this newly up-zoned area, thereby allowing for a larger civic space on D7 while maintaining the Neighborhood Park on D1…”

Condition #30

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

THE ‘INDOOR’ SPACE

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

The Applicant will work with the Neighborhood Council and interested parties in the Union Square community to allow for the inclusion of an "indoor civic space" as a part of the design process. An "indoor civic space" is a space provided to a public and/or non-profit use or uses, with ground level access, within the interior of a D Block building. The Applicant shall, in collaboration with the Neighborhood Council, make reasonable efforts to identify the appropriate tenant or tenants for lease of this space for civic uses within the appropriate development block and the applicant shall work to consummate a lease with said tenant. This effort shall include, at a minimum, the following steps: a) seek interested tenant or tenants; b) work with tenant to develop a program; c) work with tenant on size of space for the program; d) work with tenant to locate the optimal site for the tenant. The applicant shall provide updates and collect feedback from the Neighborhood Council as the process unfolds, particularly with respect to steps (b) and (d). The Planning Board expects that the Neighborhood Council will work with the entire Union Square community as well as with the Applicant to address the tenant and program, and meet items (a) through (d), above, for the "indoor civic space" within a timeframe that permits the delivery of the "indoor

• pen space" in accordance with condition 31A. The Applicant shall provide regular updates to the Planning

Board on these efforts - at a minimum with the submittal of the DSPR for each block. Unless otherwise waived by the Planning Board, the Applicant shall complete the steps and use reasonable efforts to implement the "indoor civic space".

Condition #27A

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

The Applicant will work with the Neighborhood Council and interested parties in the Union Square community to allow for the inclusion of an "indoor civic space" as a part of the design

• process. An "indoor civic space" is a space

provided to a public and/or non-profit use or uses, with ground level access, within the interior of a D Block building.

Condition #27A

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

OPPORTUNITY ZONES

Somerville Opportunity Zones

53

Opportunity Zones Basics

Qualified Opportunity Zones are economically-distressed communities, designated by

states and territories and certified by the U.S. Treasury Department, in which certain types of investments may be eligible for preferential tax treatment. The tax incentive is designed to spur economic development and job creation in distressed communities by providing these tax benefits to investors.

Qualified Opportunity Funds area any investment vehicle organized as a

corporation or partnership with the specific purpose of investing in Opportunity Zone assets. The fund must hold at least 90 percent of its assets in qualifying Opportunity Zones property. A QOF can include both capital gains and other funds, but only the capital gains are eligible for the o-zone tax benefits of deferral, reduction and exclusion.

Qualified Opportunity Zone Property is property acquired by purchase

from an unrelated party (more than 20% standard) after December 31, 2017; original use in the Opportunity Zone must commence with the O-Zone Business (or OFund) OR substantially improves the property.

54

Three Opportunity Zone Tax Benefits

T emporary Deferral: A temporary deferral of inclusion in taxable income for capital gains

reinvested into an Opportunity Fund. The deferred gain must be recognized on the earlier of the date on which the opportunity zone investment is disposed or December 31, 2026.

Step up in Basis: A step-up in basis for capital gains reinvested in an Opportunity Fund. The

basis is increased by 10% if the investment in the Opportunity Fund is held by the taxpayer for at least 5 years and by an additional 5% if held for at least 7 years, thereby excluding up to 15% of the original gain from taxation

Permanent Exclusion: A permanent exclusion from taxable income of capital gains

from the sale or exchange of an investment in an Opportunity Fund if the investment is held for at least 10

• years. This exclusion only applies to gains accrued after an investment in an Opportunity Fund.

55

Opportunity Zone Basic Structure

56

Opportunity Zone Program Beneficiaries

• Investors and individual taxpayers with a capital gain,
• r the ability to create a gain
• Sponsors, syndicators and private equity fund

managers

• Businesses formed after December 31, 2017

, located in an OZone and satisfies the requirements of being a qualified opportunity zone business.

• Real estate developers seeking equity investments for

their OZ developments

• Communities

57

Investors 10-year investment: Fully Taxable vs. OZ

58

Fully Taxed Investment

Capital Gain $100,000

• tax payable

$24,000 Total Capital to Invest $76,000 Sales Price after 10 years $197,000

• tax on appreciation (24%)

$29,070 After Tax Funds Available $168,054

Opportunity Zone Investment

Capital Gain $100,000

• tax payable

$24,000 Total Capital to Invest $100,000 Sales Price after 10 years $259,374

• tax on appreciation (24%)

$20,480 After Tax Funds Available $238,974

Assumptions: 10% annual investment appreciation; 24% capital gains tax (federal only); source: LISC

Next Steps for Somerville’s OZ Program

• Somerville OZ Working Group

○

Develop strategies to mazimize Opportunity Zones in Somerville

○

Collaboration between OSPCD, City Council, SCC, LISC, KSG Student Group, social impact investors, more

• Develop OZ-specific marketing tools & investor databases
• Build strong relationships with social impact investors
• Integrate OZ & P3 Initiatives

59

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

NEXT STEPS

Application Process

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

• Draft Environmental Impact Report submitted on

December 13, 2018

• The final version of the application was

submitted to MEPA on approximately January 15th

• Comments were due March 1, 2019

MEPA Review

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

Land T ransfer

City SRA

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

• Parcelization and subdivision of land identified in the application

materials requires the approval of one or more Design and Site Plan Review (DSPR) applications to establish the new lot

• boundaries. DSPR applications for parcelization or subdivision

may be processed simultaneously with DSPR applications required for development on the lots resulting parcelization or subdivision.

• Each building, civic space, and thoroughfare (including

streetscape details) and associated physical improvements requires design review per the SZO, prior to the submittal of a DSPR application. Design review will take into account not only the parcel under review, but also the larger context in terms of relationships, sight-lines, compatibility of materials, pedestrian access, and consistency with the intent of the Neighborhood Plan.

Lot & Block Plan

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

• DSPR Process for D2 requires 6

different submittals – a subdivision plan, one for each of the buildings, the civic space, and the alley

Next Permitting Steps

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

Design & Site Plan Review

The Pre-Submittal, Neighborhood Meetings, and Design Review have been completed in accordance with the ordinance

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

#81 The street-facing portions of D2.1 and the alley way to the east of D2.2 and D2.3 should make accommodations for flooding during extreme storm events. These accommodations must be coordinated with the Engineering Department. #82 The D2 Block water and sewer connections must be relocated to Prospect Street, and the drain connection location must be coordinated with the Somerville Ave Utility and Streetscape Improvements project drawings. While initially written to address the D1 Block, this condition should also be addressed for the area between the D2.1 and D2.2 buildings: #77A Where sides or backs of buildings face a civic space, they must incorporate (physically or visually) strategies that address the public frontage and impact of these spaces. These strategies need not be related to retail spaces or functional entrances, and can be small in scale. But, these spaces should be ambitious, active, and should encourage creativity and engagement. These spaces may include, but are not limited to, public art installations or display cases for artwork, play equipment or a climbing wall, large scale supergraphics or murals, green walls, and/or artist/maker space, etc. The applicant shall, through the DSPR neighborhood meeting process, engage with the community for design and programming suggestions.

D2 Specific DSPR Conditions

City of Somerville

City of Somerville

UNION SQUARE UPDATE

h t t p s : / / w w w . s o m e r v i l l e m a . g o v / d e p a r t m e n t s / u n i o n - s q u a r e - p l a n n i n g

March 5, 2019

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

THE ALLEN STREET BUFFER

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

Allen Street Neighborhood

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

Version 3 Version 4?

Allen Street Neighborhood Union East Overlay

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

Allen Street Neighborhood

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

Allen Street Neighborhood

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

Why the Alley?

Mayor Joseph A Curtatone Office of Strategic Planning & Community Development

Why the Alley?
