Chapter 16: The Evolution of our Universe Ch. 17 Reading Assignment - - PowerPoint PPT Presentation

Chapter 16: The Evolution of our Universe Ch. 17 Reading Assignment due Tuesday EC write-ups accepted until the last day of class Midterm 2 up front ASTR/PHYS 1060: The Universe Fall 2019: Chapter 16 1 What IS the Big Bang? A) A part of


slide-1

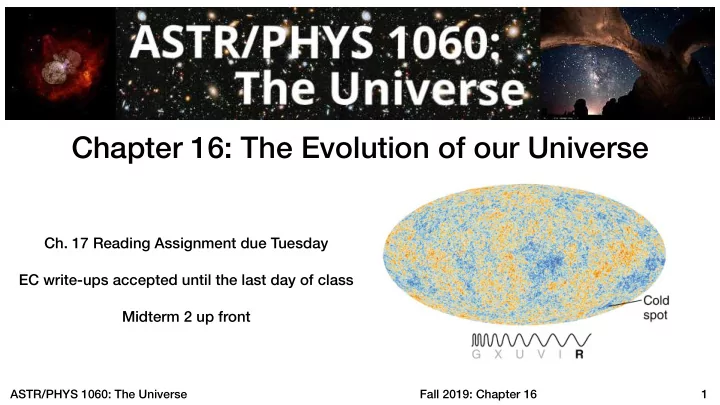

SLIDE 1

ASTR/PHYS 1060: The Universe Fall 2019: Chapter 16

Chapter 16: The Evolution of our Universe

1

  • Ch. 17 Reading Assignment due Tuesday

EC write-ups accepted until the last day of class Midterm 2 up front

slide-2
SLIDE 2

Fall 2019: Chapter 16 ASTR/PHYS 1060: The Universe

What IS the Big Bang?

2

A) A part of space that exploded to become the universe B) A bubble of spacetime that expanded from the multiverse C) Expanding spacetime that starts very hot and dense in a singularity D) Expanding spacetime that starts very hot and dense as if from a singularity

slide-3
SLIDE 3

ASTR/PHYS 1060: The Universe Fall 2019: Chapter 16

Where did the Big Bang happen?

3

slide-4
SLIDE 4

Fall 2019: Chapter 16 ASTR/PHYS 1060: The Universe

The expansion of space, evidenced by Hubble’s law (galaxy redshifts), implies galaxies were much closer together in the past

4

slide-5
SLIDE 5

Fall 2019: Chapter 16 ASTR/PHYS 1060: The Universe

Light gets redshifted because it’s “tied” to space and expands with it

5

slide-6
SLIDE 6

Fall 2019: Chapter 16 ASTR/PHYS 1060: The Universe

Evidence of the Big Bang was confused with pigeon poo

6

Penzias and Wilson worked at Bell Labs, were trying to reduce noise in a radio receiver “Eliminated" pigeons as a source of noise, realized it must be cosmic Meanwhile, smarty-pantses at Princeton were like, “let’s build a telescope to search for this early universe radiation Gamow, Alpher, and Bethe suggested might exist” Bell Labs guys came back with, “don’t bother, found it already — Nobel Prize please” They got it, for the discovery of the Cosmic Microwave Background

slide-7
SLIDE 7

Fall 2019: Chapter 16 ASTR/PHYS 1060: The Universe

What is the CMB?

7

A) Leftover particles from the Big Bang B) Leftover radiation (gamma rays) from the Big Bang C) Leftover radiation (microwaves) from the Big Bang D) Leftover cosmic rays from the Big Bang

slide-8
SLIDE 8

ASTR/PHYS 1060: The Universe Fall 2019: Chapter 16 8

https://www.youtube.com/watch?v=CMSYv_Z4SI8

slide-9
SLIDE 9

Fall 2019: Chapter 16 ASTR/PHYS 1060: The Universe

Story time: when the universe was a baby

9

In the early universe, many interactions between particles (just like at the LHC) quarks, electrons, photons, neutrinos all transform into each other As universe expands, densities decrease and protons/electrons/photons form and are stable Eventually, electrons can be captured by protons to form atoms that are not immediately broken up by energetic photons —> recombination Soon thereafter, the density of free electrons is too low to scatter photons, and the universe becomes transparent —> photon decoupling As the universe expands further, a time comes when a CMB photon scatters off an electron for

  • ne last time

—> last scattering

slide-10
SLIDE 10

ASTR/PHYS 1060: The Universe Fall 2019: Chapter 16 10

slide-11
SLIDE 11

ASTR/PHYS 1060: The Universe Fall 2019: Chapter 16 11

slide-12
SLIDE 12

Fall 2019: Chapter 16 ASTR/PHYS 1060: The Universe

The CMB is like looking into the Sun — you can only see as far as the last time a photon got scattered “the surface of last scattering”

12

slide-13
SLIDE 13

ASTR/PHYS 1060: The Universe Fall 2019: Chapter 16 13

slide-14
SLIDE 14

ASTR/PHYS 1060: The Universe Fall 2019: Chapter 16 14

Error bars are too small to show on this plot Measurement had to be in space to confirm entire spectrum was a blackbody (atmosphere absorbs light near the peak) Received a standing ovation when shown at a meeting of the American Astronomical Society in the early 1990s

slide-15
SLIDE 15

Fall 2019: Chapter 16 ASTR/PHYS 1060: The Universe

Every direction you look, the sky has the same temperature (2.73 degrees above absolute zero)

15

slide-16
SLIDE 16

Fall 2019: Chapter 16 ASTR/PHYS 1060: The Universe

Removing features reveals new structures

16

slide-17
SLIDE 17

Fall 2019: Chapter 16 ASTR/PHYS 1060: The Universe

Removing features reveals new structures

17

dT > 3 mK dT ~ 3.353 mK dT ~ 0.018 mK

COBE measurements

slide-18
SLIDE 18

Fall 2019: Chapter 16 ASTR/PHYS 1060: The Universe

Over 25 years, refine spatial resolution

18

slide-19
SLIDE 19

Fall 2019: Chapter 16 ASTR/PHYS 1060: The Universe

CMB provides a giant triangle of known size!

19

slide-20
SLIDE 20

Fall 2019: Chapter 16 ASTR/PHYS 1060: The Universe 20

A) Its initial speed of expansion B) How many large structures form C) The density of mass D) The density of radiation

What determines how the expansion of space changes?

slide-21
SLIDE 21

Fall 2019: Chapter 16 ASTR/PHYS 1060: The Universe 21

Escape Velocity - works for the expansion of the universe (in analogy)

slide-22
SLIDE 22

ASTR/PHYS 1060: The Universe Fall 2019: Chapter 16 22

slide-23
SLIDE 23

ASTR/PHYS 1060: The Universe Fall 2019: Chapter 16 23

since the 1920s, astronomers have been trying to figure

  • ut which universe

we live in

slide-24
SLIDE 24

Fall 2019: Chapter 16 ASTR/PHYS 1060: The Universe

What is the fate of our universe?

24

A) It will expand forever, gradually slowing down due to gravity B)It will eventually stop expanding and recollapse C)None of the above

slide-25
SLIDE 25

Fall 2019: Chapter 16 ASTR/PHYS 1060: The Universe

Which universe do we (think) we live in?

25

A) B) D) C)

slide-26
SLIDE 26

ASTR/PHYS 1060: The Universe Fall 2019: Chapter 16 26

2011 Nobel Prize!

slide-27
SLIDE 27

Fall 2019: Chapter 16 ASTR/PHYS 1060: The Universe

Amount of matter (normal plus dark) and dark energy determine the fate AND CURVATURE of the universe

27

slide-28
SLIDE 28

Fall 2019: Chapter 16 ASTR/PHYS 1060: The Universe

Amount of matter (normal plus dark) and dark energy determine the fate AND CURVATURE of the universe

28

SNe

slide-29
SLIDE 29

Fall 2019: Chapter 16 ASTR/PHYS 1060: The Universe

Amount of matter (normal plus dark) and dark energy determine the fate AND CURVATURE of the universe

29

SNe Galaxy Clusters

slide-30
SLIDE 30

Fall 2019: Chapter 16 ASTR/PHYS 1060: The Universe

Parameters that determine the evolution of the universe

30

Matter Dark Energy Radiation (CMB) Curvature ~0.3 ~0.7 ~9x10-5 ~0

slide-31
SLIDE 31

Fall 2019: Chapter 16 ASTR/PHYS 1060: The Universe

Origin of matter and the CMB

31

slide-32
SLIDE 32

Fall 2019: Chapter 16 ASTR/PHYS 1060: The Universe

Two features we would like to explain

32

Why is the universe flat when that is the least likely curvature the universe could have? Why is the temperature of the CMB the same on

  • pposite sides of the universe?

The Flatness Problem The Horizon Problem

slide-33
SLIDE 33

Fall 2019: Chapter 16 ASTR/PHYS 1060: The Universe

Attractive Solution: Inflation

33

slide-34
SLIDE 34

ASTR/PHYS 1060: The Universe Fall 2019: Chapter 16 34

? ?

String theory, the multiverse, etc., are not scientific theories But, for better or worse, scientists work on them and talk about them, so tautologically they are science
