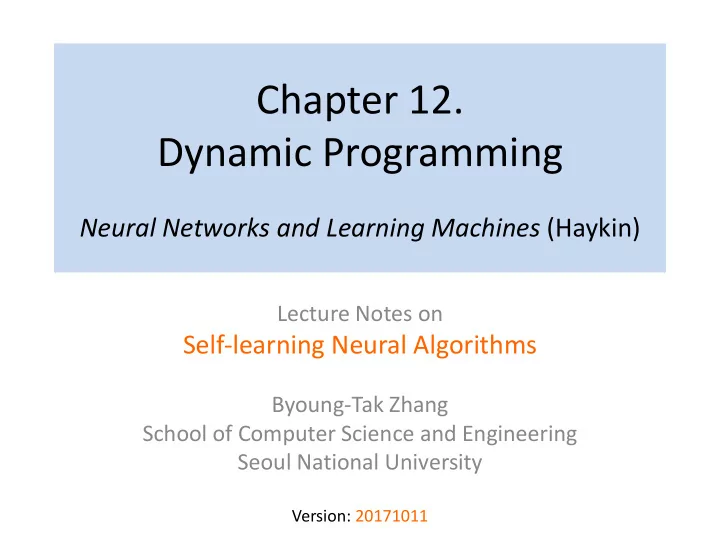

Chapter 12. Dynamic Programming

Neural Networks and Learning Machines (Haykin)

Lecture Notes on

Self-learning Neural Algorithms

Byoung-Tak Zhang School of Computer Science and Engineering Seoul National University

Version: 20171011

Contents

12.1 Introduction …………………………………………………..…………………………….... 3 12.2 Markov Decision Process ………………………………………….………………..…. 5 12.3 Bellman’s Optimality Criterion …………………………..………………….…….... 8 12.4 Policy Iteration ……….………..………………….…………………………..………..... 11 12.5 Value Iteration ………………………………………………………………..…….…...…. 13 12.6 Approximate DP: Direct Methods ….…………..……..……….………………….. 17 12.7 Temporal Difference Learning ….………………….……..…………….………….. 18 12.8 Q-Learning ……………….…………………..……………….…………………….....……. 21 12.9 Approximate DP: Indirect Methods ………………………….……..….........…. 24 12.10 Least Squares Policy Evaluation …………….…………………………..…….…... 26 12.11 Approximate Policy Iteration …..……….….……………………..………….……. 30 Summary and Discussion …………….…………….………………………….……………... 33

(c) 2017 Biointelligence Lab, SNU 2

12.1 Introduction (1/2)

(c) 2017 Biointelligence Lab, SNU 3

Two paradigms of learning

1. Learning with a teacher: Supervised learning 2. Learning without a teacher: Unsupervised learning / reinforcement learning / semisupervised learning

Reinforcement learning

1. Behavioral learning (action, sequential decision-making) 2. Interaction between an agent and its environment 3. Achieving a specific goal under uncertainty

Two approaches to reinforcement learning

1. Classical approach: punishment and reward (classical conditioning), highly skilled behavior 2. Modern approach: dynamic programming, planning

12.1 Introduction (2/2)

(c) 2017 Biointelligence Lab, SNU 4

Dynamic programming (DP)

• A technique that deals with situations where decisions are made in stages,

with the outcome of each decision being predictable to some extent before the next decision is made.

• Decisions cannot be made in solation, but the desire for a low cost at the

present must be balanced against the undesirability of high cost in the future.

• Credit or blame must be assigned to each one of a set of interacting decisions

(credit assignment problem)

• Decision making by an agent that operates in a stochastic environment
• How can an agent or decision maker improve its long-term performance in a

stochastic environment when the attainment of this improvement may require having to sacrifice short-term performance?

• Markov decision process

Right balance between

• Realistic description of a given problem (practical)
• Power of analytic and computational methods to apply to the problem

(theoretical)

12.2 Markov Decision Process (1/3)

(c) 2017 Biointelligence Lab, SNU 5

Markov decision process (MDP):

• a finite set of discrete states
• a finite set of possible actions
• cost (or reward)
• discrete time

The state of the environment is a summary of the entire past experience of an agent gained from its interaction with the environment, such that the information necessary for the agent to predict the future behavior of the environment is contained in that summary.

Figure 12.1 An agent interacting with its environment.

! MDP!=!The!sequence!of!states!{X n ,!n= 0,1,2,...} i.e.,!a!Markov!chain!with!transition!probabilities pij(µ(i))!for!actions!µ(i).

12.2 Markov Decision Process (2/3)

(c) 2017 Biointelligence Lab, SNU 6

i, j ∈X :#states Ai = {aik}:#actions π = {µ0,µ1,...}:#policy#(states#X #to#actions#A) #####µn(i)∈Ai ######for#all#states#i #####Nonstationary#policy:#π = {µ0,µ1,...} #####Stationary#policy:#π = {µ,µ,...} pij(a):#transition#probability #####pij(a)= P(Xn+1 = j|Xn = i,An = a) #####1.#pij(a)≥0#####for all i and j #####2. pij(a)=1

j

∑

for all i g(i,aik , j):#cost#function γ :#discount#factor #####γ ng(i,aik , j):#discounted#cost

Figure 12.2 Illustration of two possible transitions: The transition from state to state is probabilistic, but the transition from state to is deterministic.

12.2 Markov Decision Process (3/3)

(c) 2017 Biointelligence Lab, SNU 7

Dynamic programming (DP) problem

• Finite-horizon problem
• Infinite-horizon problem

Cost-to-go function (total expected cost) J π(i) = E γ ng(X n,µn(X n), X n+1) | X0 = i

n=0 ∞

∑

⎡ ⎣ ⎢ ⎢ ⎤ ⎦ ⎥ ⎥ g(X n,µn(X n), X n+1): observed cost Optimal value J *(i) = min

π J π(i) (For stationary policy: J µ(i) = J *(i))

Basic problem in DP Given a stationary MDP, find a stationary policy π that minimizes the cost-to-go function J µ(i) for all initial states i.

Notation: Cost function J(i) ó Value function V(s) Cost g(.) ó Reward r(.)

12.3 Bellman’s Optimality Criterion (1/3)

(c) 2017 Biointelligence Lab, SNU 8

Principle)of)optimality !!!!!An!optimal!policy!has!the!property!that!whatever!the!initial!state!and !!!!!!initial!decsion!are,!the!remaining!decsions!must!constitute!an!optimal !!!!!!policy!starting!from!the!state!resulting!from!the!first!decision. Consider!a!finite:horizon!problem!for!which!the!cost:to:go!function!is:! !!!!!J0(X0)= E gK(XK ) gn(Xn,µn(Xn),Xn+1)

n=0 K−1

∑

⎡ ⎣ ⎢ ⎤ ⎦ ⎥ Suppose!we!wish!to!minimize!the!cost:to:go!function !!!!!Jn(Xn)= E gK(XK ) gk(Xk ,µk(Xk),Xk+1)

k=n K−1

∑

⎡ ⎣ ⎢ ⎤ ⎦ ⎥ Then,!the!trauncated!policy!{µn

*,µn+1 * ,...,µK−1 *

}!!is!optimal!for!the!subproblem.

12.3 Bellman’s Optimality Criterion (2/3)

(c) 2017 Biointelligence Lab, SNU 9

Dynamic(programming(algorithm !!!!! For!every!initial!state!X0,!the!optimal!cost!J *(X0)!of!the!basic! finite9horizon!problem!is!equal!to!J0(X0),!where!the!function!J0! is!obtained!from!the!last!step!of!the!algorithm !!!!!Jn(Xn)= min

µn

E

Xn+1

gn(Xn,µn(Xn),Xn+1)+ Jn+1(Xn+1) ⎡ ⎣ ⎤ ⎦!!!!!!!(12.13) which!runs!backward!in!time,!with! !!!!!JK(XK )= gK(XK ) Furthermore,!if!µn

*!minimizes!the!right9hand!side!of!Eq.!(12.13)!

for!each!Xn!and!n,!then!the!policy!π* = {µ0

*,µ1 *,...,µK−1 *

}!is!optimal.!

12.3 Bellman’s Optimality Criterion (3/3)

(c) 2017 Biointelligence Lab, SNU 10

! Bellman's!optimality!equation!!!! !! J *(i)= min

µ

c(i,µ(i))+γ pij(µ)J *( j)

j=1 N

∑

⎛ ⎝ ⎜ ⎞ ⎠ ⎟ for i =1,2,...,N ! Immediate!expected!cost !!!!!c(i,µ(i))= Ε X1[g(i,µ(i),X1)]= pijg(i,µ(i), j)

j=1 N

∑

!!!!!!!!!!!!!!!!!!!! Two!methods!for!computing!an!optimal!policy !!!!A!Policy!iteration !!!!A!Value!iteration

12.4 Policy Iteration (1/2)

Figure 12.3 Policy iteration algorithm.

(c) 2017 Biointelligence Lab, SNU 11

Qµ(i,a) = c(i,a)+γ pij(a)J µ( j)

j=1 n

∑

(Q-factor)

1. Policy evaluation step: the cost-to-go function for some current policy and the corresponding Q-factor are computed for all states and actions; 2. Policy improvement step: the current policy is updated in order to be greedy with respect to the cost-to-go function computed in step 1.

12.4 Policy Iteration (2/2)

(c) 2017 Biointelligence Lab, SNU 12

J

µn (i) = c(i,µn(i))+γ

pij(µn(i))J

µn ( j)

j=1 N

∑

, i =1,2,...,N Q

µn (i,a) = c(i,a)+γ

pij(a)J

µn ( j)

j=1 N

∑

, a ∈ A

i and i =1,2,...,N

!µn+1(i)

12.5 Value Iteration (1/4)

(c) 2017 Biointelligence Lab, SNU 13

!Jn+1(i)

12.5 Value Iteration (2/4)

Figure 12.4 Illustrative backup diagrams for (a) policy iteration and (b) value iteration.

(c) 2017 Biointelligence Lab, SNU 14

12.5 Value Iteration (3/4)

Figure 12.5 Flow graph for stagecoach problem.

(c) 2017 Biointelligence Lab, SNU 15

12.5 Value Iteration (4/4)

Figure 12.6 Steps involved in calculating the 𝑅-factors for the stagecoach

• problem. The routes (printed in blue) from 𝐵 to 𝐾 are the optimal ones.

(c) 2017 Biointelligence Lab, SNU 16

12.6 Approximate Dynamic Programming: Direct Methods

(c) 2017 Biointelligence Lab, SNU 17

• Dynamic programming (DP) requires an explicit model, i.e.

transition probabilities.

• Approximate DP: We may use Monte Carlo simulation to

explicitly estimate (i.e. approximate) the transition probabilities.

1. Direct methods 2. Indirect methods: Approximate policy evaluation, approximate cost-to-go

• Direct methods for approximate DP

1. Value iteration: Temporal-difference (TD) learning 2. Policy iteration: Q-learning

• Reinforcement learning as the direct approximation of DP

12.7 Temporal-Difference Learning (1/3)

(c) 2017 Biointelligence Lab, SNU 18

! Sequence!of!states:!{in}n=0

N

Cost2to2go!function!for!Bellman!equation !!!J µ(in)= E g(in,in+1)+ J µ(in+1) ⎡ ⎣ ⎤ ⎦, n= 0,1,...,N −1 Applying!the!Robbins(Monro!stochastic!approximation !!!!!r + =(1−η)r +ηg(r,v)! we!have !!! J +(in) = (1−η)J(in)+η g(in,in+1)+ J(in+1) ⎡ ⎣ ⎤ ⎦ = J(in)+η g(in,in+1)+ J(in+1)− J(in) ⎡ ⎣ ⎤ ⎦ Temporal!difference!(TD) !!!! dn = g(in,in+1)+ J(in+1)− J(in), n= 0,1,...,N −1 TD!learning !!!!!!!J +(in)= J(in)+ηdn !!!!

12.7 Temporal-Difference Learning (2/3)

(c) 2017 Biointelligence Lab, SNU 19

! Monte!Carlo!simulation!algorithm !J µ(in)= E g(in+k ,in+k+1)

k=0 N−n−1

∑

⎡ ⎣ ⎢ ⎤ ⎦ ⎥, n= 0,1,...,N −1 Robbins/Monro!stochastic!approximation J+(in)= J(in)+ µk g(in+k ,in+k+1)

k=0 N−n−1

∑

− J(in) ⎛ ⎝ ⎜ ⎞ ⎠ ⎟ !!!!!!!!!!! = J(in)+ µk[g(in,in+1)+ J(in+1)− J(in) !!!!!!!!!!!!!!!!!!+!g(in+1,in+2)+ J(in+2)− J(in+1) !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! !!!!!!!!!!!!!!!!!!+!g(iN−2,iN−1)+ J(iN−1)− J(iN−2) !!!!!!!!!!!!!!!!!!+!g(iN−1,iN )+ J(iN )− J(iN−1)] Using!the!temporal!difference !!!!!J+(in)= J(in)+ dn+k

k=0 N−n−1

∑

To justify this is an iterative implementation

• f Monte Carlo simulation:

Total sum of the cost for traj {in,in+1,...,iN} c(in) = g(in+k,in+k+1), n = 0,...,N −1

k=0 N −n−1

∑

Cost-to-go after visiting in for T simulations J(in) = 1 T c(in)

n=1 T

∑

Ensemble averaged cost-to-go J µ(in) = Ε[c(in)] for all n Iterative formula J +(in) = J(in) +ηn(c(in) − J(in))

12.7 Temporal-Difference Learning (3/3)

(c) 2017 Biointelligence Lab, SNU 20

TD methods

• Online prediction

methods that learn how to compute their estimates, partly, on the basis of other estimates.

• Boostraping methods
• Do not require a model
• f the environment

TD(λ) J +(in) = J(in) +η λ k−ndk

k=n ∞

∑

dk = g(ik,ik+1) + J(ik+1) − J(ik ) λ = 0: J +(in) = J(in) +ηd n λ = 1: J +(in) = J(in) +η dn+k

k=0 N−n−1

∑

12.8 Q-Learning (1/3)

(c) 2017 Biointelligence Lab, SNU 21

Two$step)version)of)Bellman's)optimality)equation )))))Q*(i,a)= pij(a) g(i,a, j)+γ min

b∈Ai

Q*( j,b)) ⎛ ⎝ ⎜ ⎞ ⎠ ⎟ !for!all!(i,a)

j=1 N

∑

The$value$iteration$algorithm $$$$$Q*(i,a)= pij(a) g(i,a, j)+γ min

b∈Ai

Q( j,b)) ⎛ ⎝ ⎜ ⎞ ⎠ ⎟ !for!all!(i,a)

j=1 N

∑

Small%step*size*version *****Q*(i,a)=(1−η)Q(i,a)+η pij(a) g(i,a, j)+γ min

b∈Ai

Q( j,b) ⎛ ⎝ ⎜ ⎞ ⎠ ⎟

j=1 N

∑

!!for!all!(i,a) Stochastic*version*based*on*a*single*sample *****Qn+1(i,a)=(1−ηn(i,a))Qn(i,a)+ηn(i,a)[g(i,a, j)+γ Jn( j)]##for#(i,a)"="(in,an) """""""""""""""""""""Jn( j)= min

b∈Ai

Qn( j,b) """""Qn+1(i,a)= Qn(i,a)""for"all"(i,a)≠(in,an) Q"learning*algorithm: """""Qn+1(i,a)= Qn(i,a)+ηn(i,a)[g(i,a, j)+γ min

b∈Ai

Qn( j,b)−Qn(i,a)]

Is there any on-line procedure for learning an optimal control policy through experience that is gained solely

• n the basis of
• bserving samples?

( , , , )

n n n n n

s i a j g = ( , , )

n n n n

g g i a j =

Convergence Theorem

Suppose that the learning-rate parameter etan(i, a) satisfies the conditions Then, the sequence of Q-factors {Qn(i, a)} generated by the Q-learning algorithm converges with probability 1 to the optimal value Q*(i, a) for all state–action pairs (i, a) as the number of iterations n approaches infinity, provided that all state–action pairs are visited infinitely often.

12.8 Q-Learning (2/3)

(c) 2017 Biointelligence Lab, SNU 22

2

( , ) and ( , ) for all (i,a)

n n n n

i a i a h h

¥ ¥ = =

= ¥ < ¥

å å

Time-varying learning parameter: ηn = α β + n , n =1,2,...

Q-learning algorithm may be viewed in one of two equivalent ways

• Robins-Monro stochastic approximation algorithm, or
• combination of value iteration and Monte Carlo simulation.

Compromise between two conflicting objectives in reinforcement learning

• Exploration: ensures that all admissible state–action pairs are explored often enough

to satisfy the Q-learning convergence theorem

• Exploitation: seeks to minimize the cost-to-go function by following a greedy policy.

12.8 Q-Learning (3/3)

(c) 2017 Biointelligence Lab, SNU 23

Figure 12.7 The time slots pertaining to the auxiliary and original control processes.

! Mixed!nonstationary!policy switches!between!an!auxilary!Markov!process!and!the!original!Markov!process! controlled!by!a!stationary!greedy!policy!determined!by!Q:learning !!!!!nk = mk−1 + L,!!k =1,2,...,and!m0 =1! !!!!!mk = nk +kL,!!k =1,2,...

12.9 Approximate DP: Indirect Methods (1/2)

(c) 2017 Biointelligence Lab, SNU 24

Indirect approach to approximate DP:

Ø Rather than explicitly estimate the transition probabilities and associated transition costs, use Monte Carlo simulation to generate one or more system trajectories, so as to approximate the cost-to-go function of a given policy, or even the optimal cost-to-go function, and then

• ptimize the approximation in some statistical sense.

Ø Thus, having abandoned the notion of optimality, we may capture the goal of the indirect approach to approximate dynamic programming in the following simple statement: Do as well as possible, and not more. Ø Performance optimality is traded off for computational optimality. This strategy is precisely what the human brain does on a daily basis: Given a difficult decision-making problem, the brain provides a suboptimal solution that is the “best” in terms of reliability and available resource allocation.

! Goal!of!approximate!DP: !!!!!Find!a!function!! J(i,w)!that!approximates!the!optimal!cost7to7go!function!J *(i)!forstate!i,!such!that!the! !!!!!cost!difference!!J *(i)− !! J(i,w)!is!minimized!according!to!some!statistical!criterion. Two!basic!questions !!!!!Question1:!How!do!we!choose!the!approximation!function!! J(i,w)!in!the!first!place? !!!!!Question2:!Having!chosen!an!appropriate!approximation!function!! J(i,w),!how!do!we!adapt!the!weight! !!!!!!!!!!vector!w!so!as!to!provide!the!“best!fit”!to!Bellman’s!equation!of!optimality

12.9 Approximate DP: Indirect Methods (2/2)

(c) 2017 Biointelligence Lab, SNU 25

Figure 12.8 Architectural layout of the linear approach to approximate dynamic programming.

Approximate+DP 1.#Linear#approach# ########! J(i,w)= ϕijw j = φi

T j

∑

w##for#all#i 2.#Nonlinear#approach ####5#Recurrent#multilayer#perceptrons#(deep#architectures) ####5#Supervised#training#of#a#recurrent#multilayer#perceptron#by#nonlinear# ######sequential5state#estimation#algorithm#that#is#derivative#free.

12.10 Least-Squares Policy Evaluation (1/4)

(c) 2017 Biointelligence Lab, SNU 26

J(i) ≈ ! J(i,w) = φT (i)w

1

( ) ( , ) |

n n n n

J i g i i i i g

¥ + =

é ù = E = ê ú ë û

å

S = φw | w ∈!s

{ }

• 1. The Markov chain has positive steady-state probabilities; that is,

The implication of this assumption is that the Markov chain has a single recurrent class with no transient states.

• 2. The rank of matrix

is s. The implication of this second assumption is that the columns of the feature matrix , and therefore the basis functions represented by , are linearly independent.

lim

n→∞

1 n P(ik = j |i0 = i) = π j > 0 for all i

k=1 n

∑

f f fw

Perform value iteration within a lower dimensional subspace spanned by a set of basis functions.

φwn+1 = ΠΤ(φwn) + (simulation noise)

φ = φ

1 T

φ2

T

! φN

T

⎡ ⎣ ⎢ ⎢ ⎢ ⎢ ⎢ ⎤ ⎦ ⎥ ⎥ ⎥ ⎥ ⎥

12.10 Least-Squares Policy Evaluation (2/4)

27 1

( ) ( ( , ) ( )), i 1,2,...,

N ij j

J i p g i j J i N g

=

= + =

å

T

g = p1 j

j

∑

g(1, j) p2 j

j

∑

g(2, j) ! pNj

j

∑

g(N, j) ⎡ ⎣ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎤ ⎦ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥

P = p11 … p1N ! " ! pN1 ! pNN ⎛ ⎝ ⎜ ⎜ ⎜ ⎜ ⎞ ⎠ ⎟ ⎟ ⎟ ⎟ J = J(1) J(2) ! J(N) ⎡ ⎣ ⎢ ⎢ ⎢ ⎢ ⎤ ⎦ ⎥ ⎥ ⎥ ⎥ ≈ φw g = + J g PJ T

1 n n + =

J J T

φwn+1 = ΠΤ(φwn), n = 0,1,2,… Π : projection onto subspace S

Figure 12.9 Projected value iteration (PVI) method.

Projected)value)iteration)(PVI))for)policy)evaluation: At!iteration!n,!the!current!iterate!φwn!is!operated!on!by!the!mapping!T!and!the!new!vector!!T(φwn)! is!projected!onto!the!subspace!S,!thereby!yielding!the!updated!iterate!φwn+1.

12.10 Least-Squares Policy Evaluation (3/4)

(c) 2017 Biointelligence Lab, SNU 28

! From!porojected!value!iteration!to!least3square!policy!evaluation!(LSPE) Least'squares!minimization!for!the!projection!Π,!i.e.!for!φwn+1 = ΠΤ(φwn) !!!!!wn+1 = argmin

w

φw −Τ(φwn)

π 2

Least'squares!version!of!PVI!algorithm! !!!!!wn+1 = argmin

w

πi

i=1 N

∑

φT(i)w − pijg(i, j)+γφT( j)wn

j=1 N

∑

⎛ ⎝ ⎜ ⎞ ⎠ ⎟ ⎛ ⎝ ⎜ ⎞ ⎠ ⎟ Use!Monte'Carlo!by!generating!a!trajectory!(i0,!i1,!i2,!...)!for!state!i!and!updating!wn! after!each!iteration!(in,in+1) !!!!!wn+1 = argmin

w

φT(ik)w − g(ik ,ik+1)−γφT(ik+1)wn

( )

2 k=1 n

∑

(Least'squares!policy!evaluation!or!LSPE!algorithm) LSPE!converges!to!PVI !!!!!φw* = ΠT(φw*)

Figure 12.10 Illustration of the least- squares policy evaluation (LSPE) as a stochastic version of the projected value iteration (PVI).

12.10 Least-Squares Policy Evaluation (4/4)

(c) 2017 Biointelligence Lab, SNU 29

At iteration n+1 of the LSPE() algorithm, the updated weight vector is computed as the particular value of the weight vector w that minimizes the least-squares difference between the following two quantities:

• the inner product

approximating the cost function ;

• its temporal difference counterpart

which is extracted from a single simulated trajectory for k = 0, 1, ..., n.

1 n+

w ( )

T k

i F w ( )

k

J i ΦT (ik )wn + (γλ)m−k dn(im,im+1)

m=k n

∑

LSPE(λ) dn(ik ,ik+1)= g(ik ,ik+1)+γφT(ik+1)wn − φT(ik)wn wn+1 = argmin

w

φT(i k)w − φT(ik)wn − γλ

( )

m−k dn(im,im+1) m=k n

∑

⎛ ⎝ ⎜ ⎞ ⎠ ⎟

k=1 n

∑

2

12.11 Approximate Policy Iteration (1/3)

(c) 2017 Biointelligence Lab, SNU 30

• 1. Approximate policy evaluation step.

Given the current policy, we compute a cost-to-go function approximating the actual cost-to-go function for all states i. The vector is the weight vector of the neural network used to perform the approximation.

• 2. Policy improvement step. Using the

approximate cost-to-go function , we generate an improved policy .This new policy is designed to be greedy with respect to for all i.

( ) J i

µ

w ! J µ(i,w) µ ! J µ(i,w) ! J µ(i,w)

Figure 12.11 Approximate policy iteration algorithm.

12.11 Approximate Policy Iteration (2/3)

(c) 2017 Biointelligence Lab, SNU 31

ε(w) = (k(i,m) − ! J µ(i,w))2

m=1 M (i)

∑

i∈X

∑

µ(i) = argmin

a∈Ai

Q(i,a,w)

Figure 12.12 Block diagram of the approximate policy iteration algorithm.

Q(i,a,w) = pij(a)(g(i,a, j) +γ ! J µ( j,w))

j∈X

∑

12.11 Approximate Policy Iteration (3/3)

(c) 2017 Biointelligence Lab, SNU 32

Summary and Discussion

(c) 2017 Biointelligence Lab, SNU 33

l Approximate Dynamic Programming: Direct Methods

• Temporal difference (TD) learning
• Q-learning

l Approximate Dynamic Programming: Indirect Methods

• Linear structural approach, which involves
• Feature extraction of the state i
• Least-squares minimization (e.g., LSPE)
• Nonlinear structural approach, which relies on universal

approximators (e.g., neural networks) l Partial Observability (POMDP) l Relationship between Dynamic Programming and Viterbi Algorithm
