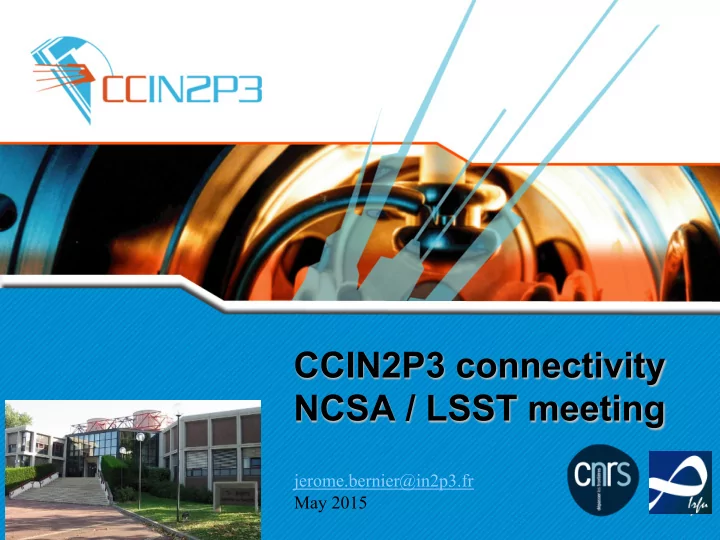

CCIN2P3 connectivity NCSA / LSST meeting
jerome.bernier@in2p3.fr May 2015
CCIN2P3 connectivity
n Generic IP
– RENATER – GEANT
n LHC project
– LHCOPN – LHCONE
n CCIN2P3 LAN n LSST needs
May 2015 CCIN2P3
CCIN2P3 connectivity NCSA / LSST meeting jerome.bernier@in2p3.fr - - PowerPoint PPT Presentation
CCIN2P3 connectivity NCSA / LSST meeting jerome.bernier@in2p3.fr - - PowerPoint PPT Presentation
CCIN2P3 connectivity NCSA / LSST meeting jerome.bernier@in2p3.fr May 2015 CCIN2P3 connectivity n Generic IP RENATER GEANT n LHC project LHCOPN LHCONE n CCIN2P3 LAN n LSST needs CCIN2P3 May 2015 IN2P3 network SC
SLIDE 2
SLIDE 3
IN2P3 network
May 2015 CCIN2P3 IPHC LAPP CPPM LPSC CENBG GANIL LPC SUBATECH LSM IPNL CC LPC LPTA ANTARES LMA LAL IPNO LLR SC In2p3 IRFU CSNSM LPNHE APC IMNC LNCA
SLIDE 4
RENATER
May 2015 CCIN2P3
SLIDE 5
GEANT
May 2015 CCIN2P3
SLIDE 6
GEANT connectivity
May 2015 CCIN2P3
SLIDE 7
GEANT - ESNET
May 2015 CCIN2P3
SLIDE 8
LHCOPN
May 2015 CCIN2P3
SLIDE 9
LHC networks
n LHCOPN T0-T1 cloud 2005 n LHCONE T1-T2-T3 private network 2011
– L3VPN – security – flexibility – evolutivity
May 2015 CCIN2P3
SLIDE 10
LHCONE France
May 2015 CCIN2P3 CCIN2P3 ¡ CEA-‑IRFU ¡ IPNHO ¡ LAL ¡ LPNHE ¡ APC ¡ GRIF ¡-‑ ¡Distributed ¡T2) ¡ T1 ¡ Paris1 ¡ Jussieu ¡ Lyon1 ¡
LPSC ¡
¡Others ¡T2 ¡
CPPM ¡
LLR ¡
IPHC ¡ Subatech ¡
Orsay ¡ Clermont ¡ Genève ¡
LPC ¡Clermont ¡
LHCONE ¡
10G ¡λ ¡dédiée ¡ MPLS-‑TE ¡10G ¡ partagé ¡ Backup ¡opHque ¡
LHCOPN ¡
Kehl ¡
10G ¡λ ¡dédiée ¡
SLIDE 11
LHCONE
May 2015 CCIN2P3
SLIDE 12
LAN CCIN2P3 June
May 2015 CCIN2P3
Internal Services External Services RENATER LHCONE LHCOPN
10Gb/s 100Gb/s 1Gb/s
SLIDE 13
Preparing LSST needs
n RENATER 6
– 100Gb/s lambda starting end 2015
n Use LHCONE network ?
– like BELLE II or Auger experiments
May 2015 CCIN2P3
SLIDE 14
LHCONE / ESNET
ESNET report from last LHCONE meeting Cambridge February 2015 https://indico.cern.ch/event/342059/
May 2015 CCIN2P3
ESnet Services across the Atlantic
- LHCOPN Services
- Transit from BNL and FERMI to CERN and other LHC Tier1s
- Standard ESnet Network Services
- Routed services for our existing user base (DOE Laboratories)
- OSCARS virtual circuits
- LHCONE Services
- To FERMI, BNL & now CERN
- ESnet will be turning up services to some US Universities providing
the ability for them to transit HEP traffic across ESnet:
- Between US Universities
- Between US Universities, and European Labs/Universities
ESnet Services across the Atlantic
- LHCOPN Services
- Transit from BNL and FERMI to CERN and other LHC Tier1s
- Standard ESnet Network Services
- Routed services for our existing user base (DOE Laboratories)
- OSCARS virtual circuits
- LHCONE Services
- To FERMI, BNL & now CERN
- ESnet will be turning up services to some US Universities providing
the ability for them to transit HEP traffic across ESnet:
- Between US Universities
- Between US Universities, and European Labs/Universities
Next Steps for ESnet
Turning up & tuning LHCONE peering sessions
- Rationalize local-pref and/or meds with GEANT (currently hot-potato)
- Turning up additional peerings with Nordunet & then rationalize.
Adding more US Universities
- US Atlas and US CMS have provided a prioritized list
- Will start working 3-4 in parallel
- Up next:
- University of Chicago, University of Illinois, Indiana University,
University of Nebraska Lincoln Refining our processes as we go
- ESnet LHCONE Service Description
- ESnet LHCONE Service Turn-up Template
ESnet Services across the Atlantic
- LHCOPN Services
- Transit from BNL and FERMI to CERN and other LHC Tier1s
- Standard ESnet Network Services
- Routed services for our existing user base (DOE Laboratories)
- OSCARS virtual circuits
- LHCONE Services
- To FERMI, BNL & now CERN
- ESnet will be turning up services to some US Universities providing
the ability for them to transit HEP traffic across ESnet:
- Between US Universities
- Between US Universities, and European Labs/Universities
ESnet Services across the Atlantic
- LHCOPN Services
- Transit from BNL and FERMI to CERN and other LHC Tier1s
- Standard ESnet Network Services
- Routed services for our existing user base (DOE Laboratories)
- OSCARS virtual circuits
- LHCONE Services
- To FERMI, BNL & now CERN
- ESnet will be turning up services to some US Universities providing
the ability for them to transit HEP traffic across ESnet:
- Between US Universities
- Between US Universities, and European Labs/Universities
Next Steps for ESnet
Turning up & tuning LHCONE peering sessions
- Rationalize local-pref and/or meds with GEANT (currently hot-potato)
- Turning up additional peerings with Nordunet & then rationalize.
Adding more US Universities
- US Atlas and US CMS have provided a prioritized list
- Will start working 3-4 in parallel
- Up next:
- University of Chicago, University of Illinois, Indiana University,
University of Nebraska Lincoln Refining our processes as we go
- ESnet LHCONE Service Description
- ESnet LHCONE Service Turn-up Template
