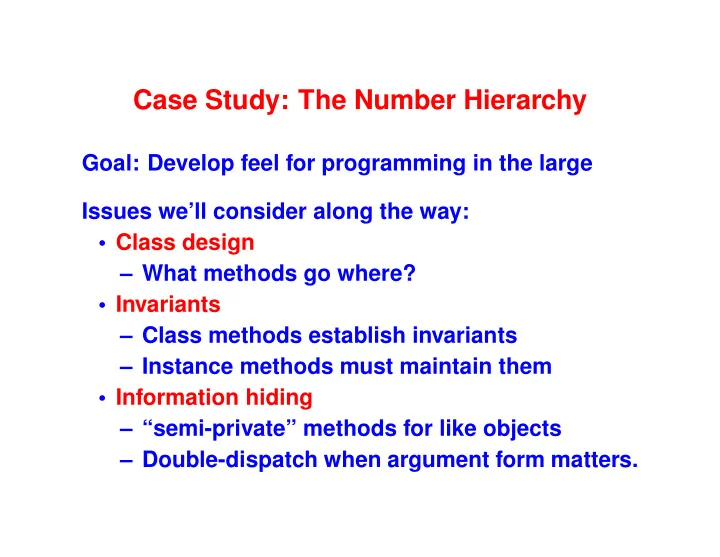

Case Study: The Number Hierarchy

Goal: Develop feel for programming in the large Issues we’ll consider along the way:

• Class design

– What methods go where?

• Invariants

– Class methods establish invariants – Instance methods must maintain them

• Information hiding

– “semi-private” methods for like objects – Double-dispatch when argument form matters.

The Number Hierarchy

Object Magnitude Number Fraction Float Integer

Instance protocol for Magnitude

= aMagnitude equality (like Magnitudes) < aMagnitude comparison (ditto) > aMagnitude comparison (ditto) <= aMagnitude comparison (ditto) >= aMagnitude comparison (ditto) min: aMagnitude minimum (ditto) max: aMagnitude maximum (ditto) Subclasses: Date, Natural

• Compare Date with Date, Natural w/Natural, . . .

Implementation of Magnitude: Reuse

(class Magnitude ; abstract class [subclass-of Object] (method = (x) (self subclassResponsibility)) ; may not inherit = from Object (method < (x) (self subclassResponsibility)) (method > (y) (y < self)) (method <= (x) ((self > x) not)) (method >= (x) ((self < x) not)) (method min: (aMag) ((self < aMag) ifTrue:ifFalse: {self} {aMag})) (method max: (aMag) ((self > aMag) ifTrue:ifFalse: {self} {aMag})) )

The Number Hierarchy, Reprise

Object Magnitude Number Fraction Float Integer

Instance protocol for Number

negated reciprocal abs absolute value + aNumber addition

• aNumber

subtraction * aNumber multiplication / aNumber division (may answer a Fraction!) isNegative sign check isNonnegative sign check isStrictlyPositive sign check coerce: aNumber class of receiver, value of argument asInteger conversion asFraction conversion asFloat conversion

Object-oriented design

Given that class Number inherits from class Magnitude, which of these methods of class Number can be implemented in terms of others? negated * coerce: reciprocal / asInteger abs isNegative asFraction + isNonnegative asFloat

• isStrictlyPositive

Concrete Number Methods

(method - (y) (self + (y negated))) (method abs () ((self isNegative) ifTrue:ifFalse: {(self negated)} {self})) (method / (y) (self * (y reciprocal))) (method isNegative () (self < (self coerce: 0))) (method isNonnegative () (self >= (self coerce: 0))) (method isStrictlyPositive () (self > (self coerce: 0)))

Abstract Number Methods

(class Number [subclass-of Magnitude] ; abstract class ;;;;;;; arithmetic (method + (aNumber) (self subclassResponsibility)) (method * (aNumber) (self subclassResponsibility)) (method negated () (self subclassResponsibility)) (method reciprocal () (self subclassResponsibility)) ;;;;;;; coercion (method asInteger () (self subclassResponsibility)) (method asFraction () (self subclassResponsibility)) (method asFloat () (self subclassResponsibility)) (method coerce: (aNumber) (self subclassResponsibility)) )

Extended Number Hierarchy

Object Magnitude Natural Number Fraction Float Integer SmallInteger LargeInteger LargePositiveInteger LargeNegativeInteger

Example class Fraction: Initialization

(class Fraction [subclass-of Number] [ivars num den] ;; invariants: lowest terms, minus sign on top ;; maintained by divReduce, signReduce (class-method num:den: (a b) ((self new) initNum:den: a b)) (method initNum:den: (a b) ; private (self setNum:den: a b) (self signReduce) (self divReduce)) (method setNum:den: (a b) (set num a) (set den b) self) ; private .. other methods of class Fraction ... )

Information revealed to self

Instance variables num and den

• Directly available
• Always and only go with self

Object knows its own representation, invariants, private methods:

(method asFraction () self) (method print () (num print) (’/ print) (den print) self) (method reciprocal () (((Fraction new) setNum:den: den num) signReduce))

Information revealed to others

How would you implement coerce:? (Value of argument, representation of receiver)

(method asFraction () self) (method print () (num print) (’/ print) (den print) self) (method reciprocal () (((Fraction new) setNum:den: den num) signReduce)) (method coerce: (aNumber) ...)

Saved: Number protocol includes asFraction!

Information revealed to others

How would you implement coerce:?

• Value of argument, rep of receiver
• Challenge: Can’t access rep of argument!

(method asFraction () self) (method print () (num print) (’/ print) (den print) self) (method reciprocal () (((Fraction new) setNum:den: den num) signReduce)) (method coerce: (aNumber) (aNumber asFraction))

Saved: Number protocol includes asFraction!

The Number Hierarchy, Reprise

How to implement comparisons on Fractions? Object Magnitude Number Fraction Float Integer

Instance protocol for Magnitude, Reprise

How to implement comparisons on Fractions?

= aMagnitude equality (like Magnitudes) < aMagnitude comparison (ditto) > aMagnitude comparison (ditto) <= aMagnitude comparison (ditto) >= aMagnitude comparison (ditto) min: aMagnitude minimum (ditto) max: aMagnitude maximum (ditto) Subclasses: Date, Natural

• Compare Date with Date, Natural w/Natural, . . .

Implementing comparison for Fractions

Alas! Cannot see representation of argument How will you know “equal, less or greater”?

Implementing comparison for Fractions

Alas! Cannot see representation of argument Protocol says “like with like”? Extend the protocol

(method num () num) ; extension, semi-private (method den () den) ; extension, semi-private (method = (fr) ((num = (fr num)) and: {(den = (fr den))})) (method < (fr) ((num * (fr den)) < ((fr num) * den)))

Extended protocol: Multiply two fractions

How will you multiply two fractions?

Extending the protocol to multiply fractions

How will you multiply two fractions?

(method * (aFraction) (((Fraction new) setNum:den: (num * (aFraction num)) (den * (aFraction den))) divReduce))

Information access in an open system

Number protocol: like multiplies with like What about large and small integers?

• How to multiply two small integers?
• How to multiply two large integers?

How is algorithm known? Each object knows its own algorithm:

• Small: Use machine-primitive multiplication
• Large: Multiply magnitudes; choose sign

Review: Two kinds of knowledge

I can send message to you:

• I know your protocol

I can inherit from you:

• I know my subclass responsibilities

Knowledge of protocol

Three levels of knowledge:

• 1. I know only your public methods

Example: send select: to any collection

• 2. You are like me: share semi-private methods

Example: send * or + to Fraction

• 3. I must get to know you: double dispatch

Example: send * to + to any integer

Double dispatch: Extending open systems

Design constraints:

• Large integers and small integers are both Integers
• Messages =, <, +, * ought to mix freely
• Large integers have a unique private protocol

They implement different algorithms than small integers.

Double dispatch: Forms of argument

Laws of multiplication:

(:+ n) * (:- m) == :- (n * m) (:+ n) * (:+ m) == :+ (n * m) (:+ n) * small == (:+ n) * (small asLargeInteger)

But! Can’t distinguish forms of argument Solution: “Dispatch laws”

(:+ n) * (:- m) == ((:- m) timesLP: self) (:+ n) * (:+ m) == ((:+ m) timesLP: self) (:+ n) * small == (small timesLP: self)

Argument to timesLP:

• Understands “large positive integer” protocol

Double dispatch codes operation & protocol

Example messages:

• timesLP: I answer the large-positive integer

protocol, multiply me by yourself

• plusSP: I answer the small-integer protocol, add

me to yourself Message encodes

• Operation to be performed
• Protocol accepted by argument

Double dispatch to implement addition

How do you act?

• 1. As small integer, you receive “add large positive

integer N by self”

• 2. As small integer, you receive “add small

integer n to self”

• 3. As large positive integer, you receive “add large

positive integer N by self”

• 4. As large positive integer, you receive “add small

integer n to self”

Your turn: Double dispatch to implement multiplication

How do you act?

• 1. As small integer, you receive “multiply large

positive integer N by self”

• 2. As small integer, you receive “multiply small

integer n to self”

• 3. As large positive integer, you receive “multiply

large positive integer N by self”

• 4. As large positive integer, you receive “multiply

small integer n to self”

Your turn: Using double dispatch

On what class does each method go?

• A. (method + (aNumber)

(aNumber addSmallIntegerTo: self))

• B. (method * (anInteger)

(anInteger multiplyByLargePositiveInteger: self))

(See the “double dispatch”: + then addSmallIntegerTo:)

Information-hiding summary

Three levels

• 1. I use your public protocol
• 2. We are alike; I add our semi-private protocol
• 3. Your protocol is revealed by double dispatch

Extra: Dealing with overflow

New law for multiplication: (self * small) = ((primitive mulWithOverflow self small {((self asLargeInteger) * small)}) value)) Primitive is not a method

• Answers good block or exception block
• Answer is then sent value
