FERMILAB-SLIDES-18-102-CD =C=Fermilab Managed by Fermi Research Alliance, LLC for the U.S. Department of Energy Office of Science Federation At Fermilab Al Lilianstrom National Laboratories Information Technology Summit May 2015 This

slide-1
SLIDE 1

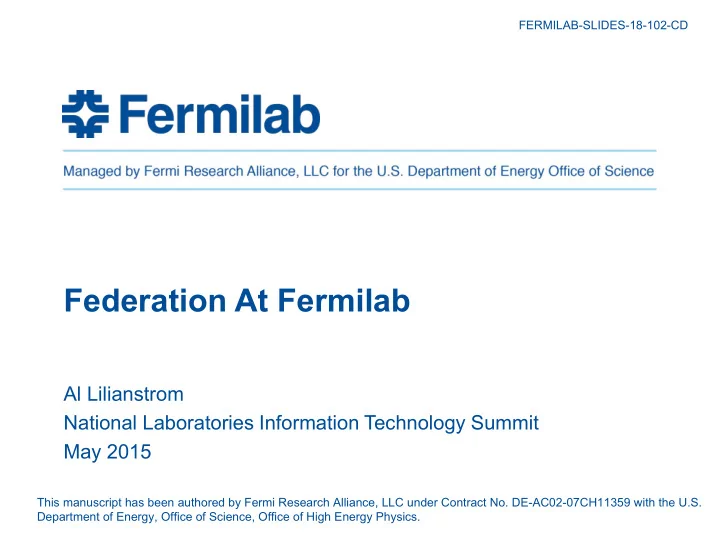

Federation At Fermilab

Al Lilianstrom National Laboratories Information Technology Summit May 2015

FERMILAB-SLIDES-18-102-CD This manuscript has been authored by Fermi Research Alliance, LLC under Contract No. DE-AC02-07CH11359 with the U.S. Department of Energy, Office of Science, Office of High Energy Physics.

=C=Fermilab

Managed by Fermi Research Alliance, LLC for the U.S. Department of Energy Office of Science

slide-2
SLIDE 2

About Fermilab

  • Since 1967, Fermilab has worked to answer fundamental

questions and enhance our understanding of everything we see around us. As the United States' premier particle physics laboratory, we work on the world's most advanced particle accelerators and dig down to the smallest building blocks of matter.

  • Fermilab collaborates with more than 20 countries on physics

experiments based in the United States and elsewhere.

  • Fermilab's 6,800-acre site is located in Batavia, Illinois, and is

managed by the Fermi Research Alliance LLC for the U.S. Department of Energy Office of Science. FRA is a partnership

  • f the University of Chicago and Universities Research

Association Inc., a consortium of 86 research universities.

4/17/2015 Al Lilianstrom | Federation At Fermilab 2------------------------0

Fermilab

slide-3
SLIDE 3

Bison

4/17/2015 Al Lilianstrom | Federation At Fermilab 3------------------------0

Fermilab

slide-4
SLIDE 4

Terms

  • ADFS – Active Directory Federation Services

– https://technet.microsoft.com/en-us/windowsserver/dd448613.aspx

  • COTS - Commercial Off The Shelf
  • IdP – Identity Provider
  • InCommon

– https://www.incommon.org/

  • LDAP – Lightweight Directory Access Protocol

– http://en.wikipedia.org/wiki/Lightweight_Directory_Access_Protocol

  • SP – Service Provider
  • SAML – Security Assertion Markup Language

– http://saml.xml.org/about-saml

  • Shibboleth

– https://shibboleth.net/

  • SSL – Security Sockets Layer

– http://en.wikipedia.org/wiki/Transport_Layer_Security

  • SSO – Single Sign On

4/17/2015 Al Lilianstrom | Federation At Fermilab 4

slide-5
SLIDE 5

Abstract

  • Fermilab is working to provide a seamless web for science

and business applications by using federated identities from internal identity providers such as Active Directory Federation Services and Shibboleth and external identity providers such as InCommon Federation members and social identities such as Google.

  • This talk will focus on the complexities of internal and

external identities, open source and COTS identity providers, and open source and COTS applications and how we are working to make the user experience for authentication as simple and secure as possible.

4/17/2015 Al Lilianstrom | Federation At Fermilab 5------------------------0

Fermilab

slide-6
SLIDE 6

History

  • 2008

– Centrally managed LDAP service for web application authentication was brought online – Computer Security initiated push for web application owners to move from .htaccess files to LDAP over SSL – Not federation – just a single password

  • A big step in the right direction
  • 2010

– Fermilab hosted Shibboleth Installfest – 20+ attendees from Fermilab and several other institutions – Significant interest from all attendees

*Shibboleth 1.0 - 2003

4/17/2015 Al Lilianstrom | Federation At Fermilab 6------------------------0

Fermilab

slide-7
SLIDE 7

Crickets

4/17/2015 Al Lilianstrom | Federation At Fermilab 7------------------------0

Fermilab

slide-8
SLIDE 8

History

  • 2013

– ADFS IdP in Production

  • 2014

– ADFS SP

  • SharePoint 2013
  • Office 365

– Shibboleth IdP in Production

  • On premise
  • Managed Service

– Joined InCommon Federation

  • 2015

– CiLogon SP

  • Shibboleth Service

4/17/2015 Al Lilianstrom | Federation At Fermilab 8------------------------0

Fermilab

slide-9
SLIDE 9

Why Federate?

  • Passwords

– Same password as LDAP Service

  • Single Logon
  • External identities

– Social Media

  • Identity Proofing

– Authoritative source

  • Control of Information
  • Platform Independent

– OS/Application/etc

  • Security Boundaries

4/17/2015 Al Lilianstrom | Federation At Fermilab 9------------------------0

Fermilab

slide-10
SLIDE 10

Why Federate?

  • Identities

– External identities

  • Business Partners
  • Social Media

– Identity Proofing

  • How do you know who RadGenius@gmail.com really is?
  • Federation Members
  • Authoritative source

– Termination

– Authorization

  • Application Compatibility

– Username – Email Address

4/17/2015 Al Lilianstrom | Federation At Fermilab 10

slide-11
SLIDE 11

Why Federate?

  • Control of Information

– Links not E-Mail – Authentication Source

  • Platform Independent

– Operating System – Application

  • SAML Support

– SP – IdP

– Client

  • Web Browser

4/17/2015 Al Lilianstrom | Federation At Fermilab 11

  • -----------------------0

Fermilab

slide-12
SLIDE 12

Security Boundaries

  • Two types of logons at Fermilab

– Interactive and Web – Password strength requirements are the same

  • Interactive

– Logon to Linux or Windows – Remote Desktop – SSH

  • Web

– SharePoint – Email

  • Interactive logons are not used to access web services
  • Web logons are not used for interactive access to computers

– There is no direct connection between the services in the Interactive and Web environments

4/17/2015 Al Lilianstrom | Federation At Fermilab 12

  • -----------------------0

Fermilab

slide-13
SLIDE 13

Security Boundaries

4/17/2015 Al Lilianstrom | Federation At Fermilab 13

CAF

  • 7
  • 1/
RSA ~curlD

C

Ql

Windows

Web

1

SharePoint

2013

CMS

VPN

~rviceNow

()

() Radius

~hibbolet/

~

  • \~

c£

..

1

slide-14
SLIDE 14

Security Boundaries

  • Why?

– Goal was to prevent compromised web credentials from gaining access to interactive systems

  • As more services move to the web is this a valid concern?
  • Some applications are designed around logon accounts

being used to gain access to web services

– Exchange – SharePoint

  • Can Federation provide a true SSO environment?

4/17/2015 Al Lilianstrom | Federation At Fermilab 14

  • -----------------------0

Fermilab

slide-15
SLIDE 15

Security Boundaries

  • ADFS

– Windows Integrated Authentication – ADFS in Windows Logon Domain

  • IdP as a RP to primary ADFS IdP

– Logon credentials used to access web applications

  • Logon credentials are never presented to the web application
  • No passwords on the wire

– Ever

– Non-Windows clients can kinit against the Windows Domain and use the applications in the same manner*

4/17/2015 Al Lilianstrom | Federation At Fermilab 15

  • -----------------------0

Fermilab

slide-16
SLIDE 16

Security Boundary

  • ADFS to ADFS

4/17/2015 Al Lilianstrom | Federation At Fermilab 16

(Active Directory)

ADFS Server in our primary Windows domain. Windows Integrated Authentication is used t get ADFS token in

browser to access web apps without password

  • ' .

' .

ADFS ADFS

FADFS.FNAL.GOV

SSO. FNAL.GOV No trust exists between FERMI and SERVICES Active Directory Domains ADFS in SERVICES accepts ADFS

tokens from FERMI and issues claims

based on contents

On Premise Share Point SP On Premise Exchan2e SP

C=Fermilab

slide-17
SLIDE 17

Federation Service Today

4/17/2015 Al Lilianstrom | Federation At Fermilab 17

On Prem~ Apache Web Server,; SP
  • Shibboleth

IDP.FNALGOV

Sh bboleth man ed service ADFS to Shibboleth

trust in Test

ADFS SSO.FNAL.GOV

7 .

ADFS w'I be used for the Microsoft

product line Both Shibboleth and

ADFS use the same AD domain for authentication and attribute source

7 .

On Premise Share Point SP

Testing ADFS to ADFS ADFS Server in our Windows domain. Use WIA to get ADFS token to access web apps thout password

SERVICES (Active Directory)

ADFS

Windows Domain

C=Fermilab

slide-18
SLIDE 18

Federation Service Today

  • Hybrid Solution

– ADFS

  • Microsoft stack

– SharePoint – Office 365

– Shibboleth

  • Everything else 

– InCommon – CiLogon – Central Web Services – Service Now – Apache Based Applications – Social Connections

4/17/2015 Al Lilianstrom | Federation At Fermilab 18

  • -----------------------0

Fermilab

slide-19
SLIDE 19

Hybrid Solution

  • Issues

– Usability

  • Two IdPs

– IdP to IdP Trust

– Support

  • Managed Service Issues

– Compatibility

  • Claims

– Formats

4/17/2015 Al Lilianstrom | Federation At Fermilab 19

  • -----------------------0

Fermilab

slide-20
SLIDE 20

Hybrid Solution

  • Why not just use one?
  • ADFS

– Microsoft Documentation – Microsoft Applications – Open Source Applications

  • Evil Empire 

– PowerShell – Internal Support

  • System Configuration

– Hardware – Software

– Quirks – ADFS is an excellent choice for a Windows shop

4/17/2015 Al Lilianstrom | Federation At Fermilab 20

  • -----------------------0

Fermilab

slide-21
SLIDE 21

Hybrid Solution

  • Shibboleth

– Microsoft Applications

  • Supported but …

– Open Source Applications – Documentation – Product Support

  • Paid

– https://shibboleth.net/community/consultants.html

  • Free

– Not always friendly

– Internal Support

  • System Configuration

– Hardware – Software

4/17/2015 Al Lilianstrom | Federation At Fermilab 21

slide-22
SLIDE 22

Changing the Solution

  • Federation is starting to gain acceptance at Fermilab

– Multiple SPs testing

  • Central web services
  • Content Management
  • Cloud SaaS
  • Issues with current solution

– Support – Reliability

  • Need a robust supported solution

– Internal Support – Vendor – Third-party

4/17/2015 Al Lilianstrom | Federation At Fermilab 22

  • -----------------------0

Fermilab

slide-23
SLIDE 23

Federation Phase Three

  • Shibboleth out, Ping Federate in

– Standards Compliant – Industry leader – Excellent support – In use in the DOE complex – Mobile device integration – Not without issues

  • Configuration
  • Metadata

– Import – Export

  • IdP Trust

4/17/2015 Al Lilianstrom | Federation At Fermilab 23

  • -----------------------0

Fermilab

slide-24
SLIDE 24

Federation Service – Planned

4/17/2015 Al Lilianstrom | Federation At Fermilab 24

On Pn,m~ Apache Web Servers

SP

7 .

Ping Federate

IDP.FNAL.GOV

Goal is to use P .,]

l

as a SAML2 provider to replace Shibboleth

DFS and Ping need to

trust" each other so that

  • nly one authentication is

necessary to access any SP managed by either Ping or ADFS

ADFS

On Premise Share Point

SP

SSO.FNAL.GOV

ADFS will be used for the Microsoft product line Both Ping and ADFS use

the same AD domain for authentication and attribute source

On Prem~ Exchange

SP

1----ir..==::-III ADFS Server in our

7 .

Windows domain. Use WIA to get ADFS to ·en to access web a Jps without

ADFS

password

SERVICES (Active Directory)

Windows Domain

C=Fermilab

slide-25
SLIDE 25

Federation Phase Four

  • Simplify ADFS

– As part of “upgrade” to ADFS v3 – Move from SQL Server to Windows Integrated Database

  • More redundancy

– Data Centers

  • Ping Federate
  • ADFS
  • Domain Controllers
  • Cloud

4/17/2015 Al Lilianstrom | Federation At Fermilab 25

  • -----------------------0

Fermilab

slide-26
SLIDE 26

Federation Service – Goals

  • True SSO for Windows Users

– Domain Members

  • True SSO for Linux and OSX Users

– Kerberos Login Required

  • Forms Based SSO

– All other

  • Mobile Device Support

– Improve ease of use

4/17/2015 Al Lilianstrom | Federation At Fermilab 26

  • -----------------------0

Fermilab

slide-27
SLIDE 27

Lessons Learned

  • COTS

– Features – Support

  • Open Source

– Support Issues

  • Managed Service

– Vendor Response

  • Standards

– Support

4/17/2015 Al Lilianstrom | Federation At Fermilab 27

  • -----------------------0

Fermilab

slide-28
SLIDE 28

Lessons Learned

  • Evaluate the market

– Products are constantly evolving

  • Don’t be afraid to change

– Results can be worth the pain

4/17/2015 Al Lilianstrom | Federation At Fermilab 28

  • -----------------------0

Fermilab

slide-29
SLIDE 29
  • Questions?
  • Contact Information

–Al Lilianstrom –lilstrom@fnal.gov

  • -----------------------0

Fermilab
