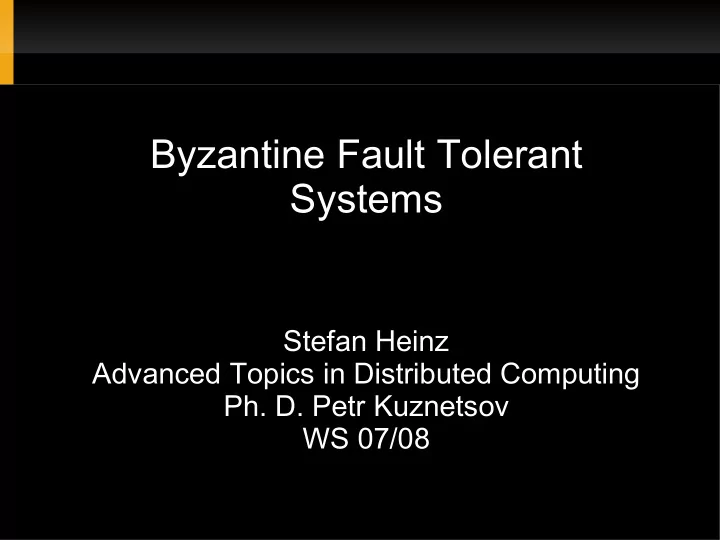

Byzantine Fault Tolerant Systems Stefan Heinz Advanced Topics in - - PowerPoint PPT Presentation

Stefan Heinz, WS 07/08

Byzantine Fault Tolerant Systems

Stefan Heinz Advanced Topics in Distributed Computing

• Ph. D. Petr Kuznetsov

WS 07/08

Stefan Heinz, WS 07/08

Farsite

Federated, Available and Reliable Storage for an Incompletely Trusted Environment Adya et al., 2002

Stefan Heinz, WS 07/08

Outline

 Motivation / Introduction  System Overview  System Architecture  File System Features  Summary / Conclusion

Stefan Heinz, WS 07/08

Outline

 Motivation / Introduction  System Overview  System Architecture  File System Features  Summary / Conclusion

Stefan Heinz, WS 07/08

Farsite Motivation / Introduction

Server-based file-system Farsite What are the disadvantages

• f this architecture?

Key techniques: BFT, replication, cryptography

Stefan Heinz, WS 07/08

Farsite Motivation / Introduction

Want to achieve the benefits of a central file server



A shared namespace



Location-transparent access



Reliable data storage and the benefits of a local desktop file systems



Low cost



Privacy from nosy sysadmins



Resistance to geographically localized faults

Stefan Heinz, WS 07/08

Key design objectives



Emulation of a local NTFS file system



Scalability



Provide the benefits of BFT



Minimal administrative effort

Farsite Motivation / Introduction

Stefan Heinz, WS 07/08

Outline

 Motivation / Introduction  System Overview  System Architecture  File System Features  Summary / Conclusion

Stefan Heinz, WS 07/08

Farsite System Overview – Design Assumptions



High-bandwidth, low-latency network



Majority of machines are up for the majority of the time



Incorrelated machine downtimes



Independent permanent machine failures



Each machine performs correctly for its immediate user

Stefan Heinz, WS 07/08

Farsite System Overview – Namespace Roots



Hierarchical directory namespace



Farsite supports multiple roots (like names of file servers)



Each root is managed by a set of machines, which form a BFT group

rootA rootB SubDirA SubDirB

Stefan Heinz, WS 07/08



Each user private key is encrypted with a symmetric key derived from the user’s password and then stored in a globally-readable directory



Usage of certificate revocation lists

Farsite System Overview – Trust and Certification

Certification Authority namespace certificate user certificate machine certificate

Stefan Heinz, WS 07/08

Outline

 Motivation / Introduction  System Overview  System Architecture  File System Features  Summary / Conclusion

Stefan Heinz, WS 07/08

Farsite System Architecture – Basic System



Every machine may perform three roles

 client  member of a directory group  file host 

A directory group collectively manages file information using a BFT protocol



The BFT protocol guarantees data consistency as long as fewer than a third of the machines misbehave

Stefan Heinz, WS 07/08

Farsite System Architecture – Basic System

directory group metadata filedata clients

Stefan Heinz, WS 07/08

Farsite System Architecture – Enhancements

directory group metadata hashes filedata file hosts & clients BFT replication raw replication

Scalability How many machines may die until data is lost?

Stefan Heinz, WS 07/08

Farsite System Architecture – Enhancements

Performance



Usage of local caching and file leases



Updates not pushed directly to the directory group, because most file writes are deleted or overwritten shortly after they occur

Stefan Heinz, WS 07/08

Farsite System Architecture – Enhancements

Security



Clients encrypt written file data with the public keys of all authorized readers



Directory group cryptographically validates requests from users before accepting updates Reliability



When a machine is unavailable for an extended period of time, its functions migrate to one or more other machines



Data is lost permanently only if too many machines fail within too small a time window to permit regeneration

Stefan Heinz, WS 07/08

Outline

 Motivation / Introduction  System Overview  System Architecture  File System Features  Summary / Conclusion

Stefan Heinz, WS 07/08

Farsite File System Features - Security

generate one-way hash of each block encrypt the blocks using the hashes as keys use a randomly generated file key to encrypt the hashes and encrypt this key with the public keys of authorized readers block encyryption allows for:

• writing individual blocks
• read individual blocks without

the need to load the entire file Benefits: encryptions are comparable, e.g. to identify duplicated files

Convergent Encryption

Stefan Heinz, WS 07/08

Farsite File System Features - Scalability



Delegation of parts of the namespace



Hint based pathname translation Clients cache pathnames and their mappings to directory groups



Delayed directory-change notification

 Clients register for a notification when a user lists a directory  The directory group packages the information, signs it and

sends it to the registered clients

Stefan Heinz, WS 07/08

Outline

 Motivation / Introduction  System Overview  System Architecture  File System Features  Summary / Conclusion

Stefan Heinz, WS 07/08



Farsite is a scalable, decentralized network file system which uses insecure and unreliable machines as a basis for a virtual file server that is secure and reliable



To achieve this it uses a lot of known techniques: replication, BFT, cryptography, certificates, leases, caching



It also introduces new techniques:

 convergent encryption  timed byzantine operations

Farsite Summary / Conclusion

directory group metadata hashes filedata file hosts BFT replication raw replication

Stefan Heinz, WS 07/08



Performance Measurements



Performance conclusion: Farsite performs significantly better than remote file access via CIFS

Farsite Summary / Conclusion

”For our performance evaluation, we configured a five- machine Farsite system [...]. Four machines served as file hosts and as members of a directory group, and

• ne machine served as a client.”

Stefan Heinz, WS 07/08

Zyzzyva

Speculative Byzantine Fault Tolerance Kotla et al., 2007

Stefan Heinz, WS 07/08

Outline

 Motivation / Introduction  Protocol  Agreement Protocol  View Changes  Correctness  Summary / Conclusion

Stefan Heinz, WS 07/08

Outline

 Motivation / Introduction  Protocol  Agreement Protocol  View Changes  Correctness  Summary / Conclusion

Stefan Heinz, WS 07/08

Zyzzyva: Speculative BFT Motivation / Introduction

Goal of BFT protocols: Transform a high-performance service into a high-performance and reliable service

Stefan Heinz, WS 07/08

Why another BFT protocol?



A lot of different BFT protocols exist, which perform differently in different situations, e.g under different workload



Such complexity represents a barrier to adoption of BFT techniques because it requires to choose the right technique for a workload which then should not deviate from expectations Outperform other BFT protocols

Zyzzyva: Speculative BFT Motivation / Introduction

BFT? Zyzzyva Yes

Stefan Heinz, WS 07/08



One replica is selected as a primary



The primary proposes an order on client requests to the other replicas



Unlike in other protocols the replicas speculatively execute requests without running an expensive agreement protocol



Replicas states may diverge, but clients help to detect and correct inconsistencies



The replies of the replicas carry sufficient history information for clients to determine if the replies and history are stable and guaranteed to be eventually committed

Zyzzyva: Speculative BFT Motivation / Introduction

Stefan Heinz, WS 07/08

Traditional BFT state machine replication

Zyzzyva: Speculative BFT Motivation / Introduction

Client Primary Replica 1 Replica 2 Replica 3 request reply Agreement Execution

Cost: Agreement protocol overhead

Stefan Heinz, WS 07/08

Zyzzyva: Speculative BFT Replication

Client Primary Replica 1 Replica 2 Replica 3 request reply Speculative execution

Zyzzyva: Speculative BFT Motivation / Introduction

Cost: No explicit replica agreement

Stefan Heinz, WS 07/08

Outline

 Motivation / Introduction  Protocol  Agreement Protocol  View Changes  Correctness  Summary / Conclusion

Stefan Heinz, WS 07/08



Clients should act only upon replies that correspond to stable requests executed in a total order that is guaranteed to eventually commit at all correct servers



The request has afterwards the same sequence number at all correct replicas and the same history of preceding requests

• bserved by the client

Zyzzyva: Speculative BFT Protocol - Agreement Protocol

Stefan Heinz, WS 07/08



Client sends request to the primary

Zyzzyva: Speculative BFT Protocol - Agreement Protocol

m=< REQUEST ,o ,t ,c>c

client primary

Stefan Heinz, WS 07/08



Primary receives request, assigns sequence number and forwards ordered request to replicas <OR ,m> OR=<ORDER−REQ ,v ,n,hn,d ,ND>p d=Hm,hn=H hn−1,d

Zyzzyva: Speculative BFT Protocol - Agreement Protocol

client primary

Stefan Heinz, WS 07/08



Replica receives ordered request, speculatively executes it and responds to the client

client primary

<<SPEC−RESPONSE ,v ,n,hn, Hr,c ,t >i,i,r ,OR >

Zyzzyva: Speculative BFT Protocol - Agreement Protocol

Stefan Heinz, WS 07/08



Client gathers speculative responses

client primary

Zyzzyva: Speculative BFT Protocol - Agreement Protocol

What cases can occur?

Stefan Heinz, WS 07/08



Client gathers speculative responses

 Client receives 3f+1 matching responses and completes the

request

client primary

Zyzzyva: Speculative BFT Protocol - Agreement Protocol

Stefan Heinz, WS 07/08



Client gathers speculative responses

 Client receives between 2f+1 and 3f matching responses,

assembles a commit certificate and transmits it to the replicas

client primary

Zyzzyva: Speculative BFT Protocol - Agreement Protocol

<COMMIT ,c ,CC >c

Stefan Heinz, WS 07/08



Client gathers speculative responses

 Client sends commit certificate  Replicas acknowledge with a LOCAL-COMMIT message  Client receives 2f+1 LOCAL-COMMIT messages and

completes the request

client primary

Zyzzyva: Speculative BFT Protocol - Agreement Protocol

Stefan Heinz, WS 07/08



Client gathers speculative responses

 Client doesn't gather 2f+1 matching SPEC-RESPONSE or

LOCAL-COMMIT messages and resends its request to all replicas, which forward the request to the primary

client primary

Zyzzyva: Speculative BFT Protocol - Agreement Protocol

<CONFIRM−REQ ,v ,m,i>i

Stefan Heinz, WS 07/08



Client gathers speculative responses

 Client receives responses indicating inconsistent ordering by

the primary and sends a proof of misbehavior to the replicas

 Replicas initiate a view change to oust the faulty primary and

forwards the POM message to all other replicas

client primary

Zyzzyva: Speculative BFT Protocol - Agreement Protocol

< POM ,v , POM >c

Stefan Heinz, WS 07/08

client primary f faulty replicas, one

• f them the primary

Zyzzyva: Speculative BFT View Changes

< I−HATE−THE−PRIMARY ,v > i



If a replica receives f+1 votes of no confidence in the primary, then it commits to a view change (becomes silent) and multicasts to all replicas a proof that f+1 replicas have no confidence

Stefan Heinz, WS 07/08



View change completes, when the new primary, using 2f+1 VIEW-CHANGE messages from distinct replicas, computes the history of requests that all correct replicas must adopt to enter the new view



Primary sends NEW-VIEW message to all replicas including this history and a proof of validity

Zyzzyva: Speculative BFT View Changes

Stefan Heinz, WS 07/08

Outline

 Motivation / Introduction  Protocol  Agreement Protocol  View Changes  Correctness  Summary / Conclusion

Stefan Heinz, WS 07/08

Zyzzyva ensures the following conditions



Safety If a request with sequence number n and history completes, then any request that completes with a higher sequence number has a history that includes as a prefix



Liveness Any request issued by a correct client eventually completes hn n'≥n hn' hn

Zyzzyva: Speculative BFT Correctness

Stefan Heinz, WS 07/08

Zyzzyva: Speculative BFT Correctness - Safety

Within a view



A request completes when a client receives 3f+1 matching SPEC-RESPONSE messages in phase 1 or 2f+1 matching LOCAL-COMMIT messages in phase 2



If a request completes with sequence number n then no

• ther request can do this because correct replicas

 send only SPEC-RESPONSE messages for a given

sequence number

 send only one LOCAL-COMMIT after seeing 2f+1 matching

SPEC-RESPONSE messages

Stefan Heinz, WS 07/08

Zyzzyva: Speculative BFT Correctness - Safety

Within a view



For any two requests r and r' that complete with sequence numbers n and n' there are at least 2f+1 replicas that ordered each request



Because there are only 3f+1 replicas in total, at least one correct replica ordered both



Therefore if n < n' the history is a prefix of the history

hn

hn'

Stefan Heinz, WS 07/08

Across views



If a request r completes with 2f+1 matching LOCAL-COMMITs, then at least f+1 correct replicas have received a CC for r and will send this to the new primary in the VIEW-CHANGE message, so r will be included in the ”new” history



If a request r completes with 3f+1 SPEC-RESPONSEs, then every correct replica will include the ORDER-REQ for r in its VIEW-CHANGE message => r will be supported by at least f+1 replicas in the set of 2f+1 VIEW-CHANGEs collected by the new primary

Zyzzyva: Speculative BFT Correctness - Safety

Stefan Heinz, WS 07/08

Primary and client correct => request completes



Client receives 3f+1 matching responses => request completes



Client receives < 3f+1 matching reponses

 Client receives at least 2f+1, since at most f of the 3f+1

replicas are faulty

 Client sends a COMMIT to all replicas, all correct replicas

send a LOCAL-COMMIT to the client

 Client gets at least 2f+1 LOCAL-COMMITs, therefore the

request completes

Zyzzyva: Speculative BFT Correctness - Liveness

Stefan Heinz, WS 07/08

Request from correct client does not complete in current view => view change occurs



If the request doesn't complete, the clients sends it to all replicas



Every correct replica contacts the primary (ORDER-REQ)



Every correct replica that doesn't get an answer initiates a view change by sending I-HATE-THE-PRIMARY

Zyzzyva: Speculative BFT Correctness - Liveness

Stefan Heinz, WS 07/08

Request from correct client does not complete in current view => view change occurs



If a correct replica receives f+1 I-HATE-THE-PRIMARYs, then the replica commit to a view change



If no correct replica receives f+1 I-HATE-THE-PRIMARYs, then all correct replica that did not receive an answer from the primary get it from another replica

Zyzzyva: Speculative BFT Correctness - Liveness

Stefan Heinz, WS 07/08

Request from correct client does not complete in current view => view change occurs



No correct replica receives f+1 I-HATE-THE-PRIMARYs

 Therefore the client receives at least 2f+1 SPEC-RESP.s  The client receives fewer then 2f+1 matching responses

(otherwise the client could form a COMMIT and complete)

 Then the client can form a POM and send it to the replicas to

initiate a view change

Zyzzyva: Speculative BFT Correctness - Liveness

Stefan Heinz, WS 07/08

Outline

 Motivation / Introduction  Protocol  Agreement Protocol  View Changes  Correctness  Summary / Conclusion

Stefan Heinz, WS 07/08

Zyzzyva: Speculative BFT Summary / Conclusion



BFT protocol that uses speculation to reduce the cost



Replicas can become temporarily inconsistent with one another, but clients help to detect and correct this inconsistencies



Clients act only upon replies that correspond to stable requests executed in a total order that is guaranteed to eventually commit at all correct servers

Stefan Heinz, WS 07/08

Zyzzyva: Speculative BFT Summary / Conclusion

Optimal 3f+1 3f+1 2f+1 2f+1 2 3 3 Zyzzyva Replication cost Total replicas Replication cost

• App. replicas

Throughput Overhead: Crypto ops 2+3f/b Latency Message delays

Stefan Heinz, WS 07/08

Thank you for your attention!
