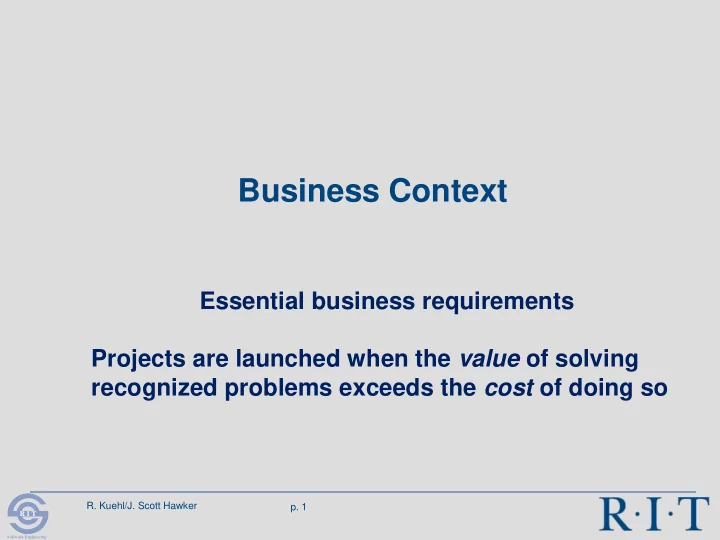

Business Context Essential business requirements Projects are launched when the value of solving recognized problems exceeds the cost of doing so R. Kuehl/J. Scott Hawker p. 1 R I T Software Engineering Understand Business Context Learn
SLIDE 2
SLIDE 3
- R. Kuehl/J. Scott Hawker
- p. 3
R I T
Software Engineering
Business Drivers
Market share, competition Product lines Global markets Revenue Cost to develop, deploy, operate, and maintain Personnel objectives Liability, safety, reputation Standards and regulations Intellectual property Environmental and sustainability concerns
SLIDE 4
- R. Kuehl/J. Scott Hawker
- p. 4
R I T
Software Engineering
Stakeholders
Deployment Development Business Problem Technical Solution
Customers Users Managers Investors Analysts Technical Writers Service Providers Maintainers Developers Testers
A stakeholder is any individual or organization which is actively involved in, materially affected by, or influences the outcome of the system
360 degrees of perspective
A customer is a stakeholder that derives either direct or indirect benefit from the system
SLIDE 5
- R. Kuehl/J. Scott Hawker
- p. 5
R I T
Software Engineering
Formulate a Vision, Understand Scope
Gain understanding and agreement with the stakeholders on …
Problem – the fundamental business opportunity or problem to be addressed Purpose – what the system is intended to do to address the problem Vision – the long term strategic purpose and intent of the system Scope – what portion of the long term vision the current system will address System Boundary (scope) – the boundaries of the problem and solution
May be documented in a Vision and Scope document
SLIDE 6
- R. Kuehl/J. Scott Hawker
- p. 6
R I T
Software Engineering
Problem Statement
Characterize the business opportunity With the stakeholders (to achieve consensus), formulate a problem statement using the following template:
The problem of <describe the problem> Affects <the stakeholders affected by the problem> The impact of which is <what is the impact of the problem> A successful solution would <list some key benefits of a successful solution>
SLIDE 7
- R. Kuehl/J. Scott Hawker
- p. 7
R I T
Software Engineering
Example Problem Statement
The problem of: untimely and improper resolution
- f customer service issues
Affects: our customers, customer support reps and service technicians. The impact of which is: customer dissatisfaction, perceived lack of quality, unhappy employees and loss of revenue. A successful solution would: provide real-time access to a trouble-shooting database by support reps and facilitate dispatch of service technicians, in a timely manner, only to those locations which genuinely need their assistance.
SLIDE 8
- R. Kuehl/J. Scott Hawker
- p. 8
R I T
Software Engineering
System Purpose
What the system is intended to do to solve the problem Essence: the fundamental purpose the system exists or will need to exist All requirements must contribute to this purpose Example: an automated teller machine:
Essence: withdraw money from my bank account Implementation: cards, PINs, buttons, etc. Lots of technological solutions, but only one essence
What features are suggested by the proposed solution?
SLIDE 9
- R. Kuehl/J. Scott Hawker
- p. 9
R I T
Software Engineering
Purpose, Advantage, Measurement
Purpose: a statement of what the system is supposed to do Advantage: what business advantage does it provide? Measurement: how do you measure the advantage? Then analyze the cost-benefit tradeoff
Reasonable? Is the system construction effort (cost) less than the advantage (value)? Feasible? Can the system achieve the measure? Achievable? Does the organization have (or can it acquire) the skills to build the system, and operate it
- nce built?
[Robertson and Robertson]
SLIDE 10
- R. Kuehl/J. Scott Hawker
- p. 10
R I T
Software Engineering
Purpose, Advantage, Measurement (PAM) Example
Winter Road Maintenance system
Purpose: To accurately forecast road freezing times and dispatch de-icing trucks Advantage: To reduce road accidents by forecasting icy road conditions Measurement: Accidents attributed to ice shall be no more than 15% of the total number of accidents during winter
Additional purpose
Purpose: To save money on winter road maintenance costs Advantage: Reduced de-icing and road maintenance costs Measurement: The cost of de-icing shall be reduced by 25% of the current cost of road treatment, and damage to roads from ice shall be reduced by 50%
[Robertson and Robertson]
SLIDE 11
- R. Kuehl/J. Scott Hawker
- p. 11
R I T
Software Engineering
Vision Statement of the Solution
Strategic vision for how the system will achieve business objectives
Decision making context during the system’s life cycle
Template approach with stakeholders to formulate a consensus system vision statement
For <customer> Who <problem statement(s)> The <system name > Is <system category> That <key benefits> Unlike <existing or alternative solutions> Our system <is an x that provides y>
SLIDE 12
- R. Kuehl/J. Scott Hawker
- p. 12
R I T
Software Engineering
Example System Vision Statement
(Voting Machine)
For voters who need to vote electronically to comply with current election laws the RIT Voting Kiosk is an electronic voting machine that will comply with all election laws, provide an easy to use interface, and be fully secure. It will be highly reliable and easy to configure for new elections. Unlike previous voting machines in the market our system will redundantly record every vote on paper to enable recounts and prevent fraud.
SLIDE 13
- R. Kuehl/J. Scott Hawker
- p. 13
R I T
Software Engineering
System Scope Analysis
Scope – what portion of the long term vision will the current system version address? Provide development perspective in discussion with stakeholders to produce … Project release plan - initial and subsequent release features
What drivers and constraints? System product line strategy? System platform opportunities?
- Short versus long term investment
SLIDE 14
- R. Kuehl/J. Scott Hawker
- p. 14
R I T
Software Engineering
Determine System Boundaries
SLIDE 15
- R. Kuehl/J. Scott Hawker
- p. 15
R I T
Software Engineering
System Thinking
What is the system?
All of the inputs All of the outputs All of the processing flow and data management that translates inputs into outputs
What is system thinking?
Thinking strategically to visualize the holistic system solution Seeing the big picture
System analyst/architect role/responsibiity
SLIDE 16
- R. Kuehl/J. Scott Hawker
- p. 16
R I T
Software Engineering
System Thinking (cont)
Why is system thinking important?
Avoid missing requirements - understand the entire system problem Stimulates innovative solutions thinking Leads to extensible system architecture design Scales and structures project scope planning System solutions add value to the user and businesses
The whole is greater than the sum of the parts, AND the whole adds value to each part
SLIDE 17
- R. Kuehl/J. Scott Hawker
- p. 17
R I T
Software Engineering
Establish the System Boundaries
Scope and scale
What the system is What the system is not Draw a circle around the problem
Constraints
Environment Budget Schedule Technology Politics Legacy systems to integrate or replace
SLIDE 18
- R. Kuehl/J. Scott Hawker
- p. 18
R I T
Software Engineering
Establish the System Boundaries
Is voice mail an actor or part
- f the system?
Caller (actor)
System boundary?
Simple Phone System Voice Mail Callee (actor)
SLIDE 19
- R. Kuehl/J. Scott Hawker
- p. 19
R I T
Software Engineering
iDevice
iTunes
System Boundary?
Actors interact with the system An actor is NOT part of the system An actor could be:
a human a device another system
Software and hardware infrastructure are NOT actors (they are part of the delivered system)
SLIDE 20
- R. Kuehl/J. Scott Hawker
- p. 20
R I T
Software Engineering
The Context Diagram
A useful graphical representation of the system to be developed
A visual tool for stakeholder communications that is easy to understand
Establishes the system boundaries and connections Simple graphical conventions:
A central circle is the abstraction of the entire system – the boundary Surrounding rectangles represent terminators outside of the system that interface to it; people, other systems,
- rganizations, devices
Arrows between the system and terminators represent input and output flows of data, control, material
SLIDE 21
- R. Kuehl/J. Scott Hawker
- p. 21
R I T
Software Engineering
System Scope Representation
Point of Sale System Salesperson Inventory System Consumer Management System Scanner Card Reader Printer Financial System
Inventory Record Scanned Card Record Marketing Collateral Consumer Purchases Operator Actions Operator Responses
Context Diagram Example
SLIDE 22
- R. Kuehl/J. Scott Hawker
- p. 22
R I T
