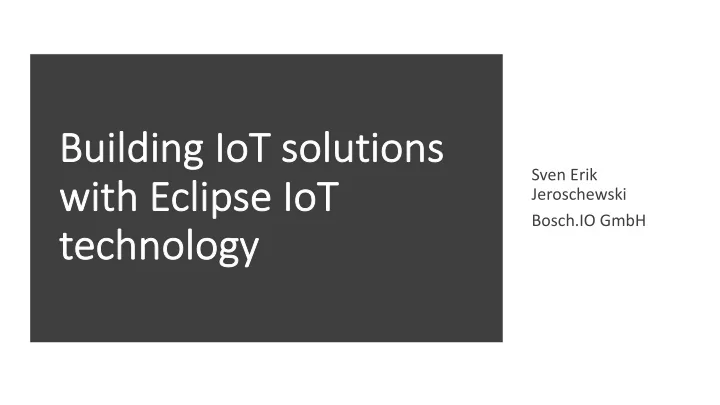

Buildi Bui ding ng IoT T so soluti utions ns Sven Erik wi with Ecl clipse Io IoT Jeroschewski Bosch.IO GmbH tech chnology Backend for IoT Solutions My App 1 My App 2 ? 1) 2) 1), 2) Photos by Sven Erik Jeroschewski, can be used
Sven Erik Jeroschewski Bosch.IO GmbH
My App 1 My App 2
1), 2) Photos by Sven Erik Jeroschewski, can be used under CC0 (https://creativecommons.org/publicdomain/zero/1.0/deed.en) 1) 2)
Device type A IoT solution A Device type B Device type E Device type D Device type C IoT solution C IoT solution D IoT solution E IoT solution B
a3 a2 a1 b3 b2 b1 c3 c2 c1 d3 d2 d1 e3 e2 e1
Future products Required IoT middleware Products today
Devices
a3 a2 a1 b3 b2 b1 c3 c2 c1 d3 d2 d1 e3 e2 e1
Generic IoT platform technology IoT services IoT cloud IoT enabled devices
IoT solution A IoT solution C IoT solution D IoT solution E IoT solution B
Industrial manufacturers
Foundation
developers
Eurotec, Bosch.IO
Gateways and IoT Cloud Platforms
‘Eclipse', 'Built on Eclipse' and 'Eclipse Ready', 'BIRT', “Eclipse IoT' are trademarks of Eclipse Foundation, Inc., https://iot.eclipse.org
Device Connectivity (Protocol B) Message Infrastructure Digital Device Representation My App 1 Device Connectivity (Protocol A) Software Management My App 2
Material belongs to Eclipse Hono project, https://www.eclipse.org/hono/, licensed under EPL-2.0, https://www.eclipse.org/legal/epl-2.0/:
Material belongs to Eclipse Hono project, https://www.eclipse.org/hono/, licensed under EPL-2.0, https://www.eclipse.org/legal/epl-2.0/:
Material belongs to Eclipse Ditto project, https://www.eclipse.org/ditto/, licensed under EPL-2.0, https://www.eclipse.org/legal/epl-2.0/:
Live Twin
Material belongs to Eclipse Ditto project, https://www.eclipse.org/ditto/, licensed under EPL-2.0, https://www.eclipse.org/legal/epl-2.0/:
Material belongs to Eclipse hawkBit project, https://www.eclipse.org/hawkBit/, licensed under EPL-1.0, https://www.eclipse.org/org/documents/epl-v10.php:
Software Management
Device Connectivity HTTP Message Infrastructure Digital Device Representation My App 1 Device Connectivity MQTT My App 2
§ Provides multiple Eclipse IoT Projects as bundle § Package Zero: Eclipse Hono, Eclipse Ditto, Eclipse hawkBit
§ Still in early phase but promising Mission: “IoT Packages is an effort by the Eclipse IoT working group, to create easy to deploy Eclipse IoT based, end-to-end scenarios, on top of Kubernetes and Helm”
Material belongs to Eclipse IoT Packages project, https://www.eclipse.org/packages/, licensed under EPL-2.0, https://www.eclipse.org/legal/epl-2.0/
Eclipse Kura ™ Eclipse Kapua ™
Material belongs to Eclipse Kura project, https://www.eclipse.org/kura/, licensed under EPL-2.0, https://www.eclipse.org/legal/epl-2.0/: Material belongs to Eclipse Kapua project, https://www.eclipse.org/kapua/, licensed under EPL-1.0, https://www.eclipse.org/org/documents/epl-v10.php:
Authorization System Service Registry System Orchestration System
systems of systems building “local clouds”
Producing System Consuming System
This project has received funding from ECSEL Joint Undertaking (JU) under grant agreement No 826452. The JU receives support from the European Union’s Horizon 2020 research and innovation programme and Norway and Switzerland.
Photo by Sven Erik Jeroschewski, can be used under CC0 (https://creativecommons.org/publicdomain/zero/1.0/deed.en)
Photos by Sven Erik Jeroschewski, can be used under CC0 (https://creativecommons.org/publicdomain/zero/1.0/deed.en)
Material belongs to Eclipse Vorto project, https://www.eclipse.org/vorto/, licensed under EPL-2.0, https://www.eclipse.org/legal/epl-2.0/:
Material belongs to Eclipse Vorto and Eclipse Vorto Repository project, https://vorto.eclipse.org/#/, licensed under EPL-2.0, https://www.eclipse.org/legal/epl-2.0/:
