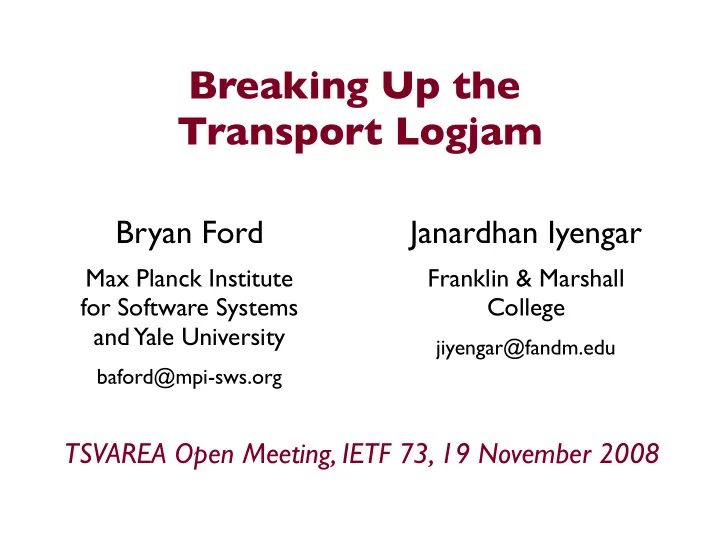

Breaking Up the Transport Logjam Bryan Ford Janardhan Iyengar Max - - PowerPoint PPT Presentation

Breaking Up the Transport Logjam

Bryan Ford

Max Planck Institute for Software Systems and Yale University

baford@mpi-sws.org

Janardhan Iyengar

Franklin & Marshall College

jiyengar@fandm.edu

TSVAREA Open Meeting, IETF 73, 19 November 2008

Evolutionary Pressures on Transports

• Applications need more fexible abstractions

— many semantic variations [RDP, DCCP, SCTP, SST, ...]

• Networks need new congestion control schemes

— high-speed [Floyd03], wireless links [Lochert07], ...

• Users need better use of available bandwidth

— dispersion [Gustafsson97], multihoming [SCTP],

logistics [Swany05], concurrent multipath [Iyengar06]…

• Operators need administrative control

— Performance Enhancing Proxies [RFC3135],

NATs and Firewalls [RFC3022], traffc shapers

The Transport Layer is Stuck in an Evolutionary Logjam!

Many Solutions, None Cleanly Deployable

• New transports undeployable

— NATs & frewalls — chicken & egg: application demand vs kernel support

• New congestion control schemes undeployable

— impassable “TCP-friendliness” barrier — must work end-to-end, on all network types in path

• Multipath/multifow enhancements undeployable

— “You want how many fows? Not on my network!” — Fundamentally “TCP-unfriendly”?

The Problem

Traditional transports confate 3 function areas... T

• break transport logjam, must separate concerns

Transport Protocol

Endpoint Identification (port numbers) Transport Abstraction Congestion Control Semantics, Reliability Concerns (applications care) Performance Concerns (users, opers care) Naming, Routing Concerns (NATs, firewalls care)

Our Proposal

Physical Layer Data Link Layer Network Layer Session Layer Application Layer Presentation Layer Physical Layer Data Link Layer Network Layer Session Layer Application Layer Presentation Layer Endpoint Layer Flow Regulation Layer Transport Layer Transport Layer

Break up the Transport according to these functions:

Endpoint Layer

TCP Header UDP Header DCCP Header

Endpoint Identifcation via Ports

Current transports have separate port spaces

IP Header

Source Port Dest Port Source Port Dest Port Source Port Dest Port Source IP Address Dest IP Address

TCP Port Space UDP Port Space DCCP Port Space Network Layer IP Address Space

But What Are Ports?

Ports are routing info!

— IP address ⇒ Inter-Host Routing — port numbers ⇒ Intra-Host Routing

Do ports really belong in the Network Layer?

• Firewalls, NATs, traffc shapers need to know ports

— Parse transport headers ⇒ only TCP, UDP get through

• IPv4: ports increasingly just “16 more IP address bits”

— DHCP port borrowing/sharing [Despres, Bajko, Boucadair]

• IPv6: could dispense with ports entirely

— Assign each host a CIDR subnet, low bits = “port #”

A Pragmatic Approach

Factor endpoints into shared Endpoint Layer

Transport Header Transport Header IP Header

Source IP Address Dest IP Address

Endpoint Layer Port Space Network Layer IP Address Space Endpoint Header

Source Port Dest Port

Transport Header Transport Header

Surprise!

Workable starting point exists — UDP!

IP Header

Source IP Address Dest IP Address

Endpoint Layer Port Space Network Layer IP Address Space UDP Header

Source Port Dest Port

Embrace the Inevitable

It's happening in any case!

• TCP/UDP is “New Waist of the Internet Hourglass”

[Rosenberg 08]

• Every new transport requires UDP encapsulations

— SCTP [Ong 00, Tuexen 07, Denis-Courmont 08] — DCCP [Phelan 08]

• And a lot of non-transports do too

— IPSEC [RFC 3947/3948], Mobile IP [RFC 3519],

Teredo [RFC 4380], …

...but the new model also has technical benefts...

Practical Benefts

Can now evolve separately:

• Transport functions:

— New transports get through frewalls, NATs, etc. — Easily deploy new user-space transports,

interoperable with kernel transports

— Application controls negotiation among transports

• Endpoint functions:

— Better cooperation with NATs [UPnP, NAT

• PMP, ...]

— identity/locator split, port/service names [Touch06],

security and authentication info ...?

Kernel/User Transport Non-Interoperability

Network Protocol Kernel-space Transport Application Network Protocol User-space Transport UDP Application Kernel User Kernel User

Host A Host B

User-space transports are easy to deploy, but can't talk to kernel implementations of same transport!

(without special privileges, raw sockets, etc.)

Kernel/User Transport Interoperability

Network Protocol Kernel-space Transport Application Network Protocol User-space Transport Application Kernel User Kernel User Endpoint Protocol Endpoint Protocol

Host A Host B

Endpoint layer provides full interoperability, user-space transports require no special privileges

Transport Negotiation

Many applications support multiple transports, but can't negotiate them effciently

Host A

“Cautious Negotiation”

Host B Host A Host B

“Shotgun Negotiation”

“TCP or UDP?” “UDP!” “Hello!” “Hello?” “Hello?”

UDP TCP TCP UDP

“Hello?”

UDP

“Hello!”

TCP

RST

“Zero-RTT” Transport Negotiation

When application controls its Endpoint Layer ports, it can combine transport negotiation with setup Host A

Transport Negotiation “Meta-SYN” T1 SYN

T2 SYN

T3 SYN T2 SYN/ACK

Host B

B chooses Transport 2

Future Endpoint Layer Evolution

“Next-Generation Endpoint Layer” could:

• Remain backward-compatible with UDP

— Use same port space, fall back on UDP transparently

• Annotate endpoints with richer information

— Port names [Touch 06], user/service names, auth info, ...?

• Proactively advertise listen sockets [Cheshire?]

— NATs could propagate listener advertisements upstream,

translate inbound connections as policy permits

— Enable cleaner solutions to “NAT signaling” mess?

[UPnP, NAT

• PMP, MIDCOM, NSIS, ...]

Flow Layer

Traditional “Flow Regulation”

Transport includes end-to-end congestion control

— regulates fow transmission rate to network capacity

But one E2E path may cross many...

— different network technologies

• Wired LAN, WAN, WiFi, Cellular, AdHoc, Satellite, …
• Each needs different, specialized CC algorithms!

— different administrative domains

• Each cares about CC algorithm in use!

Can't tune performance, fairness in one domain w/o affecting other domains, E2E semantics [RFC3515]

Proposed Solution

Factor fow regulation into underlying Flow Layer

Transport Layer Network Layer Endpoint Layer Flow Layer

Transport Semantics, Reliability Flow Performance Regulation Endpoint Naming

Practical Benefts (1/3)

Can split E2E fow into separate CC segments

— Specialize CC algorithm to network technology — Specialize CC algorithm within admin domain

… without interfering with E2E transport semantics!

Endpoint Flow

Host A Host B

Network Transport Application Endpoint Flow Network Transport Application Endpoint Flow Network Endpoint Flow Network

Flow Middlebox Flow Middlebox Segment 2 Satellite Segment 1 WiFi LAN Segment 3 Internet Core

Ad Hoc Wireless Network Wired Internet Mobile Wireless Link

Example Scenarios

(1) Last-mile proxies for wireless/mobile links

Flow MidB Flow MidB Host Host

Mobility-Aware Congestion Control [M-TCP, ELFN, ...] TCP-friendly Congestion Control [Reno, TFRC, ...] Ad Hoc Wireless Congestion Control [WTCP, ATCP, ...]

LAN LAN

Example Scenarios

(2) Lossy Satellite or Long-Distance Wireless Links

Host Host

TCP-friendly CC [Reno, TFRC, ...]

Flow MidB

TCP-friendly CC [Reno, TFRC, ...] Specialized/High-Performance CC [HS-TCP, Scalable TCP, BIC-TCP, ...]

Flow MidB

LAN LAN

Host Host Flow MidB Flow MidB

Site 2 LAN

Example Scenarios

(3) Inter-Site WAN Links in Corporate Networks

Site 1 LAN

Host Host Flow MidB Flow MidB

TCP-friendly or Locally Configured Congestion Control Explicit Congestion Control [XCP, manually configured max rate, ...] Reserved Bandwidth WAN Link TCP-friendly or Locally Configured Congestion Control

End-to-End Congestion Control, One Segment at a Time

Net Source Host Flow Middlebox Router Router Router Router Target Host App Net App Congestion Control Loop 1 Congestion Control Loop 2 Transmit Buffer Receive Buffer Feedback

(ACKs, etc.)

Feedback

(ACKs, etc.)

(1) (1) Link Link Bottleneck Bottleneck (3) (3) “Packets “Packets Dropped!” Dropped!” (4) (4) “Slow “Slow Down!” Down!” (5) (5) Queue Queue Fills Fills (6) (6) “Packets “Packets Dropped!” Dropped!” (7) (7) “Slow “Slow Down!” Down!” (2) (2) Queue Queue Fills Fills

Practical Benefts (2/3)

Incrementally deploy performance enhancements

— multihoming [RFC 4960], multipath [Lee 01],

dispersion [Gustafsson 97], aggregation [Seshan 97], ...

… without affecting E2E transport semantics!

Endpoint Protocol

Host A Host B

Transport Protocol Application Protocol Endpoint Protocol Transport Protocol Application Protocol Endpoint Protocol

Flow Middlebox

end-to-end multipath

Endpoint Protocol Flow Protocol Flow Protocol Flow Protocol Flow Protocol

per-segment multipath

Flow Middlebox

Practical Benefts (3/3)

Endpoint Protocol

Host A2

Transport Protocol Application Protocol Endpoint Protocol

Flow Middlebox

Endpoint Protocol Flow Protocol Flow Protocol Flow Protocol

Flow Middlebox

Endpoint Protocol

Host A1

Transport Protocol Application Protocol Flow Protocol Endpoint Protocol

Host B2

Transport Protocol Application Protocol Flow Protocol Endpoint Protocol

Host B1

Transport Protocol Application Protocol Flow Protocol

Aggregate Flow

Shared Access Network

• r Wide-Area Link
• Can aggregate fows cleanly within domains for

— Effcient traffc measurement, management — Fairness at “macro-fow” granularity

“Fairness Enhancing Middleboxes”

Give customers equal shares of upstream BW independent of # connections per customer

ISP Network Home Network

Host Flow Aggregation Middlebox

Upstream Providers

CPE Host ISP-controlled CPE with flow aggregation

Home Network

Host CPE Host Per-bundle CC, 1:1 BW sharing

FTP User BitTorrent User

Developing the Flow Layer

• T

wo likely “starting points” already exist:

— Congestion Manager [Balakrishnan99] — DCCP [Kohler06]

(just stop thinking of it as a “transport”)

• Major work areas:

— Support for fow middleboxes, path segmenting — Interfaces between (new) higher & lower layers

Transport Layer

Transport Layer

Contains “what's left”:

• Semantic abstractions that apps care about

— Datagrams, streams, multi-streams, …

• Reliability mechanisms

— “Hard” acknowledgment, retransmission

• App-driven buffer/performance control

— Receiver-directed fow control — Stream prioritization — ...

Epilogue

The Transport Logjam Revisited

• New transports undeployable

— Can traverse NATs & frewalls — Can deploy interoperably in kernel or user space — Apps can negotiate effciently among transports

• New congestion control schemes undeployable

— Can specialize to different network types — Can deploy/manage within administrative domains

• Multipath/multifow enhancements undeployable

— Can deploy/manage within administrative domains

Only the Beginning...

Promising architecture (we think), but lots of details to work out

— Functionality within each layer — Interfaces between each layer — Application-visible API changes

Big, open-ended design space

— We are starting to explore, but

would love to collaborate

— We are interested in learning about

• ther relevent applications/scenarios

Conclusion

Transport evolution is stuck T

• unstick, need to separate functions:

— Endpoint naming/routing into separate Endpoint Layer — Flow regulation into separate Flow Layer — Leave semantic abstractions in Transport Layer

Complexity

• More layers

=> increase

• Puts necessary hacks into framework

=> decrease

• What's the balance?

What about the e2e principle?

• Flow layer implements in-network mechanisms that

focus on communication performance

— Precisely the role for which the e2e principle

justifes in-network mechanisms

• All state in the fow middleboxes is performance-

related soft state

• Transport layer retains state related to reliability

— End-to-end fate-sharing is thus preserved

• Transport layer is still the frst end-to-end layer
