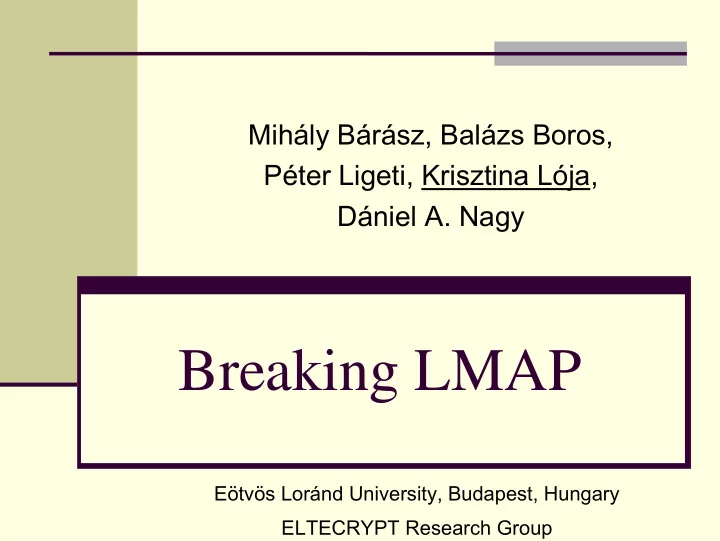

Breaking LMAP

Mihály Bárász, Balázs Boros, Péter Ligeti, Krisztina Lója, Dániel A. Nagy

Eötvös Loránd University, Budapest, Hungary ELTECRYPT Research Group

LMAP

Pedro Peris-Lopez, Julio Cesar Hernandez- Castro, Juan M. Estvez Tapiador, Arturo Ribagorda:

LMAP: A Real Lightweight Mutual Authentication Protocol for Low-cost RFID tags

in: Proc. of RFIDSec06 Workshop on RFID Security, July 12-14, Graz, Austria, 2006.

2/29

LMAP Minimalist cryptography

Simple operations:

• Bitwise XOR ( ⊕ )
• Bitwise OR ( ∨ )
• Addition mod 2m ( + )

The goal:

• low complexity in the tags
• adequate level of security

Is it possible?

3/29

Active attack against LMAP

Tieyan Li, Guilin Wang: Security Analysis of Two Ultra-Lightweight Mutual Authentication Protocol for Low-cost RFID tags, IFIP SEC 2007.

Active attack against the LMAP

de-synchronization attack full-disclosure attack

96 rounds of authentication is needed

4/29

Breaking LMAP

Our attack:

Passive attack Intercepting a few consecutive rounds of

authentication of the same tag is enough to calculate the keys and all other secrets

The attacker can impersonate the tag in the

subsequent rounds

5/29

LMAP keys and secrets

K = K1 || K2 || K3 || K4 the keys

384 bit = 96 + 96 + 96 + 96 bit

ID: a constant identification number (96 bit) IDS: an identification number that must be updated after every round of authentication (96 bit) n1, n2: random numbers generated by the reader (96 bit)

6/29

Mutual authentication

Tag identification READER READER TAG

hello IDS

READER READER TAG Mutual authentication

A || B || C D

7/29

Messages A, B, C, D

A = IDS ⊕ K1 ⊕ n1 now the tag knows n1 B = (IDS ∨ K2) + n1 reader authentication C = IDS + K3 + n2 the tag knows n2

READER READER TAG READER READER TAG

D = (IDS + ID) ⊕ n1 ⊕ n2 tag authentication

A, B, C D

8/29

Updating the keys and IDS

IDS(n+1) = (IDS(n) + (n2(n) ⊕ K4(n))) ⊕ ID K1(n+1) = K1(n) ⊕ n2(n) ⊕ (K3(n) + ID) K2(n+1) = K2(n) ⊕ n2(n) ⊕ (K4(n) + ID) K3(n+1) = (K3(n) ⊕ n1(n) ) + (K1(n) ⊕ ID) K4(n+1) = (K4(n) ⊕ n1(n) ) + (K2(n) ⊕ ID)

9/29

A = IDS ⊕ K1 ⊕ n1 B = (IDS ∨ K2) + n1 C = IDS + K3 + n2 D = (IDS + ID) ⊕ n1 ⊕ n2

Weaknesses of the LMAP

LMAP uses only bitwise operations and

addition modulo 296 every bit depends

• nly on the less significant bits

For the least significant bits the XOR

• peration and addition modulo 296 are the

same we can compute the least significant bits

A = IDS ⊕ K1 ⊕ n1 B = (IDS ∨ K2) + n1 C = IDS + K3 + n2 D = (IDS + ID) ⊕ n1 ⊕ n2 IDS(n+1) = (IDS(n) + (n2

(n) ⊕ K4 (n))) ⊕ ID

K1

(n+1) = K1 (n) ⊕ n2 (n) ⊕ (K3 (n) + ID)

K2

(n+1) = K2 (n) ⊕ n2 (n) ⊕ (K4 (n) + ID)

K3

(n+1) = (K3 (n) ⊕ n1 (n) ) + (K1 (n) ⊕ ID)

K4

(n+1) = (K4 (n) ⊕ n1 (n) ) + (K2 (n) ⊕ ID)

10/29

Weaknesses of the LMAP

The addition modulo 296 means no difficulty if

we know every less significant bit

The bitwise OR ( ∨ ) operation is a weak point

in the protocol. B = (IDS ∨ K2) + n1 information about n1 with the help of 1 bits of the IDS

11/29

A = IDS ⊕ K1 ⊕ n1 B = (IDS ∨ K2) + n1 C = IDS + K3 + n2 D = (IDS + ID) ⊕ n1 ⊕ n2

The steps of breaking LMAP

We will need a few consecutive rounds of

authentication of the same tag

We compute the least significant bits (the 96th bits) in

a round where the least significant bit of the IDS is 1

Next we compute the 95th bits We will need r rounds so that

[IDS(n)]k ∨ [IDS(n+1)]k ∨ [IDS(n+2)]k ∨ … ∨ [IDS(n+r-1)]k = 1 for every k = 1, 2, …, 96 + two more rounds and we can compute every key and secret

[M(n)]k : the k-th bit of message M in round n

12/29

A = IDS ⊕ K1 ⊕ n1 B = (IDS ∨ K2) + n1 C = IDS + K3 + n2 D = (IDS + ID) ⊕ n1 ⊕ n2

The least significant bits: n1, K1

Let us assume, that [IDS(n)]96 = 1 ([IDS(n)]96 ∨ [K2(n)]96) = 1 B = (IDS ∨ K2) + n1 [B(n)]96 = 1 ⊕ [n1(n)]96 [n1(n)]96 = [B(n)]96 ⊕ 1 [A(n)]96 = [IDS(n)]96 ⊕ [K1(n)]96 ⊕ [n1(n)]96 [K1(n)]96 = [A(n)]96 ⊕ [IDS(n)]96 ⊕ [n1(n)]96

[M(n)]k : the k-th bit of message M in round n Known: A, B, C, D, IDS Unknown: K1, K2, K3, K4, ID, n1, n2 Unknown: K1, K2, K3, K4, ID, n1, n2 Known: the 96th bit of n1, K1 k Known Unknown Is actually calculated 13/29

A = IDS ⊕ K1 ⊕ n1 B = (IDS ∨ K2) + n1 C = IDS + K3 + n2 D = (IDS + ID) ⊕ n1 ⊕ n2

The least significant bits: K4

D = (IDS + ID) ⊕ n1 ⊕ n2 [D(n)]96 = [IDS(n)]96 ⊕ [ID]96 ⊕ [n1(n)]96 ⊕ [n2(n)]96 IDS(n+1) = (IDS(n) + (n2(n) ⊕ K4(n))) ⊕ ID [IDS(n+1)]96 = ([IDS(n)]96 + ([n2(n)]96 ⊕ [K4(n)]96)) ⊕ ⊕ [ID]96 [K4(n)]96 = [IDS(n+1)]96 ⊕ [D(n)]96 ⊕ [n1(n)]96

Unknown: the 96th bit of K2, K3, ID, n2 Known: the 96th bit of n1, K1, K4 14/29

A = IDS ⊕ K1 ⊕ n1 B = (IDS ∨ K2) + n1 C = IDS + K3 + n2 D = (IDS + ID) ⊕ n1 ⊕ n2

Messages A, B, C, D in round n+1

[A(n+1)]96 = [IDS(n+1)]96 ⊕ [K1

(n)]96 ⊕ [n2 (n)]96 ⊕ [K3 (n)]96 ⊕

⊕ [ID]96 ⊕ [n1

(n+1)]96

[B(n+1)]96 = ([IDS(n+1)]96 ∨ ([K2

(n)]96 ⊕ [n2 (n)]96 ⊕ [K4 (n)]96 ⊕

⊕ [ID]96)) ⊕ [n1

(n+1)]96

[C(n+1)]96 = [IDS(n+1)]96 ⊕ [K3

(n)]96 ⊕ [n1 (n)]96 ⊕ [K1 (n)]96 ⊕

⊕ [ID]96 ⊕ [n2

(n+1)]96

[D(n+1)]96 = [IDS(n+1)]96 ⊕ [ID]96 ⊕ [n1

(n+1)]96 ⊕ [n2 (n+1)]96

(If [IDS(n+1)]96 = 1, then [B(n+1)]96 = 1 ⊕ [n1

(n+1)]96 )

A = IDS ⊕ K1 ⊕ n1 B = (IDS ∨ K2) + n1 C = IDS + K3 + n2 D = (IDS + ID) ⊕ n1 ⊕ n2

15/29

The least significant bits: n2

(n+1)‏ [C(n+1)]96 = [IDS(n+1)]96 ⊕ [K3(n)]96 ⊕ [n1(n)]96 ⊕ ⊕ [K1(n)]96 ⊕ [ID ]96 ⊕ [n2 (n+1)]96 [C(n)]96 = [IDS(n)]96 ⊕ [K3(n)]96 ⊕ [n2(n)]96 [D(n)]96 = [IDS(n)]96 ⊕ [ID]96 ⊕ [n1(n)]96 ⊕ [n2(n)]96 [C(n)]96 ⊕ [D(n)]96 = [ID]96 ⊕ [n1(n)]96 ⊕ [K3(n)]96 [n2(n+1)]96 = [IDS(n+1)]96 ⊕ [C(n+1)]96 ⊕ [C(n)]96 ⊕ ⊕ [D(n)]96 ⊕ [K1(n)]96

Unknown: the 96th bit of K2, K3, ID, n2 Known: the 96th bit of n1, n2

(n+1), K1, K4

16/29

A = IDS ⊕ K1 ⊕ n1 B = (IDS ∨ K2) + n1 C = IDS + K3 + n2 D = (IDS + ID) ⊕ n1 ⊕ n2

The least significant bits: K2

(n) [IDS(n+2)]96 = [IDS(n+1)]96 ⊕ [n2(n+1)]96 ⊕ ⊕ [K4(n+1)]96 ⊕ [ID]96 = = [IDS(n+1)]96 ⊕ [n2(n+1)]96 ⊕ [K4(n)]96 ⊕ [n1(n)]96 ⊕ [K2(n)]96 [K2(n)]96 = [IDS(n+2)]96 ⊕ [IDS(n+1)]96 ⊕ [n2(n+1)]96 ⊕ ⊕ [K4(n)]96 ⊕ [n1(n)]96

Unknown: the 96th bit of K3, ID, n2 Known: the 96th bit of n1, n2

(n+1), K1, K2, K4

17/29

A = IDS ⊕ K1 ⊕ n1 B = (IDS ∨ K2) + n1 C = IDS + K3 + n2 D = (IDS + ID) ⊕ n1 ⊕ n2

The least significant bits: n1

(n+1), ID

[B(n+1)]96 = ([IDS(n+1)]96 ∨ ([K2

(n)]96 ⊕ [n2 (n)]96 ⊕ [K4 (n)]96 ⊕

⊕ [ID]96)) ⊕ [n1

(n+1)]96

[D(n)]96 = [IDS(n)]96 ⊕ [ID]96 ⊕ [n1

(n)]96 ⊕ [n2 (n)]96

[n1

(n+1)]96 = [B(n+1)]96 ⊕ ([IDS(n+1)]96 ∨ ([K2 (n)]96 ⊕ [K4 (n)]96 ⊕

[D(n)]96 ⊕ [n1

(n)]96 ))

[D(n+1)]96 = [IDS(n+1)]96 ⊕ [ID]96 ⊕ [n1

(n+1)]96 ⊕ [n2 (n+1)]96

[ID]96 = [IDS(n+1)]96 ⊕ [D(n+1)]96 ⊕ [n1

(n+1)]96 ⊕ [n2 (n+1)]96

Unknown: the 96th bit of K3, n2 Known: the 96th bit of n1, n1

(n+1), n2 (n+1), K1, K2, K4, ID

18/29

A = IDS ⊕ K1 ⊕ n1 B = (IDS ∨ K2) + n1 C = IDS + K3 + n2 D = (IDS + ID) ⊕ n1 ⊕ n2

The least significant bits: n2, K3

[D(n)]96 = [IDS(n)]96 ⊕ [ID]96 ⊕ [n1(n)]96 ⊕ [n2(n)]96 [n2(n)]96 = [IDS(n)]96 ⊕ [ID]96 ⊕ [n1(n)]96 ⊕ [D(n)]96 [C(n)]96 = [IDS(n)]96 ⊕ [K3(n)]96 ⊕ [n2(n)]96 [K3(n)]96 = [IDS(n)]96 ⊕ [C(n)]96 ⊕ [n2(n)]96 Now we know the least significant bit of every key and secret!

19/29

A = IDS ⊕ K1 ⊕ n1 B = (IDS ∨ K2) + n1 C = IDS + K3 + n2 D = (IDS + ID) ⊕ n1 ⊕ n2

The 95th bits

[A(n)]95 = [IDS(n)]95 ⊕ [K1(n)]95 ⊕ [n1(n)]95 [B(n)]95 = ([IDS(n)]95 ∨ [K2(n)]95) ⊕ [n1(n)]95 ⊕ ⊕ (([IDS(n)]96 ∨ [K2(n)]96) ∨ [n1(n)]96) [C(n)]95 = [IDS(n)]95 ⊕ [K3(n)]95 ⊕ [n2(n)]95 ⊕ ⊕ ([K3(n)]96 ∨ [n2(n)]96) [D(n)]95 = [IDS(n)]95 ⊕ [ID]95 ⊕ ([IDS(n)]96 ∨ [ID]96) ⊕ ⊕ [n1(n)]95 ⊕ [n2(n)]95

20/29

A = IDS ⊕ K1 ⊕ n1 B = (IDS ∨ K2) + n1 C = IDS + K3 + n2 D = (IDS + ID) ⊕ n1 ⊕ n2

Computing all the bits

If [IDS(n)]95 = 1, then the problem is equivalent

with that of least significant bits.

If [IDS(n)]95 = 0, then we have to wait for a

later round where the 95th bit of the IDS is 1.

After this we will compute the 95th bits in

round n as well.

After the 95th bits we compute the 94th bits

and so on. (We use the same few rounds of authentication!)

21/29

A = IDS ⊕ K1 ⊕ n1 B = (IDS ∨ K2) + n1 C = IDS + K3 + n2 D = (IDS + ID) ⊕ n1 ⊕ n2

Waiting for the bit 1 in the IDS

P([IDS(n)]k = 1) = ½ P([IDS(n)]k = 1 | [IDS(n-1)]k = 0) = P([IDS(n)]k = 1 | [IDS(n-1)]k = 1) = ½ IDS(n+1) = (IDS(n) + (n2(n) ⊕ K4(n))) ⊕ ID random If [IDS(n)]95 = 0, then in a later round it must be 1

22/29

Computing the bits in round n knowing the bits in round n+1

If [IDS(n)]95 = 0 and [IDS(n+1)]95 = 1 [A(n)]95 = [K1(n)]95 ⊕ [n1(n)]95 [B(n)]95 = [K2(n)]95 ⊕ [n1(n)]95 ⊕ ⊕ (([IDS(n)]96 ∨ [K2(n)]96) ∨ [n1(n)]96) [C(n)]95 = [K3(n)]95 ⊕ [n2(n)]95 ⊕ ([K3(n)]96 ∨ [n2(n)]96) [D(n)]95 = [ID(n)]95 ⊕ ([IDS(n)]96 ∨ [ID(n)]96) ⊕ [n1(n)]95 ⊕ ⊕ [n2(n)]95

23/29

A = IDS ⊕ K1 ⊕ n1 B = (IDS ∨ K2) + n1 C = IDS + K3 + n2 D = (IDS + ID) ⊕ n1 ⊕ n2

Computing the bits in round n knowing the bits in round n+1

[K1

(n+1)]95 = [K1 (n)]95 ⊕ [n2 (n)]95 ⊕ [K3 (n)]95 ⊕ [ID]95 ⊕

⊕ ([K3

(n)]96 ∨ [ID]96)

[C(n)]95 = [K3

(n)]95 ⊕ [n2 (n)]95 ⊕ ([K3 (n)]96 ∨ [n2 (n)]96)

[K1

(n)]95 = [K1 (n+1)]95 ⊕ [ID]95 ⊕ ([K3 (n)]96 ∨ [ID]96) ⊕ [C(n)]95 ⊕

⊕ ([K3

(n)]96 ∨ [n2 (n)]96)

[A(n)]95 = [K1

(n)]95 ⊕ [n1 (n)]95

[n1

(n)]95 = [A(n)]95 ⊕ [K1 (n)]95

24/29

A = IDS ⊕ K1 ⊕ n1 B = (IDS ∨ K2) + n1 C = IDS + K3 + n2 D = (IDS + ID) ⊕ n1 ⊕ n2

Computing the bits in round n knowing the bits in round n+1

[B(n)]95 = [K2

(n)]95 ⊕ [n1 (n)]95 ⊕

⊕ (([IDS(n)]96 ∨ [K2

(n)]96) ∨ [n1 (n)]96)

[K2

(n)]95 = [B(n)]95 ⊕ [n1 (n)]95 ⊕

⊕ (([IDS(n)]96 ∨ [K2

(n)]96) ∨ [n1 (n)]96)

[D(n)]95 = [ID(n)]95 ⊕ ([IDS(n)]96 ∨ [ID(n)]96) ⊕ [n1

(n)]95 ⊕ [n2 (n)]95

[n2

(n)]95 = [D(n)]95 ⊕ [ID(n)]95 ⊕ ([IDS(n)]96 ∨ [ID(n)]96) ⊕ [n1 (n)]95

25/29

A = IDS ⊕ K1 ⊕ n1 B = (IDS ∨ K2) + n1 C = IDS + K3 + n2 D = (IDS + ID) ⊕ n1 ⊕ n2

Computing the bits in round n knowing the bits in round n+1

[C(n)]95 = [K3(n)]95 ⊕ [n2(n)]95 ⊕ ([K3(n)]96 ∨ [n2(n)]96) [K3(n)]95 = [C(n)]95 ⊕ [n2(n)]95 ⊕ ([K3(n)]96 ∨ [n2(n)]96) [IDS(n+1)]95 = [n2(n)]95 ⊕ [K4(n)]95 ⊕ [ID]95 [K4(n)]95 = [IDS(n+1)]95 ⊕ [n2(n)]95 ⊕ [ID]95

26/29

A = IDS ⊕ K1 ⊕ n1 B = (IDS ∨ K2) + n1 C = IDS + K3 + n2 D = (IDS + ID) ⊕ n1 ⊕ n2

The needed rounds

We need r +2 rounds so that for every k =1, 2, …, 96

[IDS(n)]k ∨ [IDS(n+1)]k ∨ [IDS(n+2)]k ∨ … ∨ [IDS(n+r-1)]k = 1

The expected number of r is about 7.93 Expected number of the needed rounds: about 9.93

Distribution of r :

<10-2 0.01 0.02 0.04 0.08 0.14 0.22 P(r =t) 14 13 12 11 10 9 8 t 0.25 0.17 0.05 <10-2 <10-5 <10-11 <10-29 P(r =t) 7 6 5 4 3 2 1 t

27/29

Conclusion

The attack is really effective:

We have given an algorithm to break LMAP

with a passive attack

The probability that 15 consecutive rounds

are enough is about 0.98

The expected value is less than 10

28/29

Thank You for Your attention!
