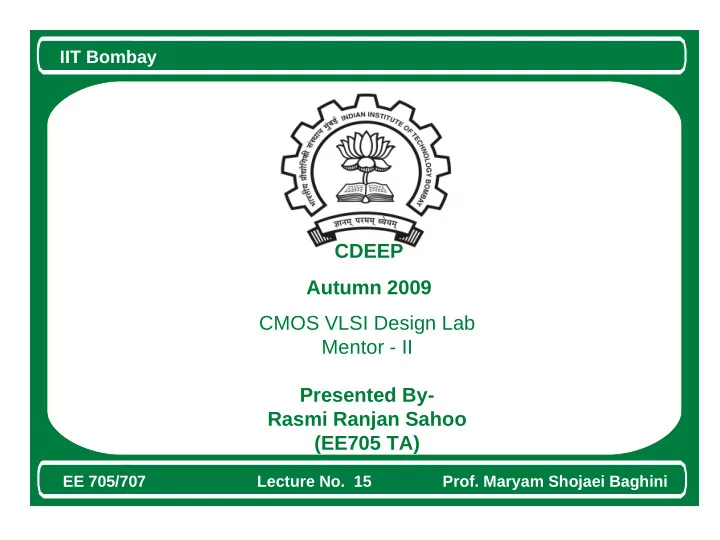

IIT Bombay Beginning of Presentation CDEEP Autumn 2009 CMOS VLSI Design Lab Mentor - II Presented By- Rasmi Ranjan Sahoo (EE705 TA) EE 705/707 Lecture No. 15 Prof. Maryam Shojaei Baghini IIT Bombay

slide-1
SLIDE 1

Beginning of Presentation

IIT Bombay

CMOS VLSI Design Lab Mentor - II Presented By- Rasmi Ranjan Sahoo (EE705 TA) CDEEP Autumn 2009

EE 705/707 Lecture No. 15 Prof. Maryam Shojaei Baghini

slide-2
SLIDE 2

IIT Bombay

EE 705/707 Lecture No. 15 Prof. Maryam Shojaei Baghini

Introduction

The following tutorial will demonstrate a step by step method for schematic driven Layout in MentorG. Name of the tool for Schematic Driven Layout is ICSTATION .

slide-3
SLIDE 3

IIT Bombay

EE 705/707 Lecture No. 15 Prof. Maryam Shojaei Baghini

Including Rule Files

  • Make sure that the following rule files are included at the time of creating

new project.

Rule files:

  • # DRC rules file: /cad/Mentor_tools/umc_018/rule_deck/DRC/G-DF-

MIXED_MODE_RFCMOS18-1.8V-3.3V-1P3M_4M_5M_6M-MMC-Calibre-drc-2.8- P1

  • # LVS rules file: /cad/Mentor_tools/umc_018/rule_deck/LVS/Calibre.LVS.txt
  • # SDL rules file: /cad/Mentor_tools/umc_018/process/umc18mmrf_sdl_rules
  • # PEX rules file: /cad/Mentor_tools/umc_018/rule_deck/LVS/Calibre.LVS.txt
slide-4
SLIDE 4

IIT Bombay

EE 705/707 Lecture No. 15 Prof. Maryam Shojaei Baghini

Creating a Layout Cell View

  • STEP (1): In ICstudio’s Library window, select the library that

contains the Cell whose layout you wish to make. Then select the Cell and click on File>New>View from the menu bar. A window will pop-up asking for the cell view type. Choose Layout as View type. The view name Will be automatically named layout.

slide-5
SLIDE 5

IIT Bombay

EE 705/707 Lecture No. 15 Prof. Maryam Shojaei Baghini

  • STEP (2) :By Pressing “Next” a new window will appear asking you for the

“connectivity Source”. Select “schematic” to open IC-station in “SDL” (Schematic Driven Layout) mode.

slide-6
SLIDE 6

IIT Bombay

EE 705/707 Lecture No. 15 Prof. Maryam Shojaei Baghini

  • STEP (3) : By pressing Finish this will open IC-station.
slide-7
SLIDE 7

IIT Bombay

EE 705/707 Lecture No. 15 Prof. Maryam Shojaei Baghini

Creating SDL

  • Step (1) : Placing the devices : Now there are two ways of placing

the Devices in Layout. (i) Manual Pick and place (ii) Auto Pick and

  • Place. These options can be selected from Icon bar.

(i) Manual Pick and Place : Click on Pick and Place icon. It will ask for the placement of PMOS and the layout will appear on layout

  • window. Click on the layout window for placing PMOS. Then it will

show the layout of NMOS which should be placed in a similar manner.

slide-8
SLIDE 8

IIT Bombay

EE 705/707 Lecture No. 15 Prof. Maryam Shojaei Baghini

slide-9
SLIDE 9

IIT Bombay

EE 705/707 Lecture No. 15 Prof. Maryam Shojaei Baghini

(ii) Auto Pick and Place : Click on Auto Pick and Place icon. NMOS and PMOS both will be placed on layout window.

slide-10
SLIDE 10

IIT Bombay

EE 705/707 Lecture No. 15 Prof. Maryam Shojaei Baghini

  • Step (2) : Placing PMOS in nwell : Click on the rectangle symbol
  • n left side icon palette and then click on nwell on right side layer
  • palette. Draw nwell surrounding PMOS. The screen looks like this :
slide-11
SLIDE 11

IIT Bombay

EE 705/707 Lecture No. 15 Prof. Maryam Shojaei Baghini

  • Step (3) : Placing the Ports : Select the Place Port icon from icon
  • Bar. It will show you a pop-up window with all ports.
slide-12
SLIDE 12

IIT Bombay

EE 705/707 Lecture No. 15 Prof. Maryam Shojaei Baghini

Select the port VDD, select layer ME1. The width and height are selected automatically. Use apply to place VDD. Similarly place the remaining 3 ports. The screen will look like this :

slide-13
SLIDE 13

IIT Bombay

EE 705/707 Lecture No. 15 Prof. Maryam Shojaei Baghini

  • Step 4: Add the substrate Contacts : In the left side icon palette,

click on [D] icon. It shows a pop-up window of add Device . Then select Path based guard-band option. It will show another pop-up window as given below. Set width to 1 and select psub and then “OK”. Go to Layout window and draw the Substrate contact. Similarly draw the nwell contact.

slide-14
SLIDE 14

IIT Bombay

EE 705/707 Lecture No. 15 Prof. Maryam Shojaei Baghini

The screen will look like this : Note that the psubstrate Contact has been drawn Over ground thereby Connecting it to ground. Similarly nwell contact is connected to VDD.

slide-15
SLIDE 15

IIT Bombay

  • Step 5 : Routing the layout : We have two options. (i) Auto

routing (ii) Manual Routing.

  • (i) Auto routing : Use View> Toolbars> Show assemble toolbar.

The routing toolbar gets added to the icon bar. Click on Auto- routing icon.

EE 705/707 Lecture No. 15 Prof. Maryam Shojaei Baghini

slide-16
SLIDE 16

IIT Bombay

EE 705/707 Lecture No. 15 Prof. Maryam Shojaei Baghini

The screen looks like this after Autorouting.

slide-17
SLIDE 17

IIT Bombay

EE 705/707 Lecture No. 15 Prof. Maryam Shojaei Baghini

(ii) Manual Routing : To start routing press IRoute icon in icon

  • bar. Once you place cursor on where you want to start routing, it will

start guided by fly lines. You can toggle between connectivity layers by pressing space-bar. The screen looks like this :

slide-18
SLIDE 18

IIT Bombay

EE 705/707 Lecture No. 15 Prof. Maryam Shojaei Baghini

  • Step 6: Labelling nets : After routing we need to label the nets

with names used in schematic so that the LVS tool can recognise the nets and compare with schematic. Select Add>Text. Select suitable layer say M1_text for in port. Take the cursor to layout window and left click on the net that you wish to place the text. Similarly label the other ports i.e. OUT, VDD etc.

slide-19
SLIDE 19

IIT Bombay

EE 705/707 Lecture No. 15 Prof. Maryam Shojaei Baghini

Verifying the layout design Rules (DRC) :

Now we can verify layout by running DRC and LVS checks. We will run Calibre interactive. Running calibre interactive DRC : Select Tools> calibre > Run DRC entry from pull-down menu. The following pop-up window will appear.

slide-20
SLIDE 20

IIT Bombay

EE 705/707 Lecture No. 15 Prof. Maryam Shojaei Baghini The DRC file is already loaded ( loaded at the time of creating project and creating schematic). Click on run DRC.

slide-21
SLIDE 21

IIT Bombay

EE 705/707 Lecture No. 15 Prof. Maryam Shojaei Baghini

Running Calibre interactive LVS :

Go to tools> calibre > run LVS. The following pop-up window will appear.

slide-22
SLIDE 22

IIT Bombay

EE 705/707 Lecture No. 15 Prof. Maryam Shojaei Baghini

The LVS file is already loaded (loaded at the time of creating the project and creating the schematic). Click on run LVS. The RVE window will pop-up and results will look like this.

slide-23
SLIDE 23

IIT Bombay

EE 705/707 Lecture No. 15 Prof. Maryam Shojaei Baghini

Parasitic Extraction

  • After completing DRC and LVS checks we can proceed to

extract parasitic capacitance and resistance of the layout.

  • Click Tools>Calibre>PEX
  • Check the box Export from schematic viewer under inputs.
  • Click run PEX
slide-24
SLIDE 24

IIT Bombay

EE 705/707 Lecture No. 15 Prof. Maryam Shojaei Baghini

The extraction should run, producing PEX netlist like the

  • ne below.
slide-25
SLIDE 25

IIT Bombay

References

www.sharada.ee.iitb.ac.in/~ee705/sugested_reading/umc_kit_user_guide.pdf

EE 705/707 Lecture No. 15 Prof. Maryam Shojaei Baghini

slide-26
SLIDE 26

IIT Bombay

Thank you

EE 705/707 Lecture No. 15 Prof. Maryam Shojaei Baghini
