Bayesian Statistical Parameter Synthesis for Linear Temporal Properties of Stochastic Models Luca Bortolussi 1 Simone Silvetti 2,3 1DMG, University of Trieste, Trieste, Italy lbortolussi@units.it 2DIMA, University of Udine, Udine, Italy 3Esteco

slide-1
SLIDE 1

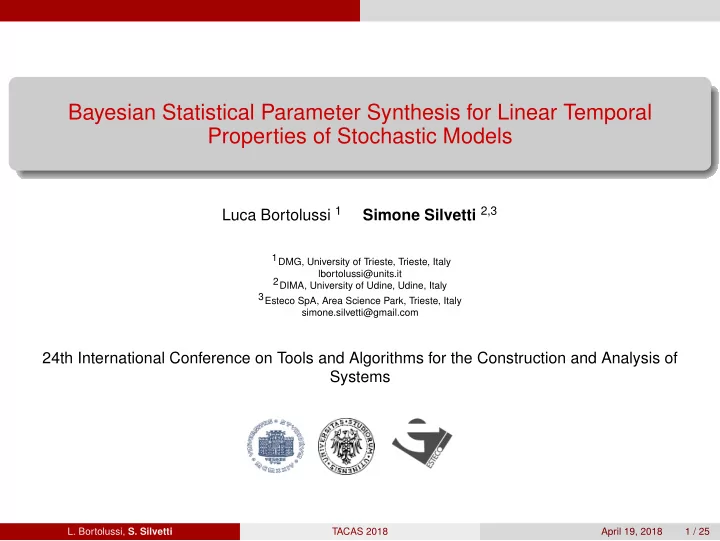

Bayesian Statistical Parameter Synthesis for Linear Temporal Properties of Stochastic Models

Luca Bortolussi 1 Simone Silvetti 2,3

1DMG, University of Trieste, Trieste, Italy lbortolussi@units.it 2DIMA, University of Udine, Udine, Italy 3Esteco SpA, Area Science Park, Trieste, Italy simone.silvetti@gmail.com

24th International Conference on Tools and Algorithms for the Construction and Analysis of Systems

  • L. Bortolussi, S. Silvetti

TACAS 2018 April 19, 2018 1 / 25

slide-2
SLIDE 2

Outline

1

Introduction Parametric Chemical Reaction Networks Signal Temporal Logic Verification: a statistical approach

2

Bayesian Threshold Synthesis Problem Definition Algorithm

3

Test Case and Results

4

Conclusions and Future Works

  • L. Bortolussi, S. Silvetti

TACAS 2018 April 19, 2018 2 / 25

slide-3
SLIDE 3

Introduction Parametric Chemical Reaction Networks

Models: Parametric Chemical Reaction Networks

Consider a Parametric Chemical Reaction Network (PCRN) as a tuple M = (S, X, D, x0, R, Θ) r1 : S + I

α1

− − → 2I α1 = ki · Xs · Xi N r2 : I

α2

− − → R α2 = kr · Xi θ = (θ1, . . . , θk) is the vector of (kinetic) parameters, taking values in a compact hyperrectangle Θ ⊂ Rk a trajectory is a function xθ : T → D

  • L. Bortolussi, S. Silvetti

TACAS 2018 April 19, 2018 3 / 25

slide-4
SLIDE 4

Introduction Signal Temporal Logic

The requirements: Signal Temporal Logic (STL)

Signal temporal logic is: a linear continuous time temporal logic. the atomic predicates are of the form µ(X):=[g(X) ≥ 0] where g : Rn → R is a continuous function. the syntax is φ := ⊥ | ⊤ | µ | ¬φ | φ ∨ φ | φU[T1,T2]φ, (1) Eventually and Globally Operators F[T1,T2]φ ≡ ⊤U[T1,T2]φ and G[T1,T2]φ ≡ ¬F[T1,T2]¬φ Interpretation (Boolean semantics) (xθ, 0) | = F[0,50]|X1 − X2| > 10

  • L. Bortolussi, S. Silvetti

TACAS 2018 April 19, 2018 4 / 25

slide-5
SLIDE 5

Introduction Verification: a statistical approach

Verification

Problem Which is the probability that a trajectory xθ generated by Mθ satisfies φ ∈ STL? Pφ(θ) ≡ P(φ | Mθ) := P({xθ(t) ∈ PathMθ | (xθ, 0) | = φ})

  • L. Bortolussi, S. Silvetti

TACAS 2018 April 19, 2018 5 / 25

slide-6
SLIDE 6

Introduction Verification: a statistical approach

Verification

Problem Which is the probability that a trajectory xθ generated by Mθ satisfies φ ∈ STL? Pφ(θ) ≡ P(φ | Mθ) := P({xθ(t) ∈ PathMθ | (xθ, 0) | = φ}) Classical Verification compute or estimate the satisfaction probability Pφ(θ) for a fixed θ

  • L. Bortolussi, S. Silvetti

TACAS 2018 April 19, 2018 5 / 25

slide-7
SLIDE 7

Introduction Verification: a statistical approach

Verification

Problem Which is the probability that a trajectory xθ generated by Mθ satisfies φ ∈ STL? Pφ(θ) ≡ P(φ | Mθ) := P({xθ(t) ∈ PathMθ | (xθ, 0) | = φ}) Classical Verification compute or estimate the satisfaction probability Pφ(θ) for a fixed θ Parametric Verification compute or estimate the satisfaction probability Pφ(θ) as a function of θ ∈ Θ.

  • L. Bortolussi, S. Silvetti

TACAS 2018 April 19, 2018 5 / 25

slide-8
SLIDE 8

Introduction Verification: a statistical approach

Verification

Problem Which is the probability that a trajectory xθ generated by Mθ satisfies φ ∈ STL? Pφ(θ) ≡ P(φ | Mθ) := P({xθ(t) ∈ PathMθ | (xθ, 0) | = φ}) Classical Verification compute or estimate the satisfaction probability Pφ(θ) for a fixed θ Parametric Verification compute or estimate the satisfaction probability Pφ(θ) as a function of θ ∈ Θ. Numerical approaches Numerical Integration ⇒ STATE SPACE EXPLOSION!

  • L. Bortolussi, S. Silvetti

TACAS 2018 April 19, 2018 5 / 25

slide-9
SLIDE 9

Introduction Verification: a statistical approach

Verification

Problem Which is the probability that a trajectory xθ generated by Mθ satisfies φ ∈ STL? Pφ(θ) ≡ P(φ | Mθ) := P({xθ(t) ∈ PathMθ | (xθ, 0) | = φ}) Classical Verification compute or estimate the satisfaction probability Pφ(θ) for a fixed θ Parametric Verification compute or estimate the satisfaction probability Pφ(θ) as a function of θ ∈ Θ. Statistical Approaches Statistical Model Checking (SMC) Smoothed Model Checking (SmMC)

  • L. Bortolussi, S. Silvetti

TACAS 2018 April 19, 2018 6 / 25

slide-10
SLIDE 10

Introduction Verification: a statistical approach

Gaussian Processes

Definition A random variable f(θ), θ ∈ Θ is a GP f ∼ GP(m, k) ⇐ ⇒ (f(θ1), f(θ2), . . . , f(θn)) ∼ N(m, K) where m = (m(θ1; h1), m(θ2; h1), . . . , m(θn; h1)) and Kij = k(f(θi), f(θj); h2) Prediction {f(θ1), . . . , f(θn)

  • f

, f(θ′)} ∼ N(m′, K ′) E(f(θ′)) = (k(θ1, θ′), . . . , k(θN, θ′, ))

  • k

·K −1 · f var(f(θ′)) = k(θ′, θ′) − k · K −1 · kT

  • L. Bortolussi, S. Silvetti

TACAS 2018 April 19, 2018 7 / 25

slide-11
SLIDE 11

Introduction Verification: a statistical approach

Smoothed Model Checking

Hypothesis: The reaction rate αj(x, θ) depends smoothly on θ and polynomially on x. Goal: Approximate θ → Pφ(θ) with a surrogate model θ → ˜ Pφ(θ). Problem: We cannot apply GP directly.

  • L. Bortolussi, S. Silvetti

TACAS 2018 April 19, 2018 8 / 25

slide-12
SLIDE 12

Introduction Verification: a statistical approach

Smoothed Model Checking

Hypothesis: The reaction rate αj(x, θ) depends smoothly on θ and polynomially on x. Goal: Approximate θ → Pφ(θ) with a surrogate model θ → ˜ Pφ(θ). Problem: We cannot apply GP directly. Idea Reconstructing a real-valued latent function f(θ), which is related to Pφ(θ) and which can be approximated through GP regression. f(θ) = Ψ

  • probit

(Pφ(θ)) ⇐ ⇒ Pφ(θ) = f(θ)

−∞

N(0, 1)

  • L. Bortolussi, S. Silvetti

TACAS 2018 April 19, 2018 8 / 25

slide-13
SLIDE 13

Introduction Verification: a statistical approach

Smoothed Model Checking

Hypothesis: The reaction rate αj(x, θ) depends smoothly on θ and polynomially on x. Goal: Approximate θ → Pφ(θ) with a surrogate model θ → ˜ Pφ(θ). Problem: We cannot apply GP directly. Idea Reconstructing a real-valued latent function f(θ), which is related to Pφ(θ) and which can be approximated through GP regression. f(θ) = Ψ

  • probit

(Pφ(θ)) ⇐ ⇒ Pφ(θ) = f(θ)

−∞

N(0, 1) Statistical Surrogates Model From {Pφ(θ1), . . . , Pφ(θn)} we obtain ˜ Pφ(θ) as a statistical surrogate models of Pφ(θ). we can calculate: p

  • ˜

Pφ(θ) ∈ [λ−, λ+]

  • , mean, variance, etc.

large training set ⇒ a more accurate model.

  • L. Bortolussi, S. Silvetti

TACAS 2018 April 19, 2018 8 / 25

slide-14
SLIDE 14

Bayesian Threshold Synthesis Problem

Problem Definition

Partitioning the parameter space Θ in three classes Pα (positive), Nα (negative) and Uα (undefined) Threshold Synthesis Problem - ˇ Ceška et al.1 Pα = {θ ∈ Θ | Pφ(θ) > α} Nα = {θ ∈ Θ | Pφ(θ) < α} Uα = Θ \ (Pα ∪ Nα), vol(Uα)

vol(Θ) < ǫ.

  • 1M. ˇ

Ceška, F. Dannenberg, N. Paoletti, M. Kwiatkowska and L. Brim, Precise parameter synthesis for stochastic biochemical systems, Acta Informatica 56(6), 2017, 589 - 623.

  • L. Bortolussi, S. Silvetti

TACAS 2018 April 19, 2018 9 / 25

slide-15
SLIDE 15

Bayesian Threshold Synthesis Problem

Problem Definition

Partitioning the parameter space Θ in three classes Pα (positive), Nα (negative) and Uα (undefined) Bayesian Threshold Synthesis Problem Pα = {θ ∈ Θ | ˜ Pφ(θ) > α} Nα = {θ ∈ Θ | ˜ Pφ(θ) < α} Uα = Θ \ (Pα ∪ Nα), vol(Uα)

vol(Θ) < ǫ.

  • L. Bortolussi, S. Silvetti

TACAS 2018 April 19, 2018 10 / 25

slide-16
SLIDE 16

Bayesian Threshold Synthesis Problem

Problem Definition

Partitioning the parameter space Θ in three classes Pα (positive), Nα (negative) and Uα (undefined) Bayesian Threshold Synthesis Problem Pα = {θ ∈ Θ | p(˜ Pφ(θ) > α) > δ} Nα = {θ ∈ Θ | p(˜ Pφ(θ) < α) > δ} Uα = Θ \ (Pα ∪ Nα), vol(Uα)

vol(Θ) < ǫ.

  • L. Bortolussi, S. Silvetti

TACAS 2018 April 19, 2018 11 / 25

slide-17
SLIDE 17

Bayesian Threshold Synthesis Problem Definition

Problem Definition

Bayesian Threshold Synthesis Problem Pα = {θ ∈ Θ | p(˜ Pφ(θ) > α) > δ} Nα = {θ ∈ Θ | p(˜ Pφ(θ) < α) > δ} Uα = Θ \ (Pα ∪ Nα), vol(Uα)

vol(Θ) < ǫ.

δ ∈ (0, 1) is the confidence probability. Lower and Upper Bound functions p

  • ˜

Pφ(θ) < λ+(θ, δ)

  • > δ

p

  • ˜

Pφ(θ) > λ−(θ, δ)

  • > δ
  • L. Bortolussi, S. Silvetti

TACAS 2018 April 19, 2018 12 / 25

slide-18
SLIDE 18

Bayesian Threshold Synthesis Problem Definition

Problem Definition

Bayesian Threshold Synthesis Problem Pα = {θ ∈ Θ | p(˜ Pφ(θ) > α) > δ} Nα = {θ ∈ Θ | p(˜ Pφ(θ) < α) > δ} Uα = Θ \ (Pα ∪ Nα), vol(Uα)

vol(Θ) < ǫ.

δ ∈ (0, 1) is the confidence probability. Lower and Upper Bound functions p

  • ˜

Pφ(θ) < λ+(θ, δ)

  • > δ

p

  • ˜

Pφ(θ) > λ−(θ, δ)

  • > δ

Bayesian Threshold Synthesis Problem Pα = {θ ∈ Θ | λ−(θ, δ) > α} Nα = {θ ∈ Θ | λ+(θ, δ) < α} Uα = Θ \ (Pα ∪ Nα), vol(Uα)

vol(Θ) < ǫ.

  • L. Bortolussi, S. Silvetti

TACAS 2018 April 19, 2018 12 / 25

slide-19
SLIDE 19

Bayesian Threshold Synthesis Problem Algorithm

Algorithm I - Grid

  • L. Bortolussi, S. Silvetti

TACAS 2018 April 19, 2018 13 / 25

slide-20
SLIDE 20

Bayesian Threshold Synthesis Problem Algorithm

Algorithm II - Training Set

  • L. Bortolussi, S. Silvetti

TACAS 2018 April 19, 2018 13 / 25

slide-21
SLIDE 21

Bayesian Threshold Synthesis Problem Algorithm

Algorithm III - Prediction

  • L. Bortolussi, S. Silvetti

TACAS 2018 April 19, 2018 13 / 25

slide-22
SLIDE 22

Bayesian Threshold Synthesis Problem Algorithm

Algorithm IV - Tessellation

  • L. Bortolussi, S. Silvetti

TACAS 2018 April 19, 2018 13 / 25

slide-23
SLIDE 23

Bayesian Threshold Synthesis Problem Algorithm

Algorithm V - Tessellation

  • L. Bortolussi, S. Silvetti

TACAS 2018 April 19, 2018 13 / 25

slide-24
SLIDE 24

Bayesian Threshold Synthesis Problem Algorithm

Algorithm VI - Tessellation

  • L. Bortolussi, S. Silvetti

TACAS 2018 April 19, 2018 13 / 25

slide-25
SLIDE 25

Bayesian Threshold Synthesis Problem Algorithm

Algorithm VII - Tessellation

  • L. Bortolussi, S. Silvetti

TACAS 2018 April 19, 2018 13 / 25

slide-26
SLIDE 26

Bayesian Threshold Synthesis Problem Algorithm

Algorithm VIII - Tessellation

  • L. Bortolussi, S. Silvetti

TACAS 2018 April 19, 2018 13 / 25

slide-27
SLIDE 27

Bayesian Threshold Synthesis Problem Algorithm

Algorithm IX - Tessellation

  • L. Bortolussi, S. Silvetti

TACAS 2018 April 19, 2018 13 / 25

slide-28
SLIDE 28

Bayesian Threshold Synthesis Problem Algorithm

Algorithm X - Tessellation

  • L. Bortolussi, S. Silvetti

TACAS 2018 April 19, 2018 13 / 25

slide-29
SLIDE 29

Bayesian Threshold Synthesis Problem Algorithm

Algorithm XI - Active Learning Step

  • L. Bortolussi, S. Silvetti

TACAS 2018 April 19, 2018 13 / 25

slide-30
SLIDE 30

Bayesian Threshold Synthesis Problem Algorithm

Algorithm XII - Update

  • L. Bortolussi, S. Silvetti

TACAS 2018 April 19, 2018 13 / 25

slide-31
SLIDE 31

Bayesian Threshold Synthesis Problem Algorithm

Algorithm XIII - Update

  • L. Bortolussi, S. Silvetti

TACAS 2018 April 19, 2018 13 / 25

slide-32
SLIDE 32

Bayesian Threshold Synthesis Problem Algorithm

Algorithm XIV - Update

  • L. Bortolussi, S. Silvetti

TACAS 2018 April 19, 2018 13 / 25

slide-33
SLIDE 33

Bayesian Threshold Synthesis Problem Algorithm

Algorithm XV - Active Learning Step

  • L. Bortolussi, S. Silvetti

TACAS 2018 April 19, 2018 13 / 25

slide-34
SLIDE 34

Bayesian Threshold Synthesis Problem Algorithm

Algorithm XVI- Update

  • L. Bortolussi, S. Silvetti

TACAS 2018 April 19, 2018 13 / 25

slide-35
SLIDE 35

Bayesian Threshold Synthesis Problem Algorithm

Algorithm XVII - Update

  • L. Bortolussi, S. Silvetti

TACAS 2018 April 19, 2018 13 / 25

slide-36
SLIDE 36

Bayesian Threshold Synthesis Problem Algorithm

Algorithm XVIII - Update

  • L. Bortolussi, S. Silvetti

TACAS 2018 April 19, 2018 13 / 25

slide-37
SLIDE 37

Bayesian Threshold Synthesis Problem Algorithm

Problem: the guarantees

A guarantee Problem

  • L. Bortolussi, S. Silvetti

TACAS 2018 April 19, 2018 14 / 25

slide-38
SLIDE 38

Bayesian Threshold Synthesis Problem Algorithm

Problem: the guarantees

A guarantee Problem

  • L. Bortolussi, S. Silvetti

TACAS 2018 April 19, 2018 15 / 25

slide-39
SLIDE 39

Bayesian Threshold Synthesis Problem Algorithm

Problem: the guarantees

A guarantee Problem Solution Continuity of Gaussian Processes.

  • L. Bortolussi, S. Silvetti

TACAS 2018 April 19, 2018 16 / 25

slide-40
SLIDE 40

Bayesian Threshold Synthesis Problem Algorithm

Problem: the guarantees

A guarantee Problem global/local Lipschitz approach:

  • ˆ

p − L ∗ d

2

  • > α

Heuristic Approach: s ≪ GP length scale and δ = 0.99 Solution Continuity of Gaussian Processes.

  • L. Bortolussi, S. Silvetti

TACAS 2018 April 19, 2018 17 / 25

slide-41
SLIDE 41

Test Case and Results

Epidemic Model: SIR

SIR Model r1 : S + I

α1

− − → 2I α1 = ki · Xs · Xi N r2 : I

α2

− − → R α2 = kr · Xi Disease Extinction φ = (I > 0) U[100,120] (I = 0)

  • L. Bortolussi, S. Silvetti

TACAS 2018 April 19, 2018 18 / 25

slide-42
SLIDE 42

Test Case and Results

Results

Bayesian Threshold Synthesis Problem volume tolerance: ǫ = 0.1 threshold: α = 0.1

Case ki × kr h-grid Time (sec) 1 [0.005, 0.3] × 0.05 0.0007 17.92 ± 2.61 2 0.12 × [0.005, 0.2] 0.0005 4.87 ± 0.01 3 [0.005, 0.3] × [0.005, 0.2] (0.003,0.002) 116.4 ± 4.06

  • L. Bortolussi, S. Silvetti

TACAS 2018 April 19, 2018 19 / 25

slide-43
SLIDE 43

Test Case and Results

Results

Case ki × kr h-grid Time (sec) 1 [0.005, 0.3] × 0.05 0.0007 17.92 ± 2.61 2 0.12 × [0.005, 0.2] 0.0005 4.87 ± 0.01 3 [0.005, 0.3] × [0.005, 0.2] (0.003,0.002) 116.4 ± 4.06

  • L. Bortolussi, S. Silvetti

TACAS 2018 April 19, 2018 20 / 25

slide-44
SLIDE 44

Test Case and Results

Results

Case ki × kr h-grid Time (sec) 1 [0.005, 0.3] × 0.05 0.0007 17.92 ± 2.61 2 0.12 × [0.005, 0.2] 0.0005 4.87 ± 0.01 3 [0.005, 0.3] × [0.005, 0.2] (0.003,0.002) 116.4 ± 4.06

  • L. Bortolussi, S. Silvetti

TACAS 2018 April 19, 2018 21 / 25

slide-45
SLIDE 45

Test Case and Results

Results

Case ki × kr h-grid Time (sec) 1 [0.005, 0.3] × 0.05 0.0007 17.92 ± 2.61 2 0.12 × [0.005, 0.2] 0.0005 4.87 ± 0.01 3 [0.005, 0.3] × [0.005, 0.2] (0.003,0.002) 116.4 ± 4.06

  • L. Bortolussi, S. Silvetti

TACAS 2018 April 19, 2018 22 / 25

slide-46
SLIDE 46

Conclusions and Future Works

Conclusions

Bayesian version of the Threshold Synthesis Problem Smoothed Model Checking + Active Learning Approach good performance in terms of execution time w.r.t [ ˇ Ceška et al.]2, retaining good accuracy at the price of having only statistical guarantees.

  • 2M. ˇ

Ceška, F. Dannenberg, N. Paoletti, M. Kwiatkowska and L. Brim, Precise parameter synthesis for stochastic biochemical systems, Acta Informatica 56(6), 2017, 589 - 623.

  • L. Bortolussi, S. Silvetti

TACAS 2018 April 19, 2018 23 / 25

slide-47
SLIDE 47

Conclusions and Future Works

Future Works

leveraging GPU Computing adaptive grid approach to tessellate the parameter space use GP reconstruction tailored for grid dataset combined approach with numerical methods of [ ˇ Ceška et al.]

  • L. Bortolussi, S. Silvetti

TACAS 2018 April 19, 2018 24 / 25

slide-48
SLIDE 48

Conclusions and Future Works

  • L. Bortolussi, S. Silvetti

TACAS 2018 April 19, 2018 25 / 25
